SIMULATION ANALYSIS

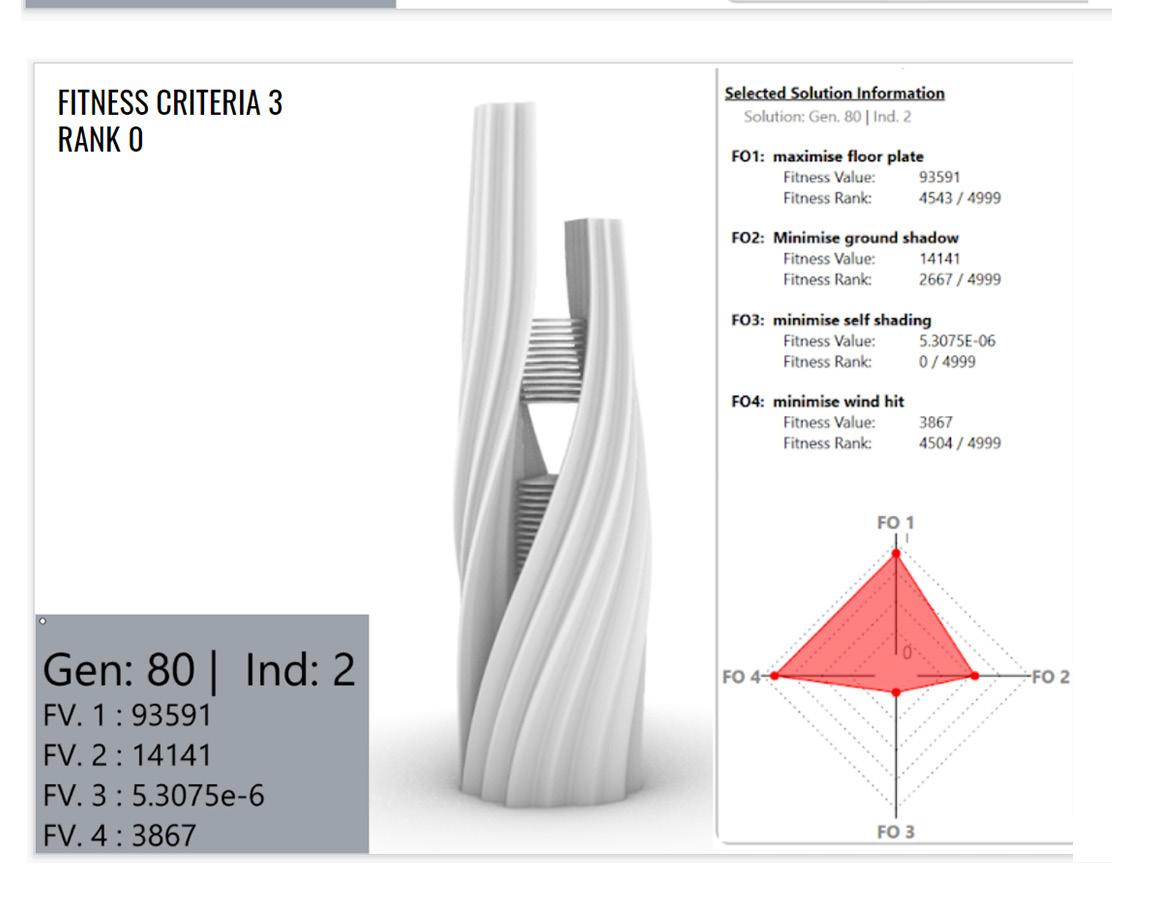

The individual 2 from generation 80 (Figure 20)optimised for the fitness criteria that is minimising self shading on the surface of the building morphology. The factor inducing self shading is controlled by the tapering and the corrugation of the form. More the corrugation , more the surface area, hence, more exposure to sunlight leading to minimisation of self shade. .Also it can be verified that this fitness criteria optimised till the last generations as this individual belongs to generation 80.

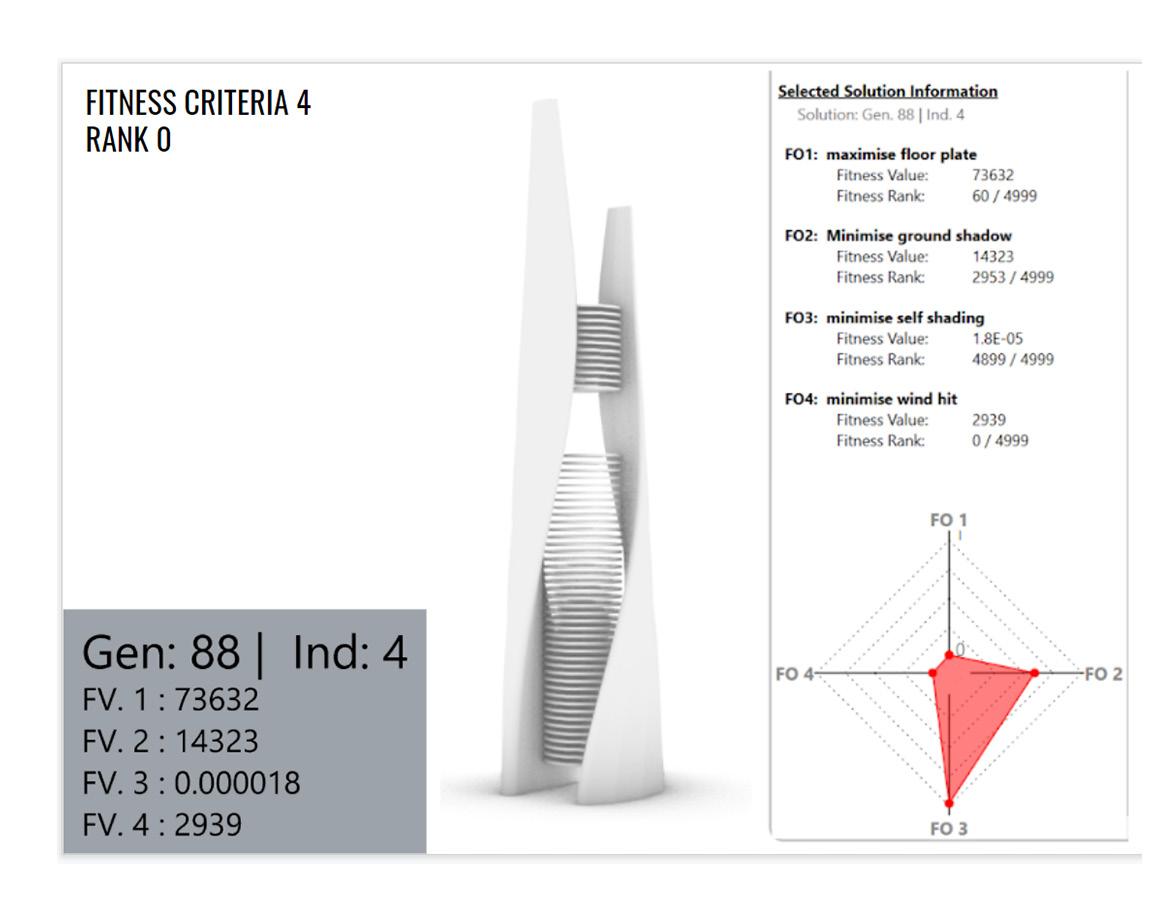

The individual 4 from generation 88 (Figure 21) optimised for the fitness criteria 4 that is minimisation of the wind hit vector. The form had minimal surface area, hence,there was no corrugation pattern observed.The form displayed optimal tapering.And also a larger void in the central floor plates in order to achieve the reduction in the wind influence.
