SIMULATION ANALYSIS

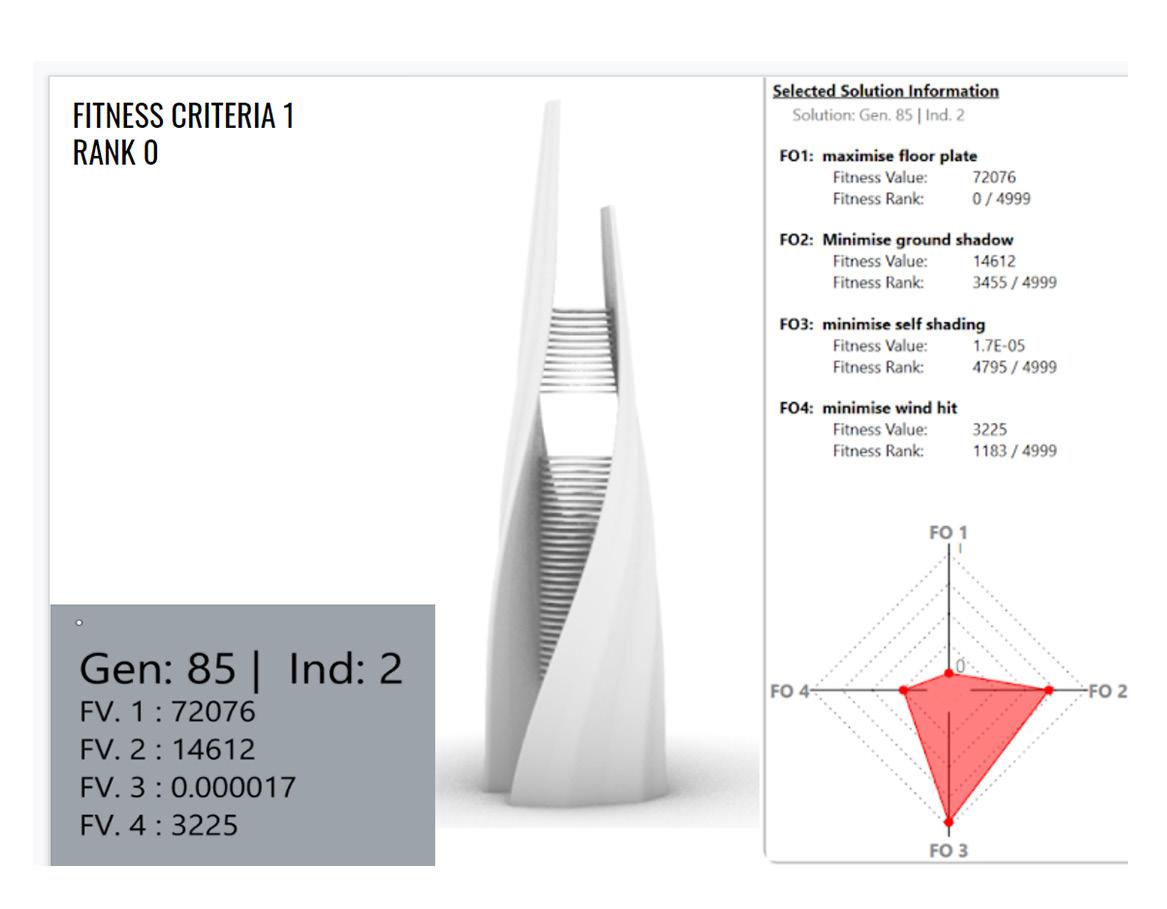

The individual 2 from generation 85 (Figure 18 )optimised for the fitness criteria one that is maximising the floor plate area which was induced by the chromosomes that affected the increase in the floor plate area. Although chromosomes inducing increase in the corrugation, would simulate the increase in the floor plate area. But due to deletion of these chromosomes through the simulation, very less corrugation was obtained. Also it can be verified that this fitness criteria optimised till the last generations as this individual belongs to generation 80.

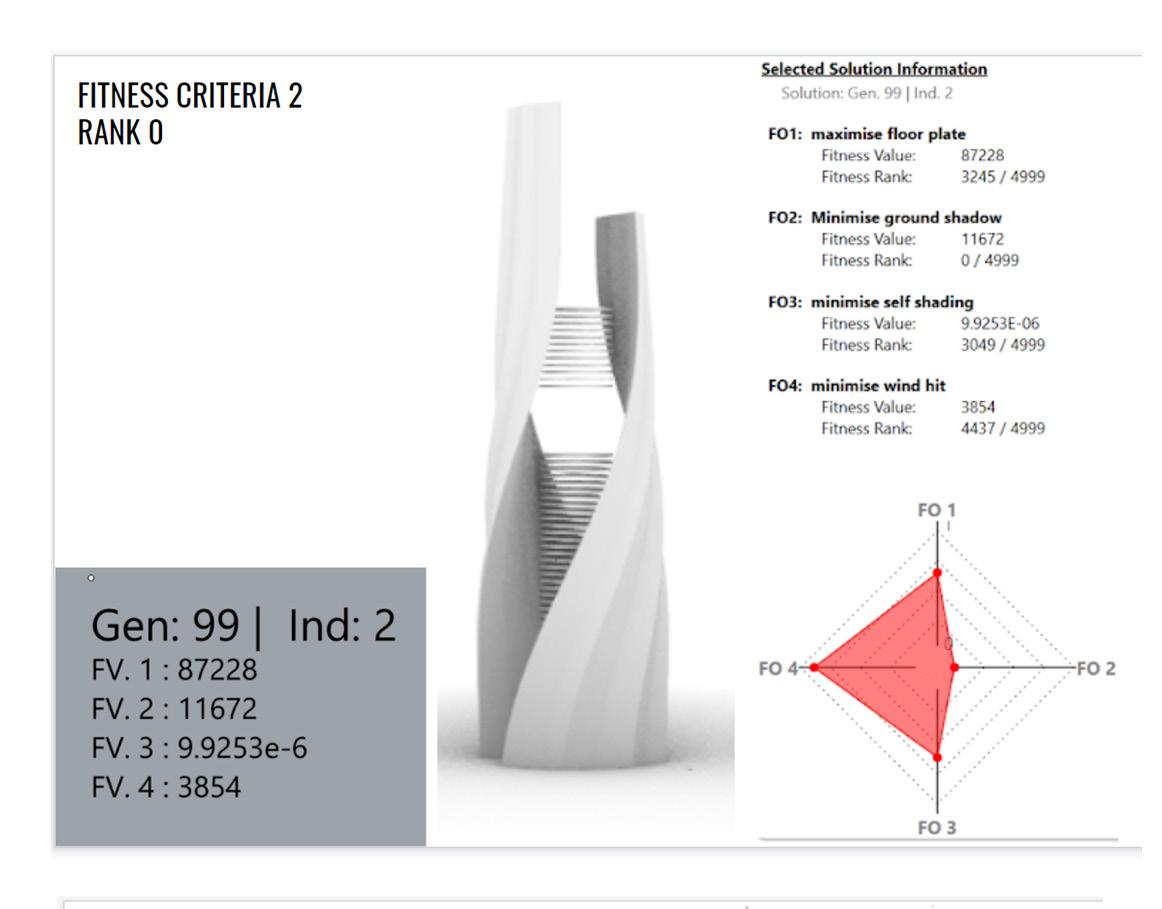

The individual 2 from generation 99 (Figure 19 )optimised for the fitness criteria two that is minimising shaded region on the ground. This was induced by the chromosomes that controlled tapering of the form, in order to simulate more volumetrically compact forms. Corrugation as a trait was also diminished due to this fitness criteria, as less corrugated form would cast smaller shaded regions on the ground.Also it can be verified that this fitness criteria optimised till the last generations as this individual belongs to generation 99.
