GENERATION 60

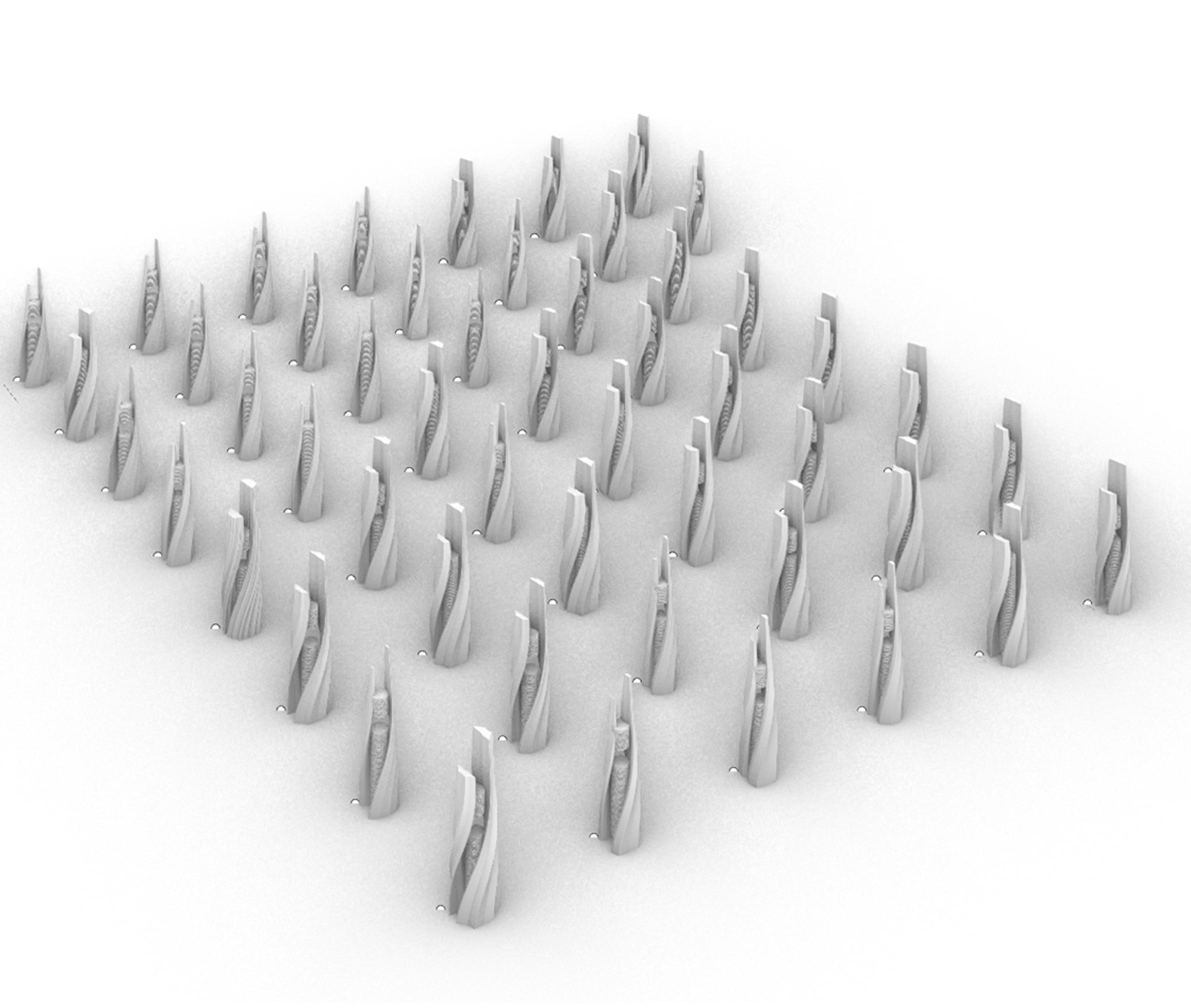

The simulation was analysed for generation 60 (figure 14). It was observed that all the fitness criterias except FC3 were optimising towards the minimal value away from the mean trendline.(figure 15) Although, fitness criterias -Minimising shading on ground, minimising shading on the ground and minimising wind vector hits synthesised more slender forms. The chromosomes affecting the same fitness criterias were also larger in number as compared to the chromosomes affecting the increase in floor plate area. However, it was hypothesised that more corrugation would induce more self shading, but in contrast it simulated the increase in the surface area, simulating non optimisation of fitness criteria 3.Also, the methodology for the calculation of the wind vector hits was not proposed to be relative to the surface area. This was one of the major limitations faced in defining the relationship between the chromosomes affecting the corrugation and the calculation of wind vector hits. However, fitness criteria optimised due to the deletion of corrugation as a trait in order to achieve the same.
