THE FOOD INNO HUB
BNV4135-A-S2-2023/4 | SHUI KEI CHEUNG, KIKI | 23141075
THE FOOD INNO HUB
TABLE OF CONTENT
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES
DESIGN PARAMETERS
MATERIAL SELECTION | SUDS & TECHNOLOGY
TOILETS | MEANS OF ESCAPE
TECHNICAL DRAWINGS
SITE PLAN | FLOOR PLANS | ELEVATIONS | SECTIONS
RENDERING
EXTERIOR | INTERIOR
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES
3.6 MILE TO BIRMINGHAMCITY CENTRE
BRISTOL ROAD
SELLLY OAK SHOPPING PARK
THE SITE IS SITUATED TO THE NORTH OF THE SELLY OAK SHOPPING PARK. IT IS BOUND BY THE CITY'S STRATGEIC HIGHWAY NETWORK, A38 (ASTON WEBB BOULEVARD) AND THE LOCAL HIGH STREET, BRISTOL ROAD. THERE ARE GOOD PUBLIC TRANSPORT LINKS WITH RAILWAY STATIONS AND A NUMBER OF BUS ROUTES. THE AREA IS ALSO POPULAR WITH CYCLISTS FOR ITS ADJACENCY WITH THE UNIVERSITY AND HOSIPTAL, AS WELL AS THE TOWPATH CYCLE ROUTE INTO THE CITY CENTRE.
AERIAL PHOTO FROM DIGIMAP
QUEEN ELIZABETH HOSPITAL
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES

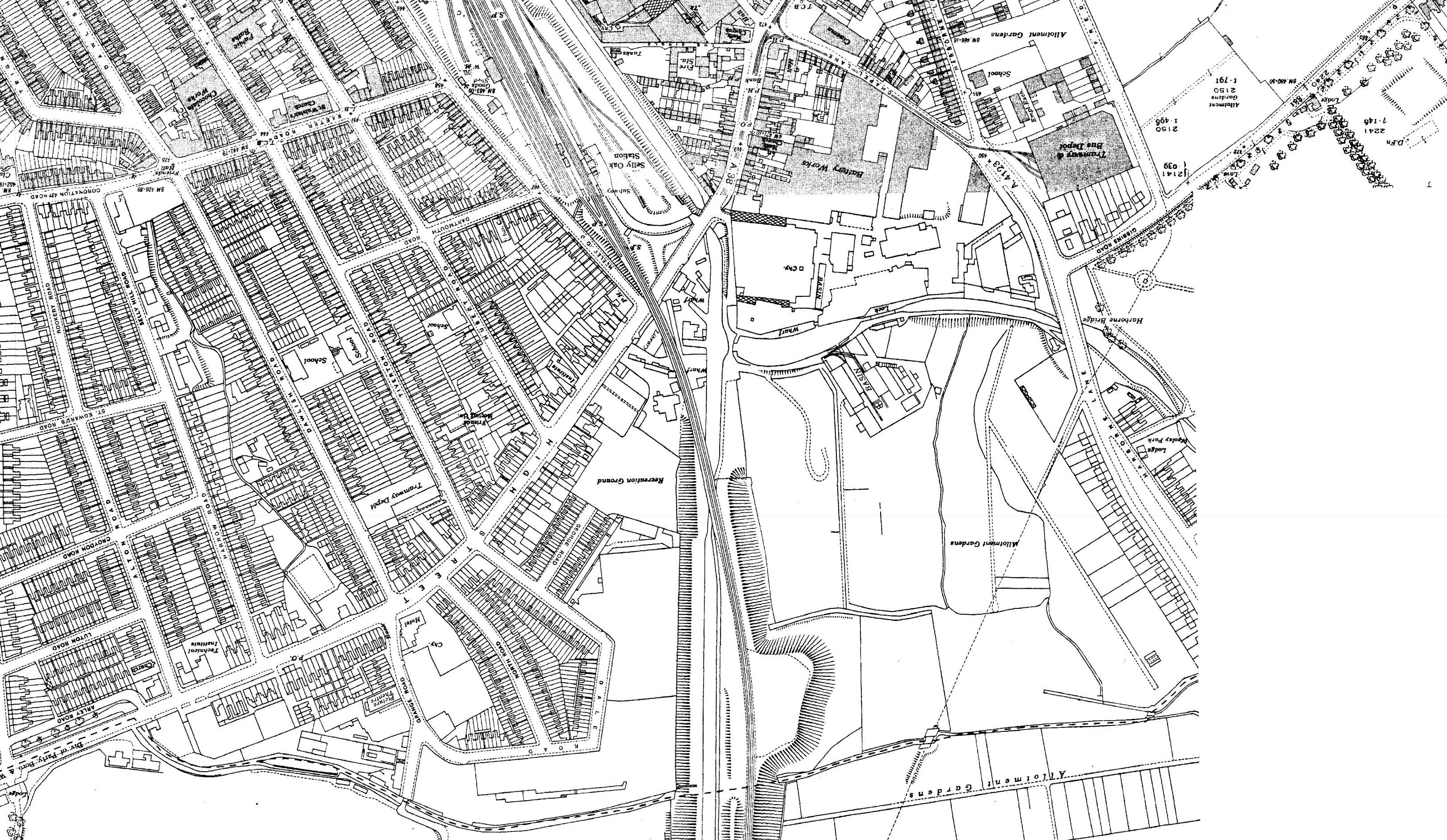

BIRMINGHAM BATTERY AND METAL CO. SET UP A FACTORY IN 1871 AND WAS TORN DOWN IN THE LATE 20TH CENTURY LEAVING THE AREA INTO AN ILLEGAL LANDFILL OF TOXIC NATURE .THE SITE WAS PURCHASED BY SAINSBURY IN 1990 AND TURNED INTO THE CURRENT SELLY OAK RETAIL PARK IN 2019.
BATTERY SITE
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES
PEDESTRIAN ACCESS AND PUBLIC TRANSPORT
RETAIL ACTIVITIES & VEHICULAR ACCESS
SUNPATH AND WINDPATH
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES
THE ENVIRONMENT AGENCY (EA) DEVELOPED THE FLOOD ZONES (FZ) MAP TO SHOW THE PROBABILITY OF A RIVER AND SEA FLOODING ACROSS ENGLAND. THE SITE FALLS INTO BOTH FLOOD ZONE 2 (MEDIUM PROBABILITY) AND 3 (HIGH PROBABILITY).
MAXIMISING THE VALUE OF SITES WITHIN FLOOD ZONES
1 A VOID ANY STRUCTURES WITHIN FZ3 AREAS (IF FEASIBLE) AND 2 ENSURE ANY DEVELOPMENT IN FZ1 HAS MITIGATION MEASURES IN PLACE (E.G. LEVELS SET 600MM HIGHER THAN THE FZ3 FLOOD LEVEL)
3. ASSIGN LOW RISK DEVELOPMENT PROPOSALS (POS, LANDSCAPING) TO AREAS OF HIGHER FLOOD RISK
4. FLOOD COMPENSATION TO MITIGATE THE LOSS OF FLOODPLAIN STORAGE
https://linkeng.co.uk/how-we-work/you-ask-we-answer/what-can-you-build-in-a-flood-zone/
INTRODCTION OF RETENTION POND & BOG GARDEN
SUSTAINABLE DRAINAGE SYSTEM (SUDS) COULD FORM AN ESSENTIAL ELEMENT FOR THE SITE TO MANAGE THE RISK OF FLOODING WHILST PROVIDING ADDITIONAL ENVIRONMENTAL BENEFITS.
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES
BUBBLE DIAGRAM
THE FOOD INNO HUB SERVES THREE DIFFERENT SECTORS FROM PUBLIC, INDUSTRY AND ACADEMIC BACKGROUND. DIFFERENT SPATIAL NEEDS COULD BE ALLOCATED TO THREE DIFFERENT LEVELS. THE HUB IS PURPOSEDLY BUILT TO ENGAGE COMMUNITY AT LARGE, IT REQUIRES AN OPEN DESIGN WHERE ALL WALKS OF LIFE IS WELCOME TO USE THE SPACE AND PUBLC EVENTS WILL BE HELD ON A REGULAR BASIS.

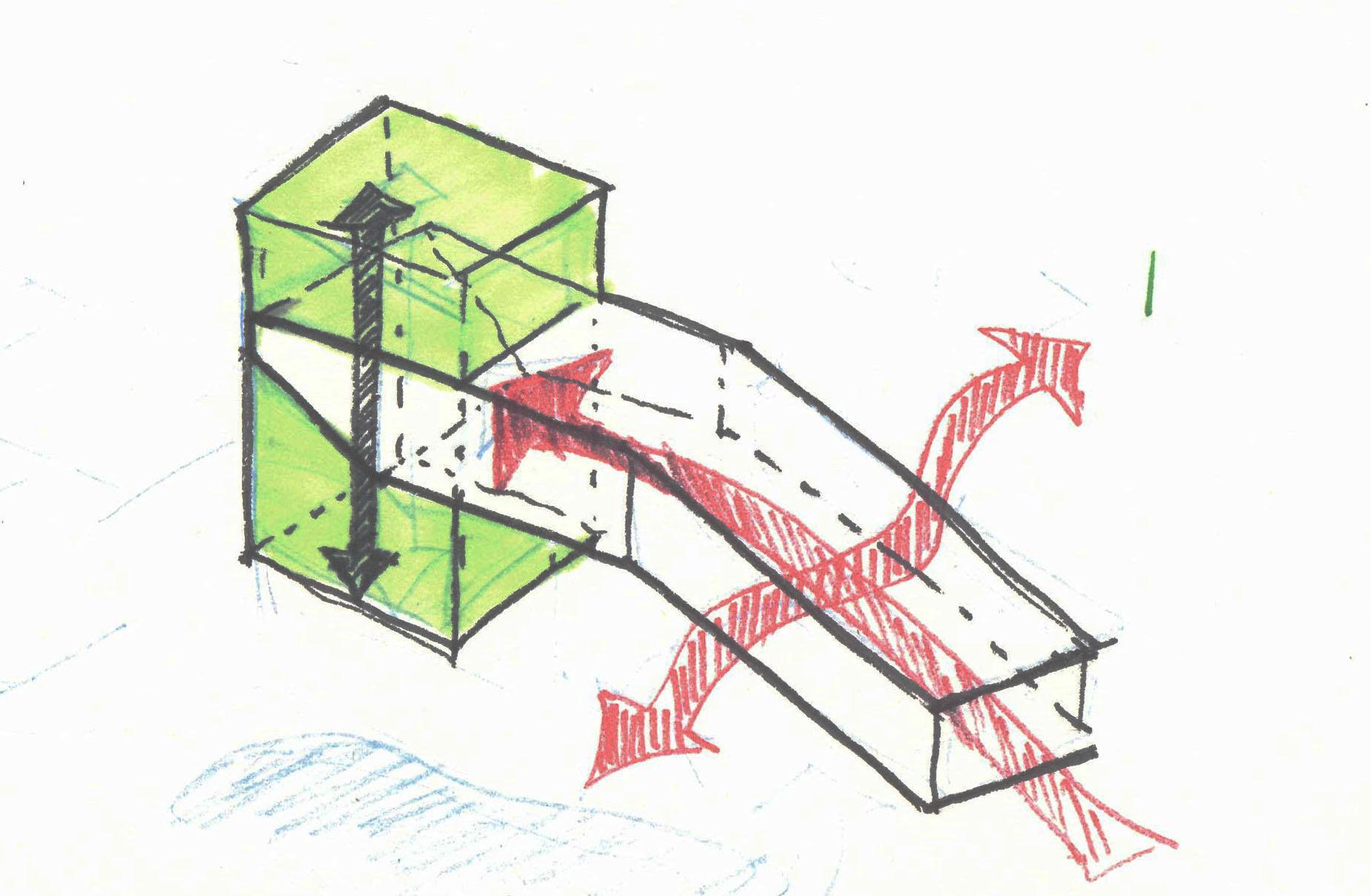

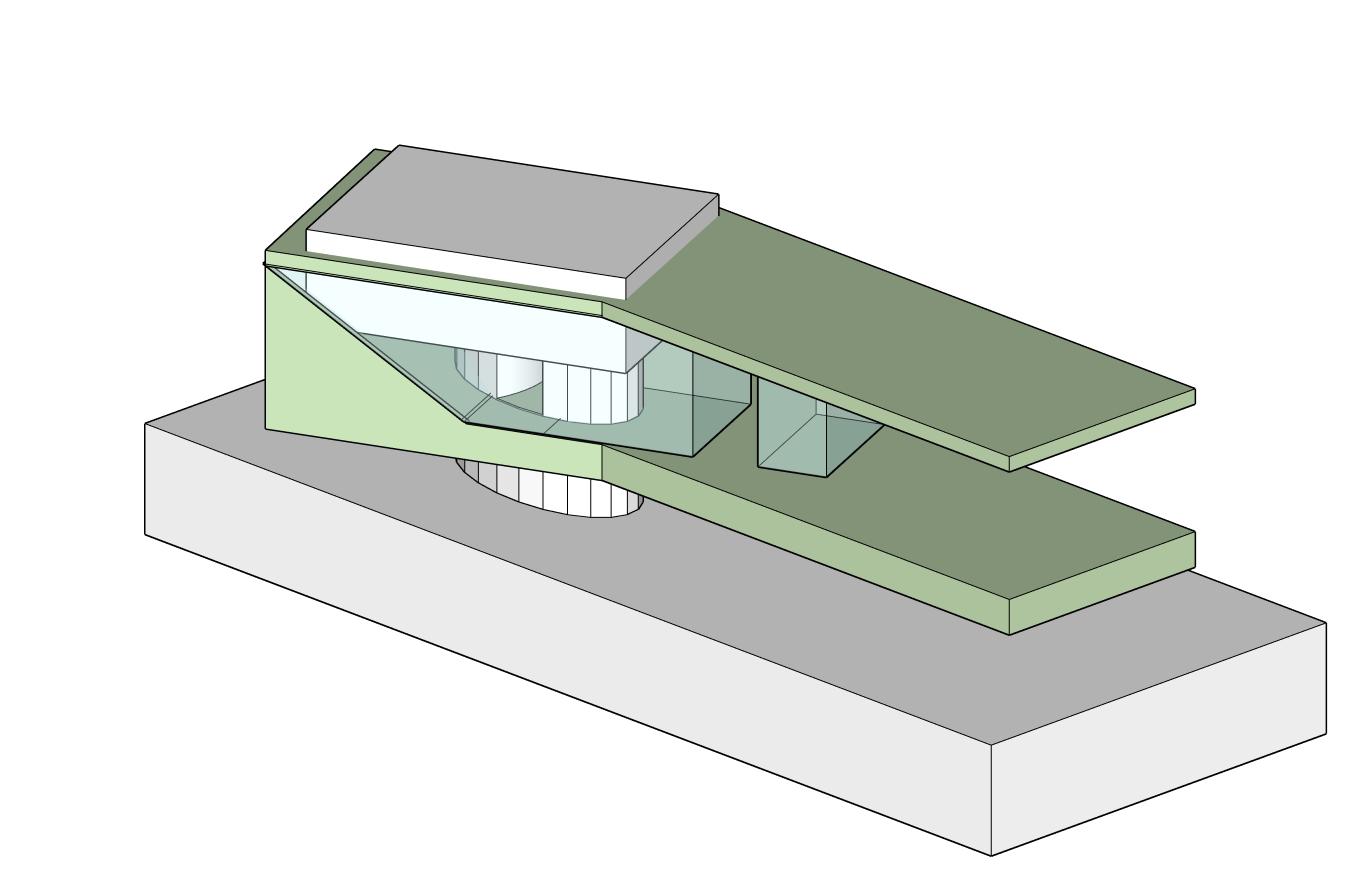

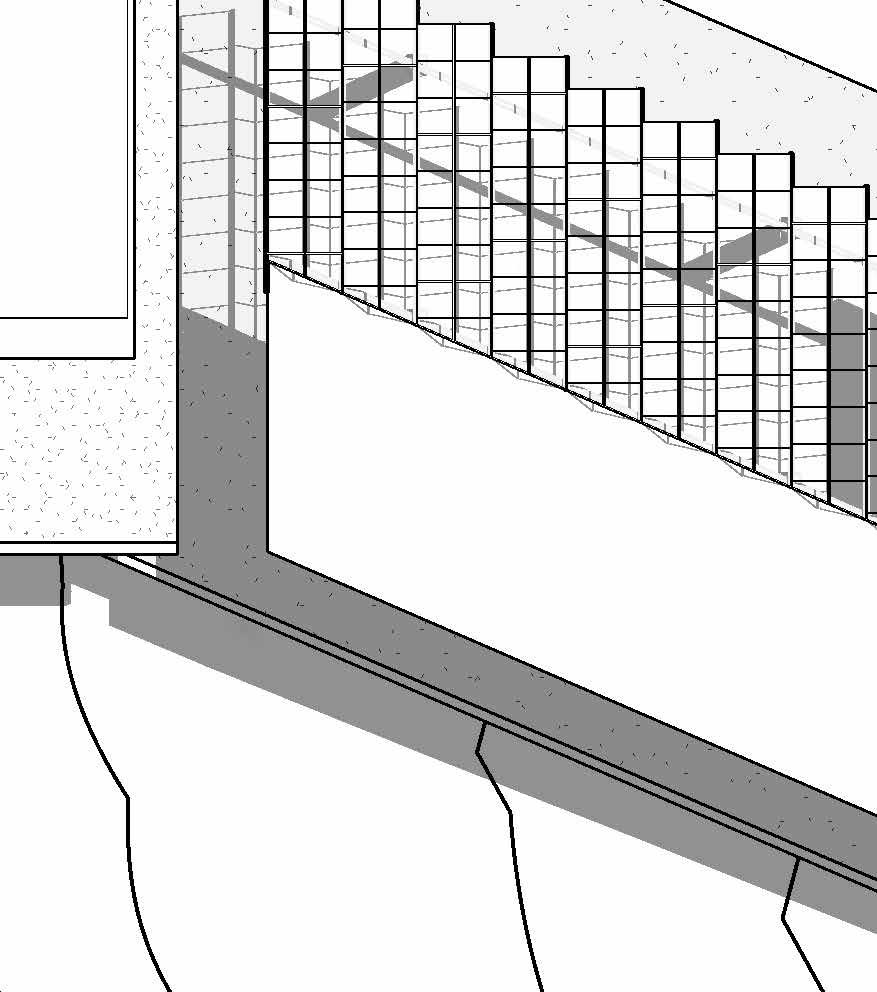

INTEGRATION WITH THE SLOPING SITE
THE RETENTION PONDS ARE INTRODUCED TO MANAGE BOTH THE FLOOD RISK AND FORM PART OF THE SUDS. THE LANDSCAPE INTEGRATES WITH THE BUILDING DESIGN TO BRING ENJOYMENT AND FORTIFIES CONNECTION BETWEEN FOOD AND NATURE ENVIRONMENT.
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES

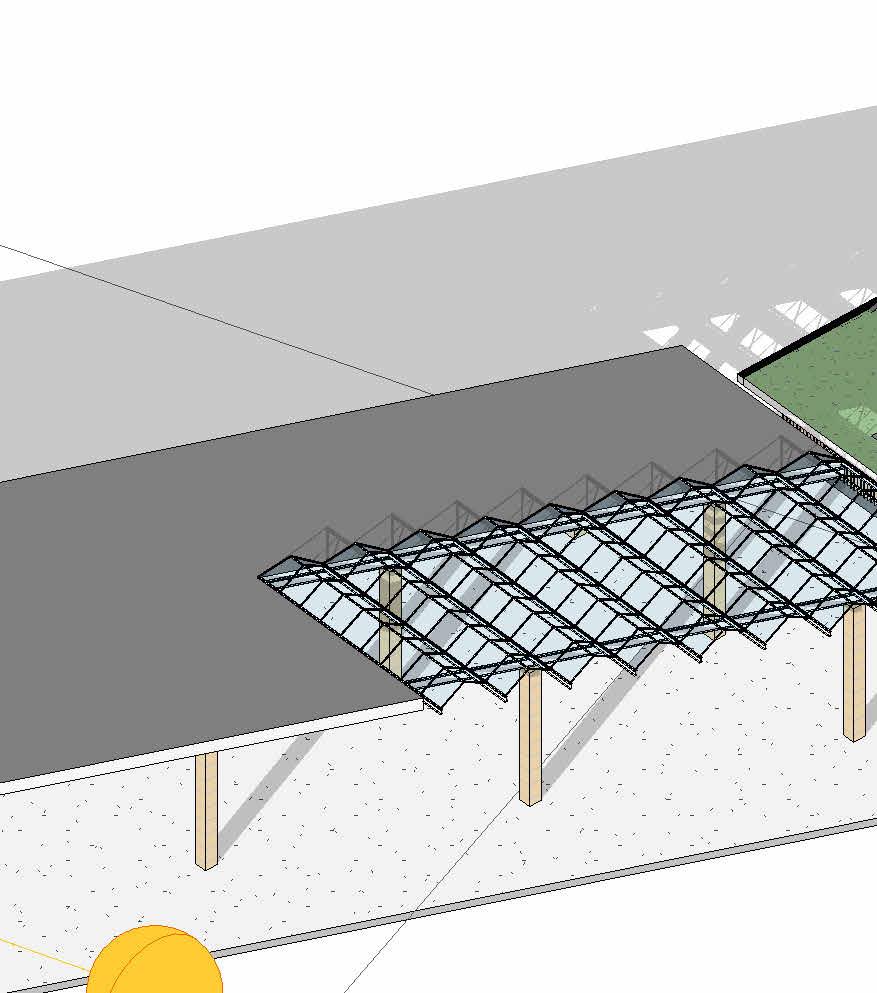

3D View 1
3D View
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES
SAINSBURY LABORATORY CAMBRIDGE, UK BY STANTON WILLIAMS BY A9A RCHITECTS AREA: 11000 M² YEAR: 2010
METICULOUSLY ARRANGED SPACES SERVE THE PRACTICAL USES IN AN ELEGANT AND POETIC WAY.
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES
PULO MARKET ZHENGZHOU, CHINA BY A9A RCHITECTS AREA: 4200 M² YEAR: 2022
THE SPATIAL LAYOUT CREATES IN BETWEEN SPACES THAT BLURS THE BOUNDARIES BETWEEN INDOOR AND OUTDOOR. INTERESTING POCKET AREA ARE CREATED TO GIVE QUALITY SPACE
DESIGN CONCEPT
SITE ANALYSIS | SKETCHES | PRECEDENT STUDIES
THE TRANSPORT HUB SOLEC KUJAWSKI, POLAND BY RYSY ARCHITEKCI RAFAŁ SIERACZYŃSKI AREA: 1136 M² YEAR: 2016
THE PROJECT CREATES AN INTERESTING DESIGN WITH THE SLOPING SITE. THE INTEGRATED APPROACH ALLOWS VISITORS TO MOVE THROUGH THE CHANGING LEVELS NATURALLY
SUSTAINABILITY
MATERIAL SELECTION | SUDS & TECHNOLOGY
CROSS LAMINATED TIMBER (CLT)
WHAT IS CLT CONSTRUCTION?
CLT PANELS ARE THE LOW BEARING STRUCTURE THAT CAN FORM WALLS, FLOORS AND ROOFS. THEY ARE ALL CUT TO SIZE IN THE FACTORY AND DELIVERED TO SITE ON FLATBED LORRIES. ERECTION OF CLT STRUCTURE IS BY CRANE AND IS FIXED TOGETHER WITH LARGE SCREWS AT REGULAR CENTRES ALONG THE JOINTS. NEW DOOR OPENINGS AND WINDOWS ARE SIMPLY CUT IN THE CLT IN THE FACTORY WITHOUT ANY ADDITIONAL LINTELS REQUIRED.
CLADDING OPTIONS AND THE REQUIREMENT FOR BREATHER AND VAPOUR CONTROLLING ARE ALL THE SAME AS THOSE FOR LOAD BEARING STUD WORK (HETREED ET AL., 2023).
WHY CHOOSING CLT?
+ LIGHTER STRUCTURES SAVE ON FOUNDATIONS
+ SUITABLE FOR EXTENDING EXISTING BUILDINGS WITHIN MINIMAL MODIFICATION
+ SMALLER CARBON FOOTPRINT THAN STEEL OR CONCRETE
+ CARBON SEQUESTRATION
+ STRUCTURAL PERFORMANCE IS INCREASINGLY PREDICTABLE
+ EASILY PREFABRICATED AND WELL-SUITED TO MODULAR CONSTRUCTION
+ BUILDING WITH CLT IS TYPICALLY NOT DEPENDANT ON WEATHER CONDITIONS, APART FROM STRONG WIND. IT CAN BE INSTALLED IN COLD AND WET WEATHER, SNOW AND FROST
+ VERY SHORT SITE ERECTION TIME
+ WARM AND APPEALING NATURAL TEXTURE AND COLOUR (WHITEHEAD, 2019)
ANY DISADVANTAGES?
– IT NEEDS ADDITIONAL THERMAL MASS TO HELP WITH THERMAL PERFORMANCE DUE TO ITS LIGHTWEIGHT CONSTRUCTION
– SAME FOR ITS ACOUSTIC PERFORMANCE
– REQUIRES A RELIABLE AND SUSTAINABLE SOURCE AND MIGHT BE RARE OUTSIDE EUROPE AND NORTH AMERICA
– THE STRUCTURE MUST BE KEPT DRY TO PREVENT ROT
– CLIENTS ARE SCEPTICAL OF PERFORMANCE IN FIRE
– SHORTAGE OF DESIGN AND CONSTRUCTION EXPERTISE (WHITEHEAD, 2019)
(CRAWLEY, 2021)
GREEN HOUSE IN HARINGEY, LONDON BY HAYHURST & CO ARCHITECTS
SUSTAINABILITY
MATERIAL SELECTION | SUDS & TECHNOLOGY
PV PANELS ON FLAT ROOF
SEDUM ROOF COVERING
CREATE BIODIVERSE ENVIRONMENT FOR LOCAL WILDLIFE AND HELP ATTENUATE THE RAINWATER
RAINWATER HARVESTING
RAINWATER TO BE HARVESTED AND STORED FOR USE
SUSTAINABLE URBAN DRAINAGE SUDS
DESIGN PARAMETERS
TOILETS | MEANS OF ESCAPE
TOILETS | MEANS OF ESCAPE

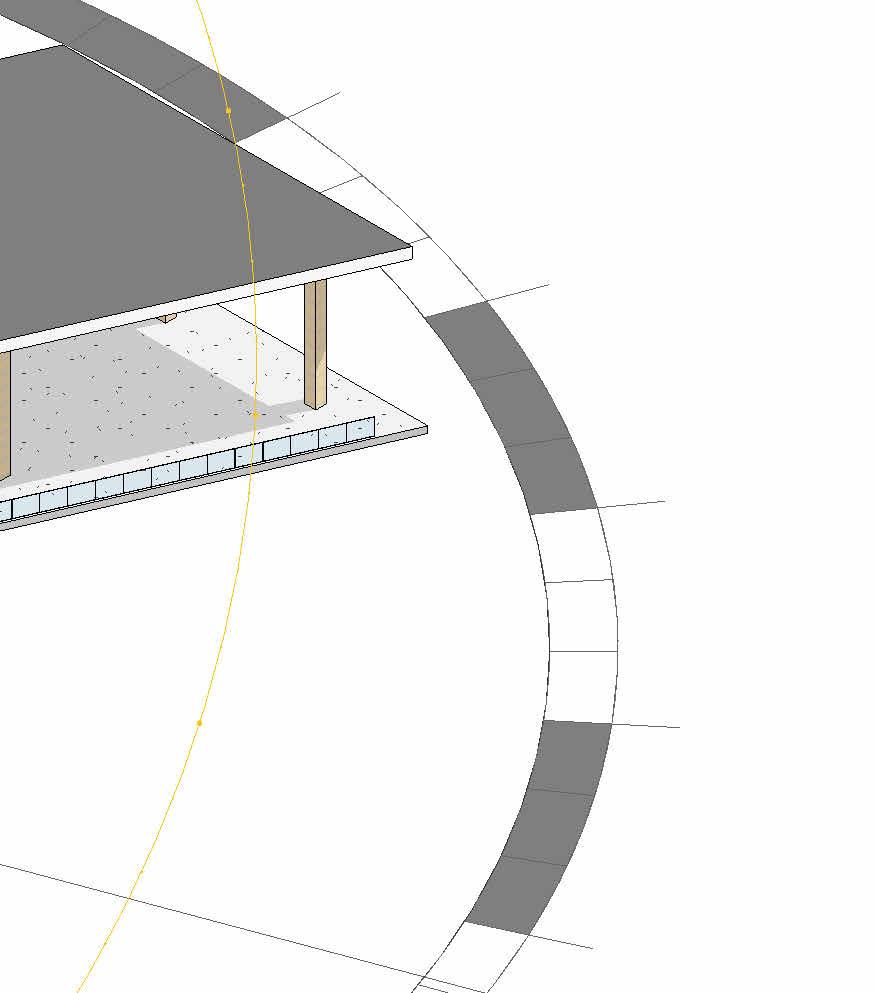

SUMMER SOLSTICE SUNPATH
WINTER SOLSTICE SUNPATH
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
RENDERING
EXTERIOR | INTERIOR
1 CRAWLEY, N. (2021) CROSS LAMINATED TIMBER: A DESIGN-STAGE PRIME R. LONDON, UK: RIBA PUBLISHING.
2 WHITEHEAD, T. (2019) THE PROS AND CONS OF TIMBER STRUCTURES, WS P RETHINK OFFSITE. AVAILABLE AT: HTTPS://RETHINKOFFSITE.WSP.COM /INSIGHTS/TIMBERSTRUCTURES-DOES-WOOD-CUT-IT/ (ACCESSED: 07 APRIL 2024).
