CONTENTS 01 ARCHITECTURE FACILITY

6

02 CARDIOTHORACIC HOSPITAL

20

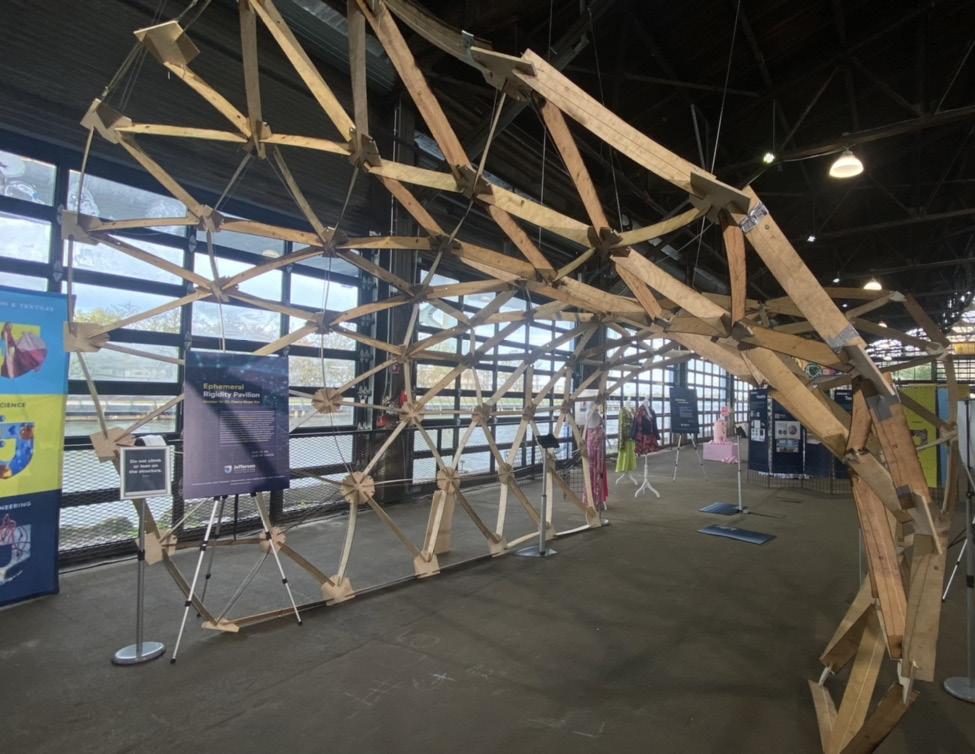

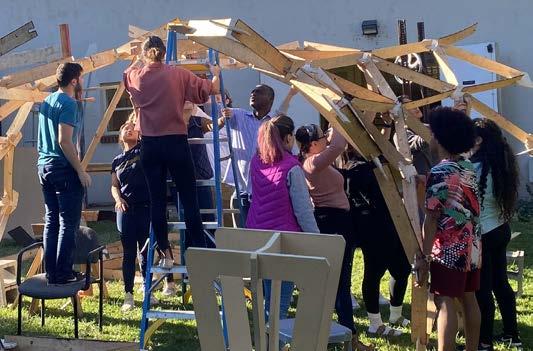

Ephemeral Rigidity Pavilion

28

03 INTERNSHIP - PAGE SOUTHERLAND

29

04 STRUCTURAL DETAILING

32

Forestation

36

05 URBAN EQUITY POP-UP

37

06 HOUSE OF PEACE

40

Making Space Charette

43

07 MAPPING EQUITY

44

5

Architecture Portfolio

Fall 2019 - Fa

01 ARCHITECTURE FACILITY FALL 2022 DESIGN 8 The project is a building addition to the existing Architecture & Design building on Thomas Jefferson University’s East Falls campus. Integrating Tech 5 with Design 8, we designed the building, starting from site analysis, up until HVAC, covering concept, program, sun studies, structural systems, and life safety regulations.

It was a semester-long project which I completed with my partners Brandon Green and Nathan Himmelsbach.

As problems arose in our design, we came up with strategies that solved grading and sustainability issues.

Please find the full process book here: https://issuu.com/jxa200

Revit, Rhinoceros 3D, Autocad, Lumion, Adobe Photoshop, Adobe Illustrator

all 2023

Jinane Arbain

7

Architecture Portfolio

Fall 2019 - Fa

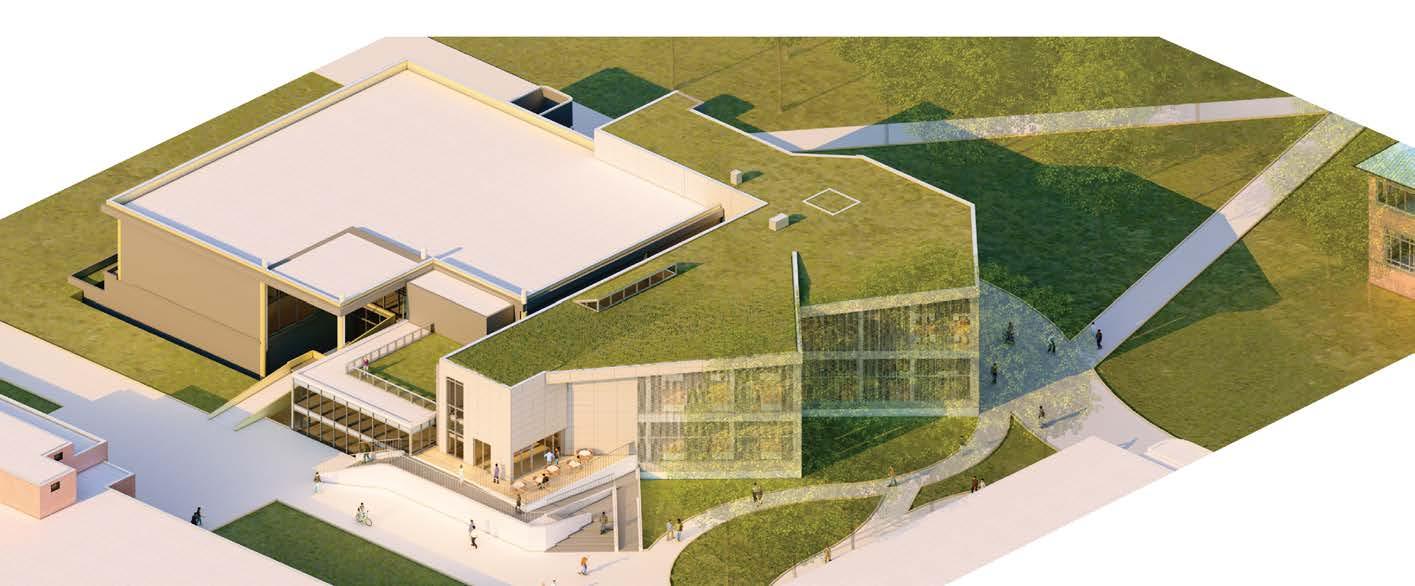

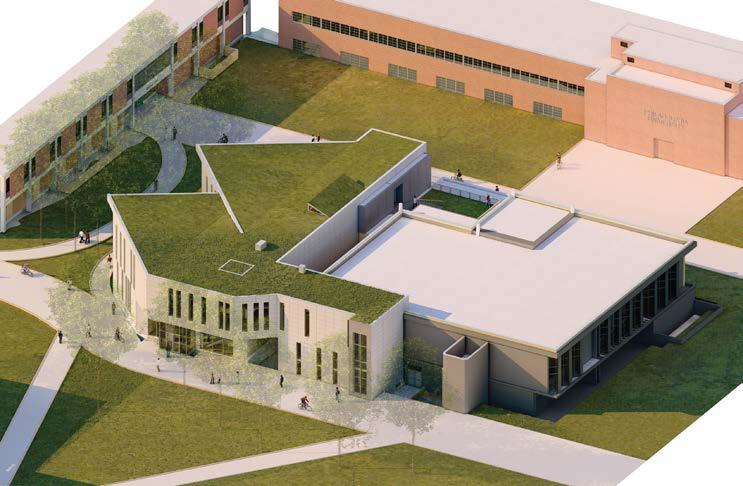

Axon Northeast

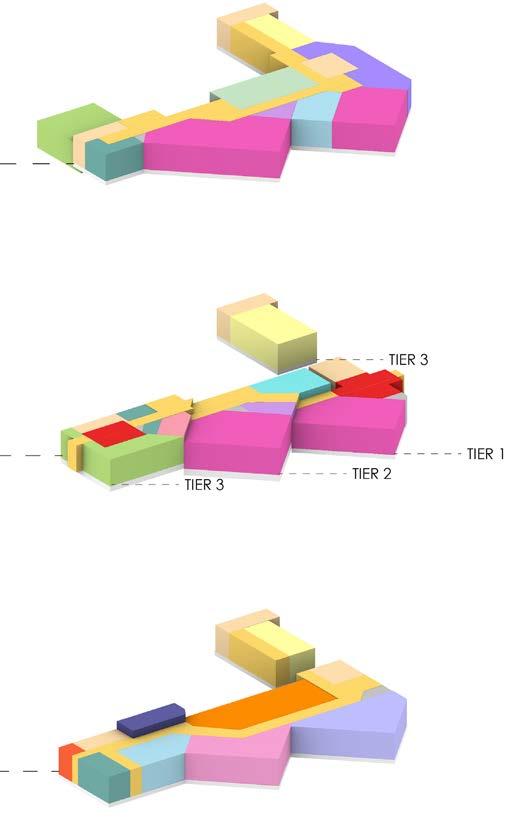

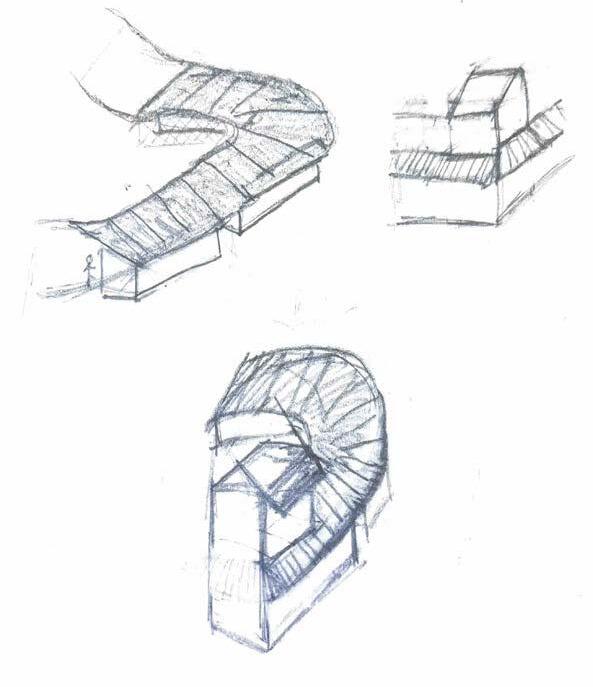

Parti Form

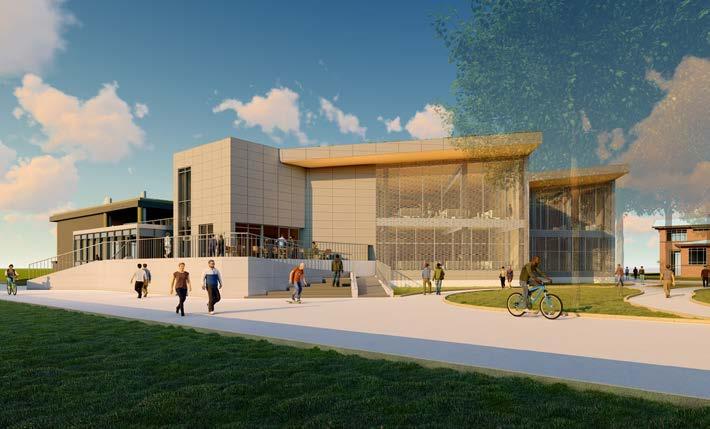

Perspective

all 2023

Jinane Arbain

Perspectives

9

Architecture Portfolio

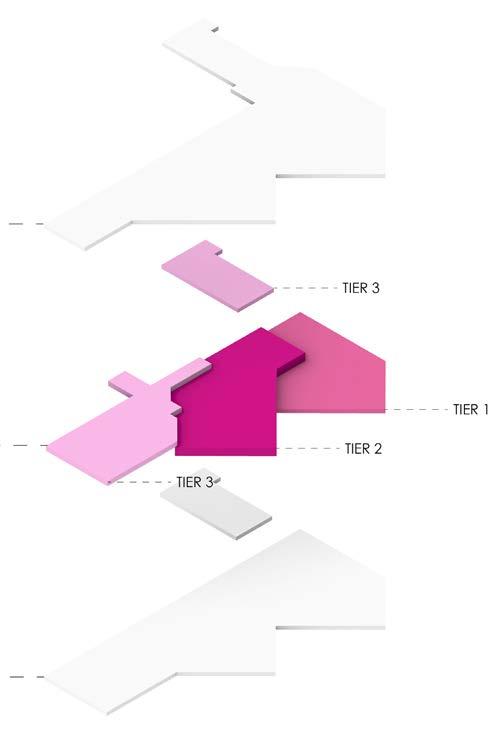

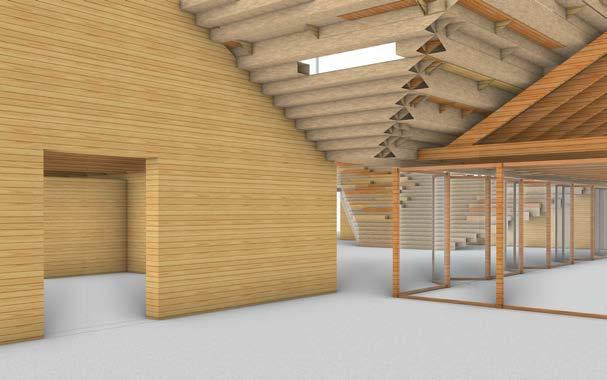

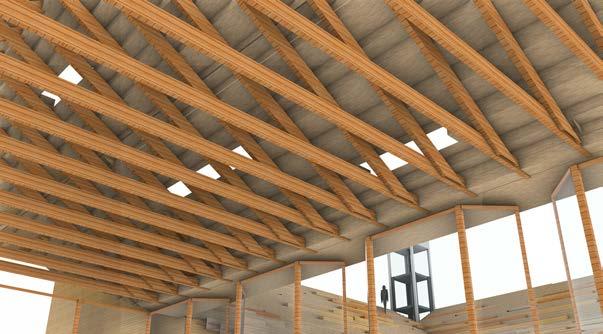

Tier 1 Lobby

Tier 1 Studio + Procession to Tier 2

Tier 2 Pin-Up Space/Gallery

Fall 2019 - Fa

all 2023

Jinane Arbain

4.

9.

10.

A. STAIRWELL 125 179 SF

41'-6" EGRESS

B.

FACULTY LOUNGE 096 408 SF 28 PERSONS OCC.

C.

A&D LEVEL 2 FFE 248'

OFFICE 108 239 SF

1 A4.3

3 PERSONS OCC.

D.

A&D LEVEL 2 FFE 248'

TIER 3 FFE 248'

A&D BRIDGE 124 120 SF

CLASS NAME:

DN

TECH 5: DOCUMENTA & DETAILING

DN E. STAIRWELL 119 183 SF

2 A4.1

T.R. 131 54 SF

T.R. 065 64 SF

UP

DN

2 A3.2

172'-0" EGRESS CONFERENCE ROOM 082 490 SF

LOBBY 141 168 SF 9 PERSONS OCC.

32 PERSONS OCC.

T.R. 152 76 SF STUDY ROOM 144 205 SF

Autodesk Docs://F22 - D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt

EXTERIOR PATIO 122 Not Enclosed

1 A5.2

PIN-UP 102 618 SF 22 PERSONS OCC.

LOBBY 087 488 SF

27 PERSONS OCC.

AA

DN

PROJECT NAME:

JEFFERSON ARCHITECTUR EXPANSION

F.

G.

DRAWN BY:

24 PERSONS OCC.

STUDIO 060 1103 SF

BRANDON GREEN, JIN ARBAIN, NATE HIMMELS PROFESSOR BOMBA CABE JEFFERSON FALL 2022

1 A4.1

159'-0" EGRESS

STUDIO 062 1215 SF

Sim

PROJECT ADDRESS:

TIER 1 FFE 241.5'

22 PERSONS OCC.

CHECKED BY:

12/3/2022

DATE:

REVISION SCHEDU

AAB

Revision Number 2 A5.1

Revision Description

Sim

SCALE: BB

EE 1 A5.1

CC

II

Sim

TIER 2 FFE 245.5'

1/8" = 1'-0" SHEET NAME:

FF

DD

LEVEL 1 TIER

2 A3.1 1 A4.2

2 A4.2

GG HH -

-

SHEET NUMBER:

A1.2

1 A3.1

1.

2.

3.

4.

5.

6.

7.

8.

10.

Plan Level 1 11

Architecture Portfolio

Fall 2019 - Fa 9.

10.

A. STAIRWELL 114 179 SF

B. OFFICE 033 145 SF

168'-6" EGRESS

2 PERSONS OCC.

C.

OFFICE 106 130 SF 2 PERSONS OCC.

EXTERIOR TERRACE 151 1328 SF

OFFICE 035 115 SF 2 PERSONS OCC.

1 A4.3

D.

A&D MEZZANINE FFE 257'

CLASS NAME:

FFE 259'

STAIRWELL 115 183 SF

TECH 5: DOCUMENTATION & DETAILING 2 A4.1

RAMP OPEN TO BELOW LECTURE HALL 066 783 SF

T.R. 118 42 SF T.R. 117 59 SF

KITCHNETTE 069 235 SF 2 PERSONS OCC.

2 A3.2

58 PERSONS OCC.

104'-3" EGRESS

T.R. 116 52 SF

1 A5.2 STUDIO 072 1538 SF 31 PERSONS OCC.

OPEN SEATING/ LOUNGE 083 625 SF 42 PERSONS OCC.

PIN UP/GALLERY 078 316 SF 11 PERSONS OCC.

REVISION SCHEDULE Revision Number

2 A3.1

Sim

SHEET NAME:

FF

DD

2ND FLOOR

1 A4.2

2 A4.2

HH -

1 A3.1

4.

1/8" = 1'-0"

II

GG

Tier 3 Ramp

Revision Description

SCALE:

CC

Plan Level 2

Author Checker

12/3/2022 2:12:01 PM

DATE:

EE 1 A5.1

3.

JEFFERSON ARCHITECTURE EXPANSION

CHECKED BY:

Sim

BB

2.

PROJECT NAME:

F.

Sim

G.

17 PERSONS OCC.

1.

BRANDON GREEN, JINANE ARBAIN, NATE HIMMELSBACH PROFESSOR BOMBARA CABE JEFFERSON FALL 2022

1 A4.1

STUDIO 020 832 SF

AAB

2 A5.1

PROJECT ADDRESS:

DRAWN BY:

CLASSROOM 080 506 SF 26 PERSONS OCC.

AA

E.

5.

6.

7.

8.

SHEET NUMBER:

-

10.

11.

A1.3

Revision Date

Autodesk Docs://F22 - D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt

all 2023

Jinane Arbain A. STAIRWELL 127 185 SF

B. OFFICE 093 135 SF

2 PERSONS OCC.

56'-0" EGRESS

OFFICE 111 129 SF

C.

A&D LEVEL 1 FFE 236'

2 PERSONS OCC.

OFFICE 112 118 SF

1 A4.3

2 PERSONS OCC.

D.

CLASS NAME:

FFE 236'

J.C. 149 50 SF

STAIRWELL 126 181 SF

UP

LOADING DOCK 103 308 SF 2 PERSONS OCC.

TECH 5: DOCUMENTATION & DETAILING

FFE 234' E.

2 A4.1

172'-0" EGRESS

BRANDON GREEN, JINANE ARBAIN, NATE HIMMELSBACH PROFESSOR BOMBARA CABE JEFFERSON FALL 2022

UP

2 A3.2

MODEL SHOP 038 1377 SF

112'-0" EGRESS T.R. 146 67 SF

30 PERSONS OCC. S

1 A5.2

R

ES

T.R. 147 67 SF T.R. 148 64 SF

91 '-0 "

EG

CLASSROOM 053 468 SF 22 PERSONS OCC.

Sim

Author

CHECKED BY:

Checker

12/3/2022 2:07:17 PM

DATE:

Revision Number

16 PERSONS OCC.

Sim

DRAWN BY:

REVISION SCHEDULE

DIGITAL LAB 051 800 SF

2 A5.1

JEFFERSON ARCHITECTURE EXPANSION

F.

G.

AAB

PROJECT NAME:

1 A4.1

BASEMENT FFE 231'

AA

PROJECT ADDRESS:

Revision Description

Revision Date

MECH & UTILITY 039 1027 SF

3 PERSONS OCC.

SCALE: BB

EE 1 A5.1

Sim

II

1/8" = 1'-0" SHEET NAME:

CC 2 A3.1

FF

DD

BASEMENT

1 A4.2

2 A4.2

GG

HH

1.

2.

3.

4.

5.

6.

SHEET NUMBER: -

1 A3.1

7.

8.

-

10.

A1.1

Plan Level 3

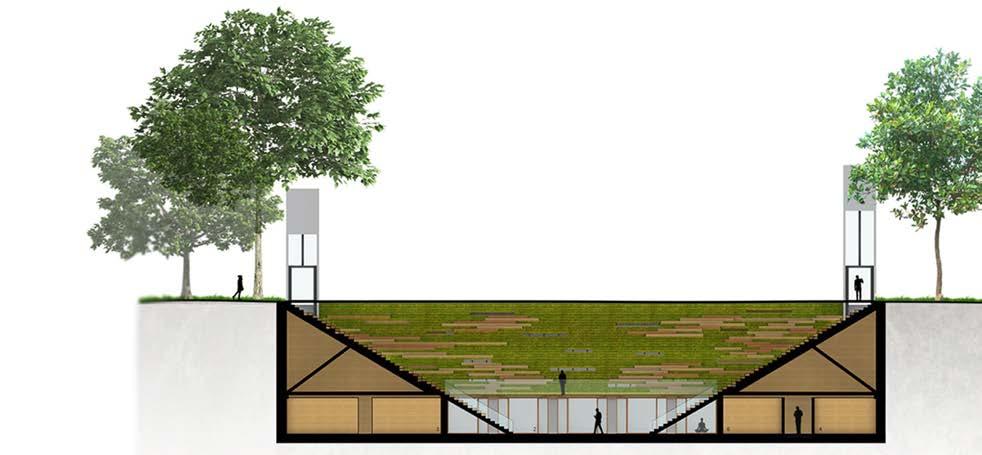

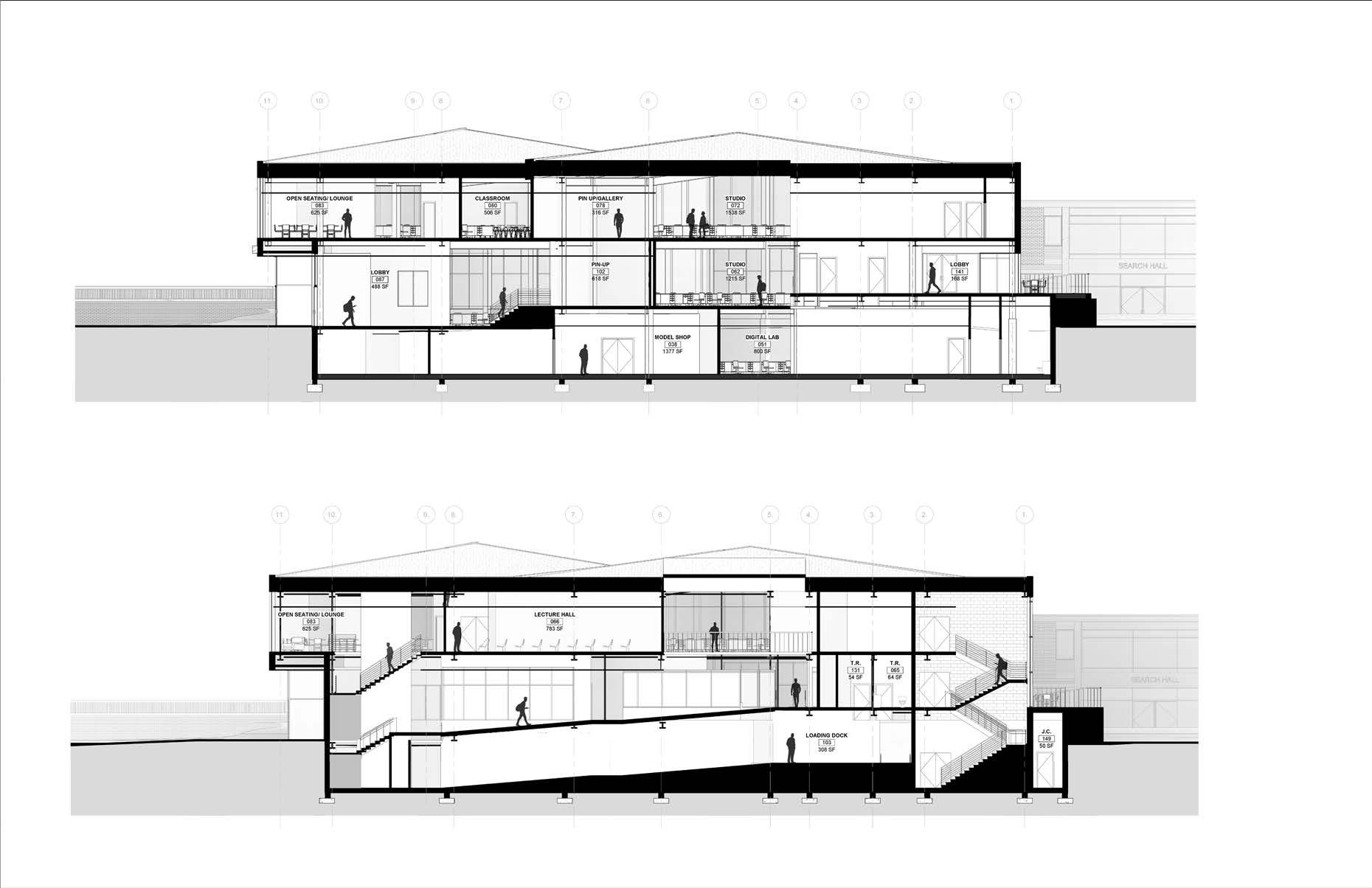

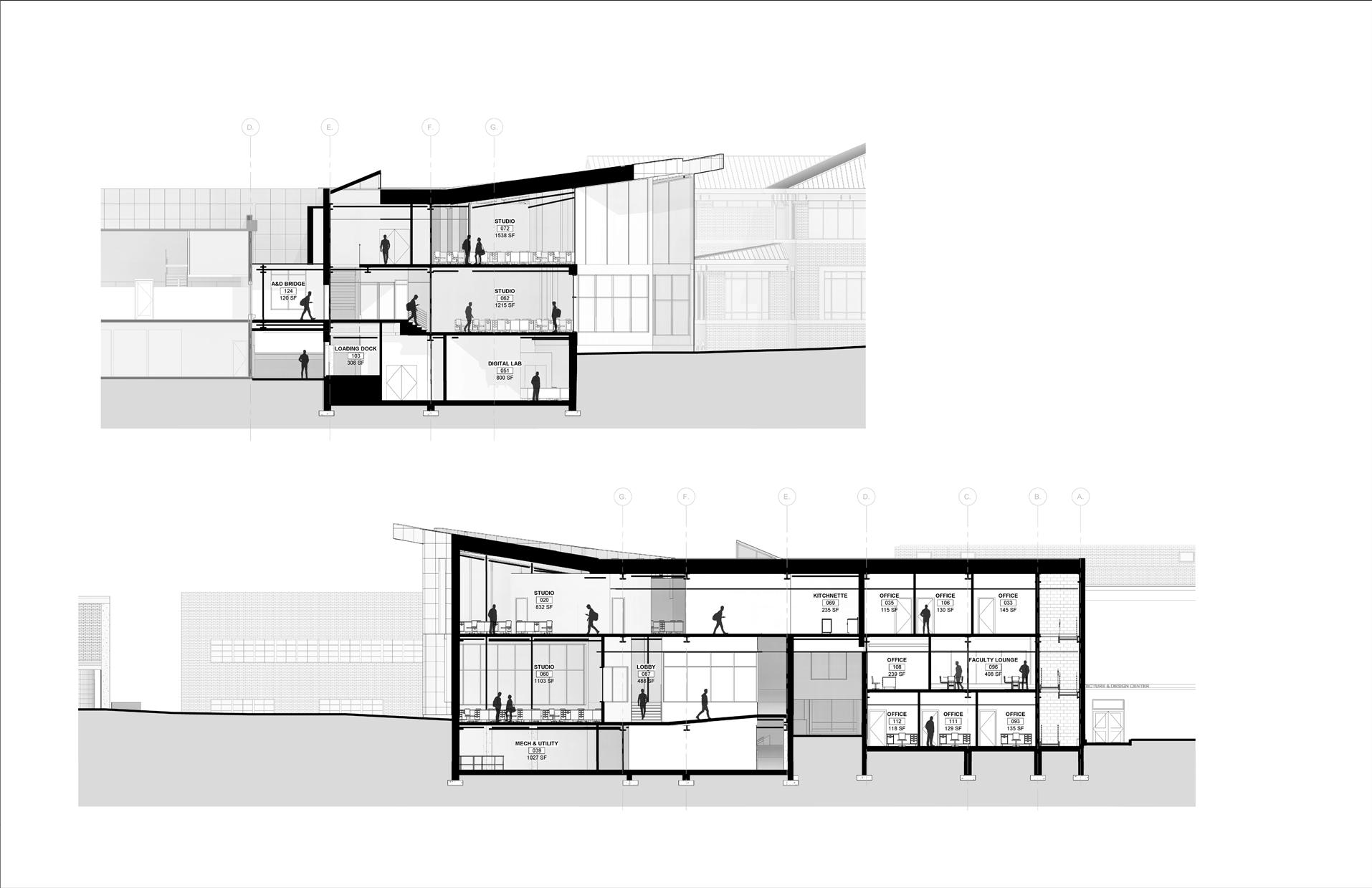

Section East-West (Main Ramp)

13

Architecture Portfolio

Fall 2019 - Fa

Section East-West (Main Ramp)

Section East-West (Main Ramp)

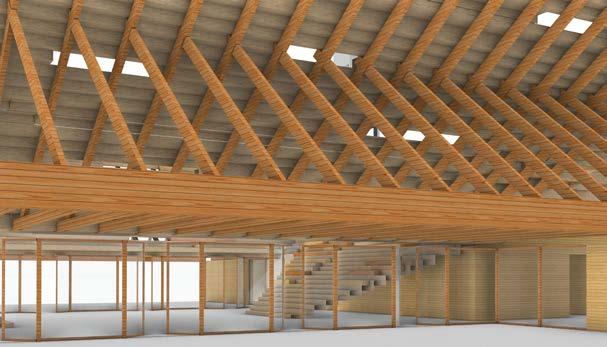

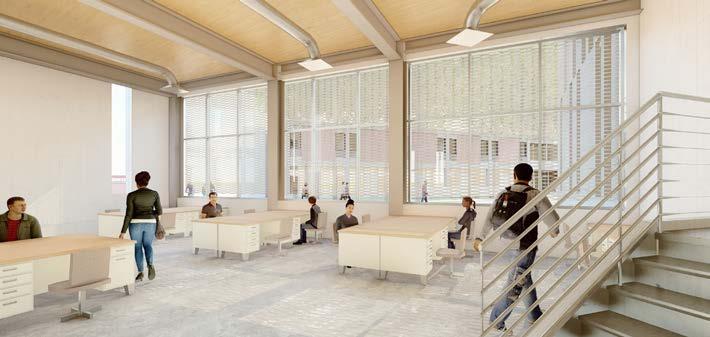

Level 2 Studio

all 2023

Jinane Arbain

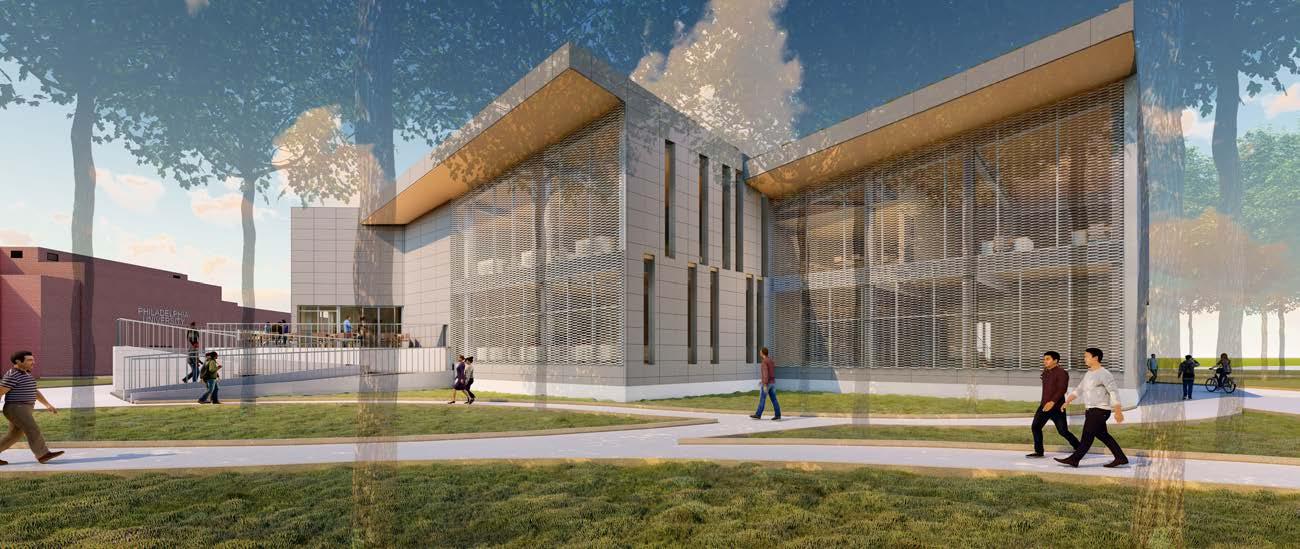

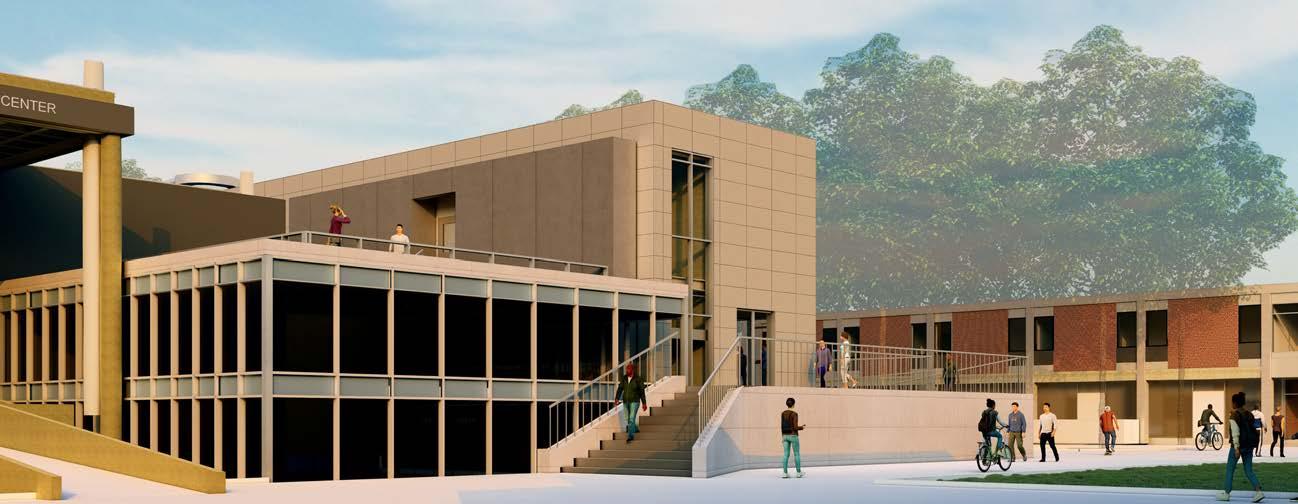

Perspective Entrances

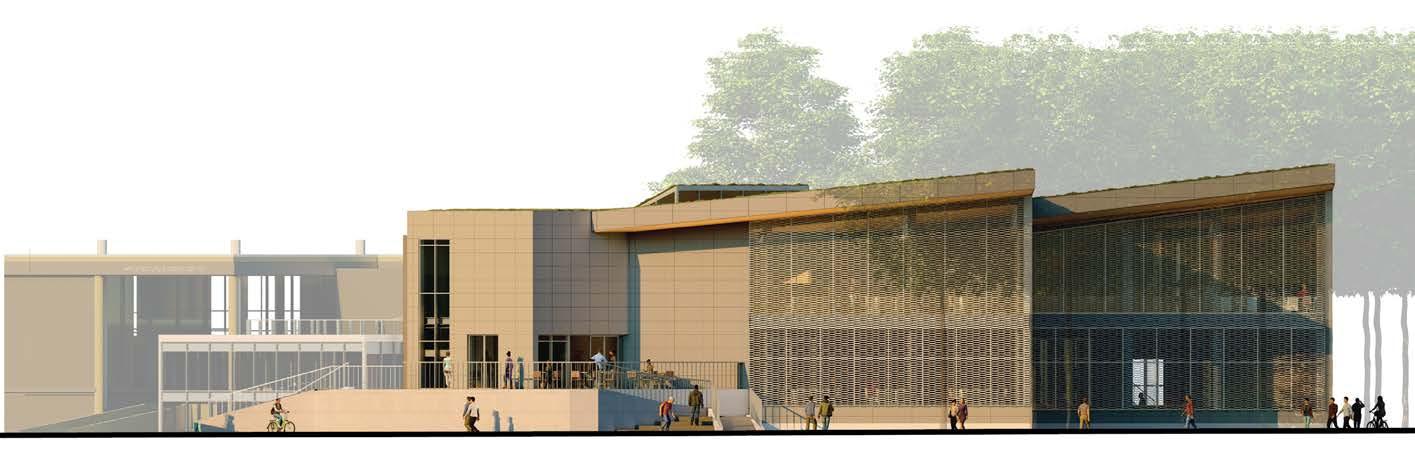

Elevation True South

15

Architecture Portfolio

Fall 2019 - Fa EXSITING A&D COLUMNS

W12X87 STEEL BEAMS FOR SHORT SPANS

W18X175 STEEL BEAMS FOR STUDIO SPANS

W14X90 STEEL COLUMNS

CLASS NAME:

TECH 5: DOCUMENTATION & DETAILING PROJECT ADDRESS: BRANDON GREEN, JINANE ARBAIN, NATE HIMMELSBACH PROFESSOR BOMBARA CABE JEFFERSON FALL 2022 PROJECT NAME:

Autodesk Docs://F22 - D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt

JEFFERSON ARCHITECTURE EXPANSION

DRAWN BY:

Author

CHECKED BY:

Checker

12/6/2022 12:20:14 AM

DATE:

12" CONC. PIER

REVISION SCHEDULE Revision Number

Revision Description

Revision Date

4'-0" X 4'-0" CONC. FOOTER SCALE:

SHEET NAME:

BASE STRUCTURAL AXON

SHEET NUMBER:

S2.3 TIER 3

TIER 2

TIER 1 CLASS NAME:

FIRE STAIR CORE

TECH 5: DOCUMENTATION & DETAILING

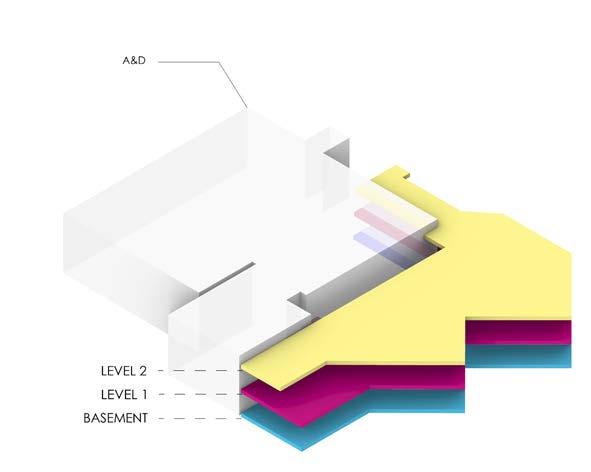

A&D LEVEL 1

PROJECT ADDRESS:

ADJANCET OR FIXED CONN. TO EXSIT. A&D COLUMNS.

BRANDON GREEN, JINANE ARBAIN, NATE HIMMELSBACH PROFESSOR BOMBARA CABE JEFFERSON FALL 2022 PROJECT NAME:

Autodesk Docs://F22 - D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt

JEFFERSON ARCHITECTURE EXPANSION

Structural System

DRAWN BY:

Author

CHECKED BY:

FIRE STAIR CORE

W18X175 STEEL BEAMS SUPPORTS STUDIO TIERS

Checker

12/6/2022 12:19:01 AM

DATE:

REVISION SCHEDULE Revision Number

Revision Description

Revision Date

SCALE:

ELEVATOR CORE SHEET NAME:

EXPLODED STRUCTURAL AXON

SHEET NUMBER:

S2.2

all 2023

Jinane Arbain

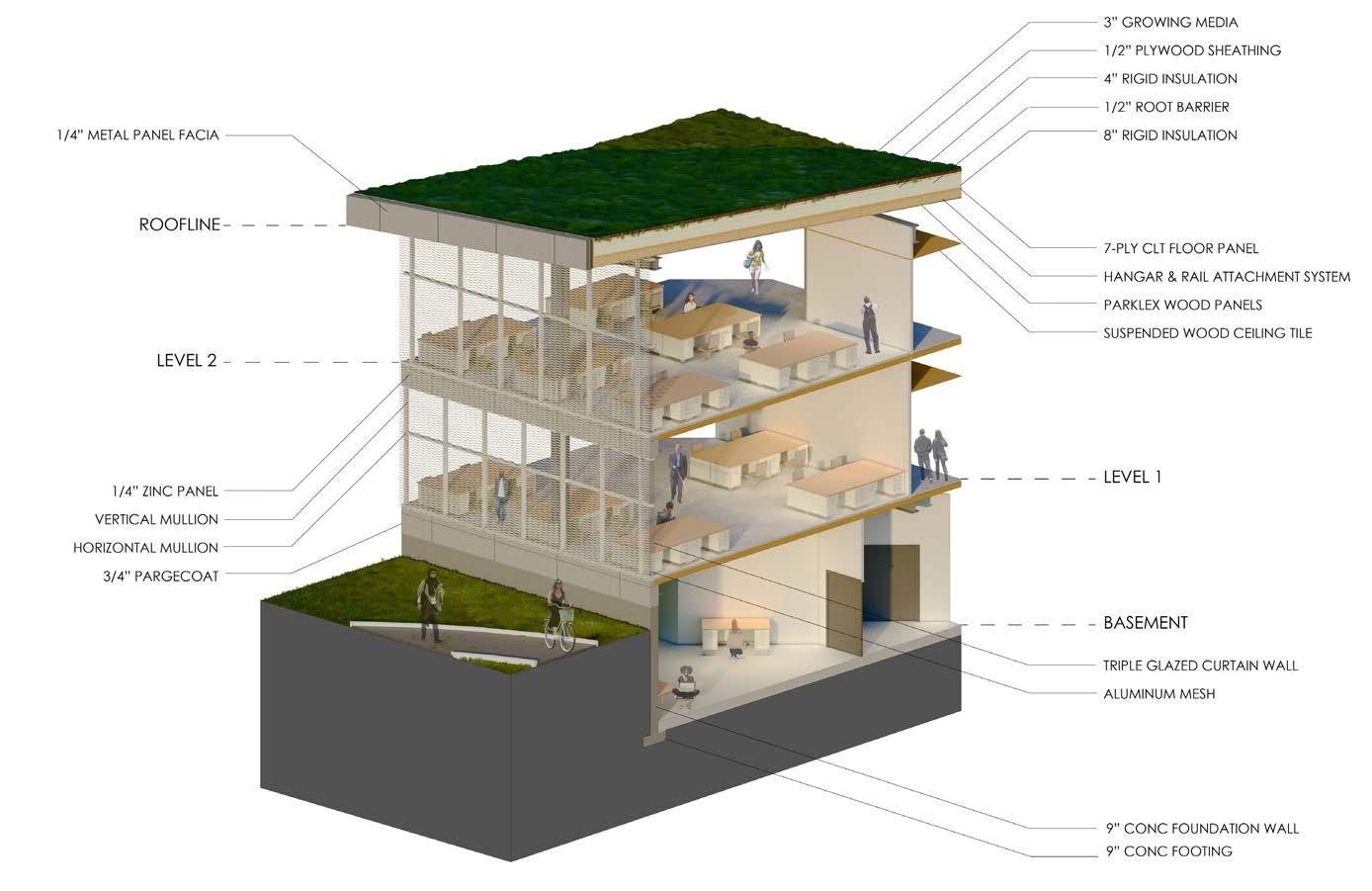

3D Wall Section Curtain Wall 17

Fall 2019 - Fa 3" GROWING MEDIA FILTER MAT 1" DRAINAGE LAYER 1/2" PLYWOOD SHEATHING 4" RIGID INSULATION

1/4" METAL PANEL FACIA

1/2" ROOT BARRIER 8" RIGID INSULATION CLASS NAME:

TECH 5: DOCUMENTATION & DETAILING

9-5/8" 7-PLY CLT FLOOR PANEL

PROJECT ADDRESS: BRANDON GREEN, JINANE ARBAIN, NATE HIMMELSBACH PROFESSOR BOMBARA CABE JEFFERSON FALL 2022

CUSTOM ANGLED STEEL BEAM HANGAR & RAIL ATTACHMENT SYSTEM

PROJECT NAME:

5/8" METAL STUD WALL

PARKLEX WOOD PANELS

JEFFERSON ARCHITECTURE EXPANSION

3/4" AIR GAP W/THERMAL SPACERS 2" FURRING WALL W/ MINERAL WOOL INSULATION

DRAWN BY:

Author

CHECKED BY:

Checker

12/6/2022 8:04:08 PM

DATE:

(2) 5/8" GYP

REVISION SCHEDULE Revision Number

Revision Description

Revision Date

Cantaliever to Facade Detail SCALE:

1 1/2" = 1'-0" SHEET NAME: No.

Description

OVERHANG DETAIL

Date

ALUMINUM MESH

SHEET NUMBER:

MESH ATTACHMENT

A6.0

HORIZ. MULLION

TRIPLE GLAZED CURTAIN WALL

Designer Name

Top Mullion Detail

Designer Designer Address

4201 Henry Ave, Philadelphia, PA

Class Name

Tech 5 Client Name

Owner No.

ALUMINUM MESH

Description

Date

Project Name

JEFFERSON ARCHITECTURE EXPANSION

Project Address

Enter address here

MESH ATTACHMENT

Sheet Name

Jinane Individual Section Detail 1 0001 Issue Date Author Checker

Project number Date Drawn by Checked by Sheet Number

A6.8

HORIZ. MULLION Scale

12" = 1'-0"

12/6/2022 8:04:47 PM

Autodesk Docs://F22 - D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt

Architecture Portfolio

Autodesk Docs://F22 - D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt

TRIPLE GLAZED CURTAIN WALL

Designer Name

Horizontal Mullion Detail

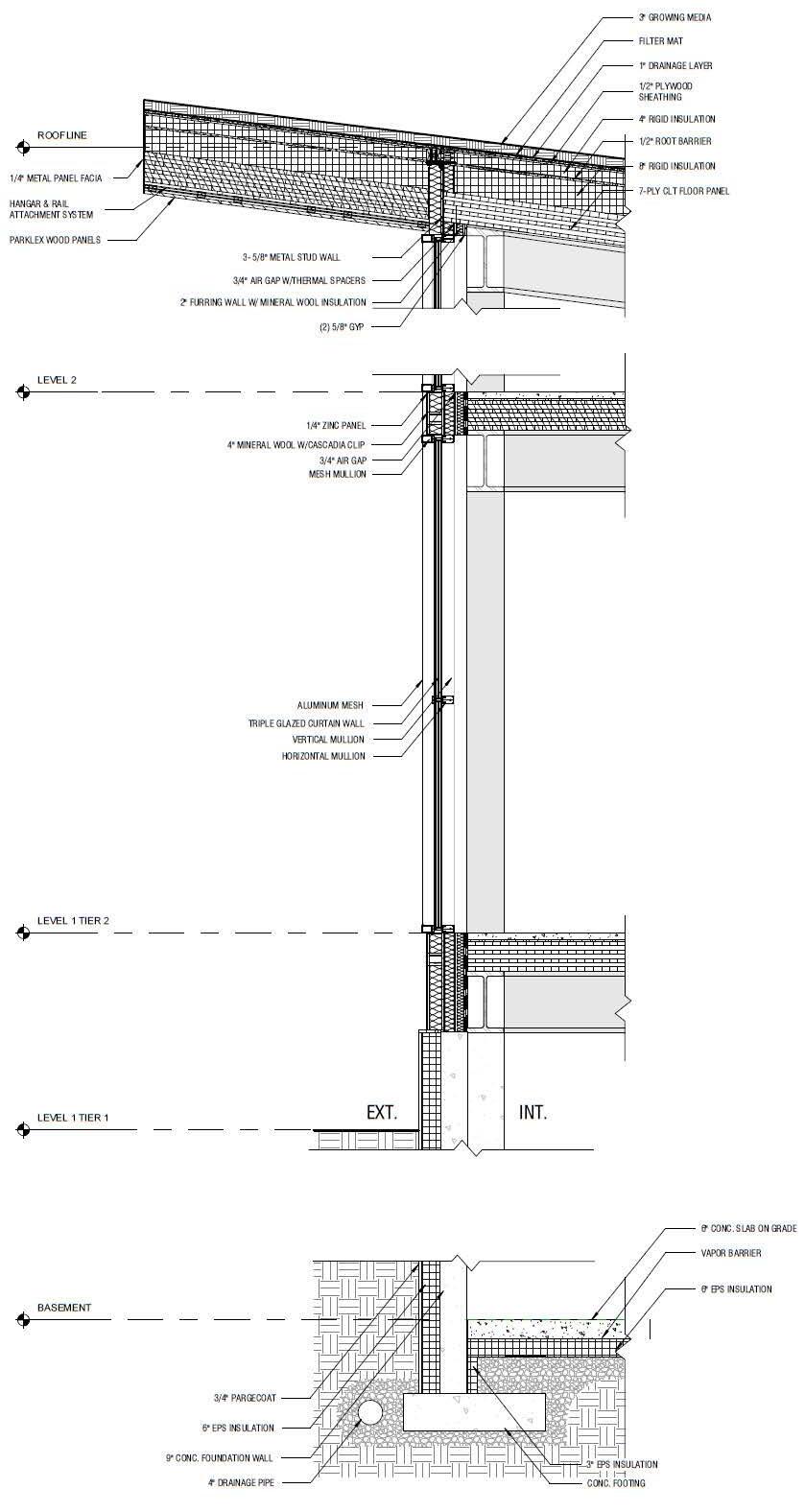

Curtain Wall Section - South Facade

Designer Designer Address

4201 Henry Ave, Philadelphia, PA

Class Name

Tech 5

Structure Wall Sections

Client Name

Owner Project Name

JEFFERSON ARCHITECTURE EXPANSION

Project Address

Enter address here Sheet Name

all 2023

Jinane Arbain

Axon A.

B. OFFICE 093 135 SF

OFFICE 111 129 SF

C.

A&D LEVEL 1 FFE 236'

OFFICE 112 118 SF

D.

CLASS NAME:

TECH 5: DOCUMENTATION & DETAILING E.

PROJECT ADDRESS: BRANDON GREEN, JINANE ARBAIN, NATE HIMMELSBACH PROFESSOR BOMBARA CABE JEFFERSON FALL 2022 PROJECT NAME:

JEFFERSON ARCHITECTURE EXPANSION

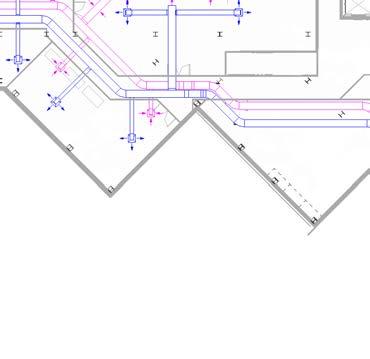

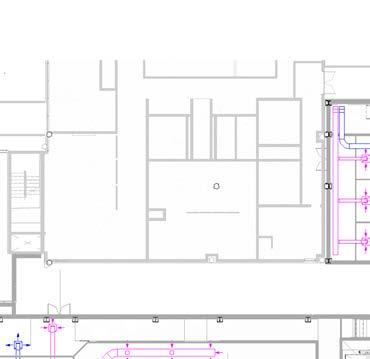

HVAC

Autodesk Docs://F22 - D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt

F.

G.

DRAWN BY:

Author

CHECKED BY:

Checker

12/5/2022 11:50:45 AM

DATE:

AA

REVISION SCHEDULE AAB

Revision Number

Revision Description

Revision Date

SCALE:

BB

EE II

1/8" = 1'-0" SHEET NAME:

CC

FF

DD

Plan 1.

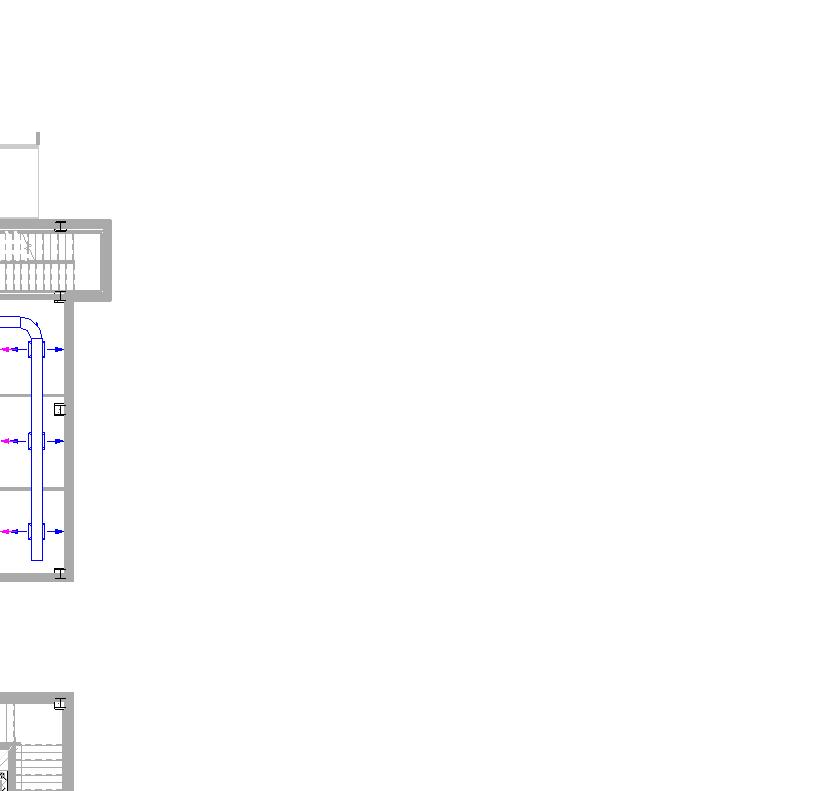

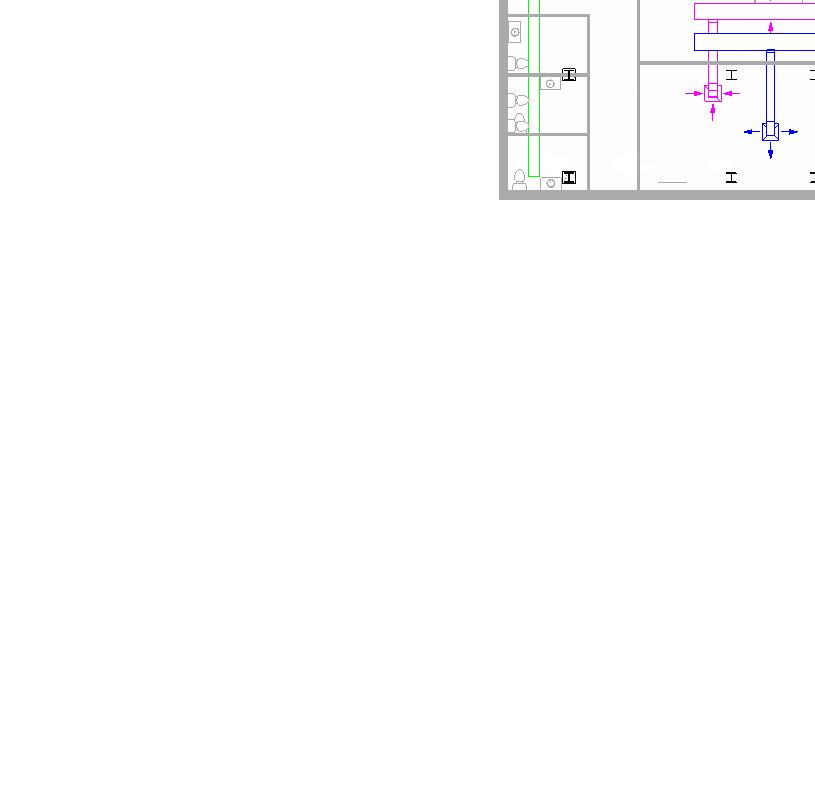

BASEMENT MECHCANICAL SYSTEMS GG

2.

3.

4.

5.

6.

7.

HH

8.

SHEET NUMBER:

10.

M1.1

19

Architecture Portfolio

Fall 2019 - Fa

02 CARDIOTHORACIC HOSPITAL FALL 2023 DESIGN 9 Cardiologic facilities in Malawi are at a dangerous low, forcing many people inflicted with heart disease to either be outsourced internationally or remain untreated. One of the largest factors of the healing process is the mental state of the patients, and studies show that positive spatial experiences are correlated to efficient healing.

Due to the effect that architecture has on a patient’s experience, our focus is on the healing of a patient’s body and psyche through thoughtful qualitative design. The design focuses on the integration of nature, light and ventilation. Thin building forms facilitate an immersive experience where the boundaries between interior and exterior spaces blur, and both bleed into each other. The canopies and roofs are designed to adjust to the exterior circulation that provides access to and from buildings in the courtyards. The incorporation of slanted roofs and canopies addresses the heavy rainfall in the tropical climate, while simultaneously providing cover for exterior circulation areas.

Revit, Rhinoceros 3D, Twinmotion, Adobe Photoshop, Adobe Illustrator

all 2023

Jinane Arbain

21

Architecture Portfolio

Fall 2019 - Fa

FACTORS FACILIATED

BY ARCHITECTURE

ARCHITECTURE

ARCHITECTURAL FEATURES (MEDIATORS)

HEALING CONSTRUCTS PSYCHOLOGY SELF-EFFICACY SOCIAL FUNCTIONAL

HEALING

Due to the effect that architecture has on a patient’s experience, our focus is to increase healing of a patient’s body and psyche through thoughtful qualitative design.

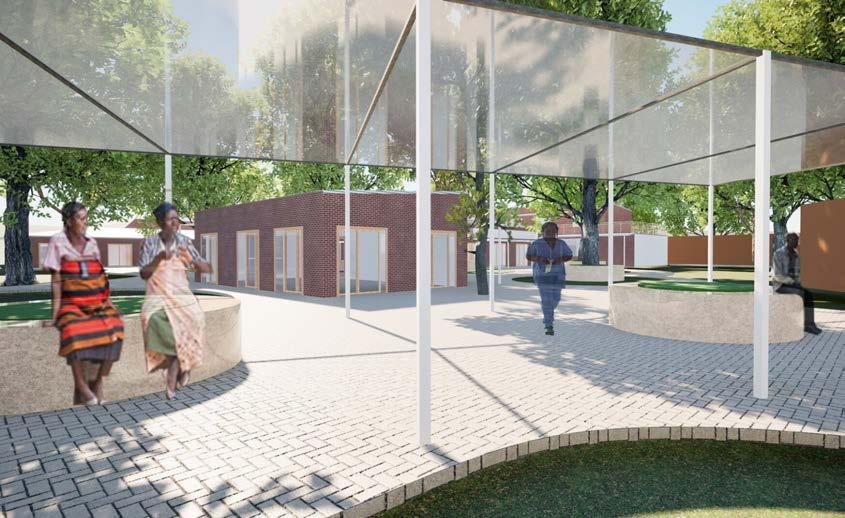

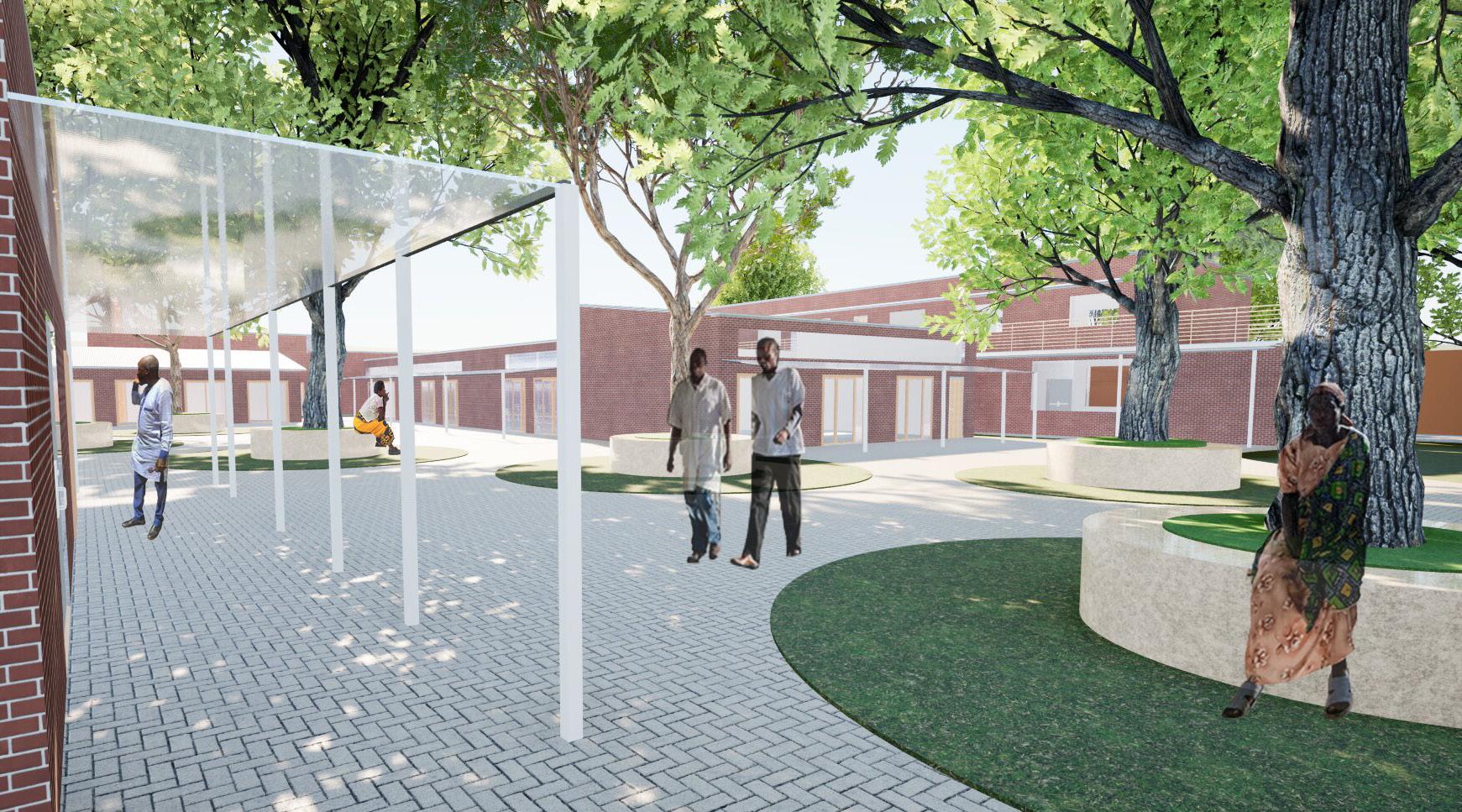

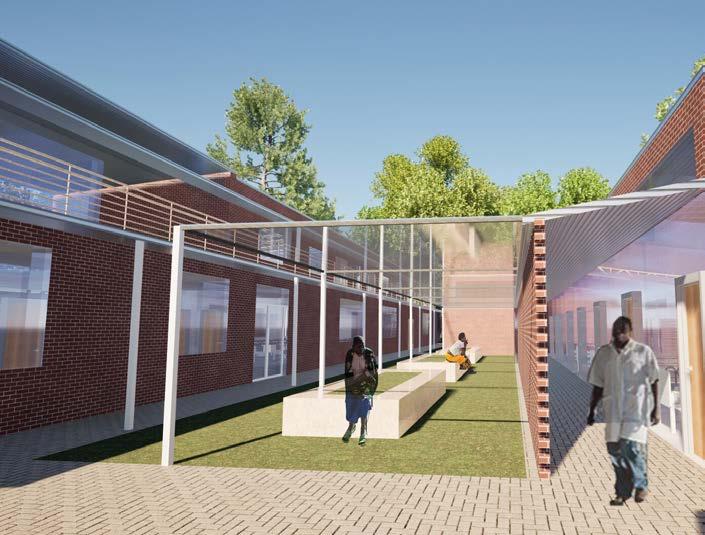

Perspective Surgical - Ward Courtyard

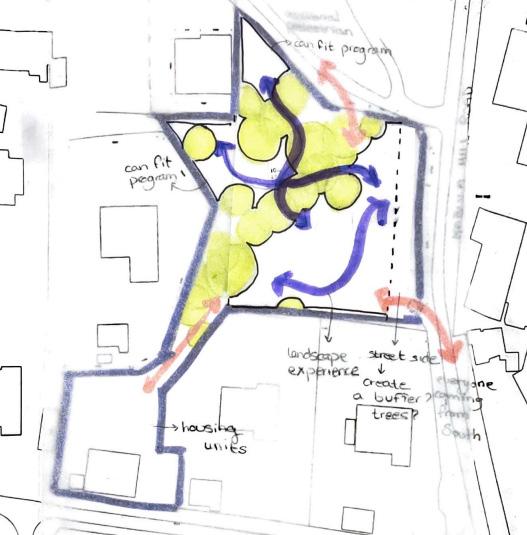

Circulation/Egress, Landscape Experience, Street Buffer, Potential Program Placement

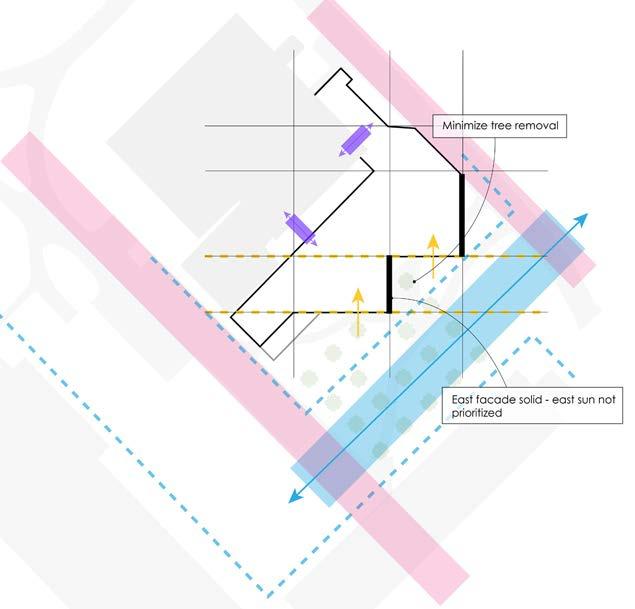

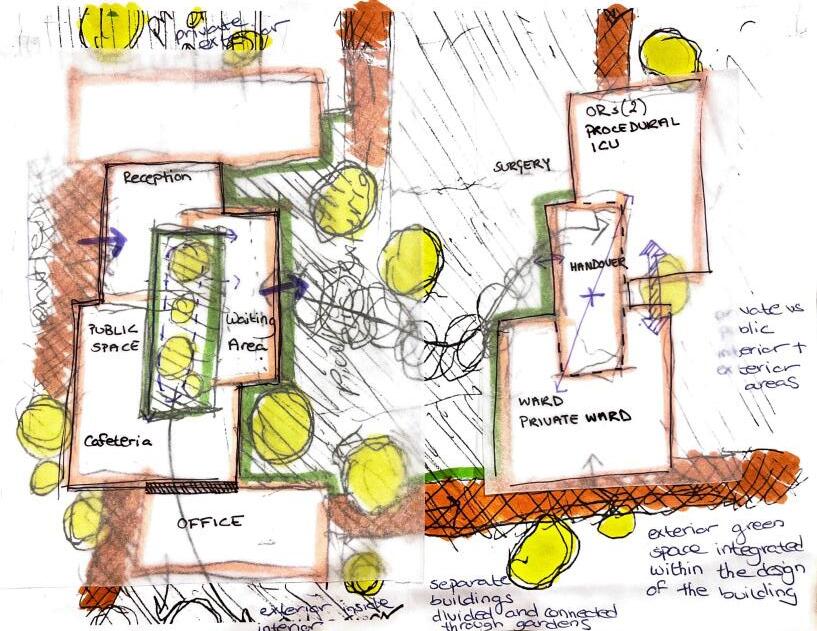

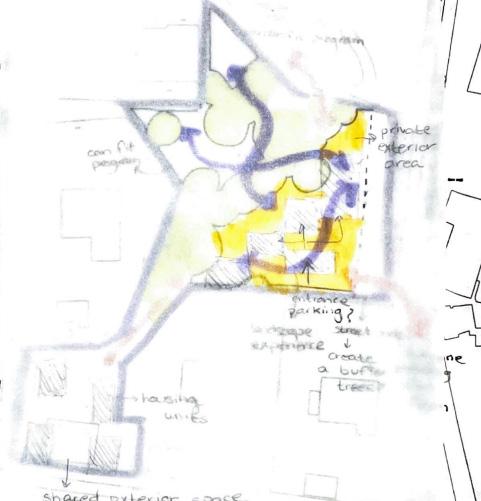

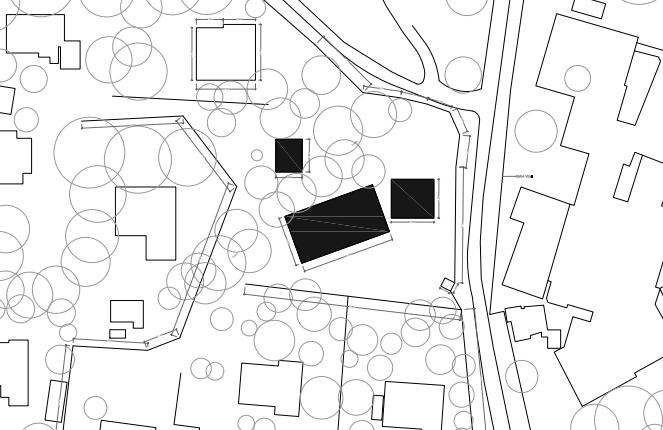

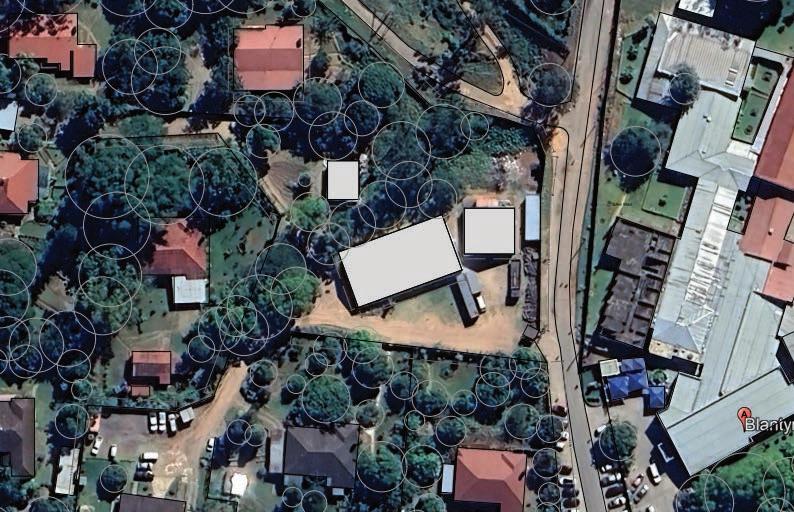

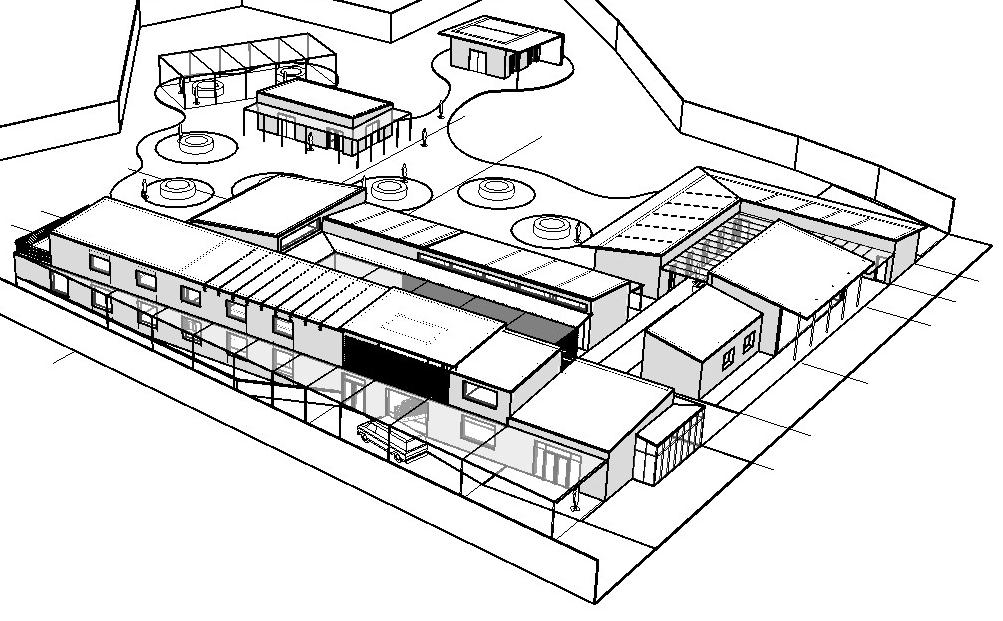

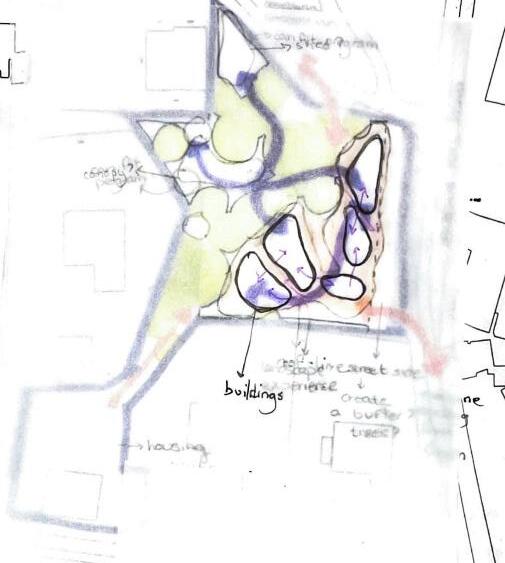

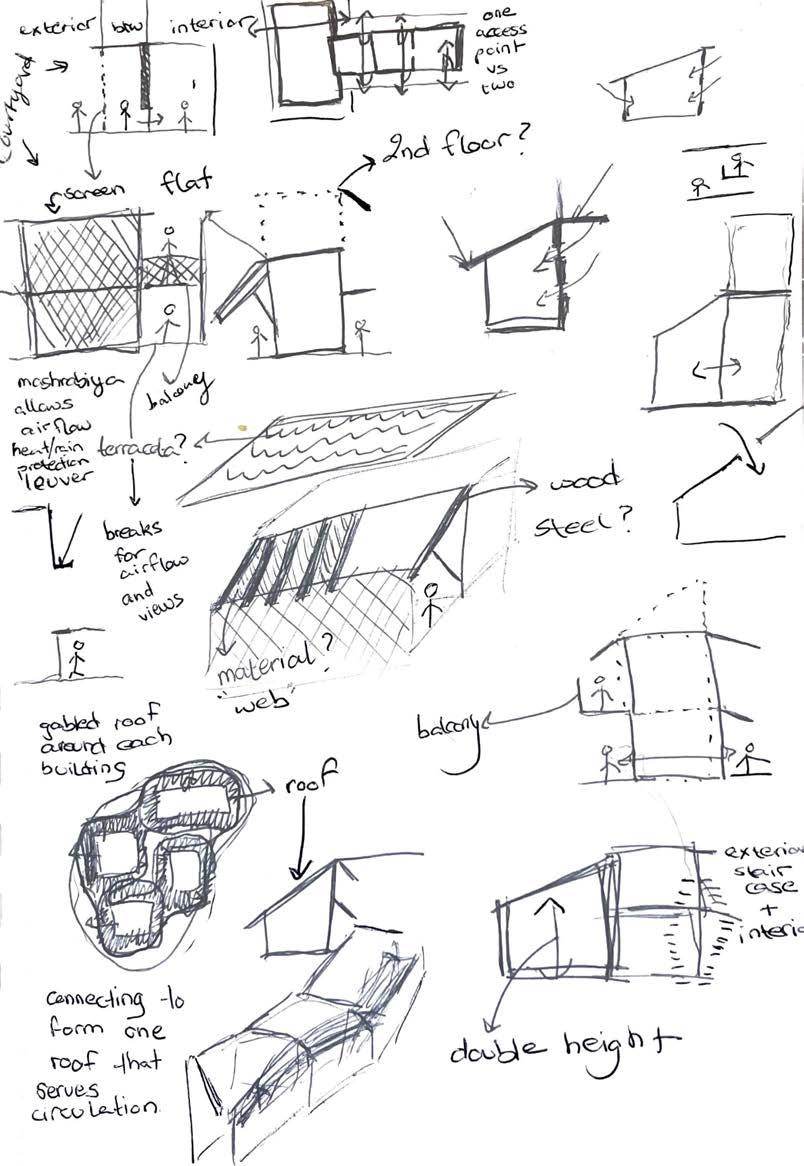

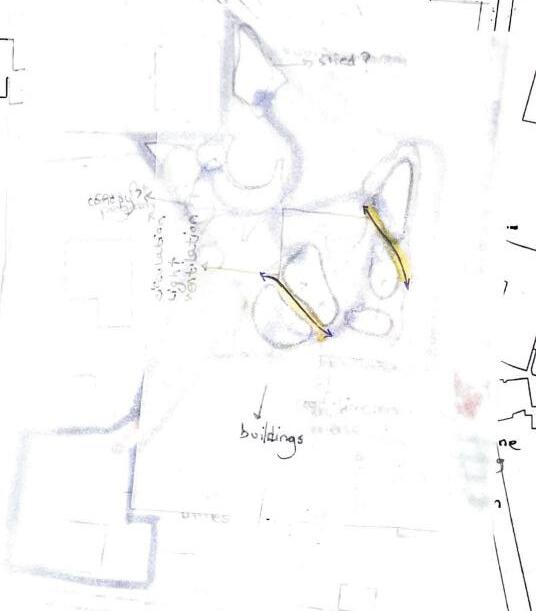

Concept Site Analysis

Program Form, Housing Units, Exterior Spaces

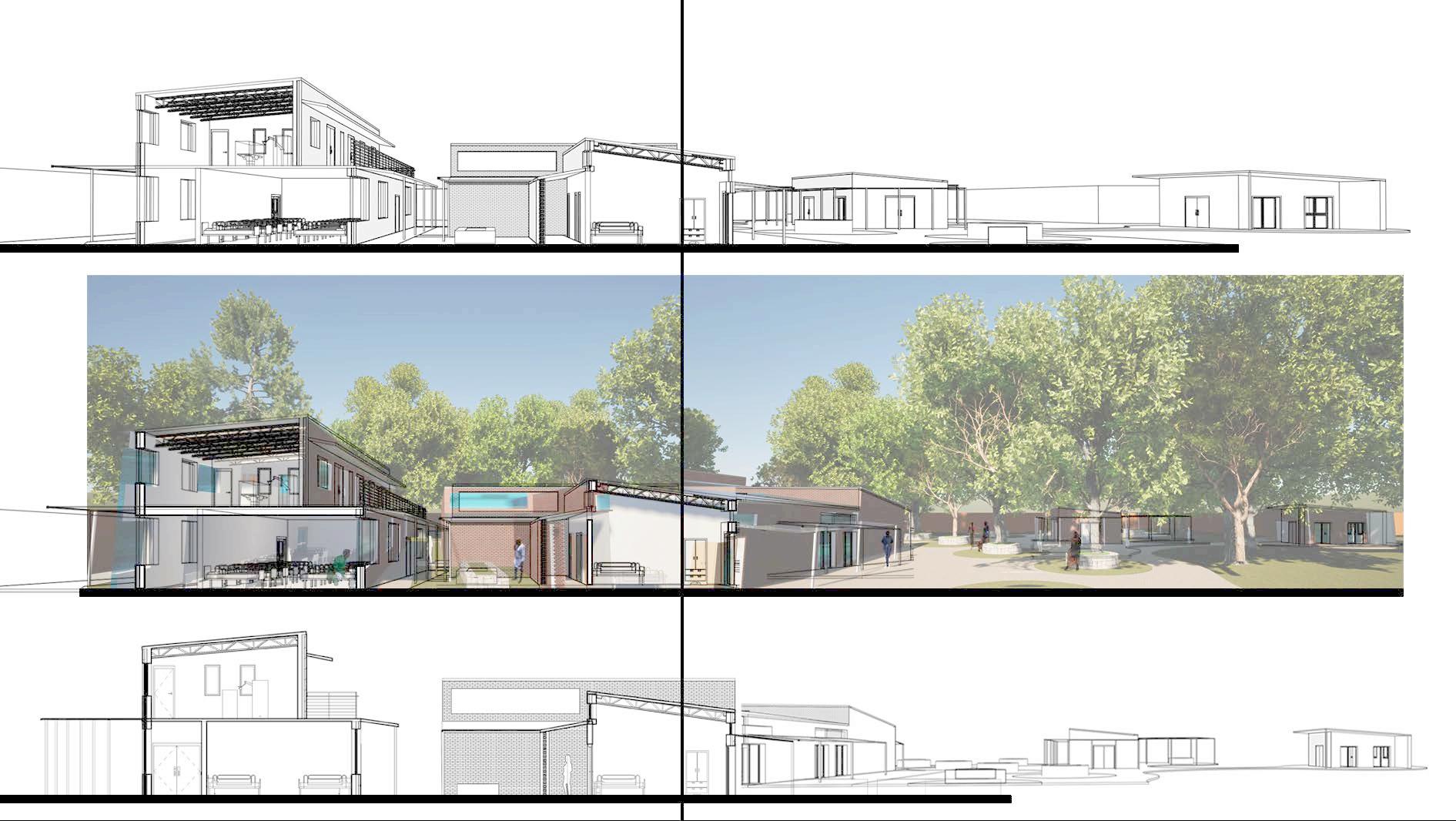

Roofline, Exterior Building Circulation, Courtyard

all 2023

Jinane Arbain

SURGICAL Surgical Admin ADMIN Education/Community EDUCATION/COMMUNITY Outpatient/Rehab OUTPATIENT/REHAB Additional IN ADDITION

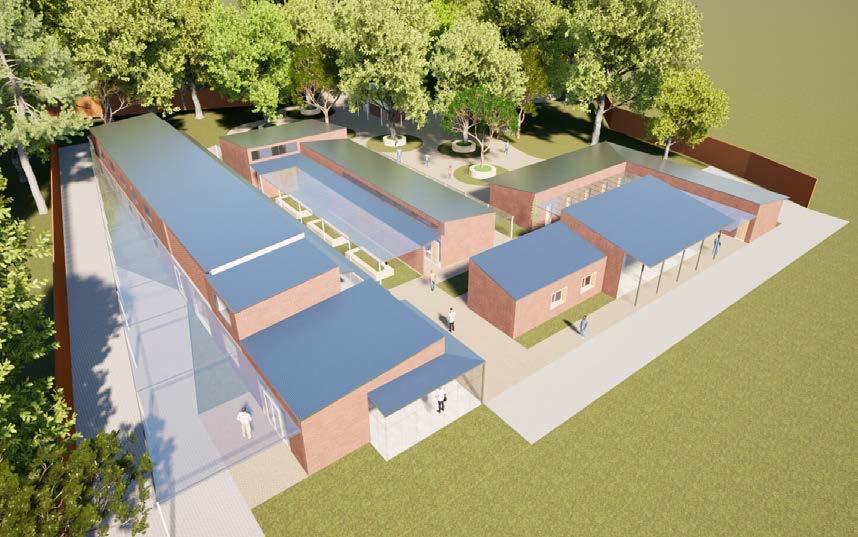

Axon

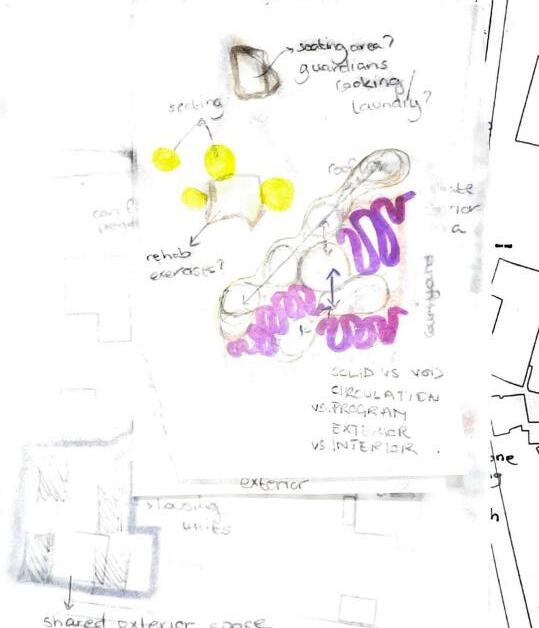

Solid vs. Void, Circulation vs. Program, Exterior vs. Interior, Rehab Space, Seating, Guardian Space

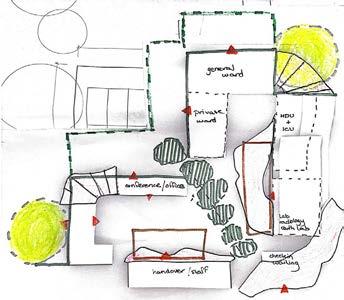

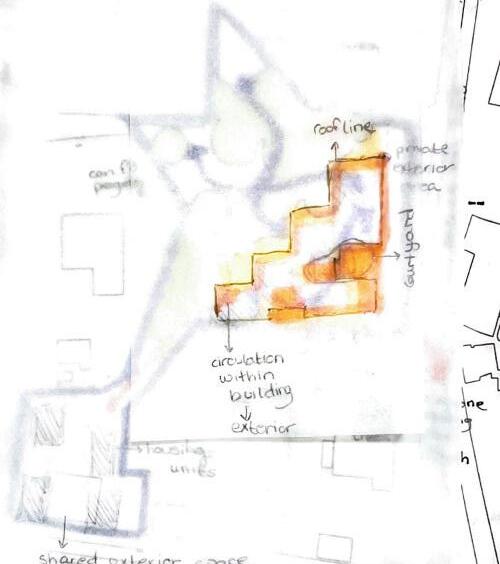

Program Adjacencies + Form

Buildings, Roofline, Canopy, Shed

Circulation, Light, Ventilation 23

Architecture Portfolio

Fall 2019 - Fa

Perspective Exterior Recovery

SATISFACTION

ACCESS TO VIEWS AND NATURE

PAIN

STRESS

HOME-LIKE ENVIRONMENT PSYCHOLOGICAL

Views to nature scenes

ANXIETY

EMOTIONAL DISTRESS Healing sanctuary less hospital-like

FATIGUE

CONTROL Home-like environment

Indoor plants

SELF-EFFICACY

Contact to outside

QUALITY OF LIFE

FUNCTIONAL

SECURITY COMFORT

Research Diagram Healing Design Strategies

Environments providing deep attachments (personal reliable and intimate place, aesthetic experience, secure atmosphere)

all 2023

Jinane Arbain Gaurdian Area Kitchen 16 m² Laundry 16 m²

10

8370

11

12

19070

13

6835

14

11776

Kitch 10 m²

Laundry 15 m²

16

Office 12 m²

Prayer 18 m²

5006

Rehab Center 36 m²

Call RmLounge 12 m² 10 m²

4600

15 Conference 27 m²

Staff Entrance

Office 12 m²

17

Office 12 m² Office 12 m²

11418

Conference Edu 60 m²

Office 12 m²

9424

Meeting Rm 15 m²

Private Ward 15 m²

Private Ward 15 m²

15 m² Private Ward

15 m² Private Ward

W.C. W.C. 10 m² 9 m²

15 m² Private Ward

Call Room 13 m²

Office 9 m² Strg 10 m²

19

Main Entrance

8

5722

11290

General Rec 88 m²

Nurses' Station 13 m²

18 9

3610

20

7 8327

ICU 81 m²

Nurse's Station 53 m²

HDU 80 m²

Out.P Ex. 11 m²

W.C. 9 m² W.C. 8 m²

Lab & Radiology 21 m²

Elevator 7 m²

Cath Lab/Proc.

19 m²

UP

6

Check-in & Waiting 125 m²

Emergency Entrance

10548

5

Plan Level 1 + Site Plan

20297

4

14016

3

7466

2

---

1

25

Architecture Portfolio

Fall 2019 - Fa

Analyzing the relationship between the built environment and the exterior, natural environment.

Perspective Exterior Rehab

HEALING

EXTERNAL

BEHAVIORAL EXTERNAL

Healing Spaces Healthy Lifestyles HEALING Healing Spaces Ecological Sustainability Integrative Care Ecological Sustainability

FUNCTIONAL HEALING CONSTRUCTS PSYCHOLOGY SELF-EFFICACY SOCIAL FUNCTIONAL

FACTORS FACILIATED

BY ARCHITECTURE ARCHITECTURAL FEATURES (MEDIATORS)

Perspective Staff Courtyard

Healthy Lifestyles Integrative Care

FUNCTIONAL

INTERNAL

Healing Intention Personal Wholeness

PSYCHOLOGICAL

INTE

Healin Persona

PSYCHO

HEALING CONSTRUCTS PSYCHOLOGY SELF-EFFICACY SOCIAL FUNCTIONAL

QUALITY OF LIFE

ARCHITECTURE

BEHAVIORAL

QUALITY OF LIFE

ACCESS TO VIEWS AND NATURE ARCHITECTURE

ACCESS TO VIEWS AND NATURE

FACTORS FACILIATED

BY ARCHITECTURE

Contact to outside ARCHITECTURAL FEATURES (MEDIATORS)

Contact to outside

STRESS

PAIN

ACCESS TO VIEWS AND NATURE

Views to nature scenes

Research Diagram Healing Design Strategies

STRESS

ACCESS AND N

Views t sc

all 2023

Section Perspective Interior-Exterior Relationship

Jinane Arbain

27

Architecture Portfolio

Fall 2019 - Fa

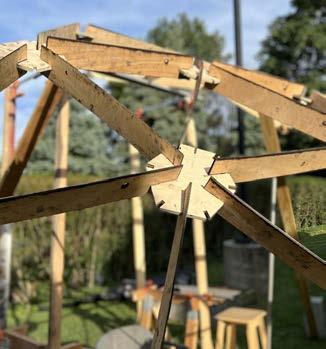

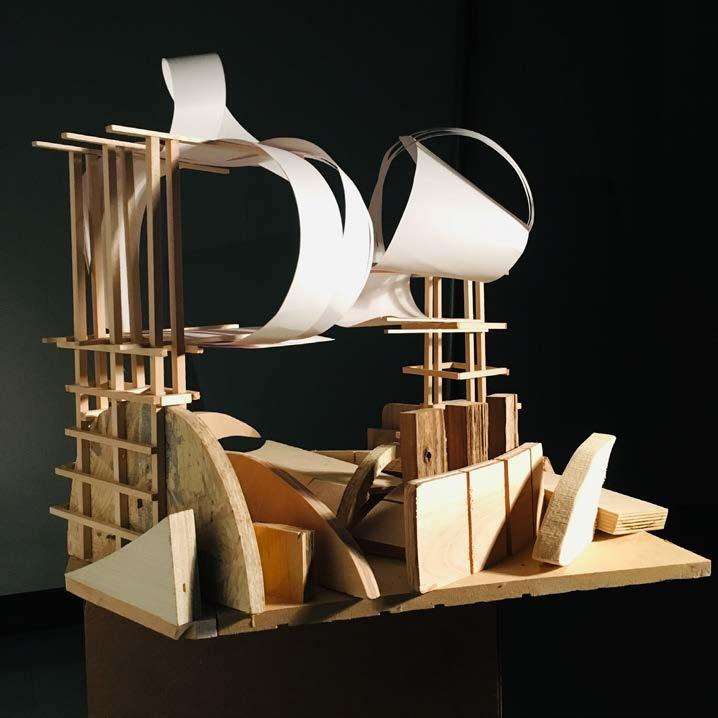

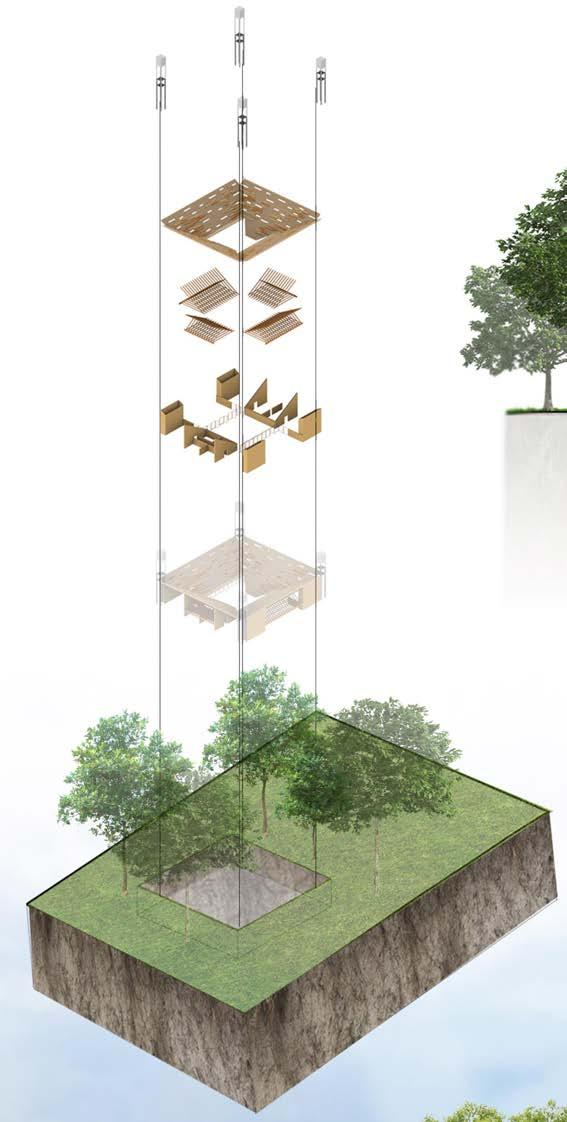

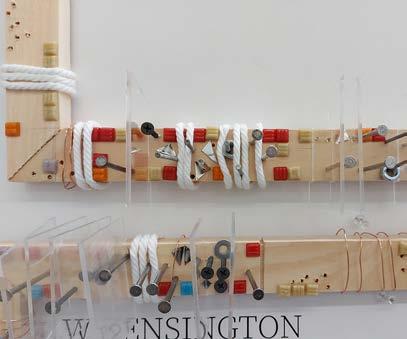

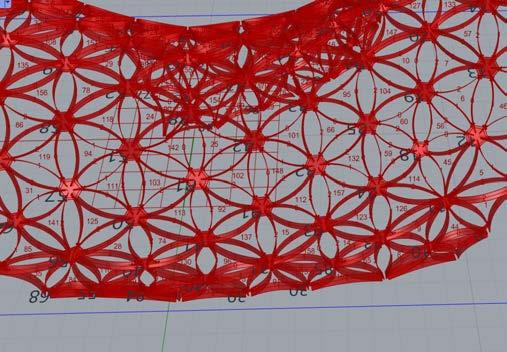

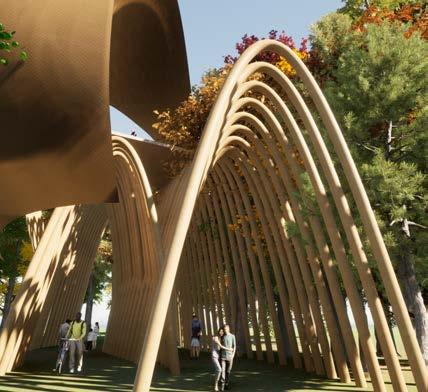

EPHEMERAL RIGIDITY PAVILION FALL 2022 EXPERIMENTAL MATERIALS This pavilion project was a valuable experience. I learned how material properties affected the structure’s strength and function. The project emphasized the value of both digital and physical fabrication, with Grasshopper aiding in the modeling process. Despite careful planning, challenges like cracking strips and base stability arose, teaching me the importance of a strong foundation and an organized construction system. Overall, it reinforced the collaborative nature of architecture and the vital role of both digital and analog tools in bringing a design to life.

Displayed at Cherry Street Peer

all 2023

Jinane Arbain

03 PAGE SOUTHERLAND PAGE SUMMER 2023 INTERNSHIP During my internship at Page Southerland Page, I primarily worked on the SEAS building project for the University at Buffalo, contributing extensively through Revit. My responsibilities included drafting detailed plans, modeling various building components, and integrating furniture layouts into the designs. I focused on refining and rearranging plans to address design challenges and align with project goals, ensuring both functionality and aesthetic quality. This experience allowed me to further develop my technical skills and understanding of architectural workflows. efforts that shaped the design process.

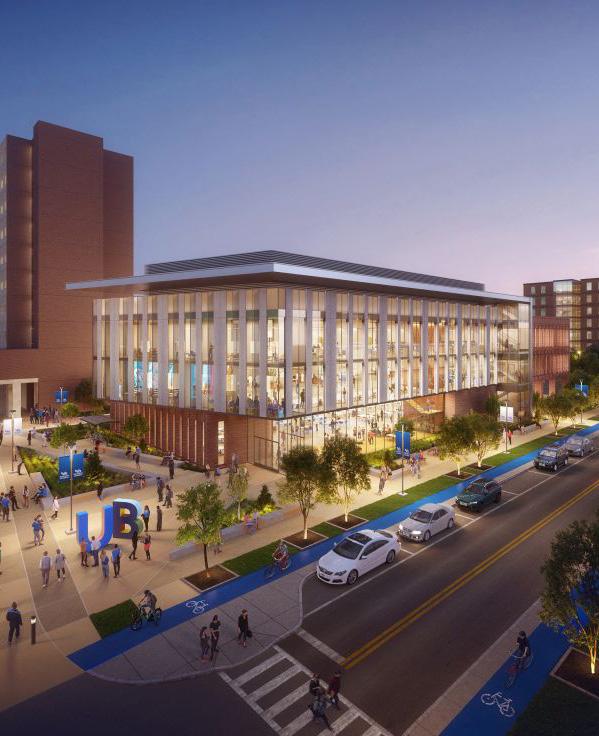

UBuffalo SEAS Building

Revit

29

Architecture Portfolio

Fall 2019 - Fa

1

4

3

2

5

6

7

1

2 A-302

8

FLOOR PLAN GENERAL NOTES

9

1. ALL UNMARKED PARTITIONS ARE TYPE __. ALL COLUMN FURRING TO BE PARTITION TYPE __ UNLESS NOTED OTHERWISE.

1 A-302

A-201

2. ALL WINDOW & DOOR PLAN OPENINGS ARE DIMENSIONED ON AREA PLANS. Page Southerland Page, Inc.

3. FOR FIRE AND LIFE SAFETY PLANS, REFER TO G1 DRAWINGS. 4. ROOF PLAN SHOWN FOR REFERENCE ONLY. REFER TO ROOF PLAN FOR NOTES AND DIMENSIONS.

A1

PROJECT BAY - CONCRETE CANOE 581 SF

PROJECT BAY - SOLAR BOAT 582 SF

PROJECT BAY - AIAA (PLANES) 582 SF

9. INSTALL BLOCKING AS REQUIRED TO SUPPORT WALL MOUNTED DEVICES. 10. AT ALL SPANDREL GLASS LOCATIONS, FACE OF INTERIOR WALL TO BE CONTINUOUS WITH ADJACENT WALL. 11. REFER TO A-551 FOR INTERIOR EXPANSION JOINT DETAILS.

PROJECT ASSEMBLY DIRTY 3,018 SF

TRASH 602 SF

Albany / Albuquerque / Atlanta / Austin / Boston / Dallas / Denver / Dubai / Houston / Los Angeles / Mexico City / Orlando / Phoenix / Raleigh / San Francisco / Washington DC CONSULTANT TEAM

CIVIL & LANDSCAPE ARCHIECTURE

MECHANICAL ENGINEERING

216 Montgomery St Ste 1000 Syracuse, NY 13202 315-471-0688

1001 Avenue of the Americas 21st Floor New York, NY 10018 212-921-4142

EDR

VANDERWEIL

STRUCTURAL ENGINEERING

12. GENERAL DIMENSIONS PROVIDED ON FLOOR PLANS AND AREA PLANS DO NOT REFLECT THE ROUGH OPENING DIMENSIONS REQUIRED FOR COORDINATION WITH MASONRY JOINT COURSING. CONTRACTOR IS TO PROVIDE ROUGH OPENING FRAMING DIMENSIONS CONSISTENT WITH ENLARGED ARCHITECTURAL PLAN/SECTION DETAILS (A5 SERIES SHEETS), AND WINDOW SCHEDULE/DETAILS (A6 SERIES). CONTRACTOR TO SUBMIT RFI FOR ANY ROUGH OPENING DIMENSIONS NOT GIVEN IN DETAILING FOR CLARIFICATION REQUIRED.

A2

518 795 3800

TEL

6. REFER TO A6 SERIES FOR ALL PARTITIONS, DOORS, WINDOWS, AND ACCESSORIES.

8. ALL PARTITION DIMENSIONS ARE TAKEN FROM THE CENTERLINE OF COLUMNS AND TO THE DRYWALL FACE.

PROJECT BAY - SEDS ROCKET 601 SF

pagethink.com

ARCHITECTURE / ENGINEERING / INTERIORS / PLANNING / CONSULTING

7. INSTALL APPROPRIATE MANUFACTURED EXPANSION JOINT COVERS AT ALL VISIBLE BUILDING EXPANSION JOINTS. TOP OF COVER OF FLOOR EXPANSION JOINT COVERS TO BE FLUSH WITH TOP OF FINISHED FLOOR. PROJECT BAY - STEEL BRIDGE 582 SF

LOADING 603 SF

201 Fuller Road, 5th Floor Albany, NY 12203

5. REFER TO A2 SERIES DRAWINGS, EXTERIOR ELEVATIONS, A3 BUILDING AND WALL SECTIONS.

ELECTRICAL ENGINEERING

RYAN BIGGS CLARK DAVIS

FOIT-ALBERT

PLUMBING ENGINEERING

FIRE PROTECTION ENGINEERING

295 Main Street Ste 200 Buffalo, NY 14203 716-856-3961

295 Main Street Ste 200 Buffalo, NY 14203 716-856-3961

257 USHERS RD Clifton Park, NY 12065 518-406-5506

295 Main Street Ste 200 Buffalo, NY 14203 716-856-3961

FOIT-ALBERT

FOIT-ALBERT

COST ESTIMATING

ABESTOS / HAZMAT

4588 S Park Ave Buffalo, NY 14219 716-823-0006

95 Perry Street Ste 300 Buffalo, NY 14203 716-206-5100

TROPHY POINT

A3

KEYED NOTES

CORRIDOR 999 SF

NUMBER

AV / SECURITY / ACOUSTICS

CUSTODIAL OFFICE 172 SF CUSTODIAL STOCK 405 SF

SURVEY / GEOTECHNICAL ENGINEERING

SHEN MILSOM & WILKE

RAVI ENGINEERING & SURVEYING

LIGHTING

SUSTAINABLE DESIGN DOCUMENTATION

307 7th Ave Ste 1803 New York, NY 10001 646-838-4385

10 Hallenbeck Hill East Greenbush, NY 12061 518-729-2967

275 Madison Ave New York, NY 10016 212-725-6800

DESCRIPTION

A4 2 A-301

WATTS

2110 S Clinton Ave Ste 1 Rochester, NY 14618 585-223-3660

THE LIGHTING PRACTICE 2 A-301

UP PROJECT BAY - PILOTS 604 SF

CUSTODIAL BREAK 220 SF

D2D GREEN ARCHITECTURE

SPECIFICATIONS

SUE MCCLYMONDS, ARCHITECT 200 Robb Rd Amsterdam, NY 14219 518-843-4054

A5 EVENT SPACE 1,629 SF

KEYPLAN

ENTRY 376 SF

A6 MONUMENTAL STAIR 356 SF

ATRIUM 1,646 SF

REVISION HISTORY

1

A7

A-202

UP

2 A-202

A8

REVISION

JAN 47 SF

VEST 177 SF

B1

IT IS NOT TO BE USED FOR REGULATORY APPROVAL, BIDDING, PERMIT, OR CONSTRUCTION PURPOSES.

CLASSROOM 100 SEAT 2,541 SF

IDF 92 SF

MENS 199 SF

IT IS A VIOLATION OF THE LAW FOR ANY PERSON, UNLESS ACTING UNDER THE DIRECTION OF A LICENSED ARCHITECT, TO ALTER AN ITEM IN ANY WAY. IF AN ITEM BEARING THE SEAL OF AN ARCHITECT IS ALTERED, THE ALTERING ARCHITECT SHALL AFFIX TO HIS ITEM THE SEAL AND THE NOTATION "ALTERED BY" FOLLWED BY HIS SIGNATURE AND THE DATE OF SUCH ALTERATION, AND A SPECIFIC DESCRIPTION OF THE ALTERATION.

UP ELECTRICAL 300 SF

SERVICES 301 SF

1 A-301

1 A-301

FLOOR PLAN LEGEND SYMBOL

LEARNING LANDSCAPE 644 SF

FILE PATH: Autodesk Docs://1P22066.01-University at Buffalo, New SEAS Building/1P22066.00-A-OPT2-R23-CENTRAL.rvt USER NAME: DATE STAMP: 6/21/2023 11:49:54 AM

B3

04 21 13.13.A01

OPEN COMPUTING 592 SF

A1 X

OFFICE 120 SF

16

WISE 460 SF

1 A-301

1

14

A-201

13 B4

MATCH LINE SHEET REFERENCE KEYED NOTE KEYED NOTES ONLY APPLY TO THIS SHEET PARTITION TAG REFER TO PARTITION SCHEDULE

1

12

A-211

1 A-431 ROOM NAME 101

2 2 A-302

A-201

EXTERIOR ELEVATION TAG

UB SEAS Site, White Rd, Amherst, NY 14260

INTERIOR ELEVATION TAG

PLAN REFERENCE TAG ROOM NAME

1

Plan Level 1

ARCHITECTURAL - FLOOR PLAN - LEVEL 01

SCALE: 3/32" = 1'-0"

SUCF PROJECT NO. 301067-00

PAGE PROJECT NO. 1P22066.00

DRAWN BY Author

CHECKED BY Checker

ROOM NUMBER

ORIGINAL ISSUE

SMOKE PARTITION 1-HOUR FIRE WALL, FIRE BARRIER, OR FIRE PARTITION

ORIGINAL ISSUE DESCRIPTION DD MMM YYYY

A 1002 NEW DOOR WITH DOOR TAG REF DOOR SCHED

UNIVERSITY AT BUFFALO

CONSTRUCT NEW BUILDING - SCHOOL OF ENGINEERING AND APPLIED SCIENCES (SEAS)

BUILDING SECTION TAG WALL SECTION TAG

1-HOUR FIRE-RATED SMOKE BARRIER 2-HOUR FIRE WALL, FIRE BARRIER, OR FIRE PARTITION 2-HOUR FIRE-RATED SMOKE BARRIER 3-HOUR FIRE WALL, FIRE BARRIER, OR FIRE PARTITION

1 A-302

CAMPUS

PROJECT

15

DIVERSITY 481 SF

CLIENT

DESCRIPTION

MATCHLINE REF 01 / A101

B2 OFFICE 120 SF

DATE

INTERM REVIEW THIS DOCUMENT IS RELEASED FOR THE PURPOSE OF INTERIM REVIEW.

WOMENS 198 SF

MDF / TELE 301 SF

WATER SERVICE 302 SF

DESCRIPTION

PROFESSIONAL SEALS

ELEV 83 SF

STAIR 1 290 SF

28 NEW WINDOW WITH WINDOW MARK REF GLAZING ELEVATIONS

SHEET NAME

ARCHITECTURAL - FLOOR PLAN LEVEL 01 SHEET NUMBER

COLUMN GRID DESIGNATIONS

A-100

all 2023

Jinane Arbain

1

FLOOR PLAN GENERAL NOTES

4

3

2

5

6

7

1

2 A-302

8

1. ALL UNMARKED PARTITIONS ARE TYPE __. ALL COLUMN FURRING TO BE PARTITION TYPE __ UNLESS NOTED OTHERWISE.

1

9

A-201

Page Southerland Page, Inc.

3. FOR FIRE AND LIFE SAFETY PLANS, REFER TO G1 DRAWINGS.

TEL

OFFICE

10. AT ALL SPANDREL GLASS LOCATIONS, FACE OF120 INTERIOR WALL TO BE CONTINUOUS SF WITH ADJACENT WALL. 11. REFER TO A-551 FOR INTERIOR EXPANSION JOINT DETAILS.

STUDENT ASST.

12. GENERAL DIMENSIONS PROVIDED ON FLOOR PLANS AND AREA PLANS DO NOT 121 SF REFLECT THE ROUGH OPENING DIMENSIONS REQUIRED FOR COORDINATION WITH OFFICE 119 SF MASONRY JOINT COURSING. CONTRACTOR IS TO PROVIDE ROUGH OPENING FRAMING DIMENSIONS CONSISTENT WITH ENLARGED ARCHITECTURAL PLAN/SECTION DETAILS (A5 SERIES SHEETS), AND WINDOW SCHEDULE/DETAILS (A6 OPEN OFFICE SERIES). CONTRACTOR TO SUBMIT RFI FOR ANY ROUGH OPENING DIMENSIONS NOT79 SF OFFICE GIVEN IN DETAILING FOR CLARIFICATION REQUIRED.

MEET 99 SF

PROJECT ASSEMBLY CLEAN 3,315 SF

OPEN OFFICE 79 SF

MEET 97 SF

OFFICE 119 SF

OFFICE 120 SF

275 Madison Ave New York, NY 10016 212-725-6800 OFFICE 121 SF

A4

NANO - FAB 397 SF

STAIR 2 223 SF

RESEARCH LAB 2 (FOOD PRODUCTION) 610 SF

OFFICE 120 SF

2 A-301

NANOSAT SUITE 830 SF

OFFICE 120 SF

OFFICE 120 SF

OFFICE 120 SF

SUSTAINABLE DESIGN DOCUMENTATION 10 Hallenbeck Hill East Greenbush, NY 12061 518-729-2967

D2D GREEN ARCHITECTURE

OFFICE 120 SF

OFFICE 117 SF

OFFICE 120 SF

1 A-202

LEARNING LANDSCAPE 578 SF

2

JAN 47 SF

DESCRIPTION

DATE

PROFESSIONAL SEALS

FLEX COMP LAB 908 SF

JAN

VEST 177 SF

47 SF INTERM REVIEW THIS DOCUMENTWOMENS IS RELEASED FOR 198 SF THE PURPOSE OF INTERIM REVIEW.

LEARNING LANDSCAPE 884 SF

ELEV 83 SF

IDF 92 SF

B1

B1

MENS 199 SF

FLEX COMP LAB 915 SF

1 A-301 PRESENTATION / PITCH 882 SF

FLOOR PLAN LEGEND SYMBOL

IAD 600 SF

A1 X

15 14 13 12

2 A-201

1 A-302

FILE PATH: Autodesk Docs://1P22066.01-University at Buffalo, New SEAS Building/1P22066.00-A-OPT2-R23-CENTRAL.rvt USER NAME: DATE STAMP: 6/21/2023 11:49:46 AM

IAD 600 SF IAD 621 SF

1

16

CORRIDOR 724 SF

A-301

PUBLIC SPACE 180 SF

KEYED NOTE KEYED NOTES ONLY APPLY TO THIS SHEET PARTITION TAG

REFER TO PARTITION SCHEDULE B3

1 A-201

UNIVERSITY AT BUFFALO

STORAGE 96 SF

CONSTRUCT NEW BUILDING - SCHOOL OF ENGINEERING AND APPLIED SCIENCES (SEAS)

BUILDING SECTION TAG WALL SECTION TAG

EXTERIOR ELEVATION TAG

A-211

INTERIOR ELEVATION TAG

1

B4

A-431

ROOM NAME 101

SUCF PROJECT NO. 301067-00

PLAN REFERENCE TAG

CHECKED BY Checker

ORIGINAL ISSUE

A-302 ORIGINAL ISSUE DESCRIPTION DD MMM YYYY

2

1002 NEW DOOR WITH DOOR TAG REF DOOR SCHED

28 NEW WINDOW WITH WINDOW MARK REF GLAZING ELEVATIONS

A

14

13

1P22066.00

DRAWN BY Author

SMOKE PARTITION 1-HOUR FIRE WALL, FIRE BARRIER, OR FIRE PARTITION

ARCHITECTURAL - FLOOR PLAN - LEVEL 03

SCALE: 3/32" = 1'-0"

15

12 PAGE PROJECT NO.

ROOM NUMBER

ROOM NAME

16

STORAGE 95 SF

UB SEAS Site, White Rd, Amherst, NY 14260

1-HOUR FIRE-RATED SMOKE BARRIER 2-HOUR FIRE WALL, FIRE BARRIER, OR FIRE PARTITION 2-HOUR FIRE-RATED SMOKE BARRIER 3-HOUR FIRE WALL, FIRE BARRIER, OR FIRE PARTITION

1

PUBLIC SPACE 205 SF

EEMBEDDED SYSTEMS LAB 907 SF

CAMPUS

PROJECT

HARDWARE PROTOTYPING 1,533 SF

1

FLEX COMP LAB 902 SF

HARDWARE TA'S 98 SF

MATCH LINE

B2 SHEET REFERENCE

04 21 13.13.A01

IAD 600 SF

CLIENT

DESCRIPTION

MATCHLINE REF 01 / A101

IAD - WRITE UP 587 SF

PUBLIC SPACE 283 SF

MENS

IT IS A VIOLATION OF THE LAW FOR ANY PERSON, ACTING UNDER THE 199 UNLESS SF DIRECTION OF A LICENSED ARCHITECT, TO ALTER AN ITEM IN ANY WAY. IF AN ITEM BEARING UP THE SEAL OF AN ARCHITECT IS ALTERED, THE ALTERING ARCHITECT SHALL AFFIX TO HIS ITEM THE SEAL AND THE NOTATION "ALTERED STAIR 1 BY" FOLLWED BY HIS SIGNATURE AND THE DATE OF SUCH ALTERATION, AND A 290 SF SPECIFIC DESCRIPTION OF THE ALTERATION.

STAIR 1 290 SF

CORRIDOR 735 SF

ELEV 83 SF

IT IS NOT TO BE USED FOR VEST REGULATORY APPROVAL, BIDDING,177 SF PERMIT, OR CONSTRUCTION PURPOSES.

BLDG SRV 312 SF

BEAM 324 SF

WRITE UP 111 SF

Plan Level 1

REVISION

A8

WOMENS 198 SF

SCALE: 3/32" = 1'-0"

MONUMENTAL STAIR 340 SF

A7

1

A-202

ARCHITECTURAL - FLOOR PLAN - LEVEL 02

CORRIDOR 1,665 SF

CONF RM 10C 375 SF

UP

1

OFFICE 117 SF

OFFICE 120 SF

A-202

2 A-302

UP

CONF RM 10C 321 SF

2

B4

STAIR 2 223 SF

PANTRY 608 SF

OFFICE 120 SF

A-202

B3

OFFICE 119 SF

WAITING

307 7th Ave Ste 1803 New York, NY 10001 646-838-4385

NANO COMMAND 187 SF

A7

B2

OFFICE 119 SF

STORAGE 121 SF

2110 S Clinton Ave Ste 1 Rochester, NY 14618 OFFICE 585-223-3660 121 SF

OFFICE 120 SF

RESEARCH LAB - 3 (BIOLOGICAL) 621 SF

OFFICE 120 SF

WORKROOM 120 SF RECEPTION 199 SF

REVISION HISTORY

1 A-301

WELLNESS 119 SF

MEET 119 SF

RECEPTION 191 SF

LIGHTING

A6

UP

OFFICE 120 SF

77 SF SURVEY / GEOTECHNICAL ENGINEERING

ATRIUM OPEN TO BELOW

RESEARCH LAB - 4 (CHEMICAL) 619 SF

OPEN OFFICE 82 SF

KEYPLAN

A6

A8

OFFICE 126 SF

RAVI ENGINEERING & SURVEYING OFFICE 121 SF

Amsterdam, NY 14219 518-843-4054

CORRIDOR 1,272 SF NANO - MEET 190 SF

95 Perry Street Ste 300 Buffalo, NY 14203 716-206-5100

SPECIFICATIONS OFFICE 120SUE SF MCCLYMONDS, ARCHITECT OFFICE 200 Robb Rd 120 SF

A5

NANO SECURE 240 SF

OPEN OFFICE 82 SF

ABESTOS / HAZMAT

THE LIGHTING PRACTICE

UP UP

OPEN OFFICE 80 SF

WATTS

OFFICE 123 SF

AV / SECURITY / ACOUSTICS

OFFICE 120 SF

OFFICE 120 SF

716-856-3961

SHEN MILSOM & WILKE

OFFICE 119 SF

2 A-301

A5

OPEN OFFICE 161 SF

295 Main Street Ste 200

COST ESTIMATING

DESCRIPTION

OFFICE 120 SF

OPEN Buffalo, OFFICE NY 14203 81 SF

OPEN OFFICE 80 SF

TROPHY POINT

KEYED NOTES

A3 NUMBER CORRIDOR 1,086 SF

RESEARCH LAB 1 (ENVIRONMENTAL) 606 SF

FOIT-ALBERT

295 Main Street Ste 200

MEET 120 SF

OPEN OFFICE 101 SF

FIRE PROTECTION ENGINEERING

FOIT-ALBERT

716-856-3961

OFFICE 120 SF

OPEN OFFICE 79 SF

4588 S Park Ave Buffalo, NY 14219 716-823-0006

A3 A4

OPEN OFFICE 79 SF

OPEN OFFICE Buffalo, 80 SF NY 14203

OFFICE 120 SF

OFFICE 120 SF

295 Main Street Ste 200 Buffalo, NY 14203 716-856-3961

PLUMBING ENGINEERING

119 SF

MEET 96 SF

OFFICE 120 SF

1001 Avenue of the Americas 21st Floor New York, NY 10018 212-921-4142

VANDERWEIL

257 USHERS RD Clifton Park, NY 12065 518-406-5506

OPEN OFFICE 80 SF

CLUB STORAGE 303 SF

OFFICE 121 SF

MECHANICAL ENGINEERING

216 Montgomery St Ste 1000 Syracuse, NY 13202 315-471-0688

STRUCTURAL ENGINEERING OPEN OFFICE OPEN OFFICE OPEN OFFICE ELECTRICAL OPEN OFFICEENGINEERING OPEN OFFICE 80 SF BIGGS CLARK 80 SF DAVIS 80 SF 80 SF 80 SF RYAN FOIT-ALBERT

A2

A2

OFFICE 120 SF

CIVIL & LANDSCAPE ARCHIECTURE

EDR

9. INSTALL BLOCKING AS REQUIRED TO SUPPORT WALL MOUNTED DEVICES.

PROJECT BAY - IEEE 602 SF

9

518 795 3800

OFFICE OFFICE 120 SF CONSULTANT TEAM 120 SF

120 SF

8. ALL PARTITION DIMENSIONS ARE TAKEN FROM THE CENTERLINE OF COLUMNS AND TO THE DRYWALL FACE. CLUB STORAGE 281 SF

ELECTRICAL TINKER 582 SF

8

Albany / Albuquerque / Atlanta / Austin / Boston / Dallas / Denver / Dubai / Houston / Los Angeles / Mexico City / Orlando / Phoenix / Raleigh / San Francisco / Washington DC

7. INSTALL APPROPRIATE MANUFACTURED EXPANSION JOINT COVERS AT ALL VISIBLE BUILDING EXPANSION JOINTS. TOP OF COVEROFFICE OF FLOOR EXPANSION JOINT 126 SF COVERS TO BE FLUSH WITH TOP OF FINISHED FLOOR. OFFICE

DIGITAL MANUFACTURING 588 SF

7 1 A-302

ARCHITECTURE / ENGINEERING / INTERIORS / PLANNING / CONSULTING

A1

6. REFER TO A6 SERIES FOR ALL PARTITIONS, DOORS, WINDOWS, AND ACCESSORIES.

DIGITAL TINKER 1,180 SF

6

1 A-201

pagethink.com

5. REFER TO A2 SERIES DRAWINGS, EXTERIOR ELEVATIONS, A3 BUILDING AND WALL SECTIONS.

A1

5

2 A-302

201 Fuller Road, 5th Floor Albany, NY 12203

4. ROOF PLAN SHOWN FOR REFERENCE ONLY. REFER TO ROOF PLAN FOR NOTES AND DIMENSIONS.

COMMON FUME HOOD 605 SF

4

3

2

2. ALL WINDOW & DOOR PLAN OPENINGS ARE DIMENSIONED ON AREA PLANS.

1 A-302

SHEET NAME

ARCHITECTURAL - FLOOR PLAN LEVEL 02

1 A-302 2 A-201

SHEET NUMBER

COLUMN GRID DESIGNATIONS

A-101

31

Architecture Portfolio

Fall 2019 - Fa

Module 5 - Yale Art Gallery: Final Drawings

04 STRUCTURAL DETAILING SPRING 2022 TECH 4 This project was a semester-long building analysis assignment, where we

analyzed

case

studies

and

developped our building structure.

We studied energy and shading in Ladybug, materiality, site, and climate. These are the wall structure details done in Autocad. My group partner was Aidan DeLuca.

Autocad, Ladybug

Plan Detail Scale: 1-1/2” = 1’

Solar Cell Louver Detail Scale: 1” = 1’

Module 5 - Ya

all 2023

Wall Details

Jinane Arbain

Roof Level

Module 5 - Ya Wall Details

1.

1. Roof to Façade Detail Scale: 1-1/2” = 1’

Level 5 2.

Level 2

1. Roof to Façade Detail Scale: 1-1/2” = 1’

2. Floor to Façade Detail Scale: 1-1/2” = 1’

ARCH 314 - TECH 4

Level 1

2. Floor to Façade Detail Scale: 1-1/2” = 1’

Full Wall Section Scale: 1/16” = 1’

3.

33

ARCH 314 - TECH 4

Architecture Portfolio

Fall 2019 - Fa

Module 5 - Yale Art Gallery: Final Drawings Roof Level Module 5 - Yale Art Gallery: Final Drawings 1.

s

CH 4

Level 5 2.

Level 2

3. Foundation Detail Scale: 3/4” = 1’

Solar Cell Louver Detail Scale: 1” = 1’

Level 1

Plan Detail Scale: 1-1/2” = 1’

Full Wall Section Scale: 1/16” = 1’

3.

Jinane Arbain & Aidan DeLuca

ARCH 314 - TECH 4

Date: 05/09/2022

YAG.5 : 43

Jinane Arbain & Aidan Date: 05/09/2022

all 2023

Jinane Arbain

Summer Solstice

Spring Equinox

N

Southeast View

N

Northwest View

Winter Solstice

CAPTION TITLE

Caption Caption Text Caption Text Caption Caption Textthroughout CapThe Text north facade receives theText least sun the year. The south facade receives the most out of all four facades. The west and east facades receive an average amount tion Text Caption Text Caption Text Caption Text Caption Text Caption where the east is more on the lower side of the scale.

Considering the results of the calculations done on the south facade, solar panels on the roof will work best, rather than Text Caption Text Caption Text Caption Text Caption Text Caption Text Caption Text Caption Caption Text Caption Text Caption Text on any of theText facades.

ARCH 314 - TECH 4 YOUR LAST, NAME, YOURLAST, NAME,FIRST YOURLAST NAME FIRST FIRST JINANE ARBAIN

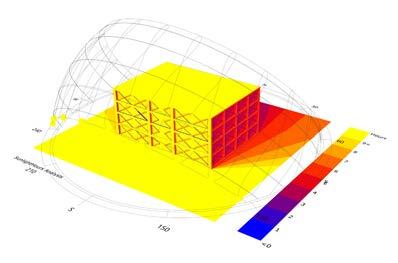

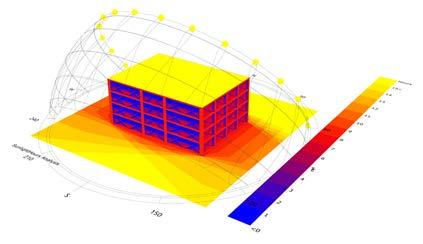

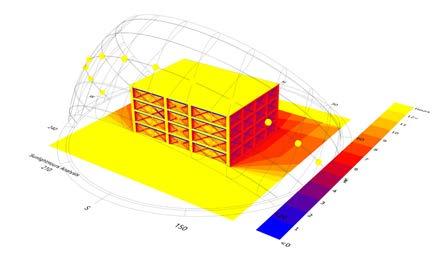

Energy + Shading

Module 4 Energy+Shading INTRODUCTION PAGE TITLE DATE: 02/16/2020 5/9/22 DATE BY: INITIALS DRAWN BY JA

4.4 CS.1.1 CS.#.#AS. / AS.#.# 35

Architecture Portfolio

Fall 2019 - Fa

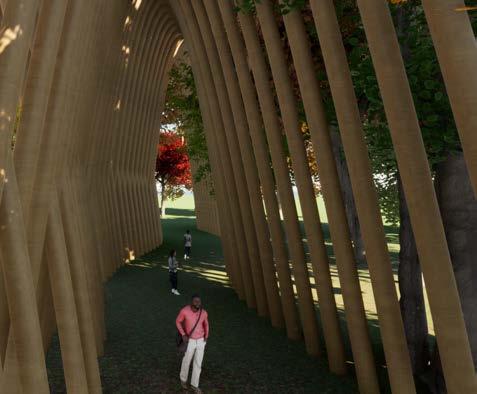

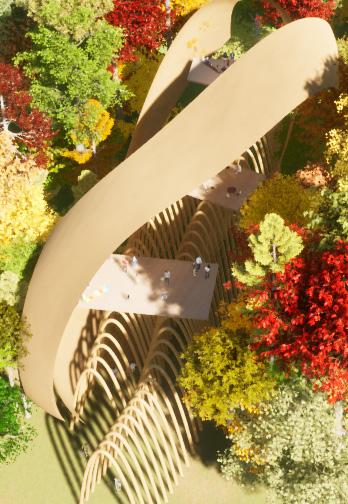

FORESTATION SPRING 2022 VISUALIZATION 4 This project showcases my rendering skills through the design of a community space that integrates seamlessly with its natural surroundings. The structure allows people to engage with it at various levels, both physically and programmatically. Inspired by the forest, the arches parallel tree trunks, while the upper levels rise to the treetops, creating a harmonious connection with the environment. The renderings emphasize the interplay of light, texture, and material, highlighting the immersive experience the design seeks to provide.

Rhinoceros 3D, Twinmotion, Adobe Illustrator

all 2023

Jinane Arbain

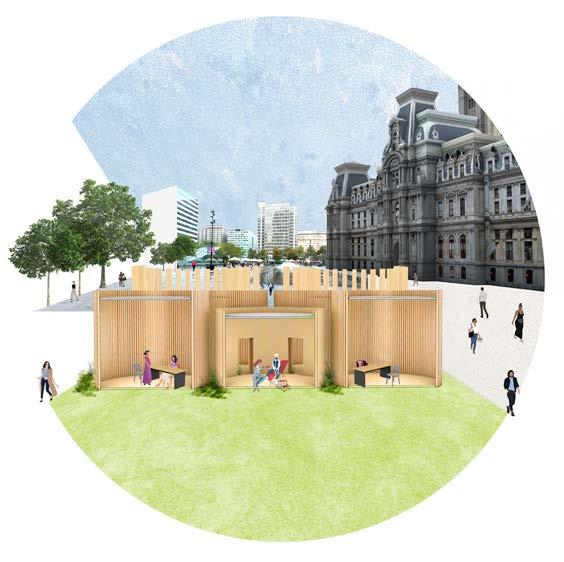

05 URBAN EQUITY POP-UP

GYNECOLOGY CLINIC

FALL 2021 DESIGN 5

waiting area consultation rooms examination rooms

The pop-up is a gynecology clinic which serves underprivileged women and girls. Only 70% of women

outside classroom

in the United States have access to reproductive health

waiting area

Only 70% of women in the United States have

services, of which poor people are the most affected.

access toreproductive health services.

The clinic offers advice, information, and classes about reproductive and sexual health. The design of this

concept

John F

circulation

Kenned

y Blvd

private vs public circulation

Street

and wood. Although the pop-up is located in a very

N 15th

public area, materiality and program provide the

Marke

privacy needed for each space, including examination

t Street

The pop-up is a gynecology clinic which serves underprivileged women and girls.

Only 70% of women in the United States have access to reproductive health services, of which poor people are the most affected. The clinic tries to address this disparity by offering free reproductive health services. One important issue society faces is the lack of conversation on the subject. As a result, not enough women are educated on their own bodies. The clinic therefore offers advice, information, and classes about reproductive and sexual health. The design of this project attempts to create a comfortable and inviting space for the patients that doesn’t imitate the traditional hospital space. This is done by using nature, sunlight, and wood. Privacy is also essential in healing architecture. Although the pop-up is located in a very public area, materiality and program provide the privacy needed for each space including examination rooms which are completely inclosed, except for the transluscent roof which provides privacy and sunlight penetration.

space for patients that doesn’t imitate the traditional hospital space. This is done through nature, sunlight,

public semi private private

examination vs consultation rooms

project attempts to create a comfortable and inviting

rooms which are completely inclosed, except for the 196

transluscent roof which provides privacy and sunlight penetration.

Rhinoceros 3D, Adobe Photoshop, Adobe Illustrator

37

waiting area Architecture Portfolio

Fall 2019 - Fa

consultation rooms examination rooms

outside classroom

waiting area

Only 70% of women in the United States have

Circulation

access toreproductive health services.

Circulation

Public Semi Private Private

concept

John F

circulation

Kenned

y Blvd

Consultation

private vs public circulation

Examination public

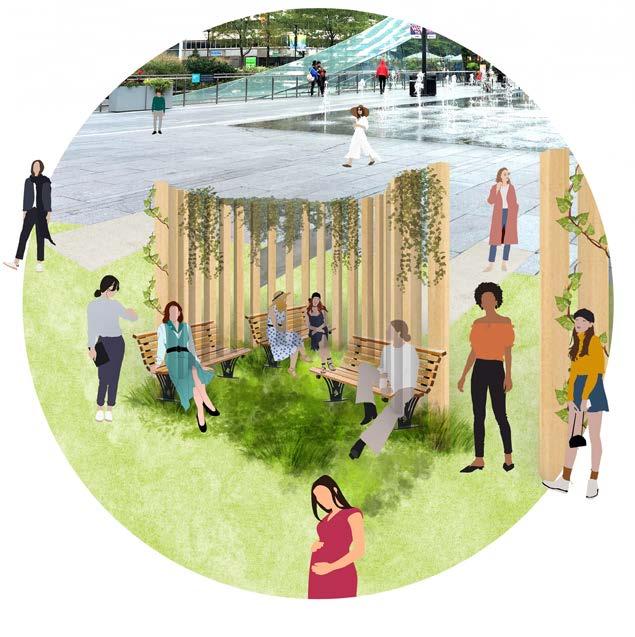

Perspective Waiting Area Street N 15th

examination vs consultation rooms

semi private private

Marke

t Street

The pop-up is a gynecology clinic which serves underprivileged women and girls.

Only 70% of women in the United States have access to reproductive health services, of which poor people are the most affected. The clinic tries to address this disparity by offering free reproductive health services. One important issue society faces is the lack of conversation on the subject. As a result, not enough women are educated on their own bodies. The clinic therefore offers advice, information, and classes about reproductive and sexual health. The design of this project attempts to create a comfortable and inviting space for the patients that doesn’t imitate the traditional hospital space. This is done by using nature, sunlight, and wood. Privacy is also essential in healing architecture. Although the pop-up is located in a very public area, materiality and program provide the privacy needed for each space including examination rooms which are completely inclosed, except for the transluscent roof which provides privacy and sunlight penetration.

Site Plan

Urban Equity Gynecology Clinic

196

Axonometric

all 2023

Jinane Arbain

Concept

Spaces

Section Perspective Consultation vs. Examination

Public Semi Private Private

39

Architecture Portfolio

Fall 2019 - Fa

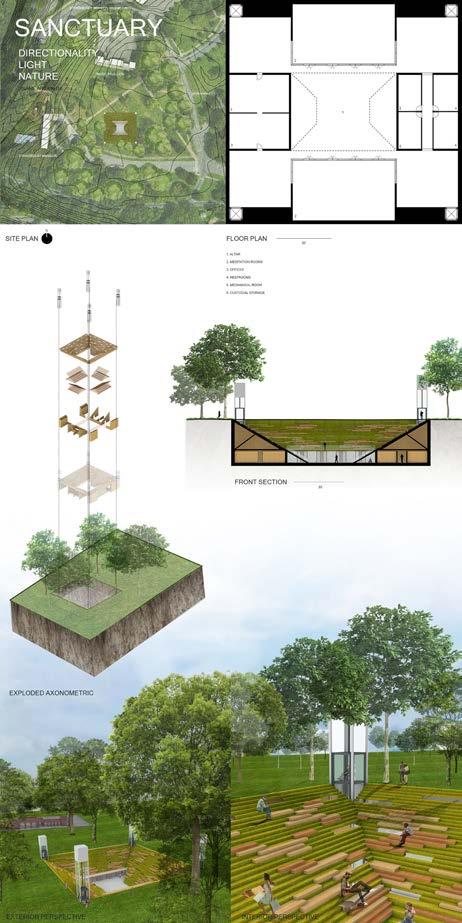

06 HOUSE OF PEACE SPRING 2021 DESIGN 4 This is a non-denominational sanctuary meant to be open for people from different belief systems, where they can meditate, pray, or just enjoy the peace. My design focused on directionality, light and nature, three elements found in almost all houses of peace.

The opening in the ground combines the entrance of light and nature into a directionality created by the symmetry of the strcuture. The non-physical altar exists through the stairs that direct focus to the center.

Rhinoceros 3D, Adobe Photoshop, Adobe Illustrator

all 2023

Jinane Arbain

Section

Axon Exploded

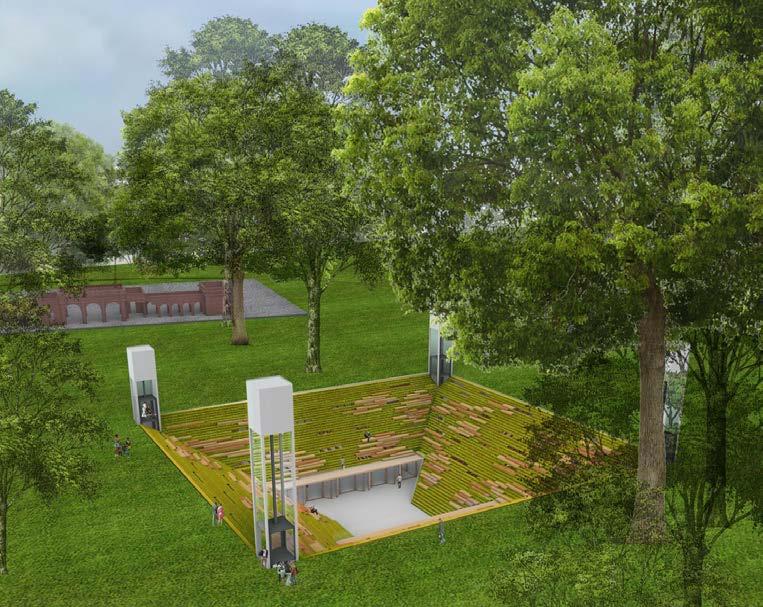

Perspective Exterior

41

Architecture Portfolio

Fall 2019 - Fa

Perspective Exterior

MEDITATION ROOM

OFFICE

MECH

W.C

CS

W.C

ALTAR OFFICE

MEDITATION ROOM

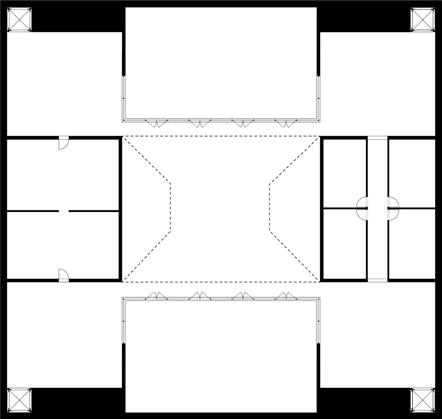

Plan Underground Floor

Perspective Underground Interior

all 2023

Jinane Arbain

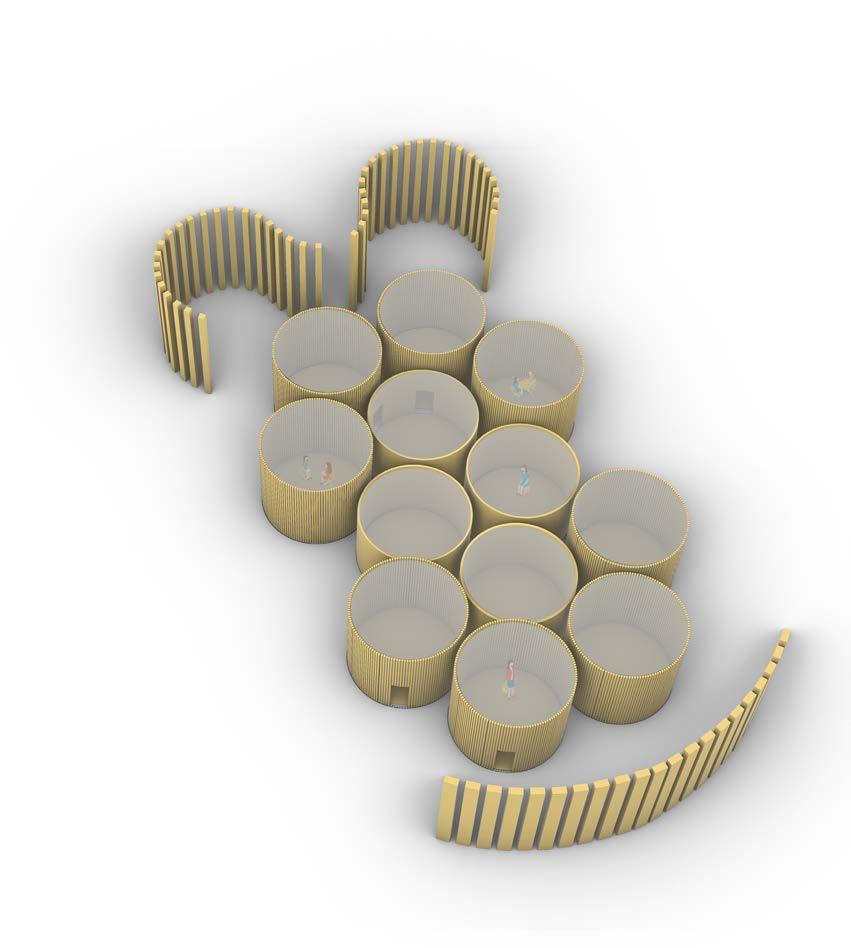

MAKING SPACE FALL 2019 DESIGN 1 This project draws inspiration from the painting Nude Descending a Staircase, No. 2, translated into a bas-relief that informed the site design. The models, inspired by Zenobia from Calvino’s Invisible Cities, reflect the city’s culture, environment, and way of life. Zenobia’s stilts, balconies, and suspended stairways evoke a city in the sky, a concept embodied in my models through freeflowing, lightweight paper forms mounted on detachable,

site-specific

wooden

structures.

These elements merge to create a design that captures movement, elevation, and cultural integration.

Selected to be displayed at the Davinci Art Alliance, Philadelphia, PA

43

Architecture Portfolio

Fall 2019 - Fa

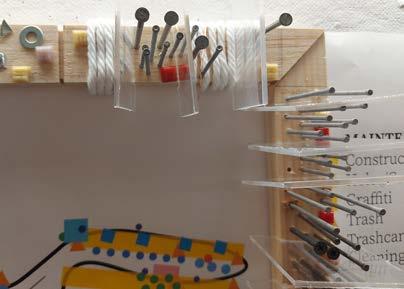

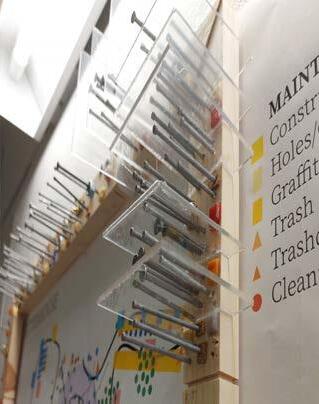

07 MAPPING EQUITY FALL 2021 DESIGN 5 RITTENHOUSE W

ALNUT

To

ST

compare

equity

between

the

different

SQUARE

neighborhoods, I based my maps on five layers,

W RIT TEN

HOUSE

which assess equity efficiently within neighborhoods:

LOCUST

RIT TENH

community,

access,

racial

and

transportation,

demographics.

food

Maintenance

portrays the upkeep of the neighborhoods in terms of trash, construction, and street conditions. Community

OUSE SQ

UARE

SPRUCE

ST

maintenance,

encompasses activities and events that people have COMMUNITY/ACTIVITIES Art Places Art on walls Music Places Musicians People Working Out Children playing Children activities Park People in Park People Walking Dogs Libraries Homeless Events

access to. Transportation reveals access as well as type

ST

PINE ST

S 18th ST

S 19th ST

S 20th ST

of transportation. Food access was explored in terms of the types of food places. Racial demographics convey race predominance in each neighborhood and intersections between demographics and activities.

Rittenhouse

Adobe Illustrator RACIAL DEMOGRAPHICS Asian Black Hispanic White

FOOD ACCESS Restaurants Fast Food Bakeries/Coffee Shops Grocery Stores People

MAINTENANCE Construction Site Holes/Cracks Graffiti Trash Trashcans Cleaning People Leakage

TRANSPORTATION Bicycles (Number in Street/5 minutes) Bicycle Parking Parking Garages and Lots Bus Stops Cars (Number in Street/1 minute) (Number in Parking Lot) People at Bus Stops

all 2023

Jinane Arbain

45

MANAYUNK MANAYUNK

Fall 2019 - Fa MA

STST YY GGAA

CCRR ESES SO SO NN STST

T D SST OD OO WO ERW ILVVER SSIL

C CA ARRSO SON N SST T

Architecture Portfolio

UNK

N

ST

COMMUNITY/ACTIVITIES COMMUNITY/ACTIVITIES Art Arton onwalls walls Music MusicPlaces Places People PeopleWorking WorkingOut Out Children Childrenplaying playing Park Park People PeopleininPark Park People PeopleWalking WalkingDogs Dogs

TRANSPORTATION Bicycles (Number in Street/5 minutes) Bicycle Parking Parking Garages and Lots Bus Stops Cars (Number in Street/1 minute) (Number in Parking Lot)

MAINTENANCE MAINTENANCE Construction ConstructionSite Site Holes/Cracks Holes/Cracks Graffiti Graffiti Trash Trash Trashcans Trashcans

FOOD FOODACCESS ACCESS Restaurants Restaurants Fast FastFood Food Bakeries/Coffee Bakeries/CoffeeShops Shops Grocery GroceryStores Stores People People

RS CA

N

SO

ES

CR

MAINTENANCE Construction Site Holes/Cracks Graffiti Trash Trashcans

Mapping Manayunk

K

ST

TRANSPORTATION TRANSPORTATION Bicycles Bicycles (Number (NumberininStreet/5 Street/5minutes) minutes) Bicycle BicycleParking Parking Parking ParkingGarages Garagesand andLots Lots Bus BusStops Stops Cars Cars FOOD ACCESS (Number (Number ininStreet/1 Street/1minute) minute) Restaurants (Number (NumberininParking ParkingLot) Lot) Fast Food Bakeries/Coffee Shops Grocery Stores People

LO C

COMMUNITY/ACTIVITIES Art on walls Music Places People Working Out Children playing Park People in Park People Walking Dogs

PE

NS

DA L

ES

T

ST

ST

MAINTENANCE Construction Site Holes/Cracks Graffiti Trash Trashcans

SSTT

ST OD WO

MA IN

ONN SO ESSS CCRRE

ER

MMAA ININSS TT

PPEEN NSSD DAAL LEE S STT

SO

ST

V SIL

ON

ST

ES

Y GA

LLO OCCK K ST ST

CR

COMMUNITY/ACTIVITIES Art on walls Music Places People Working Out Children playing Park People in Park People Walking Dogs

RACIAL RACIALDEMOGRAPHICS DEMOGRAPHICS Asian Asian Black Black Hispanic Hispanic White White

all 2023

Jinane Arbain

47
