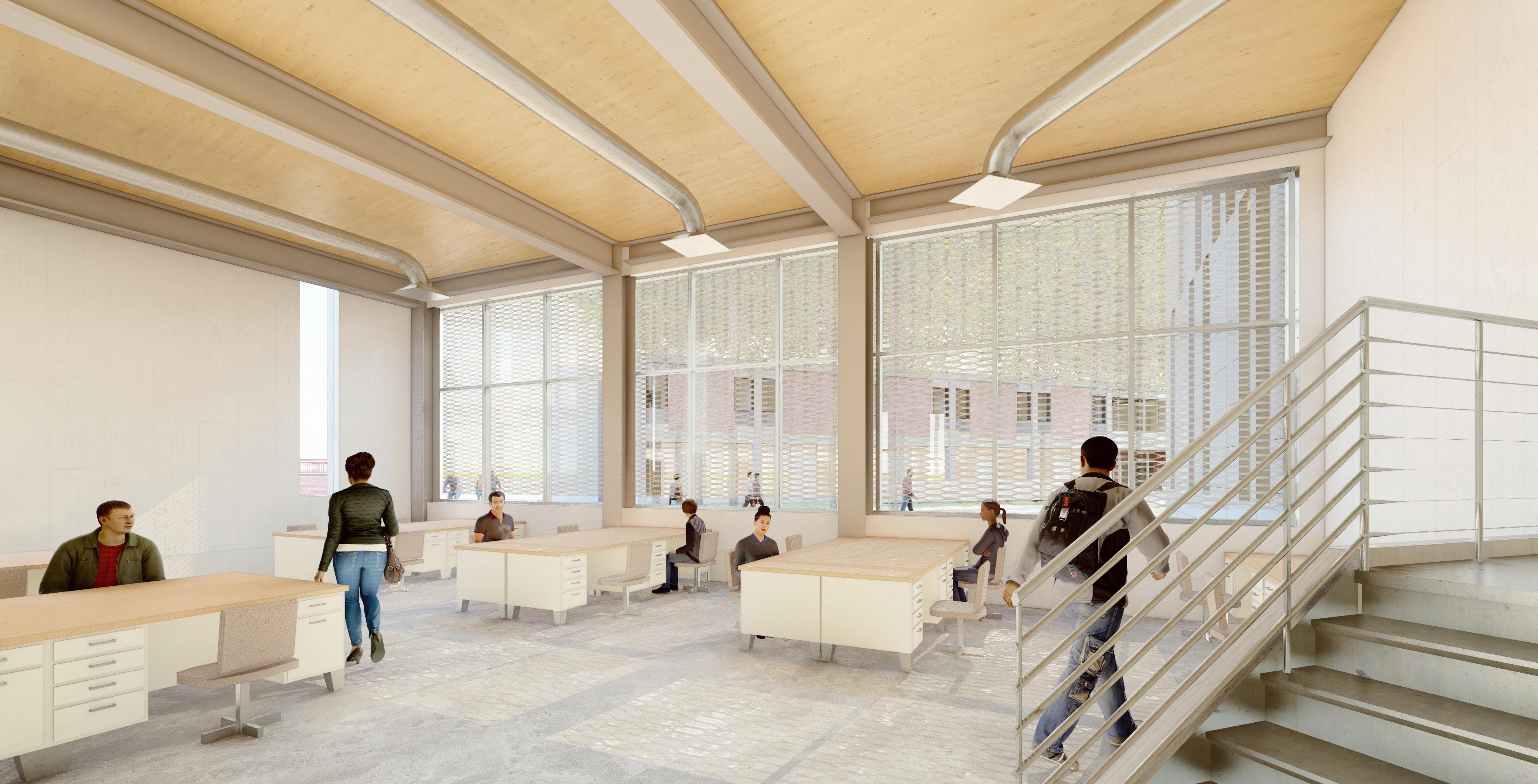

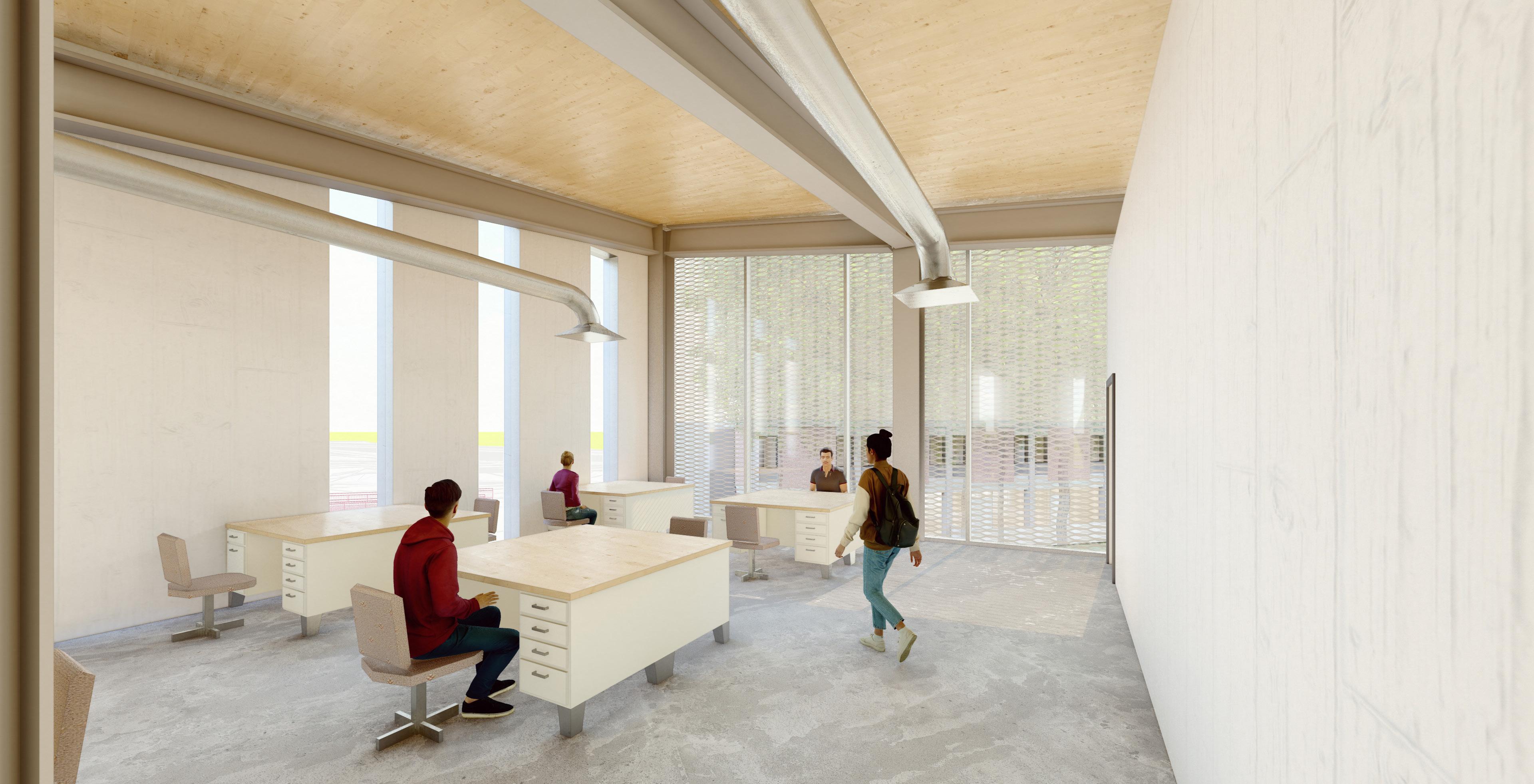

Structural System
Steel structure, CLT plates
Fall 2022 Design 8
Arbain, Green, Himmelsbach
FIRE STAIR CORE
Structure Axon
FIRE STAIR CORE
CMU W/FURRING WALL
W14X90 STEEL COLUMNS
ELEVATOR CORE
W12X87 STEEL BEAMS FOR SHORTER SPANS
W18X175 STEEL BEAMS FOR STUDIO SPANS
PROJECTNAME:
SCALE:
6" CLT FLOOR
3'-0 CONC. FOOTER
12" CONC. FOUNDATION WALL
SHEET NAME:
Design 8
Arbain, Green, Himmelsbach Fall 2022
ARBAIN, NATEHIMMELSBACH PROFESSORBOMBARA CABEJEFFERSON
BRANDON
SHEET NUMBER: DATE: CHECKEDBY: DRAWN BY:
Autodesk Docs://F22D8T5 (Proje ct)/D8_PROJECT 11.14_NEW.rvt S2.1
JEFFERSON ARCHITECTURE EXPANSION REVISION Revision
CLASS NAME: TECH 5: PROJECT ADDRESS:
STRUCTURAL
Number
Structure Exploded Axon
FIRE STAIR CORE
Arbain, Green, Himmelsbach
TIER 3
TIER 2
W18X175 STEEL BEAMS SUPPORTS STUDIO TIERS
TIER 1
Fall 2022 Design 8
ELEVATOR CORE
A&D LEVEL 1
CLASS NAME: TECH 5: DOCUMENTATION &DETAILING
PROJECT ADDRESS:
BRANDONGREEN,JINANE ARBAIN, NATEHIMMELSBACH PROFESSORBOMBARA CABEJEFFERSON FALL 2022
ADJANCET OR FIXED CONN. TO EXSIT. A&D COLUMNS.
PROJECTNAME:
FIRE STAIR CORE
DRAWN BY:
CHECKEDBY:
JEFFERSON ARCHITECTURE EXPANSION Checker
DATE:
12/6/202212:19:01AM
Author REVISION SCHEDULE Revision Number Revision
SCALE:
SHEET NAME:
EXPLODED STRUCTURAL AXON Description Revision Date
SHEET NUMBER:
Autodesk Docs://F22D8T5 (Proje ct)/D8_PROJECT 11.14_NEW.rvt
S2.2
EXSITING A&D COLUMNS
Arbain, Green, Himmelsbach
W12X87 STEEL BEAMS FOR SHORT SPANS
W18X175 STEEL BEAMS FOR STUDIO SPANS
W14X90 STEEL COLUMNS
CLASS NAME:
TECH 5: DOCUMENTATION &DETAILING
PROJECT ADDRESS:
BRANDONGREEN,JINANE ARBAIN, NATEHIMMELSBACH PROFESSORBOMBARA CABEJEFFERSON FALL 2022
PROJECTNAME:
JEFFERSON ARCHITECTURE EXPANSION
DRAWN BY:
CHECKEDBY:
DATE:
SCALE:
SHEET NAME:
BASE STRUCTURAL AXON
SHEET NUMBER:
S2.3
Fall 2022 Structure
12" CONC. PIER
4'-0" X 4'-0" CONC. FOOTER
Autodesk Docs://F22D8T5 (Proje ct)/D8_PROJECT 11.14_NEW.rvt 12/6/2022 12:20:14 AM
Checker Author
SCHEDULE Revision Number Revision Description Revision Date
REVISION

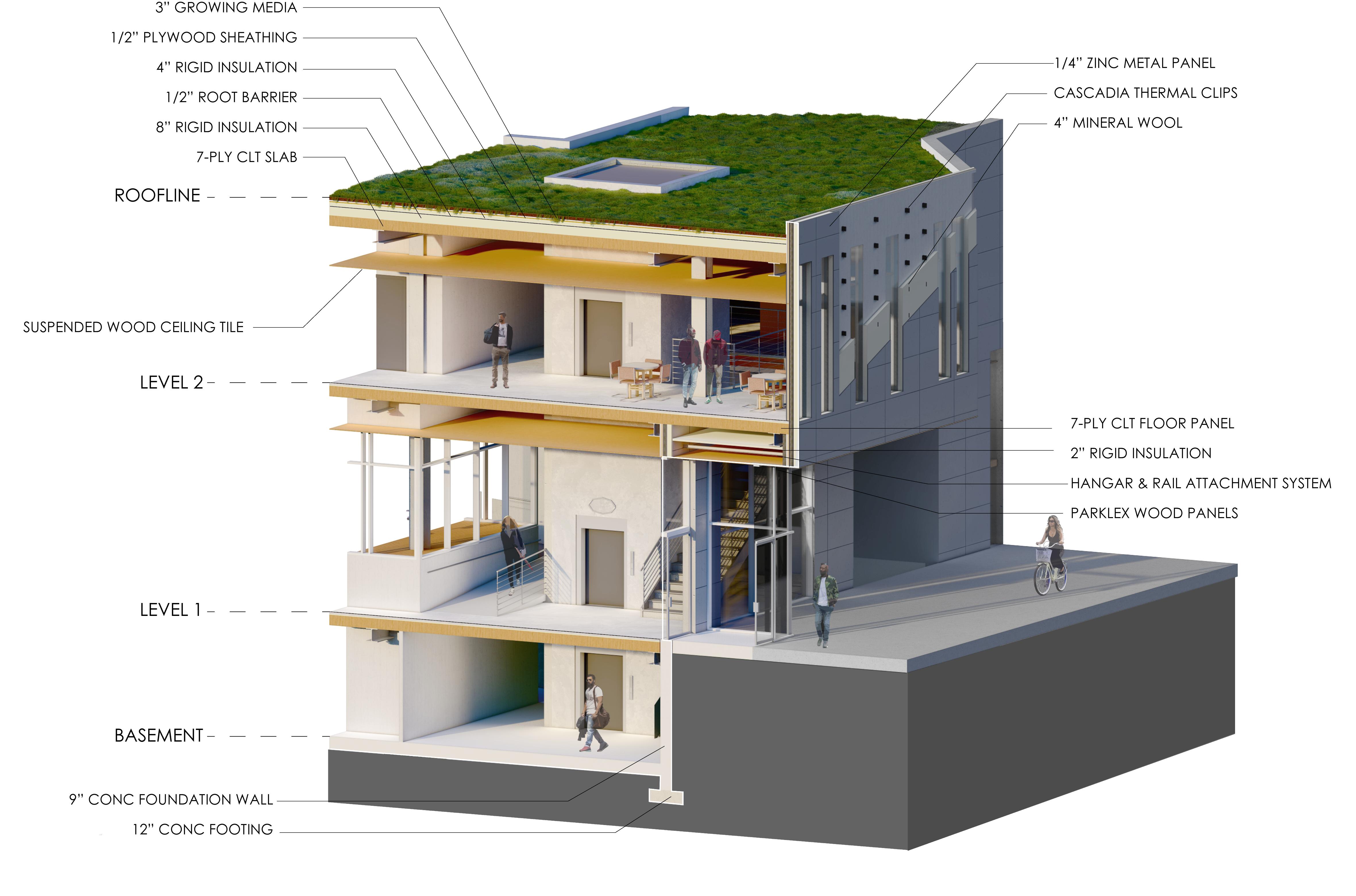

1/4" METAL PANEL FACIA
Arbain, Green, Himmelsbach
3" GROWING MEDIA
FILTER MAT
1" DRAINAGE LAYER
1/2" PLYWOOD SHEATHING
4" RIGID INSULATION 8" RIGID INSULATION
1/2" ROOT BARRIER 9-5/8" 7-PLY CLT FLOOR PANEL
CUSTOM ANGLED STEEL BEAM
HANGAR & RAIL ATTACHMENT SYSTEM
PARKLEX WOOD PANELS
5/8" METAL STUD WALL
3/4" AIR GAP W/THERMAL SPACERS
2" FURRING WALL W/ MINERAL WOOL INSULATION
(2) 5/8" GYP
1 1/2" = 1'-0"

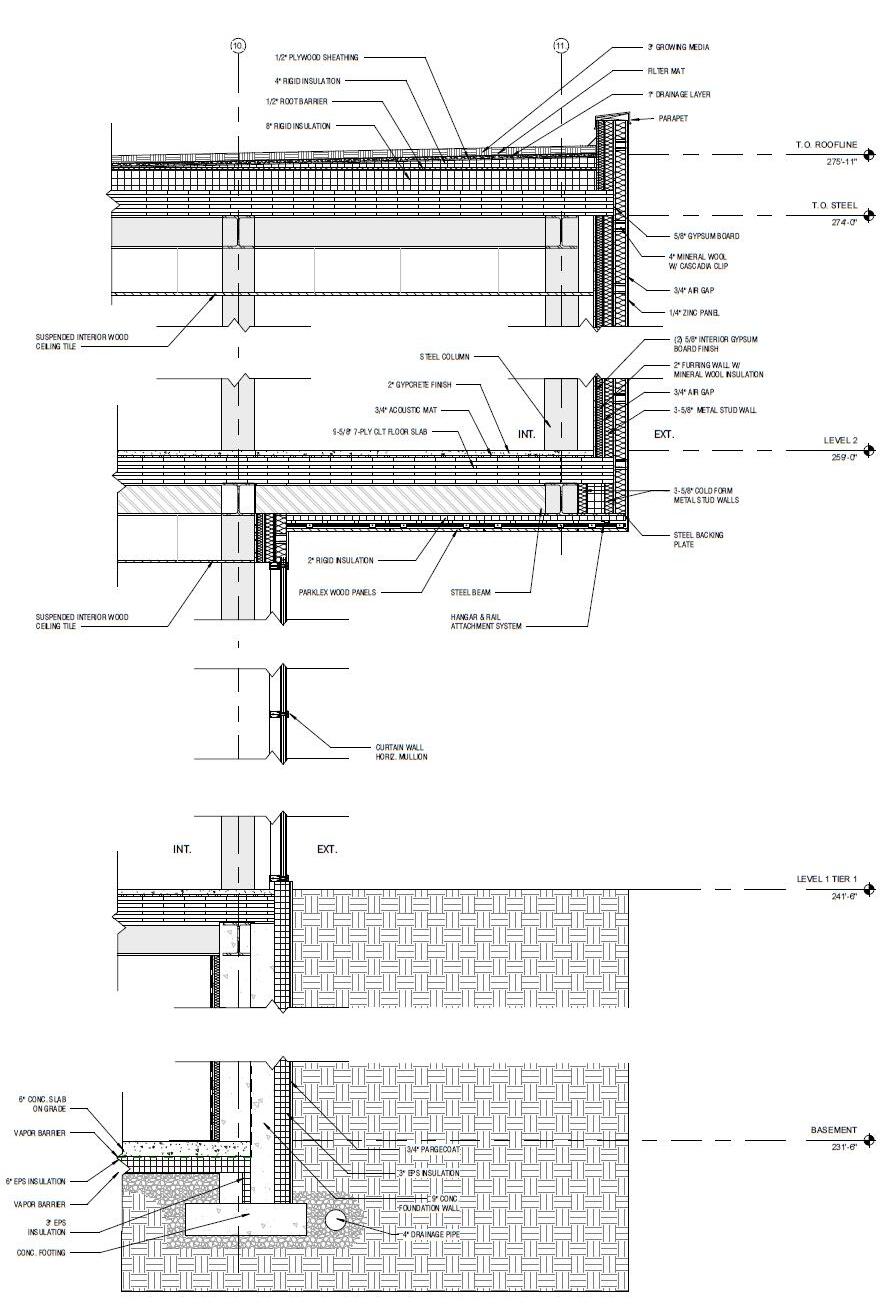

Cantaliever to Facade Detail 1/2’”=1’
A6.0
Curtain Wall Section - South Facade 1/4”=1’
Structure Wall Sections
Fall 2022 Design 8
PROJECT NAME: SCALE: SHEET NAME: BRANDON GREEN, JINANE ARBAIN, NATE HIMMELSBACH PROFESSOR BOMBARA CABE JEFFERSON FALL 2022 SHEET NUMBER: DATE: CHECKED BY: DRAWN BY: CLASS NAME: TECH 5:DOCUMENTATION & DETAILING PROJECT ADDRESS: Autodesk Docs://F22D8T5 (Pro ject)/D8_PROJECT 11.14_NEW.rvt
12/6/2022 8:04:08 PM
OVERHANG DETAIL JEFFERSON ARCHITECTURE EXPANSION Checker Author REVISION SCHEDULE Revision Number Revision Description Revision Date
Arbain, Green, Himmelsbach
Structure Wall Sections
Designer
Designer Address 4201 Henry Ave, Philadelphia, PA
Top Project number Date Drawn by Checked by Sheet Number
Mullion Detail Sheet Name
3”=1’ Project Address
Class Name
Client Name Project Name
Owner
JEFFERSON ARCHITECTURE EXPANSION Enter address here
Jinane Individual Section Detail 1
No. Description Date
A6.8
0001 Issue Date Author Checker
Designer Name Tech5 12" 1'-0" Autodesk Docs://F22 D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt
Designer
Designer Address 4201 Henry Ave, Philadelphia, PA
Class Name
Client Name Project Name
Project Address
Sheet Name
Project number Date Drawn by Checked by Sheet Number
Owner
JEFFERSON ARCHITECTURE EXPANSION Enter address here
Jinane Individual Section Detail 1
0001 Issue Date Author Checker
No. Description Date ALUMINUM MESH MESH ATTACHMENT HORIZ. MULLION TRIPLE GLAZED CURTAIN WALL Scale
Designer Name Tech5 12" 1'-0" Autodesk Docs://F22 D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt

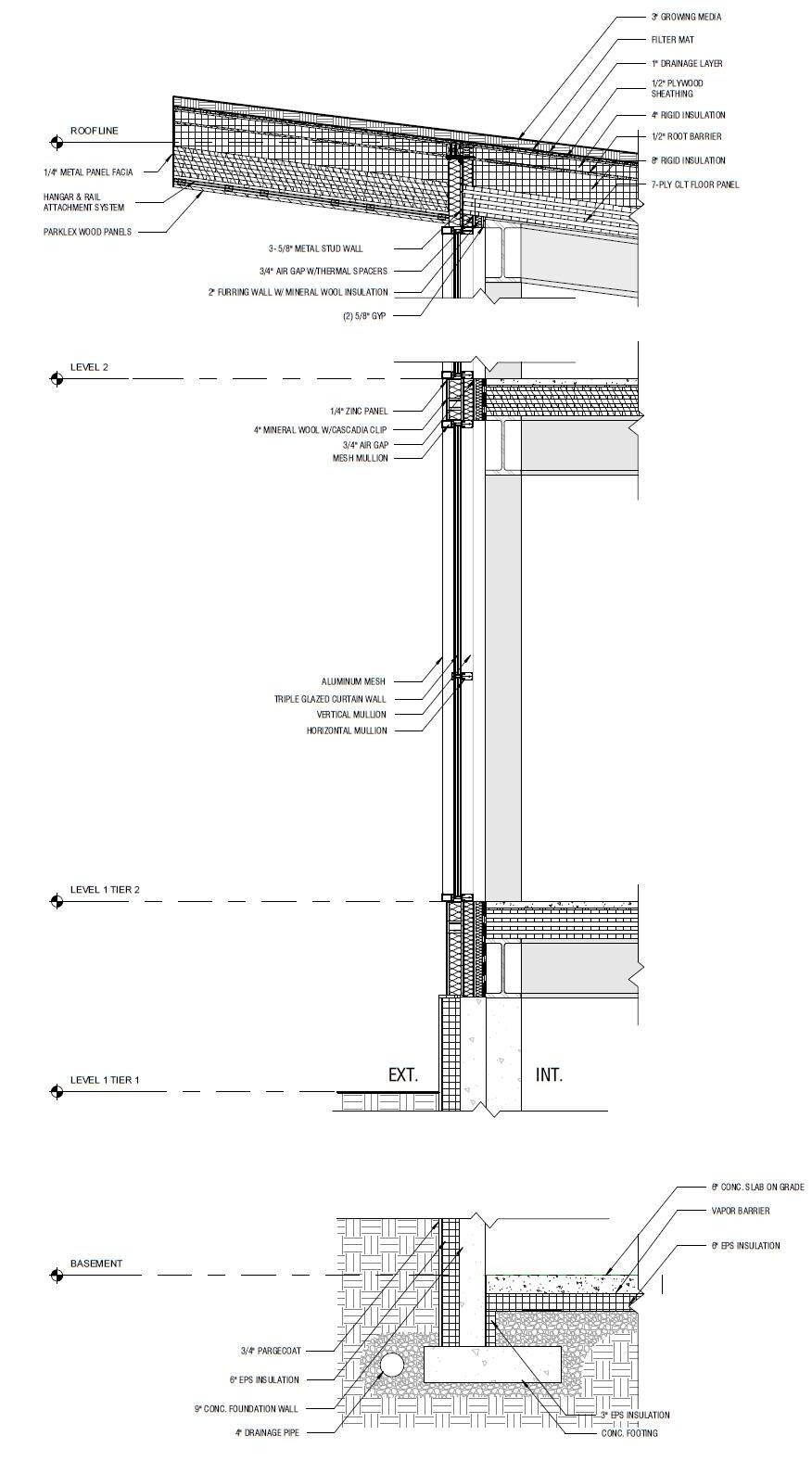

Curtain Wall Section - South Facade 1/4”=1’
A6.8
2022 Design 8
Fall
Horizontal Mullion Detail 3”=1’ ALUMINUM MESH MESH ATTACHMENT HORIZ. MULLION TRIPLE GLAZED CURTAIN WALL Scale
1/4" ZINC PANEL
3/4" AIR GAP
4" MINERAL WOOL W/CASCADIA CLIP
5/8" GYP.
3-5/8" METAL STUD WALL
3/4" AIR GAP W/THERMAL SPACERS
VAPOR BARRIER
2" FURRING WALL W/MINERAL WOOL INSULATION
(2) 5/8" GYP
Structure Wall Sections
3" SOIL DRAINAGE LAYER
EPDM ROOFING MEMBRANE ROOT BARRIER
3-1/4" RIGID INSULATION
9" RIGID INSULATION
7-PLY CLT FLOOR PANEL
CUSTOM ANGLED STEEL BEAM
2022 Design 8
Arbain, Green, Himmelsbach Fall

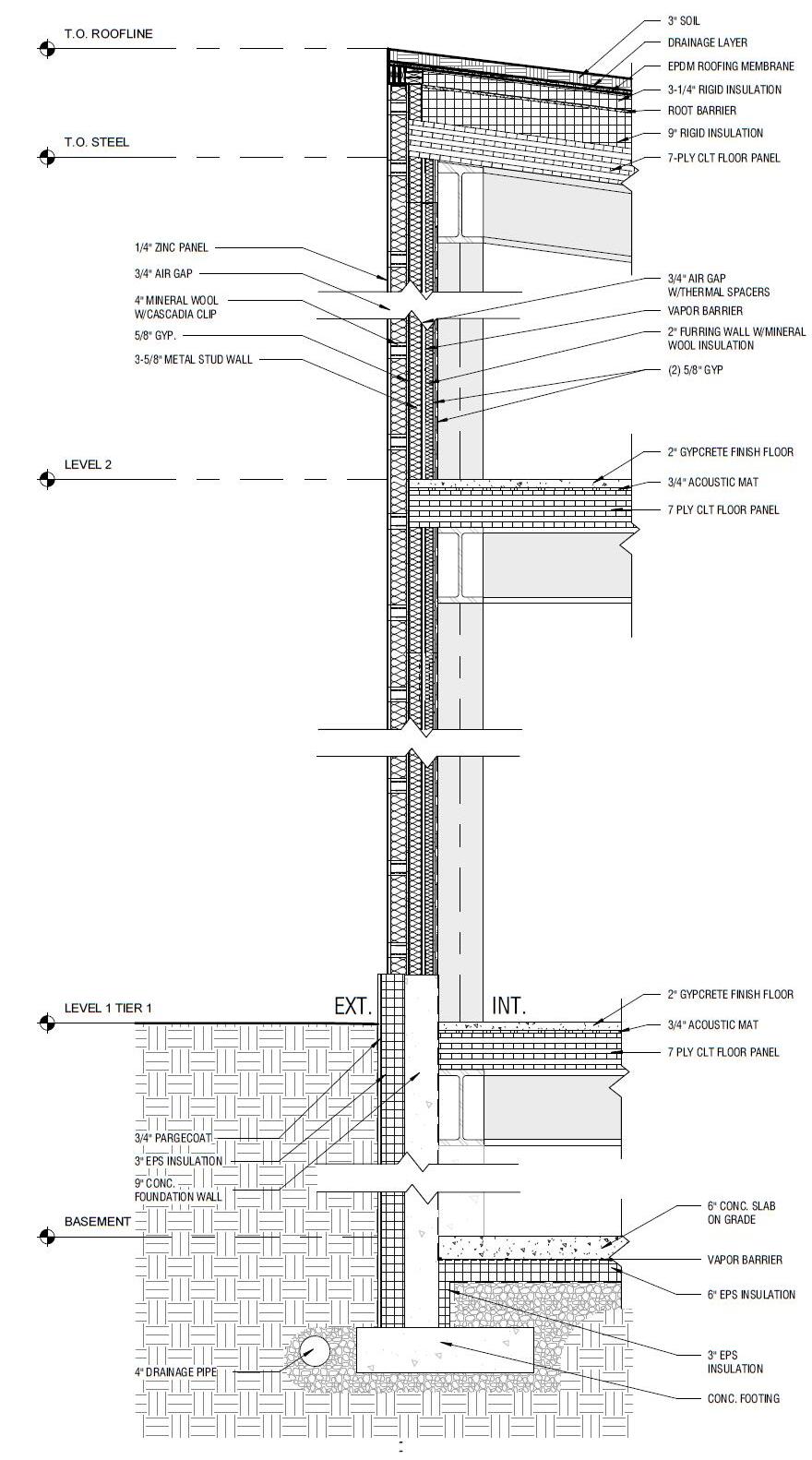

West Wall Section 1/4”=1’
9- 5/8" 7-PLY CLT
Sloped Roof Detail 1-1/2”=1’
PROJECT NAME: SCALE: SHEET NAME: BRANDON GREEN, JINANE ARBAIN, NATE HIMMELSBACH PROFESSOR BOMBARA CABE JEFFERSON FALL 2022 SHEET NUMBER: DATE: CHECKED BY: DRAWN BY: CLASS NAME: TECH 5:DOCUMENTATION & DETAILING PROJECT ADDRESS: 3" = 1'0" 12/6/20228:04:22PM A6.1 ROOF DETAILS JEFFERSON ARCHITECTURE EXPANSION Checker Author 3" = 1'-0" PARAPET DETAIL 2 REVISION SCHEDULE Revision Number Revision Description Revision Date 3" = 1'-0" SLOPED ROOF DETAIL 5
2" GYPCRETE FINISH FLOOR
3/4" ACOUSTIC MAT
7 PLY CLT FLOOR PANEL
Arbain, Green, Himmelsbach
1/4" ZINC PANEL
3/4" AIR GAP
4" MINERAL WOOL W/CASCADIA CLIP
5/8" GYP.
3-5/8" METAL STUD WALL
3/4" AIR GAP W/THERMAL SPACERS
VAPOR BARRIER
2" FURRING WALL W/MINERAL WOOL INSULATION
(2)5/8" GYP
2" GYPCRETE FINISH FLOOR
3/4" ACOUSTIC MAT
7 PLY CLT FLOOR PANEL
Floor to Facade Detail 1-1/2”=1’
Structure Wall Sections
Fall 2022 Design 8
West Wall Section 1/4”=1’
PROJECTNAME: SCALE: SHEET NAME: BRANDONGREEN,JINANE ARBAIN, NATEHIMMELSBACH PROFESSORBOMBARA CABEJEFFERSON FALL 2022 SHEET NUMBER: DATE: CHECKEDBY: DRAWN BY: CLASS NAME: TECH 5: DOCUMENTATION &DETAILING PROJECT ADDRESS: As indicated 12/5/20227:58:12PM A6.2 DETAILS JEFFERSON ARCHITECTURE EXPANSION Checker Author REVISION SCHEDULE Revision Number Revision Description Revision Date 1 1/2" = 1'-0" FOOTERDETAIL 1 3" = 1'-0" TYP. FLOOR 2 3" = 1'-0" TYP. WALL 3
Cantilever Wall Section 1/4”=1’
Structure Wall Sections
STEEL COLUMN
2" GYPCRETE FINISH
3/4" ACOUSTIC MAT
9-5/8" 7-PLY CLT FLOOR SLAB
STEEL BEAM
HANGAR & RAIL ATTACHMENT SYSTEM
Cantaliever to Facade Detail 1/2’”=1’
STEEL BACKING PLATE
PARKLEX WOOD PANELS
1/4" ZINC METAL PANELS
6" RIGID INSULATION
3 5/8" COLD FORM METAL STUD WALL
Fall 2022 Design 8
Arbain, Green, Himmelsbach
EXT. INT.
2" RIGID INSULATION Autodesk Docs://F22D8T5 (Pro ject)/D8_PROJECT 11.14_NEW.rvt
Arbain, Green, Himmelsbach
Fall 2022 Design 8
Structure Wall Sections
Cantilever Wall Section 1/4”=1’
Hanger & Rail Attachment Detail 2”=1’
PARKLEX WOOD PANELS HANGAR CLIP HANGAR ATTACHMENT RAIL
ALUMINUM Autodesk Docs://F22D8T5 (Pro ject)/D8_PROJECT 11.14_NEW.rvt
J BRACKET
2" RIGID INSULATION
STEEL BEAM ALUMINUM Z CHANNEL
Autodesk Docs://F22 - D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt
METAL FLASHING CANT
WOOD BLOCKING
1/4" ZINC PANEL
3/4" AIR GAP
4" MINERAL WOOL W/CASCADIA CLIP
5/8" GYP.
3-5/8" METAL STUD WALL
3/4" AIR GAP W/THERMAL SPACERS
VAPOR BARRIER
2" FURRING WALL W/MINERAL WOOL INSULATION
1/4"/12" ROOF SLOPE
3" GROWING MEDIA FILTER MAT
1" DRAINAGE LAYER
Parapet Detail 1-1/2”=1’
3" SOIL DRAINAGE LAYER
3-1/4" RIGID INSULATION
4" RIGID INSULATION
1/2" PLYWOOD SHEATHING ROOT BARRIER
8" RIGID INSULATION
9- 5/8" 7-PLY CLT
EPDM ROOFING MEMBRANE ROOT
Green,
2022 Design 8
Arbain,
Himmelsbach Fall
Structure Wall Sections
Cantilever Wall Section 1/4”=1’
1/4"
3/4" AIR GAP
BARRIER
ZINC PANEL
3" = 1'-0" PARAPET DETAIL 2
3/4" PARGECOAT
3" EPS INSULATION
9" CONC. FOUNDATION WALL
4" DRAINAGE PIPE
2" GYPCRETE FINISH FLOOR
3/4" ACOUSTIC MAT
7 PLY CLT FLOOR PANEL
Typ. Floor Assembly 1-1/2”=1’
1/4" ZINC PANEL
3/4" AIR GAP
4" MINERAL WOOL W/CASCADIA CLIP
5/8" GYP.
3-5/8" METAL STUD WALL
Structure Wall Sections
CONC. COLUMN VAPOR BARRIER
Arbain, Green, Himmelsbach
6" CONC. SLAB ON GRADE
VAPOR BARRIER
6" EPS INSULATION
3" EPS INSULATION
CONC. FOOTING
Autodesk Docs://F22 - D8T5 (Project)/D8_PROJECT 11.14_NEW.rvt
3/4" PARGECOAT
3" EPS INSULATION
9" CONC. FOUNDATION WALL
Typ. Footer Detail 3/4”=1’
3/4" AIR GAP W/THERMAL SPACERS
VAPOR BARRIER
2" FURRING WALL W/MINERAL WOOL INSULATION
(2) 5/8" GYP
2" GYPCRETE FINISH FLOOR
3/4" ACOUSTIC MAT
7 PLY CLT FLOOR PANEL
2" GYPCRETE FINISH FLOOR
3/4" ACOUSTIC MAT
7 PLY CLT FLOOR PANEL
CONC. COLUMN VAPOR BARRIER
6" CONC. SLAB ON GRADE
VAPOR BARRIER
6" EPS INSULATION
3" EPS INSULATION CONC. FOOTING
2022 Design 8
Fall
BASEMENT
1/2" = 1'-0" FOOTERDETAIL 1 3" = 1'-0" TYP. FLOOR 2
BASEMENT
PIPE
4" DRAINAGE
PANEL 3/4" AIR GAP W/THERMAL
1/4" ZINC
SPACERS
1 1/2" = 1'-0" FOOTERDETAIL 1 3" = 1'-0" TYP. FLOOR 2
8
Arbain, Green, Himmelsbach Fall
2022 Design
CURTAIN WALL 3D WALL SECTION
CANTALIEVER 3D WALL SECTION
2022 Design 8
Arbain, Green, Himmelsbach
Fall

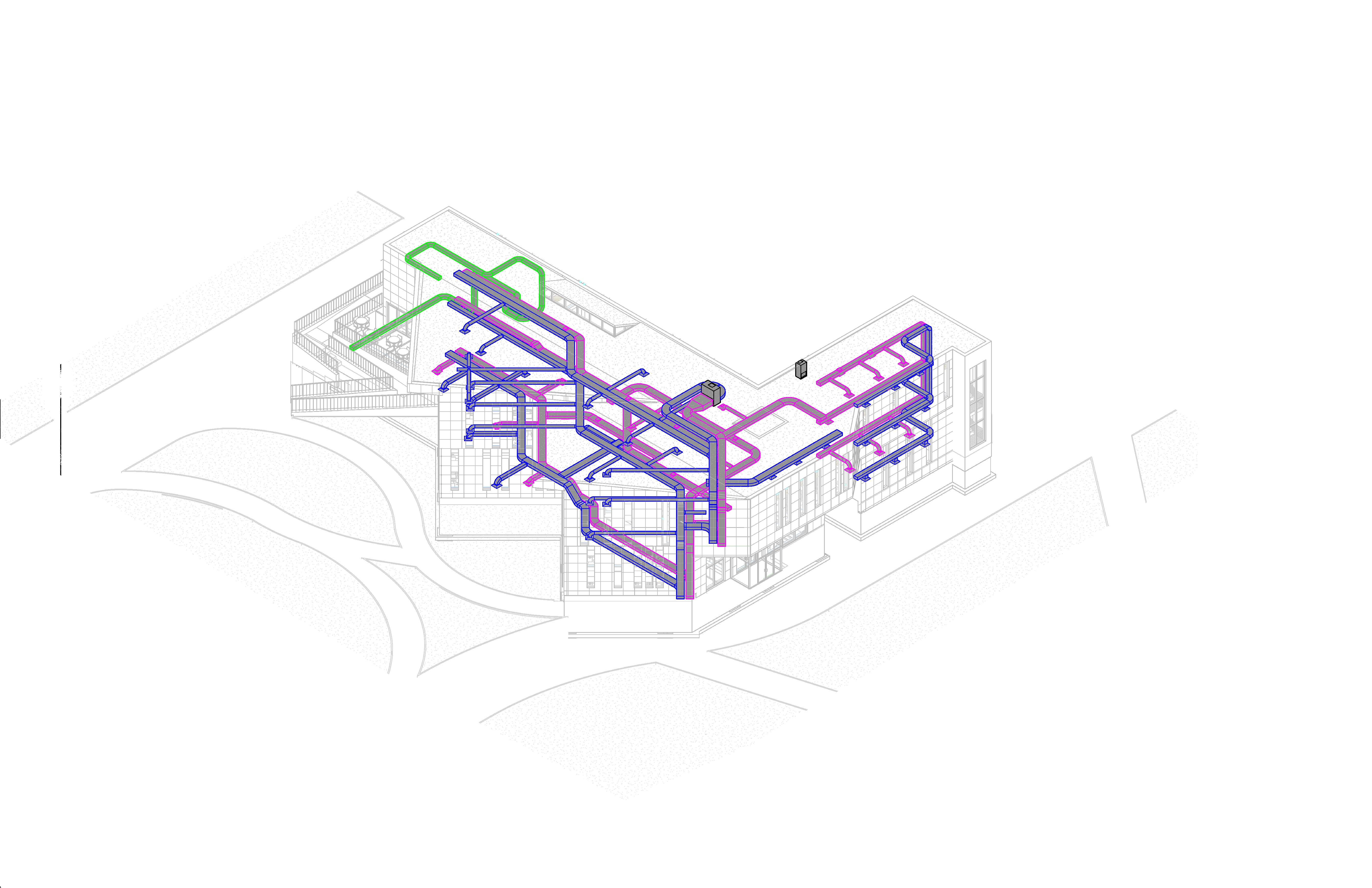

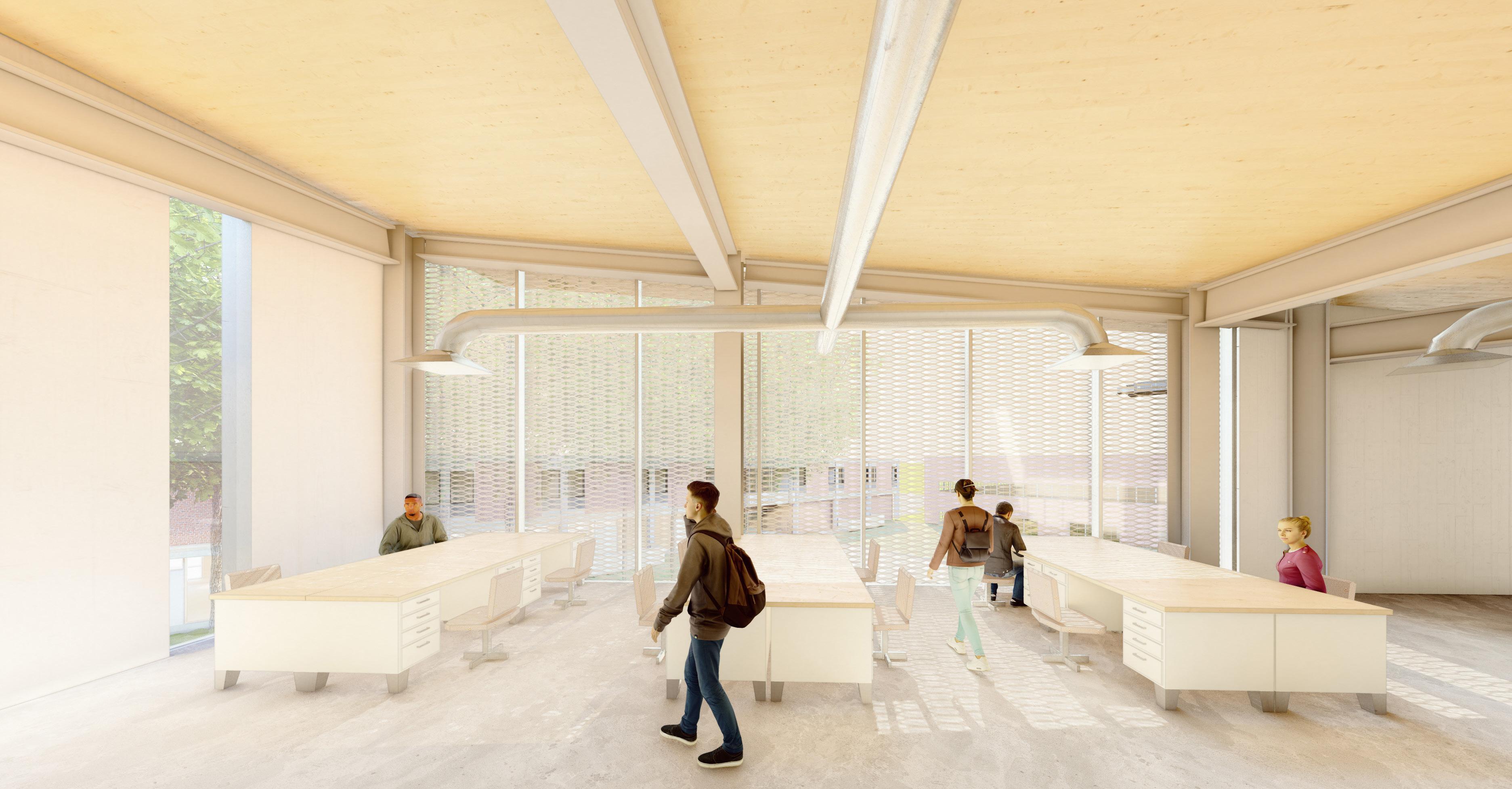

HVAC System
Fall 2022 Design 8
Arbain, Green, Himmelsbach
1/8" = 1'-0"
SYSTEMS

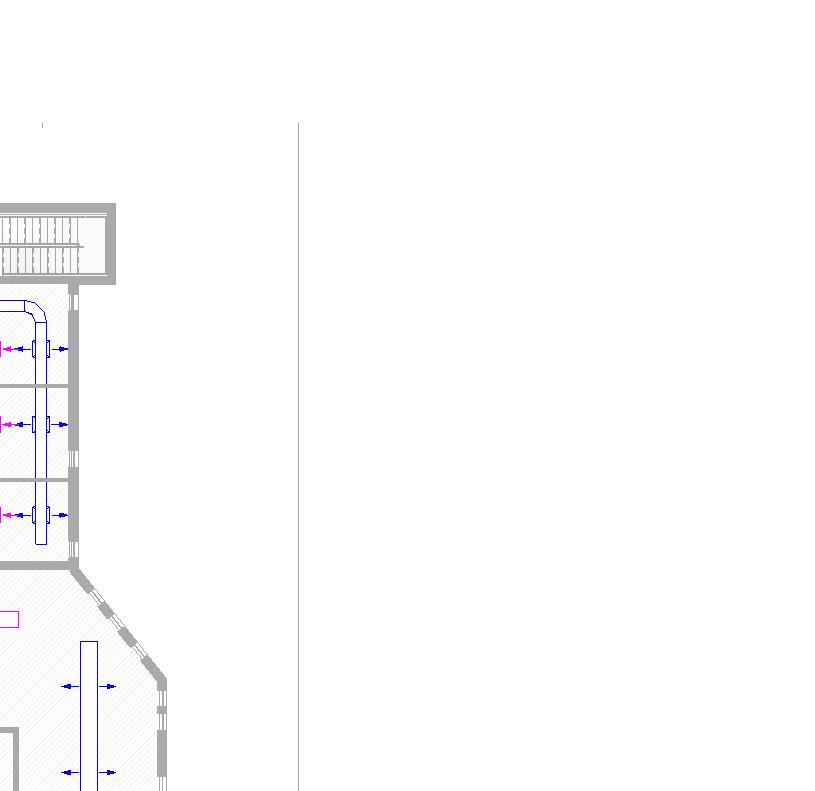

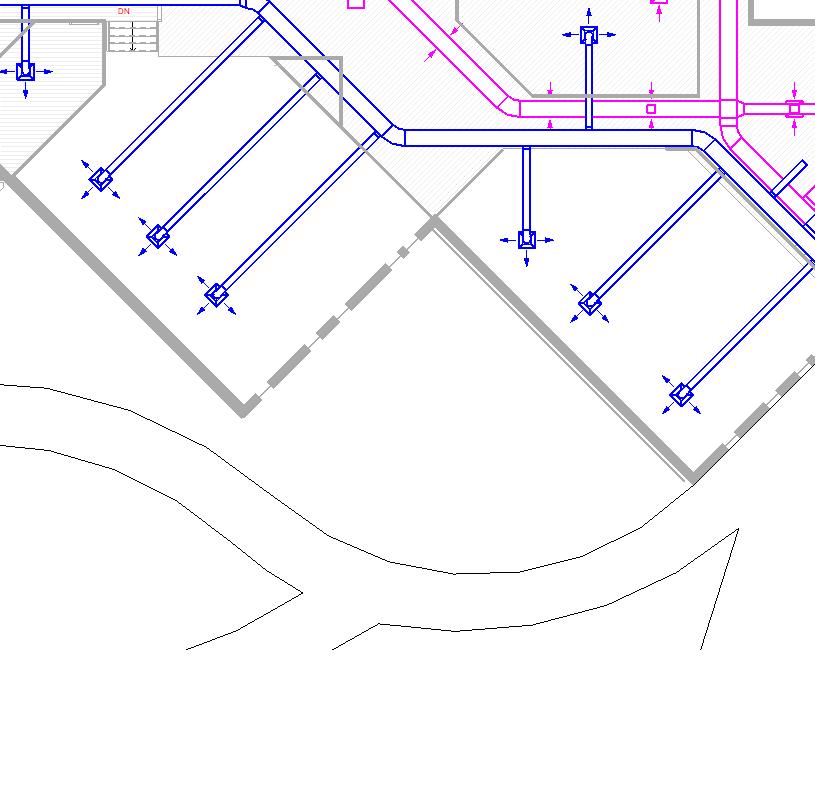

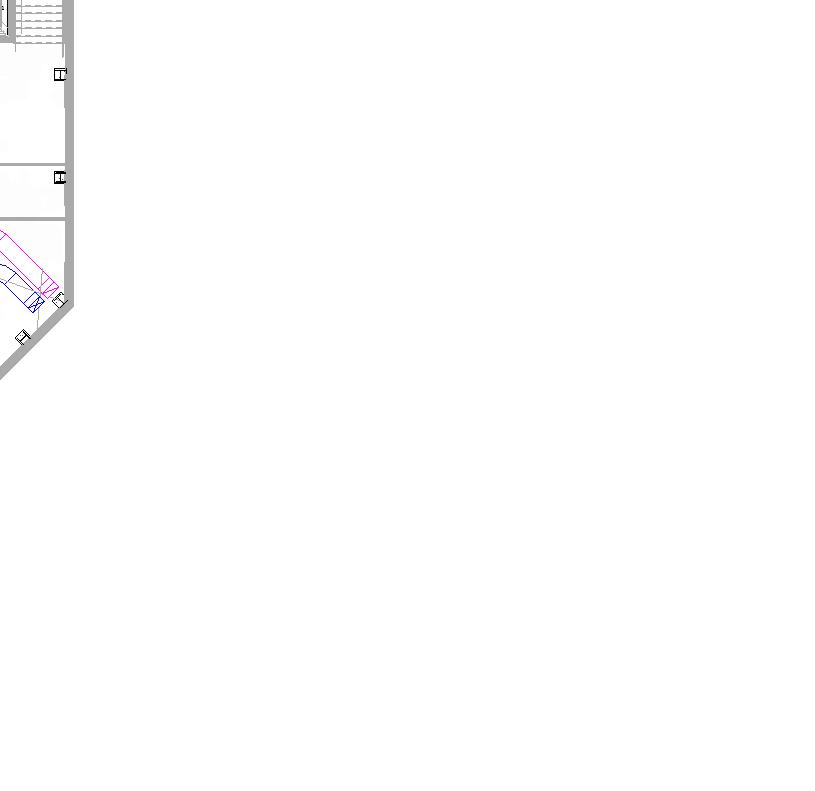

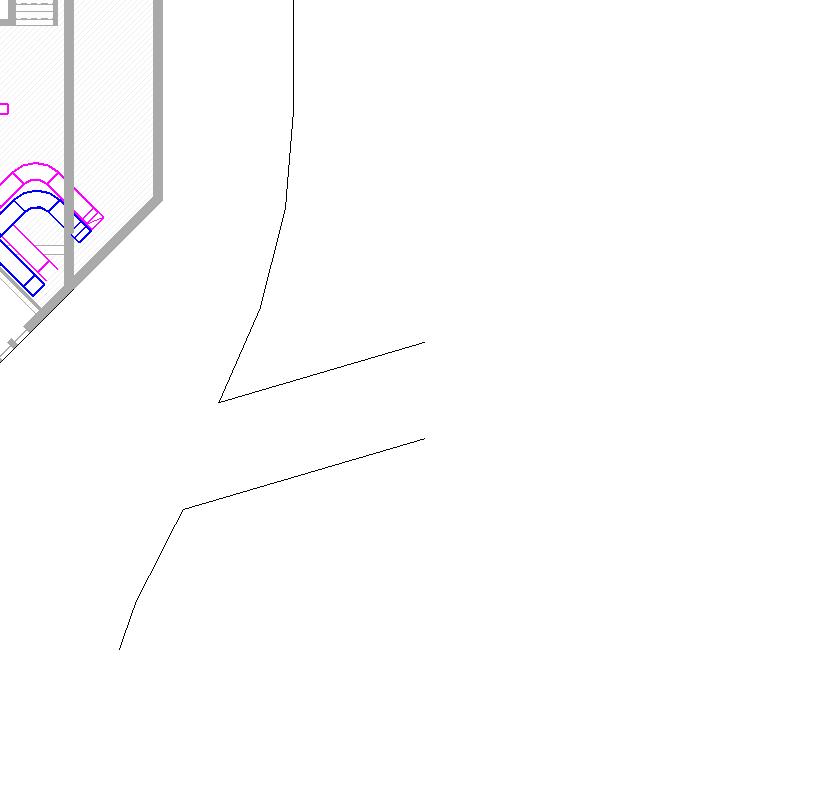

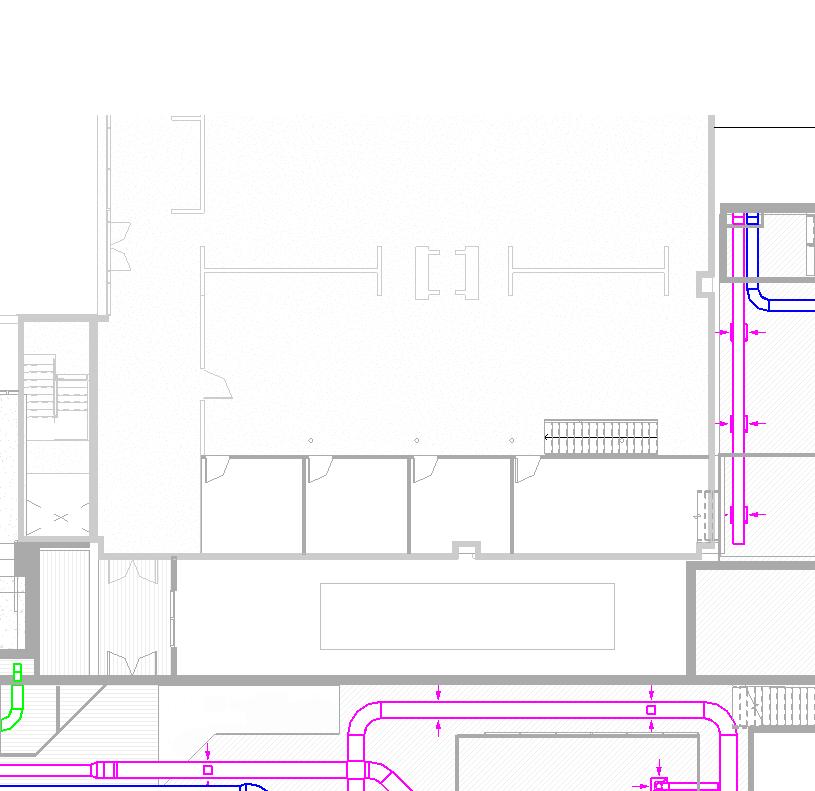

HVAC Plans

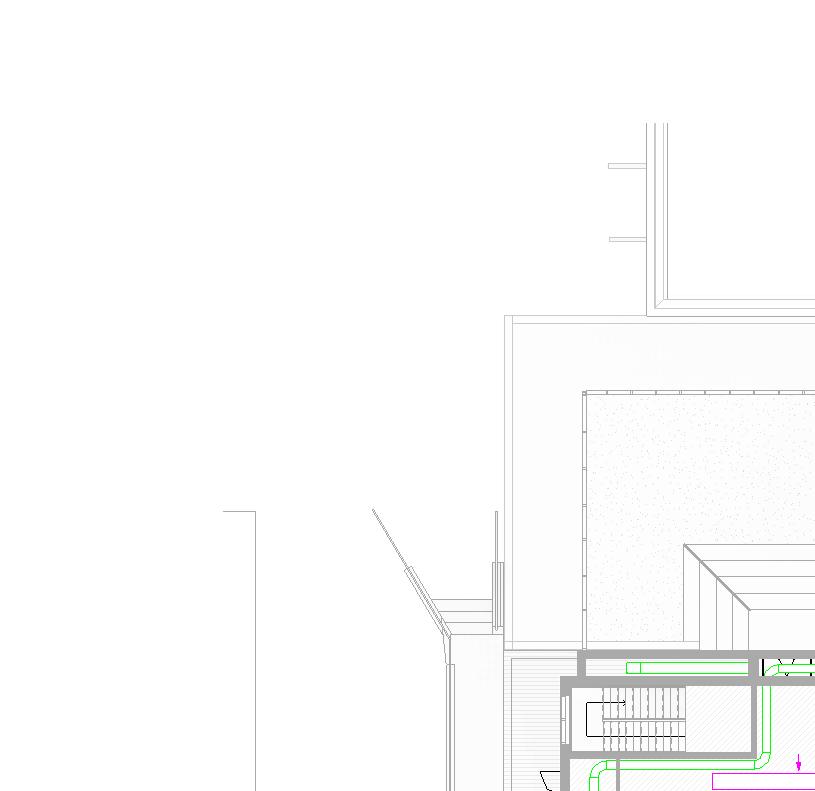

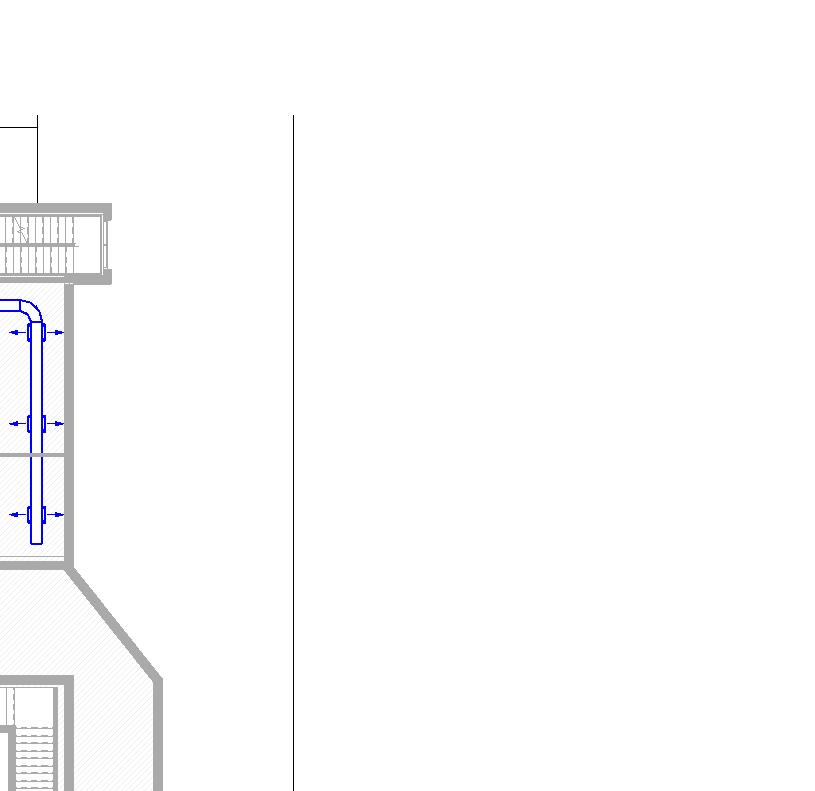

B. C. GG HH CC DD E. 10. A. D. 1. AA FF EE II 8. BB 2. 3. 4. 5. G. 6. 7. F. AAB A&D LEVEL 1 FFE 236' 118 SF OFFICE 112 129 SF OFFICE 111 135 SF OFFICE 093 PROJECTNAME: SCALE: SHEET NAME: BRANDONGREEN,JINANE ARBAIN, NATEHIMMELSBACH PROFESSORBOMBARA CABEJEFFERSON FALL 2022 SHEET NUMBER: DATE: CHECKEDBY: DRAWN BY: CLASS NAME: TECH 5: DOCUMENTATION &DETAILING PROJECT ADDRESS: Autodesk Docs://F22D8T5 (Proje ct)/D8_PROJECT 11.14_NEW.rvt
12/5/2022 11:50:45AM
JEFFERSON
EXPANSION Checker Author REVISION SCHEDULE Revision Number Revision Description Revision Date

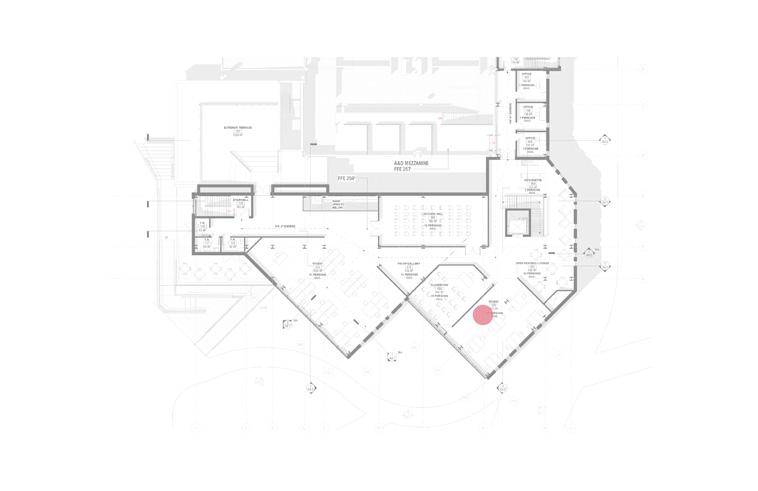

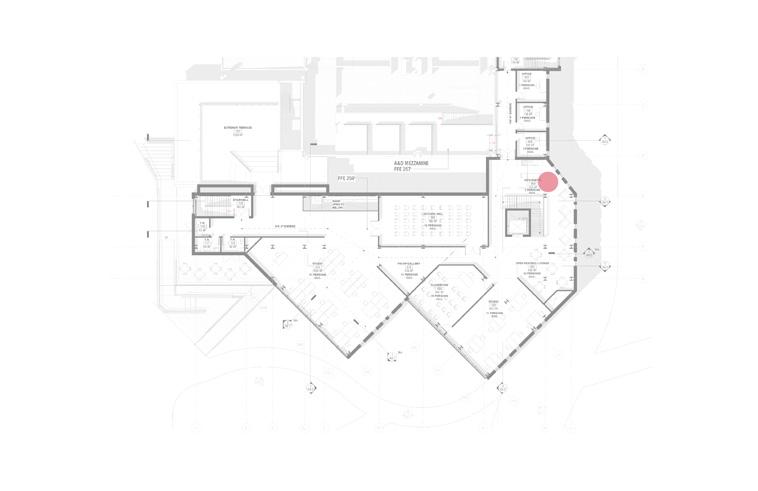

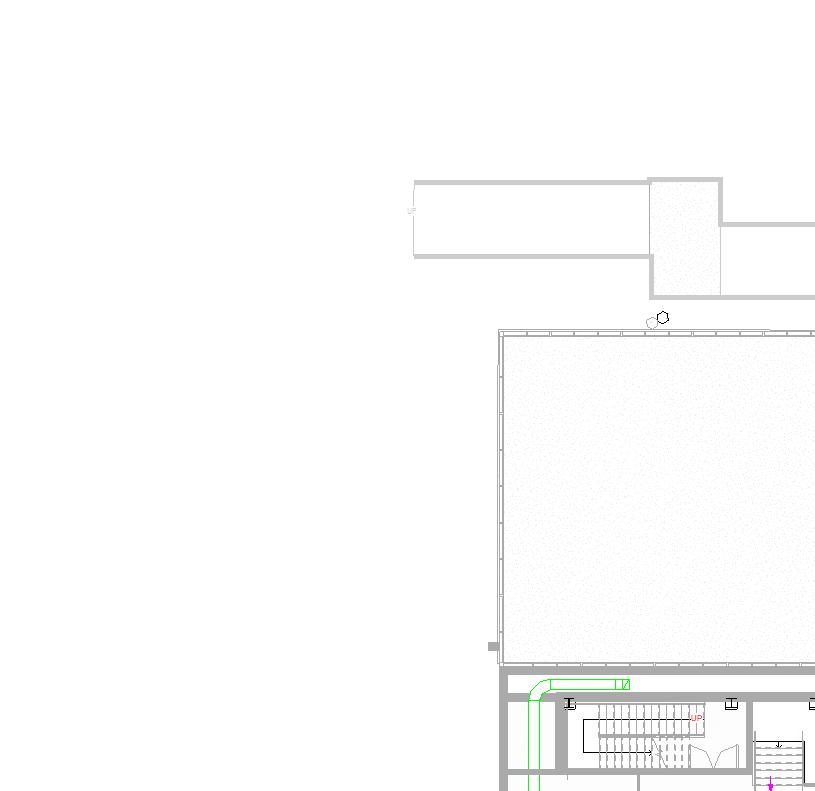

M1.1 BASEMENT MECHCANICAL
ARCHITECTURE
1/8"
1'-0"

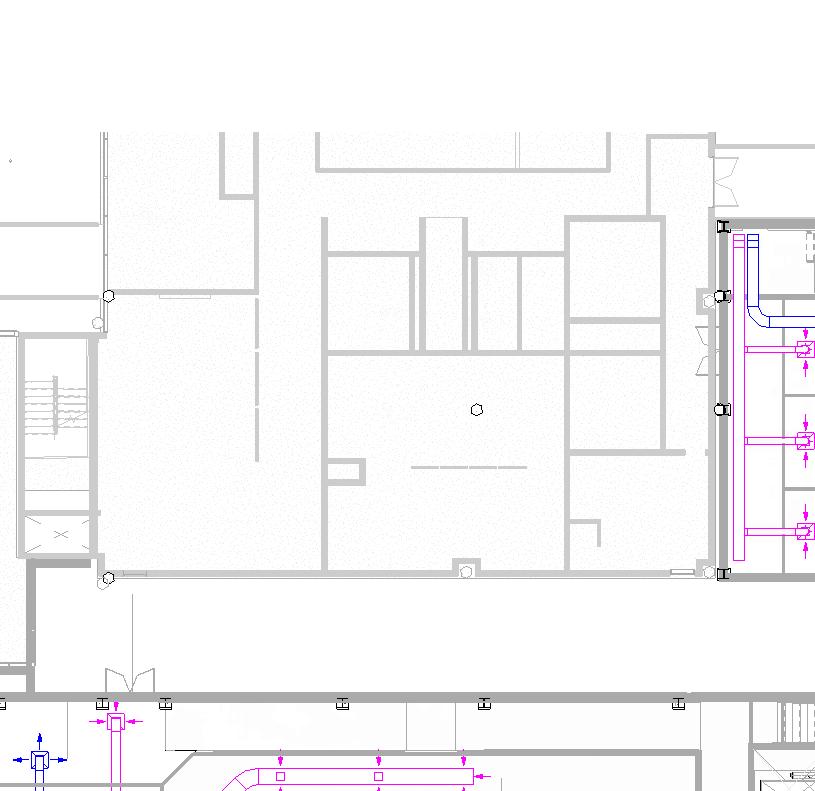

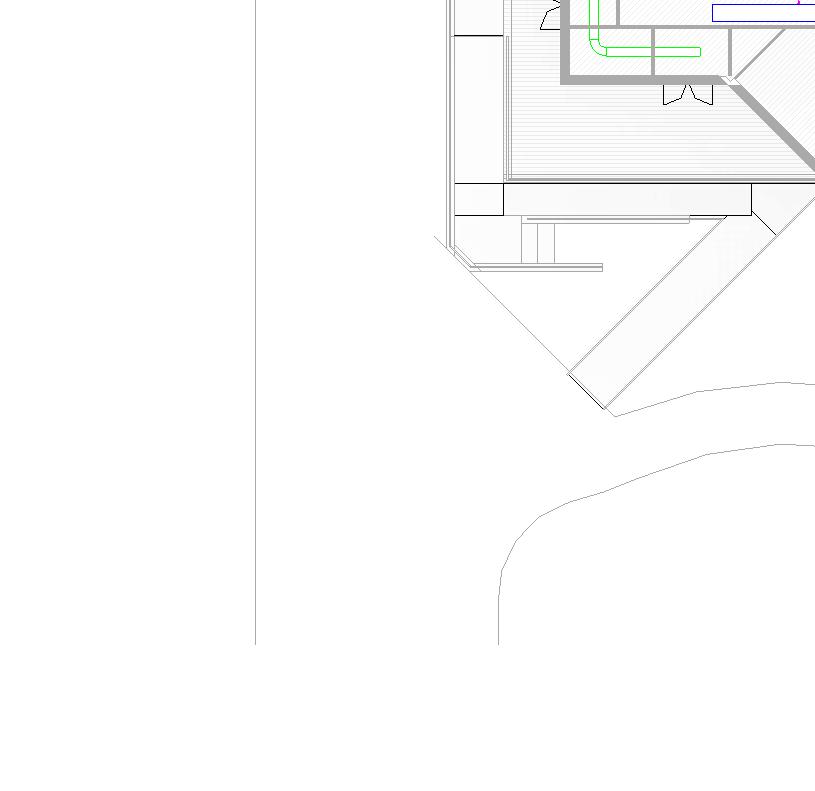

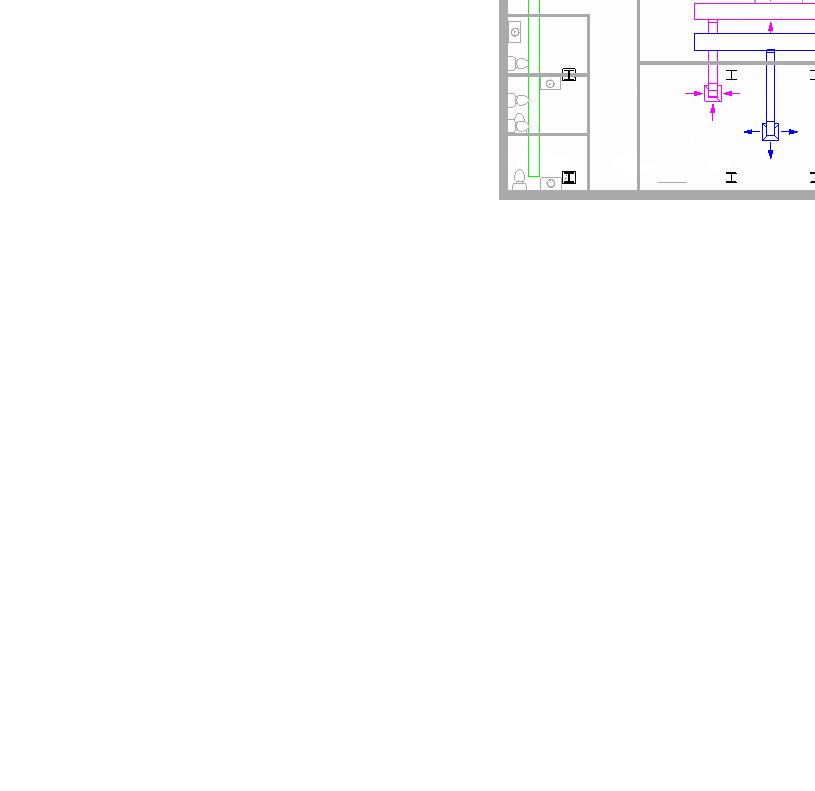

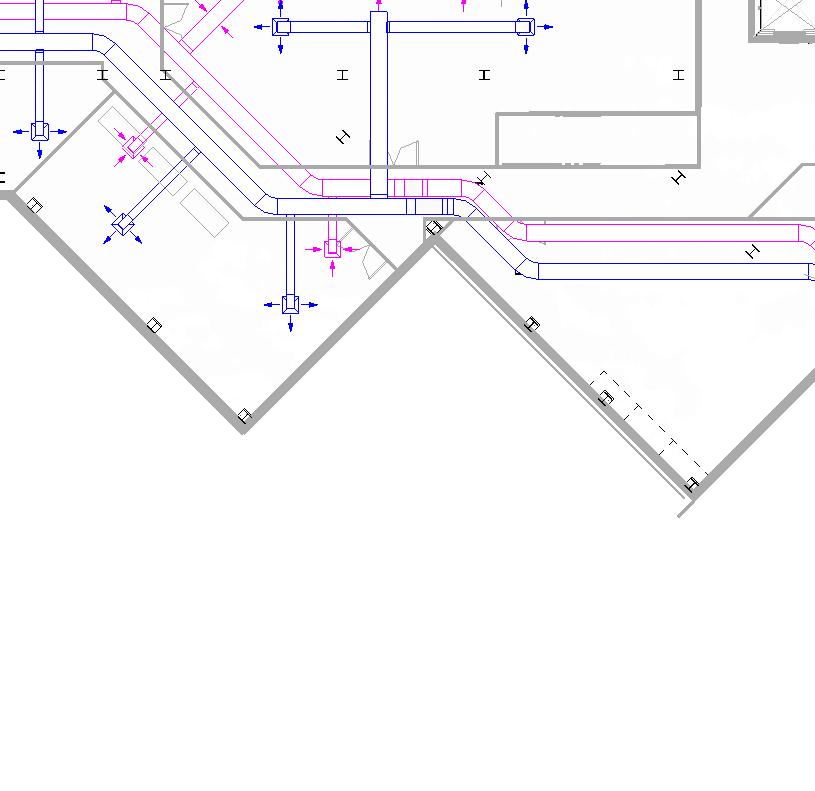

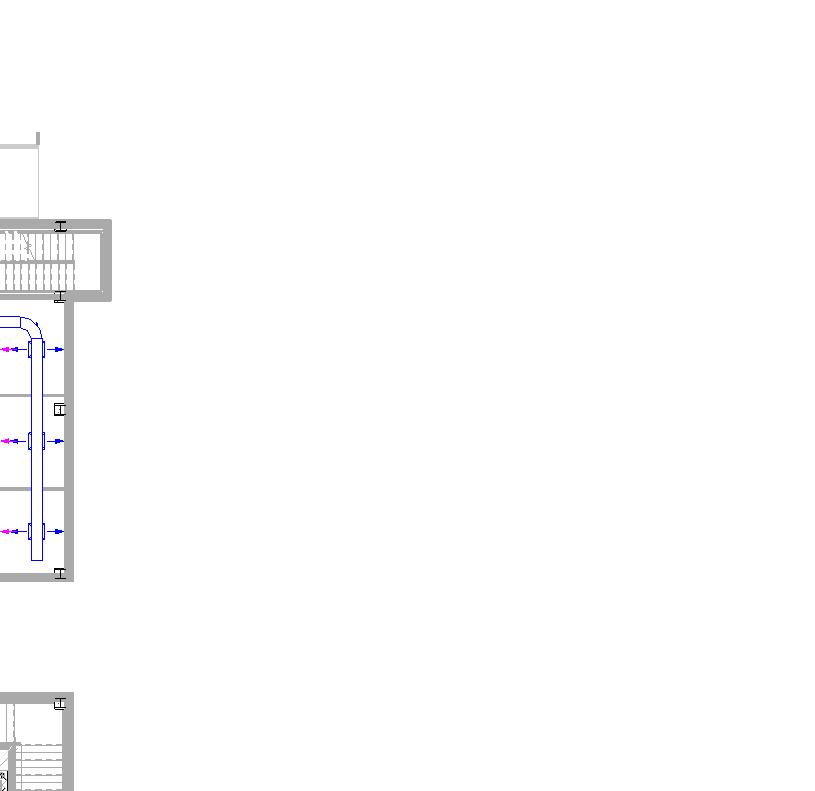

B. C. GG HH CC DD E. 10. 10. 9. A. D. 1. AA FF EE II 8. BB 2. 3. 4. 4. 5. G. 6. 7. F. AAB 1215 SF STUDIO 062 1103 SF STUDIO 060 490 SF CONFERENCE ROOM 082 488 SF LOBBY 087 618 SF PIN-UP 102 239 SF OFFICE 108 408 SF FACULTY LOUNGE 096 183 SF STAIRWELL 119 Not Enclosed EXTERIOR PATIO 122 120 SF A&D BRIDGE 124 179 SF STAIRWELL 125 DN DN 64 SF T.R. 065 54 SF T.R. 131 168 SF LOBBY 141 205 SF STUDY ROOM 144 76 SF T.R. 152 PROJECTNAME: SCALE: SHEET NAME: BRANDONGREEN,JINANE ARBAIN, NATEHIMMELSBACH PROFESSORBOMBARA CABEJEFFERSON FALL 2022 SHEET NUMBER: DATE: CHECKEDBY: DRAWN BY: CLASS NAME: TECH 5: DOCUMENTATION &DETAILING PROJECT ADDRESS: Autodesk Docs://F22D8T5 (Proje ct)/D8_PROJECT 11.14_NEW.rvt
=
12/5/2022 11:52:35 AM M1.2 LEVEL 1 MECHCANICAL SYSTEMS JEFFERSON ARCHITECTURE EXPANSION Checker Author REVISION SCHEDULE Revision Number Revision Description Revision Date
HVAC Plans

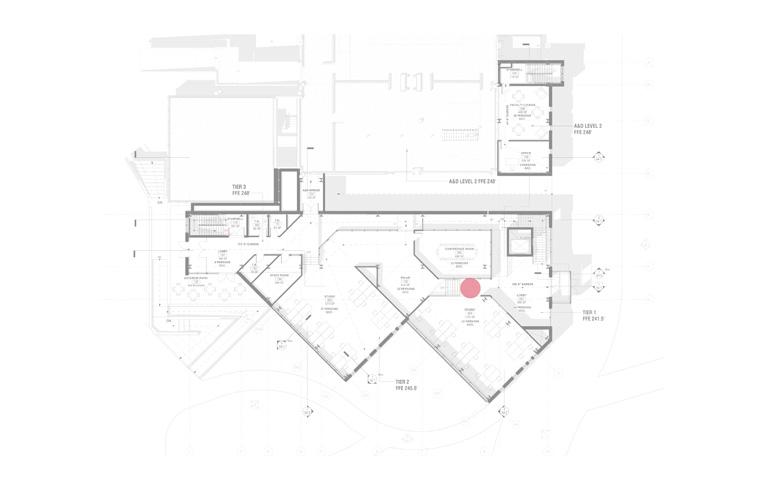

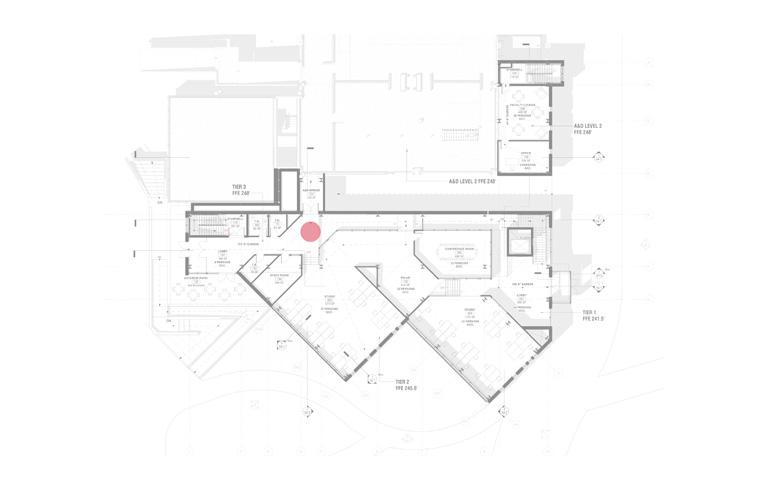

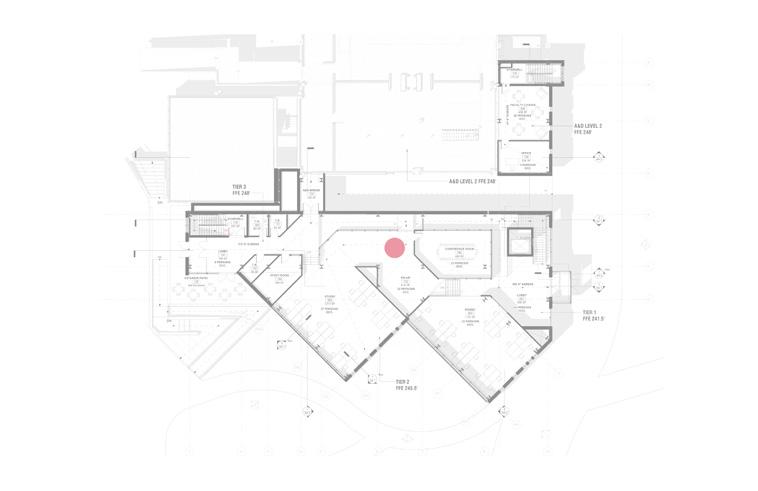

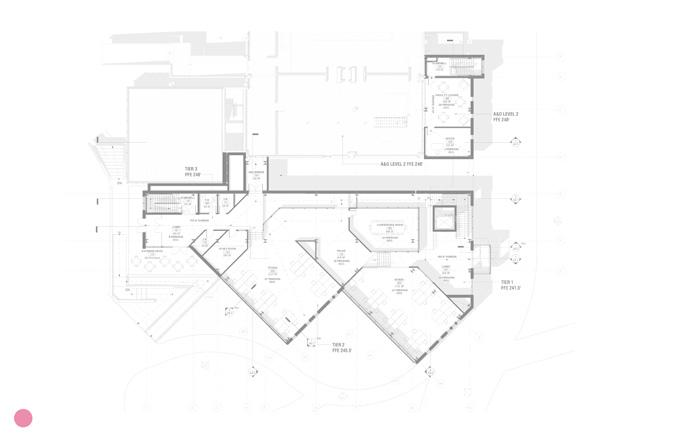

LEVEL 1
1/8"
1'-0"

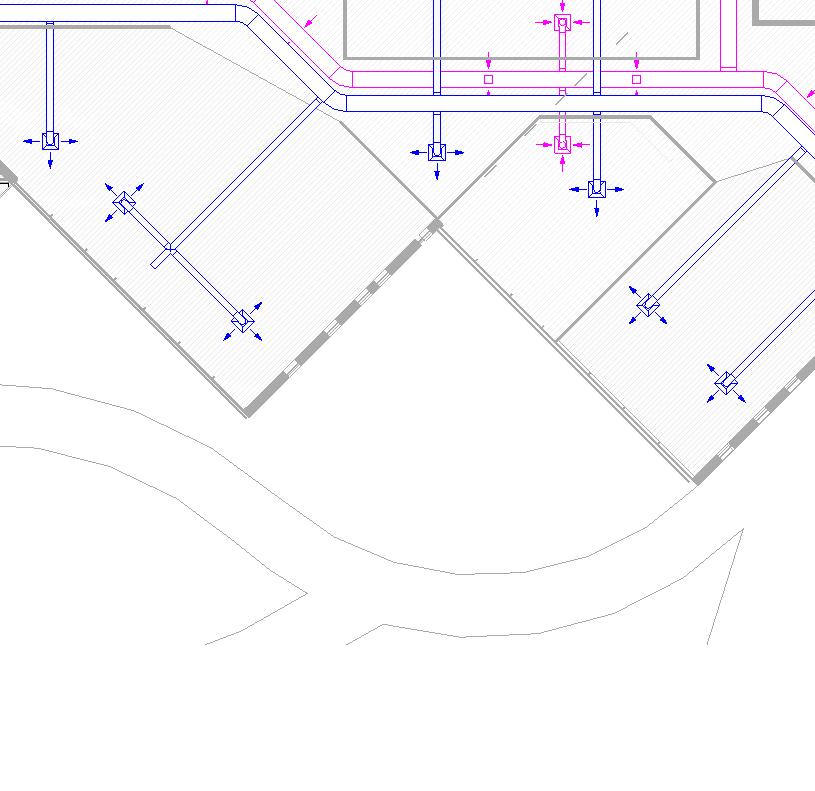

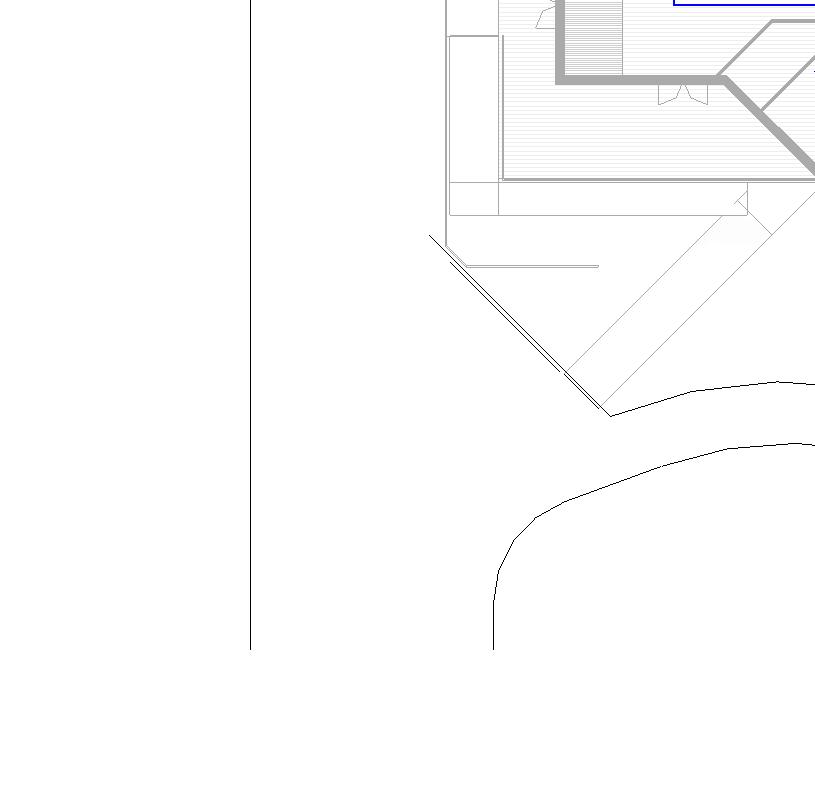

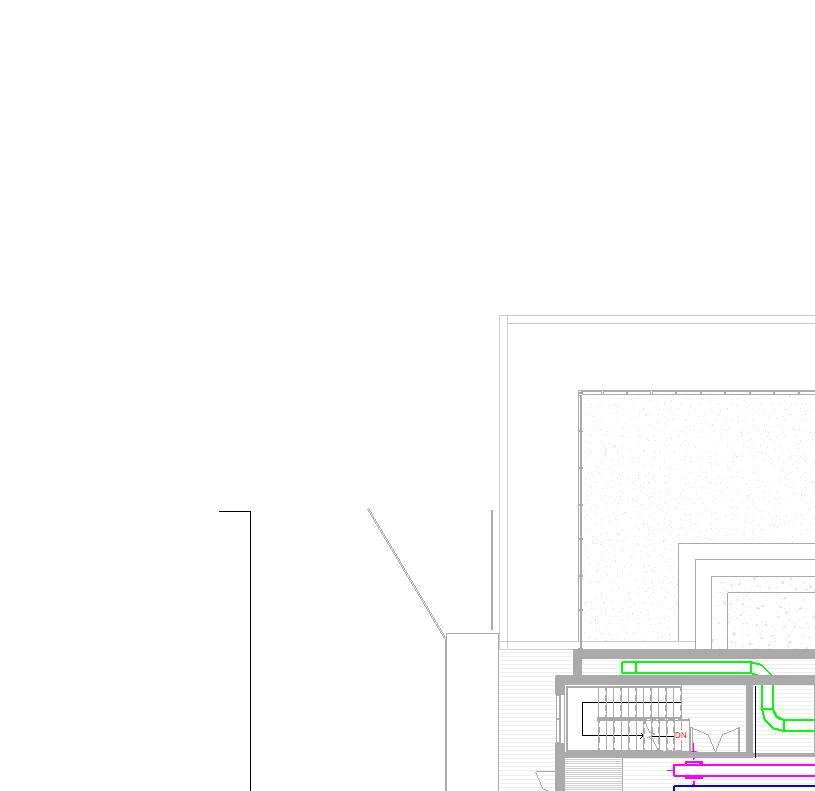

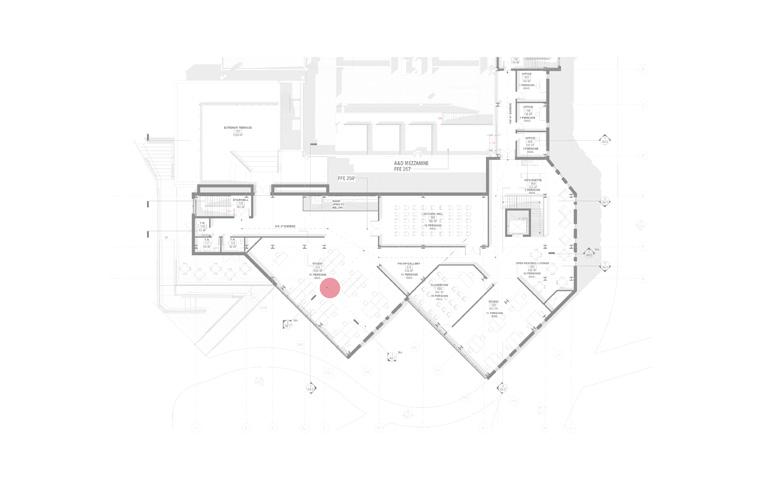

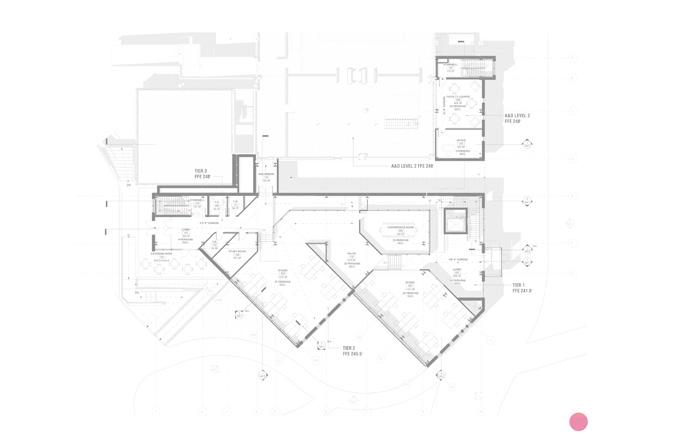

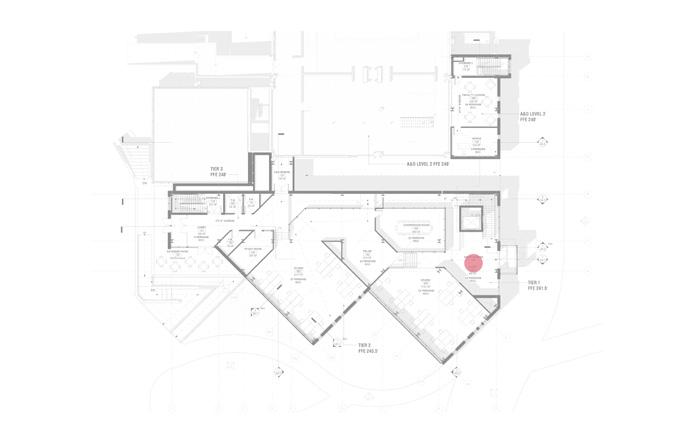

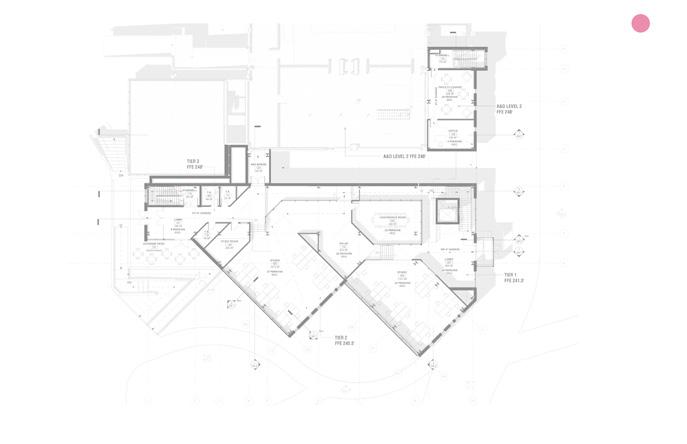

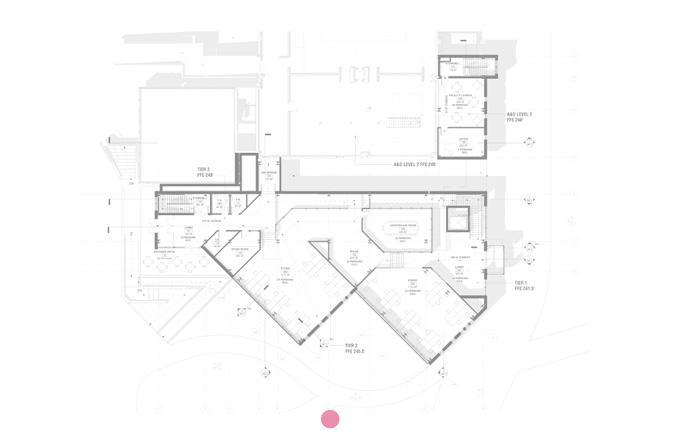

B. C. GG HH CC DD E. 10. 10. 9. A. D. 1. AA FF EE II 8. BB 2. 3. 4. 5. G. 6. 7. F. 11. AAB RAMP OPEN TO BELOW 506 SF CLASSROOM 080 832 SF STUDIO 020 1538 SF STUDIO 072 316 SF PIN UP/GALLERY 078 783 SF LECTURE HALL 066 235 SF KITCHNETTE 069 115 SF OFFICE 035 145 SF OFFICE 033 625 SF OPEN SEATING/ LOUNGE 083 130 SF OFFICE 106 183 SF STAIRWELL 115 179 SF STAIRWELL 114 52 SF T.R. 116 59 SF T.R. 117 42 SF T.R. 118 1328 SF EXTERIOR TERRACE 151 PROJECTNAME: SCALE: SHEET NAME: BRANDONGREEN,JINANE ARBAIN, NATEHIMMELSBACH PROFESSORBOMBARA CABEJEFFERSON FALL 2022 SHEET NUMBER: DATE: CHECKEDBY: DRAWN BY: CLASS NAME: TECH 5: DOCUMENTATION &DETAILING PROJECT ADDRESS: Autodesk Docs://F22D8T5 (Proje ct)/D8_PROJECT 11.14_NEW.rvt
=
