Architecture Building A&D Addition Part 1

Arbain, Green, Himmelsbach

ANGLED ADJACENCIES

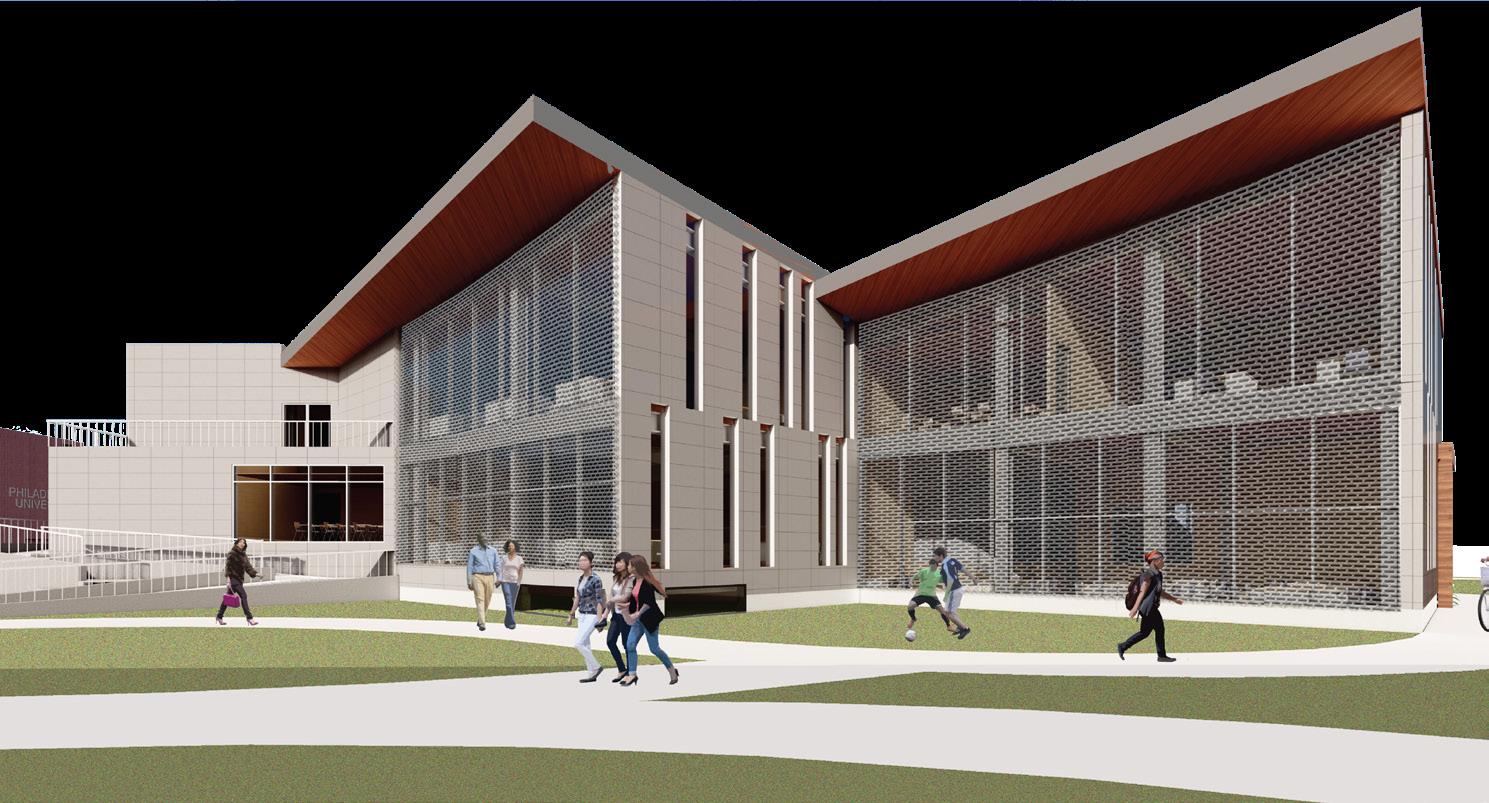

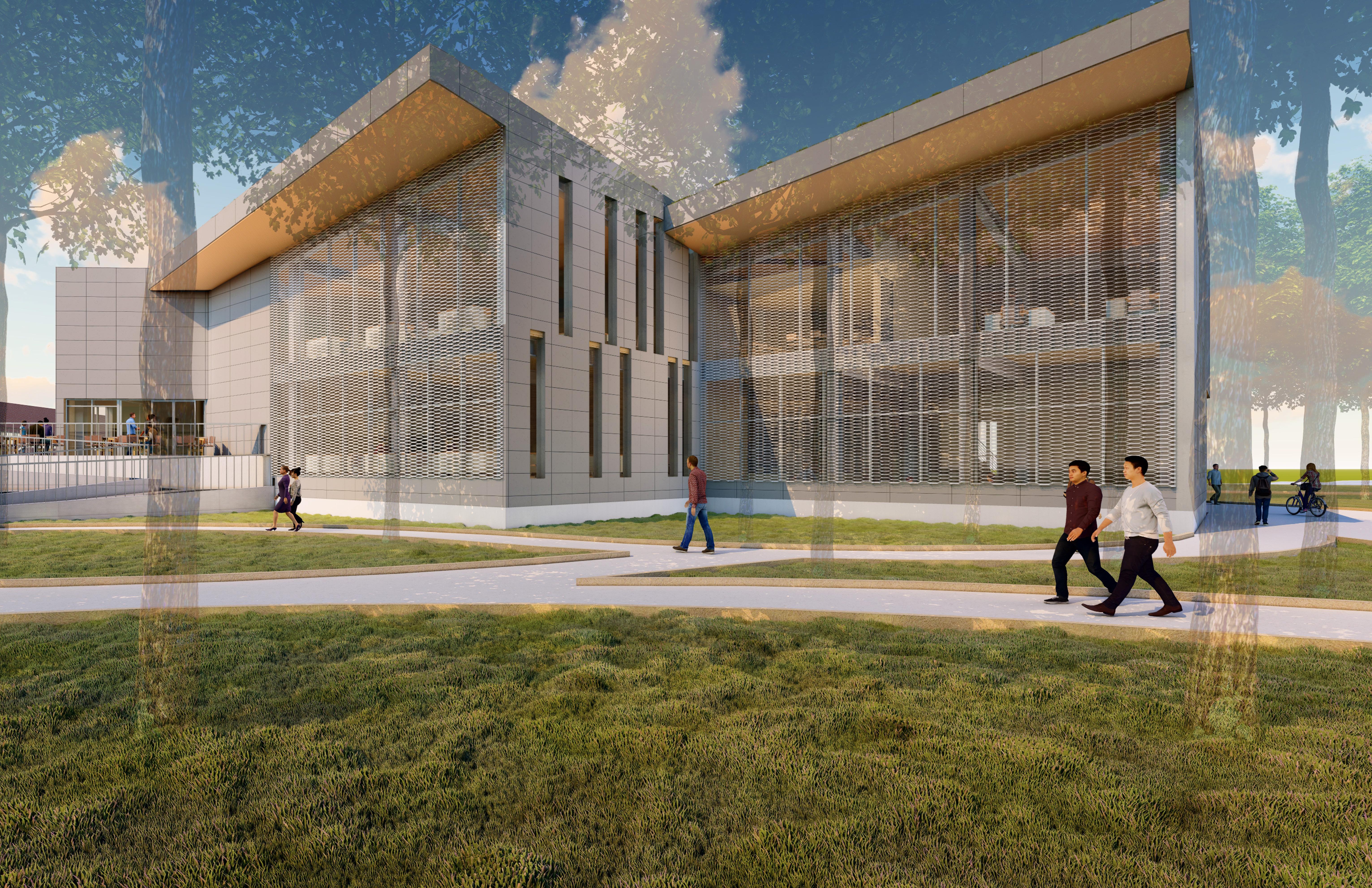

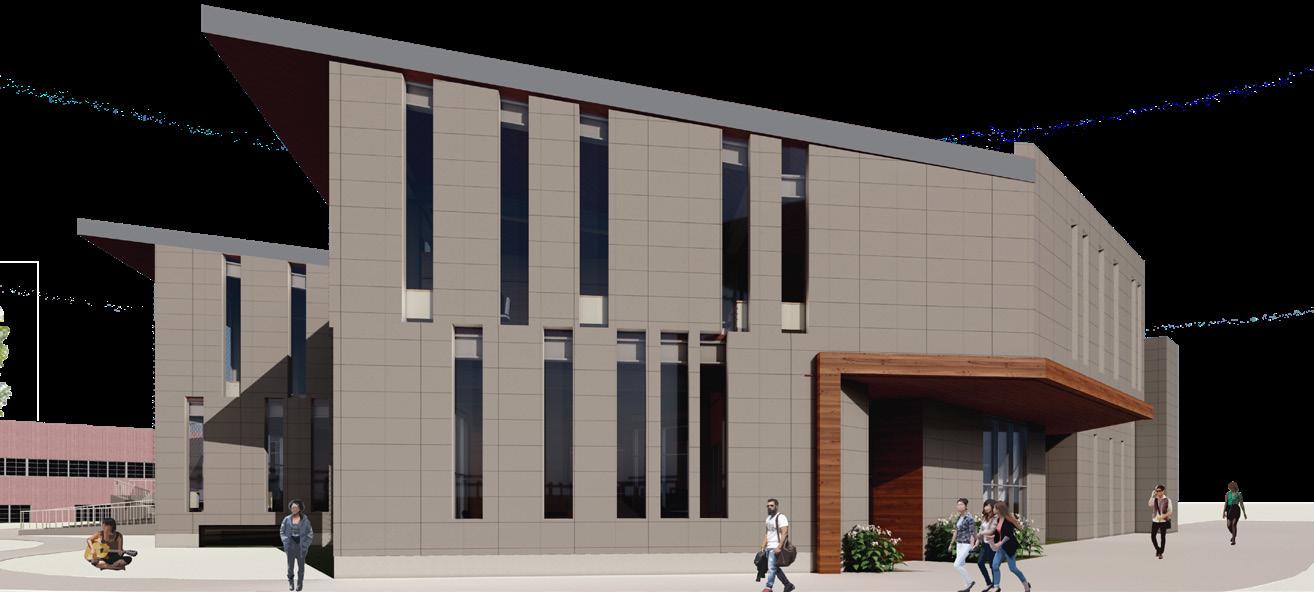

Jefferson University Architecture & Design Building Extension Proposal

Professor James Mckenna Fall Design 8 Fall2022 2022 Design

Arbain, Green, Himmelsbach

Site Analysis Case Study Precedent Concept Program Analysis Sun + Energy Studies Project Development & Drawings Structural System HVAC System Perspectives

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Site Analysis Inventory Analysis Here will be aand description of site People, Environment, Land and Climate

Fall 2022 Design 8

Angled Adjacencies

Arbain, Green, Himmelsbach

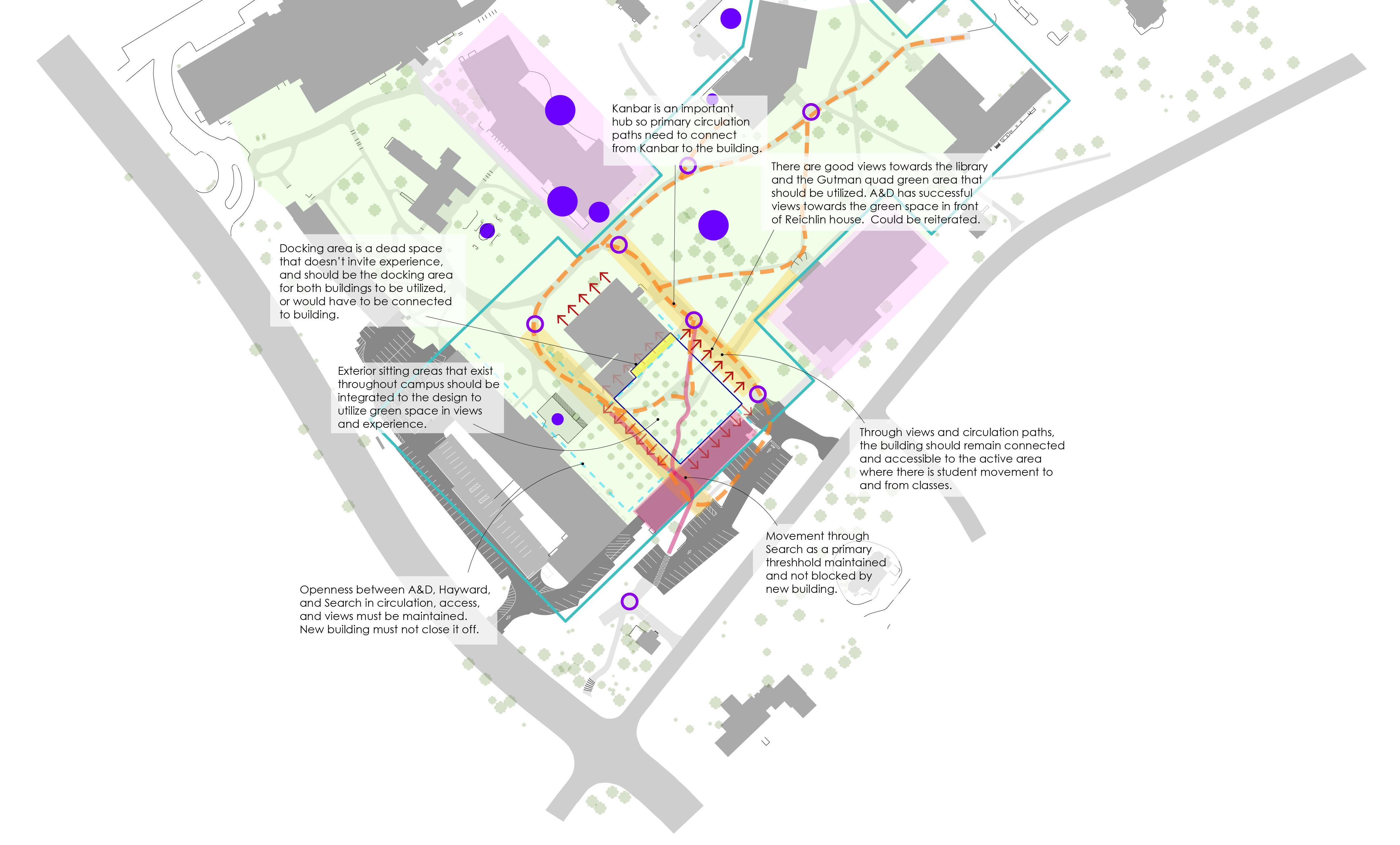

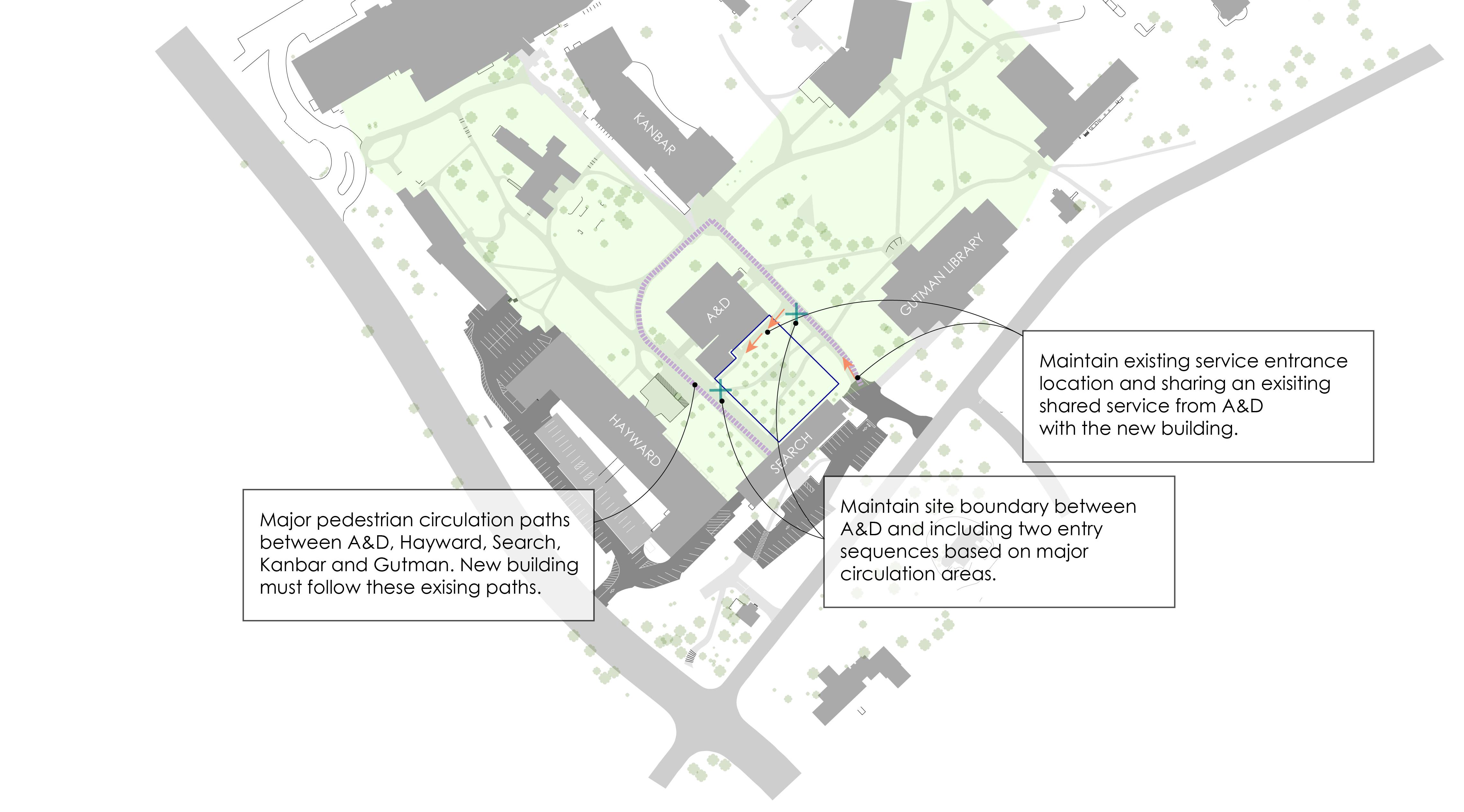

LEGEND Site Outline Oppeness in Site Classes and Related Movement Primary Pathways Access to Primary Pathways Threshold to and from Site Student Hubs Exterior Sitting Areas Meeting Points Dead/Awkward Space Poor Views Mediocre Views Good Views

Site Analysis People Fall 2022 Design 8

Angled Adjacencies

Arbain, Green, Himmelsbach

Site Analysis Environment Fall 2022 Design 8

Angled Adjacencies

Arbain, Green, Himmelsbach

Runoff flows into A&D service path mostly from Search Hall.

Must address how to manage rainfall and area most prone to flooding.

Prominent winds from the West & Northeast have unobstructed lanes onto the site, potential usage.

Secondary winds from Northwest with partial bloackage from A&D

Search hall plays largest role in site shading Great shading from winter morning sun. Moderate shading from spring/fall morning sun. No shade during summer. A&D provides moderate shading from late afternoon summer sun.

NW NE

SUMMER SOLSTICE SUN

FALL/SPRING EQUINOX SUN

Heyward hall provides most shading during afternoon winter sun, not effective on site during rest of the year.

SUMMER SOLSTICE SUN

FALL/SPRING EQUINOX SUN

W

WINTER SOLSTICE SUN

9AM SUMMER SOLSTICE SHADING

SE

FALL/SPRING EQUINOX SHADING

RUNOFF DIRECTION

3PM SW

3PM

FALL/SPRING EQUINOX SHADING

12PM Trees on site are generally aligned in a grid and 9AM can be grouped into microclimes. Removing trees near A&D will maintain shading near Search hall. Removing trees near Search will allow other trees to provide shading during most of the year.

12PM STORM DRAINS

FLOODING SITES

SUMMER SOLSTICE SHADING

3PM

WINTER SOLSTICE SHADING

WIND DIRECTION

WINTER SOLSTICE SUN

12PM

9AM

WINTER SOLSTICE SHADING

WIND DIRECTION

RUNOFF DIRECTION

STORM DRAINS

FLOODING SITES

MICROCLIMATES

MICROCLIMATES

TREE GRIDS

TREE GRIDS

TOPOGRAPHY

TOPOGRAPHY

GAS LINES

GAS LINES

WATER LINES

WATER LINES

ELEC. LINES

ELEC. LINES

SEWER LINES

SEWER LINES

Site Analysis Land and Climate Fall 2022 Design 8

Arbain, Green, Himmelsbach

Case Study Architecture School

The Abedian School influenced our orientation and prograommatic decisions

Fall 2022 Design 8

Arbain, Green, Himmelsbach

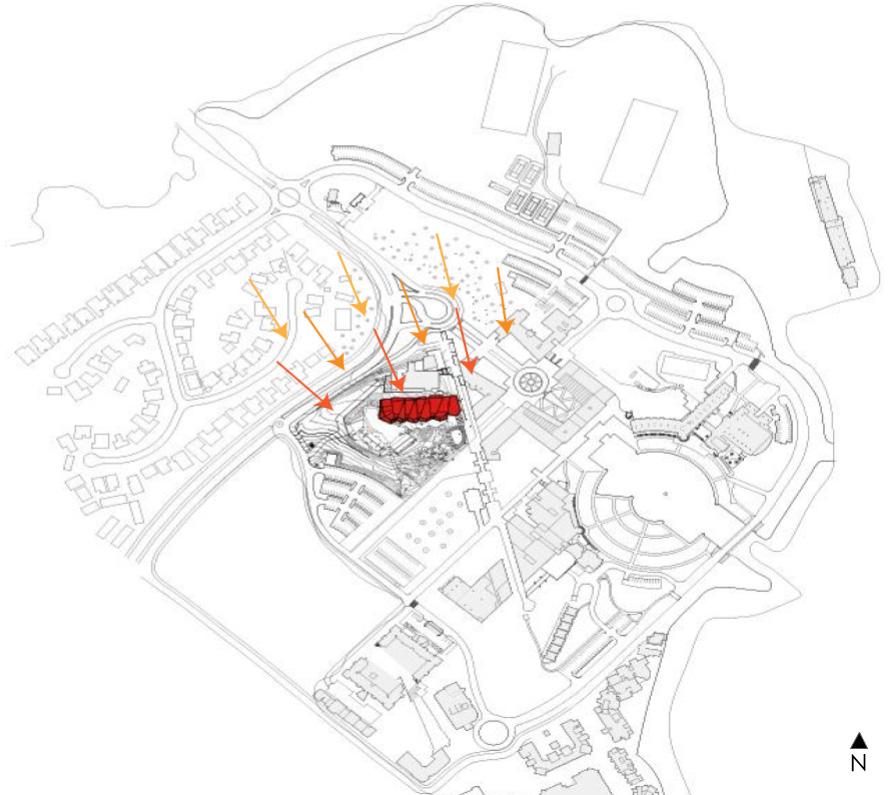

The studios are positioned in our North to be protected from glare from direct sun.

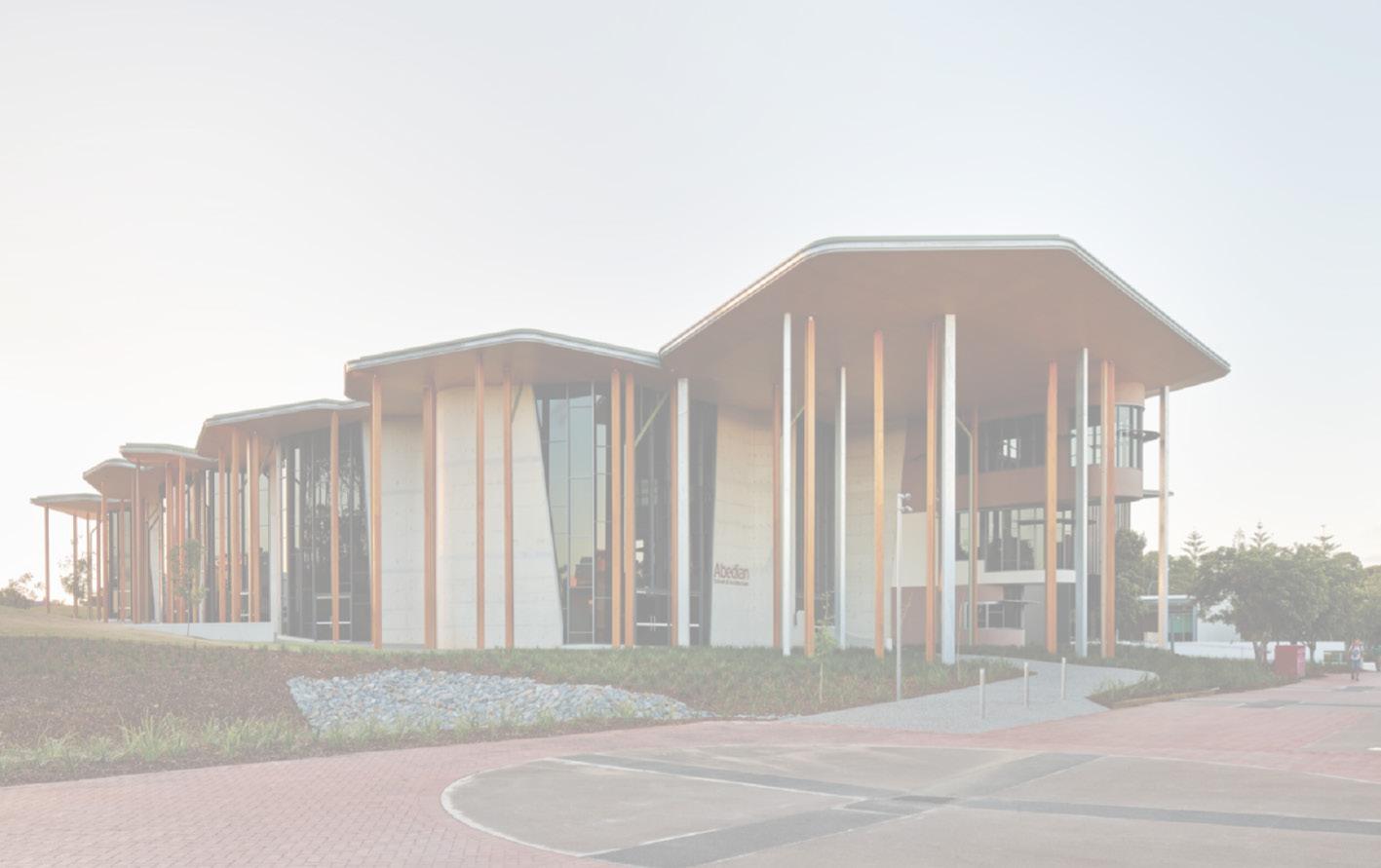

Case Study Abedian School of

Building Orientation

Architectecture Queensland, Australia

Fall 2022 Design 8

Arbain, Green, Himmelsbach

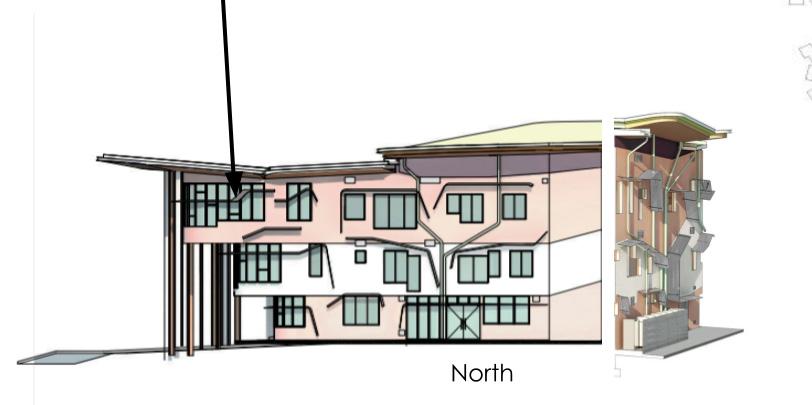

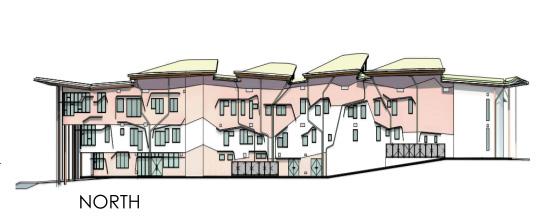

The north, east, and west facing walls and windows are less exposed due to the building’s orientation, and each of these openings is shielded and protected from the region’s intense and direct sunshine.

The studio areas on the greatest elevation to the west are shielded from the worst indirect summer sun by external vertical columns and an overhanging roof.

The façade and roof systems provide for the anticipated intensity and directional changes in the Queensland summer sun.

Case Study Abedian School of

Building Orientation

Architectecture Queensland, Australia

Fall 2022 Design 8

Arbain, Green, Himmelsbach

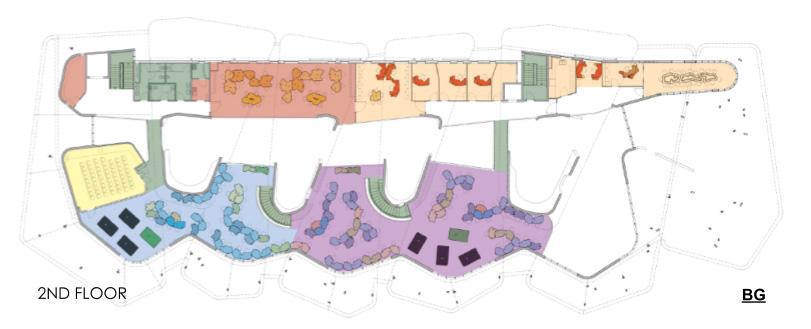

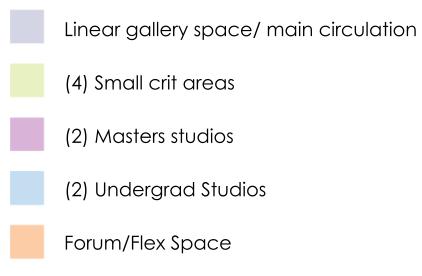

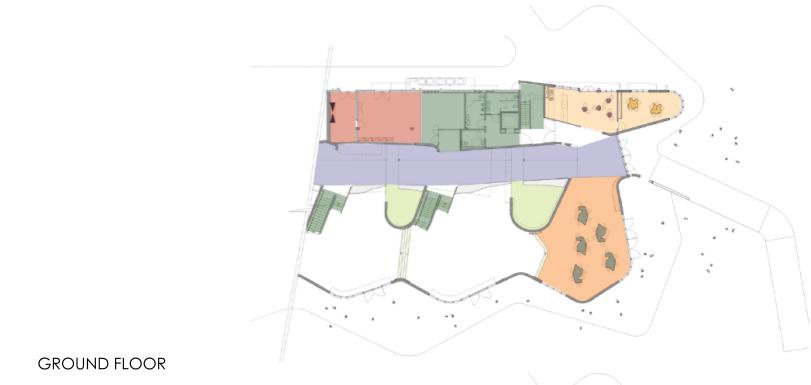

Case Study Abedian School of

Program Analsysis

Architectecture Queensland, Australia

Fall 2022 Design 8

Arbain, Green, Himmelsbach

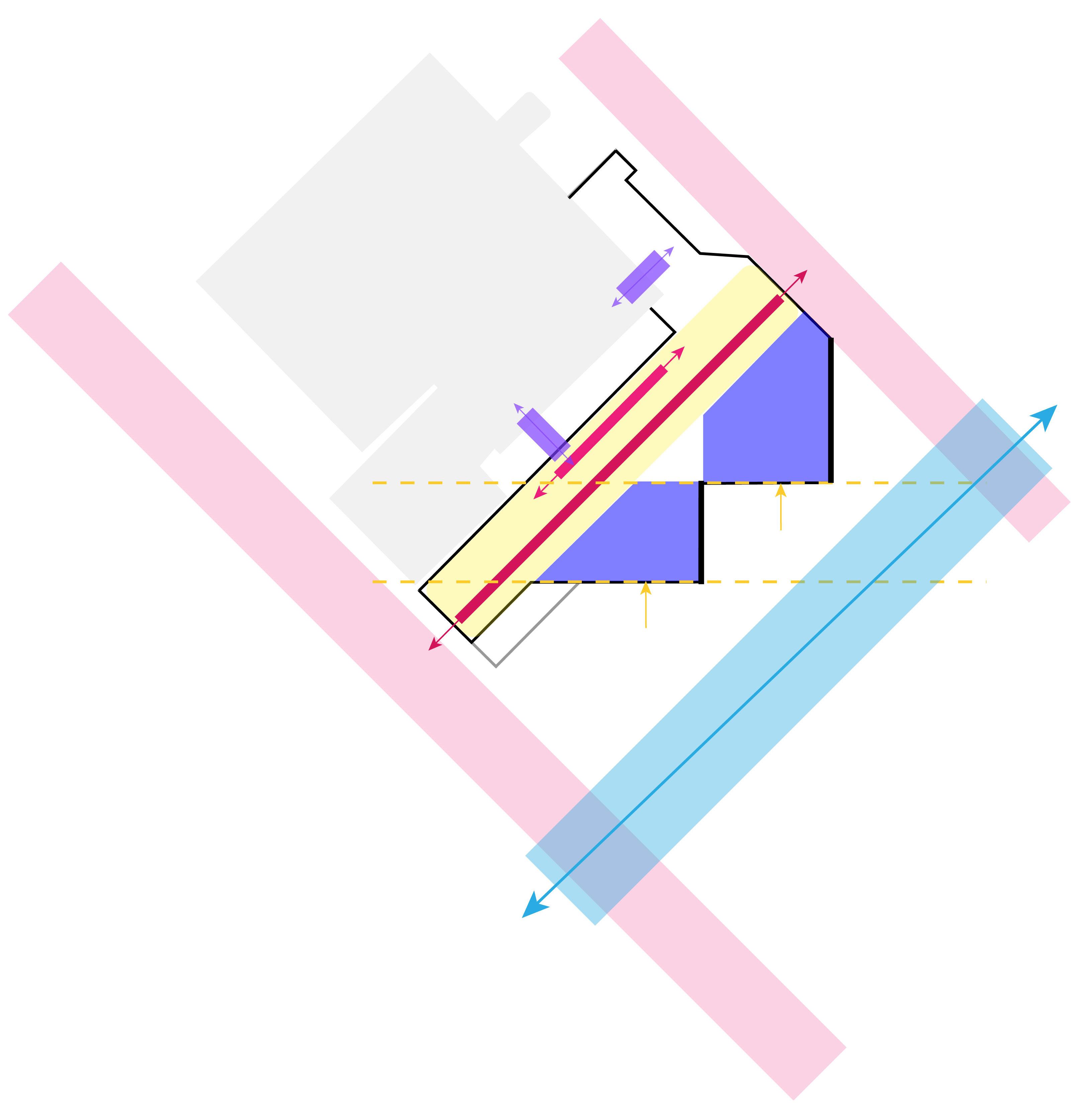

Concept Parti

The information from the Site Analysis, sun exposure, and our Case Study informed our concept.

Fall 2022 Design 8

Arbain, Green, Himmelsbach

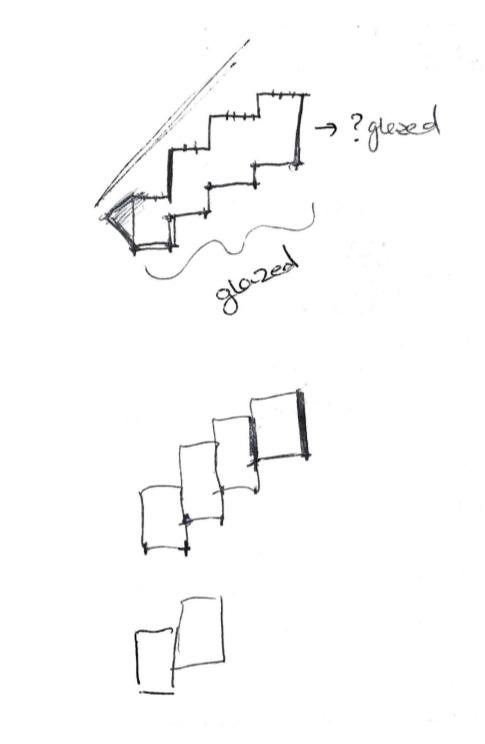

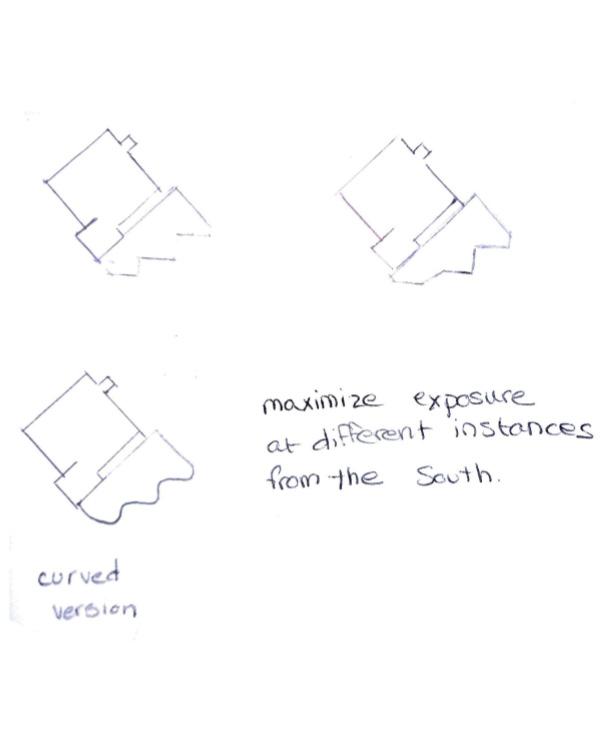

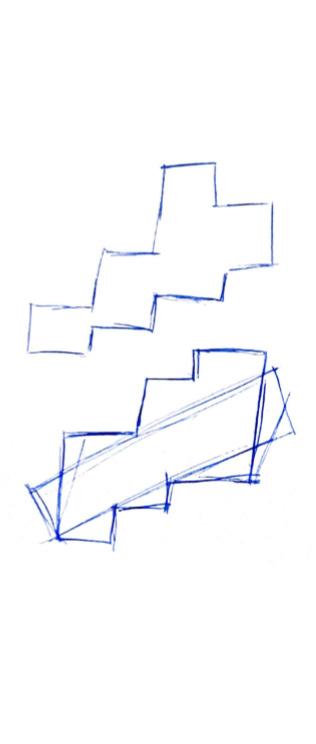

Sketch Southern exposure to sun maximized through form

Fall 2022 Design 8

Arbain, Green, Himmelsbach

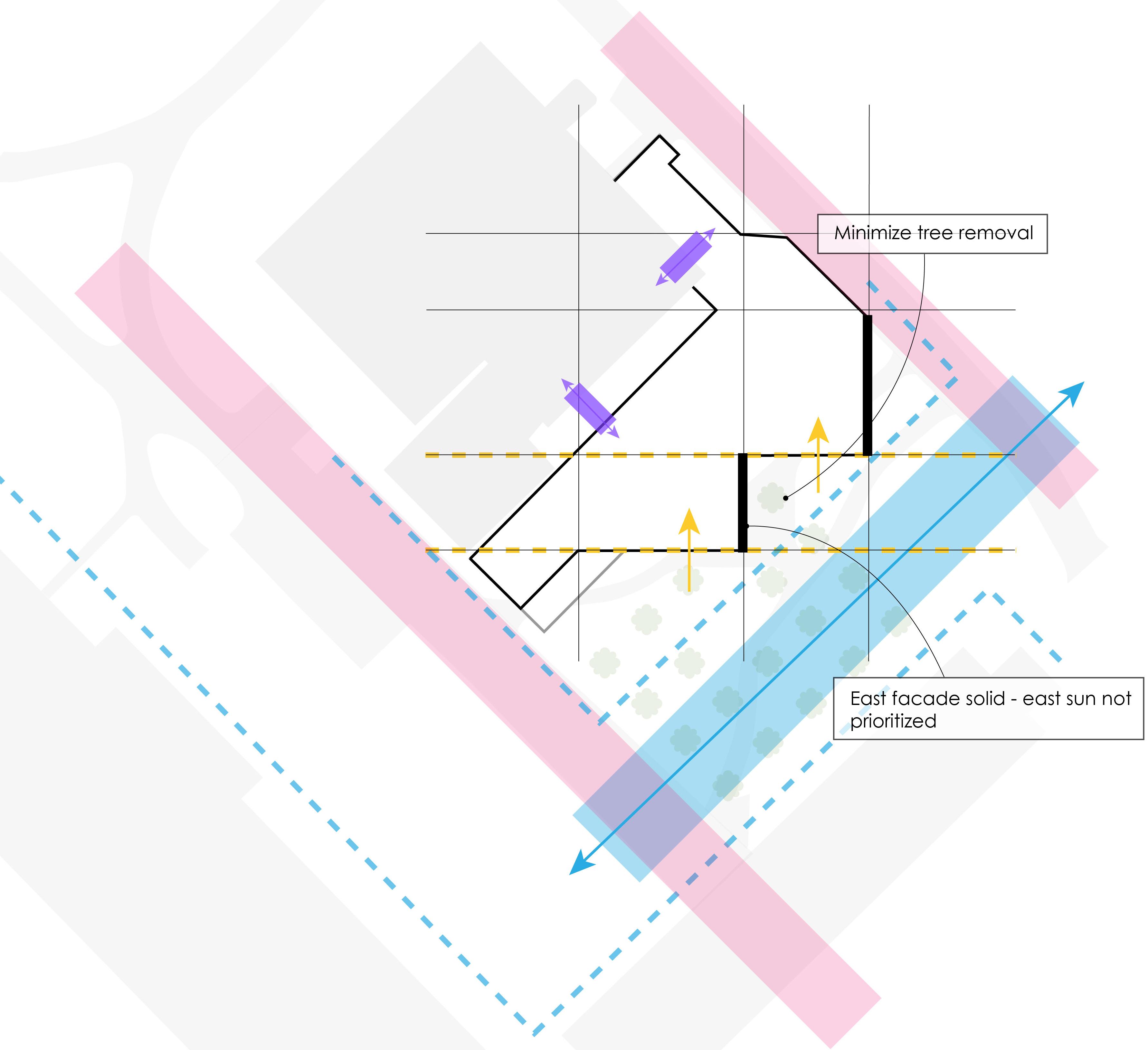

Parti Fall 2022 Design 8

Arbain, Green, Himmelsbach

Parti Form Fall 2022 Design 8

Arbain, Green, Himmelsbach

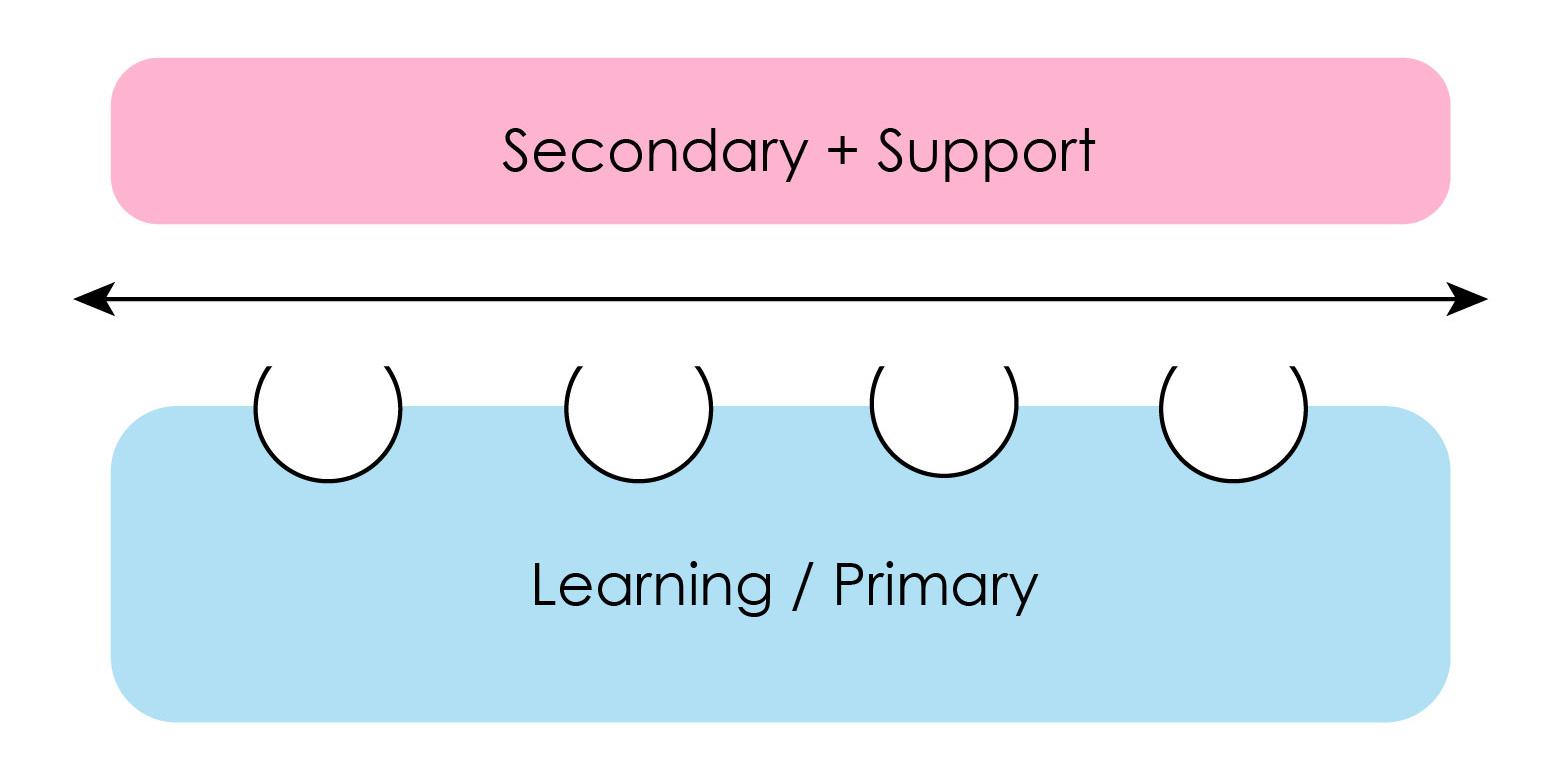

Parti Spatial Organization Fall 2022 Design 8

Arbain, Green, Himmelsbach

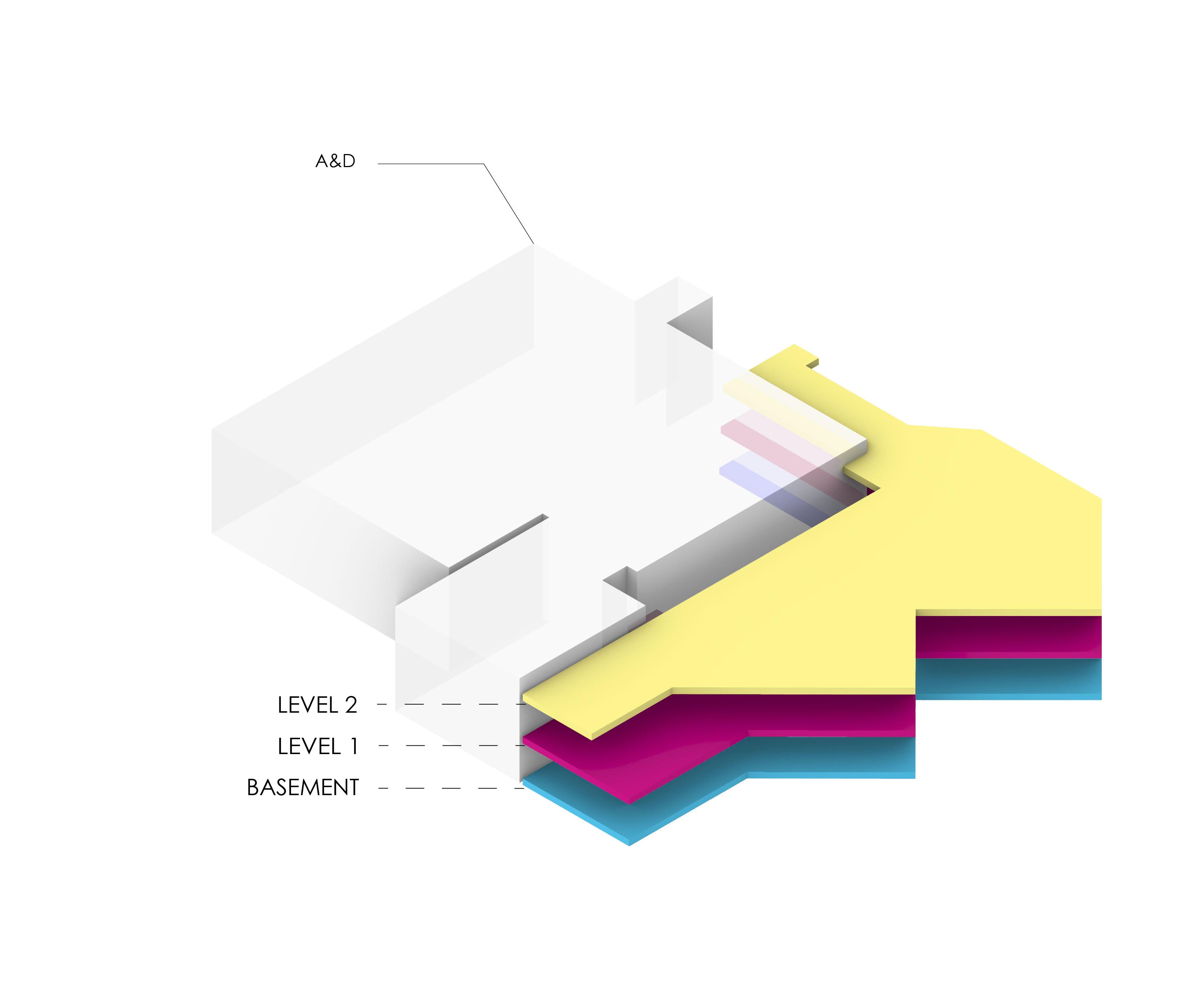

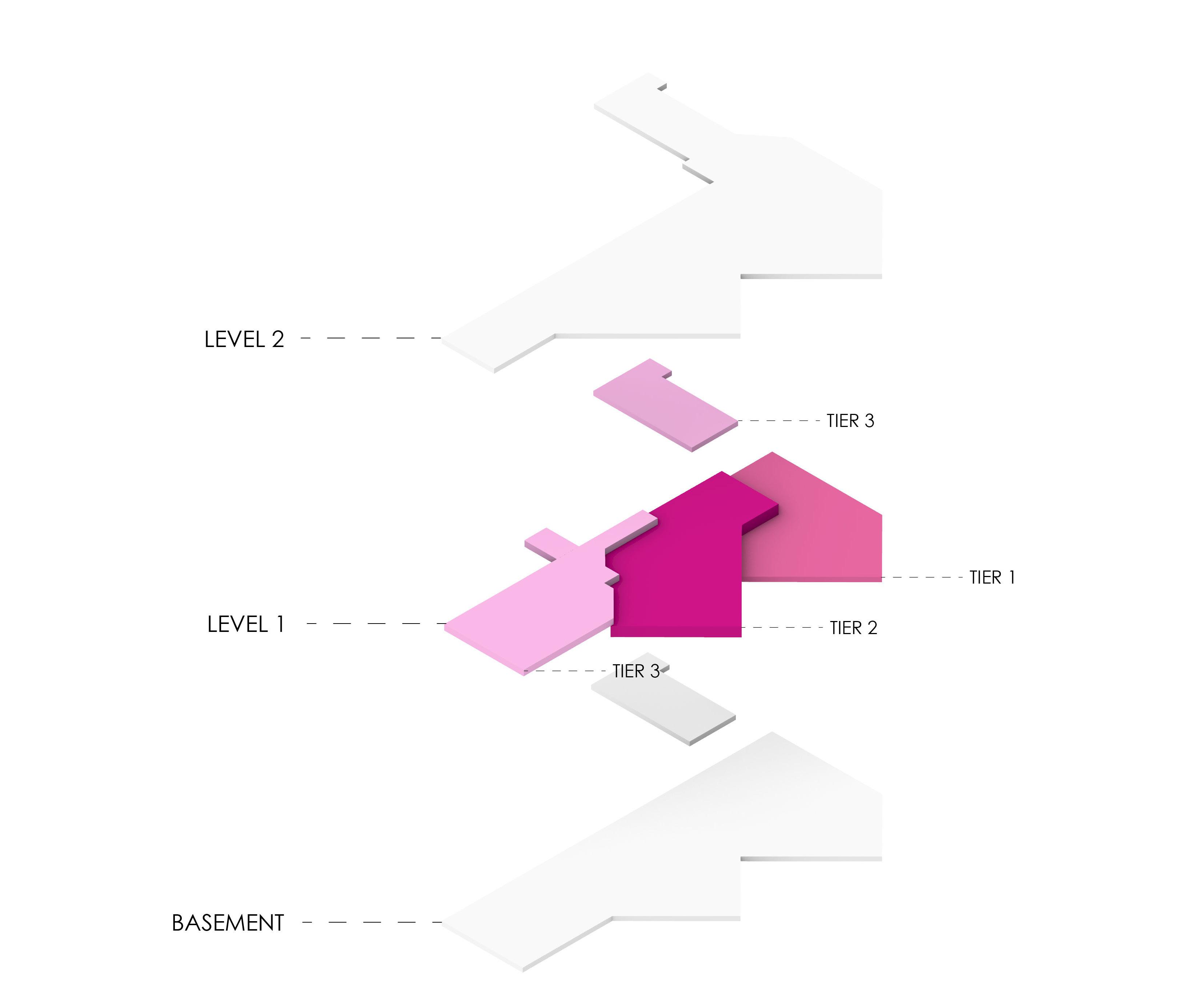

Parti Levels

Blocks Fall 2022 Design 8

Arbain, Green, Himmelsbach

Parti Levels

Planes Fall 2022 Design 8

Arbain, Green, Himmelsbach

Parti Tiers Fall 2022 Design 8

Arbain, Green, Himmelsbach

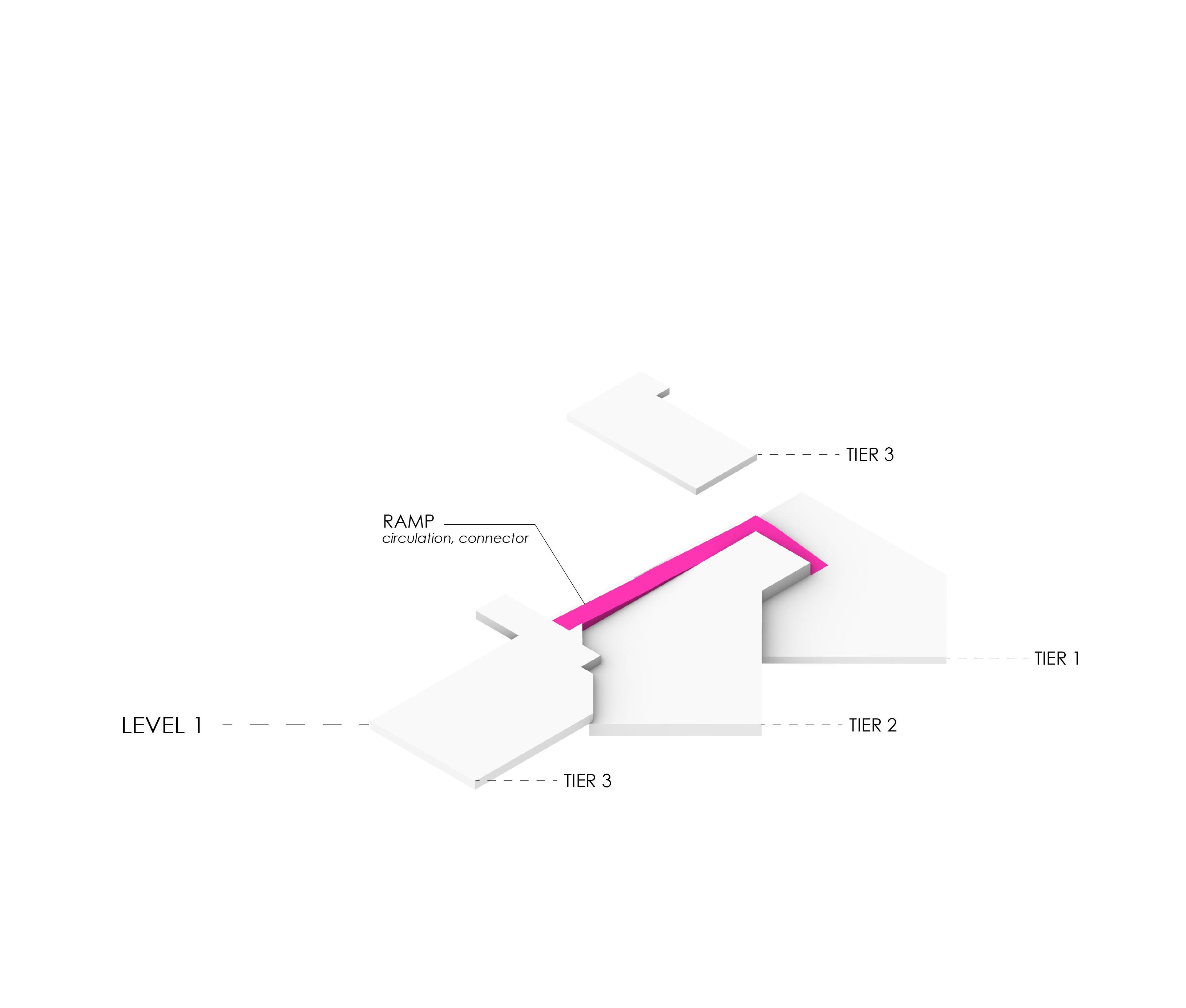

Parti Tiers

Ramp Fall 2022 Design 8

Arbain, Green, Himmelsbach

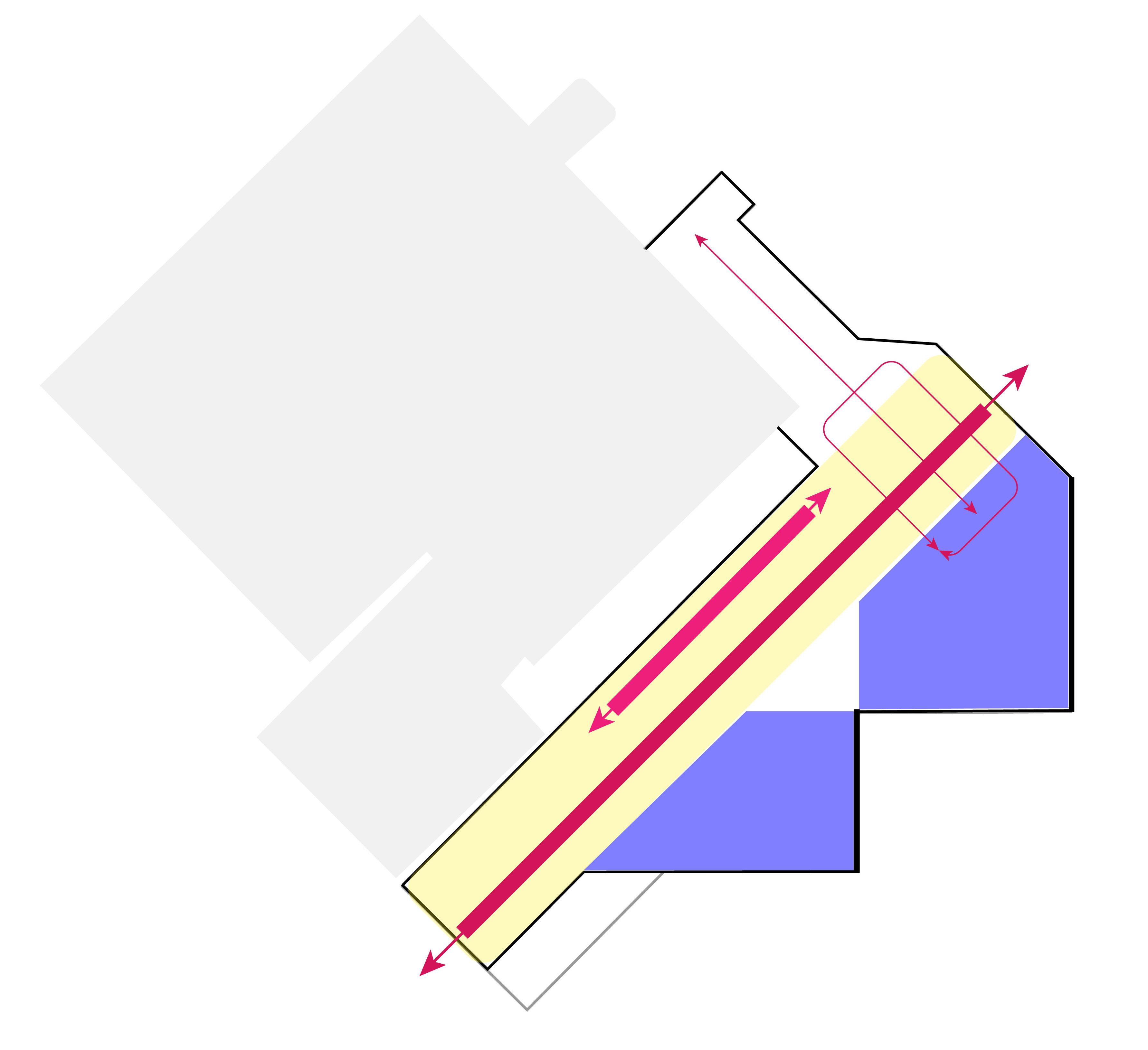

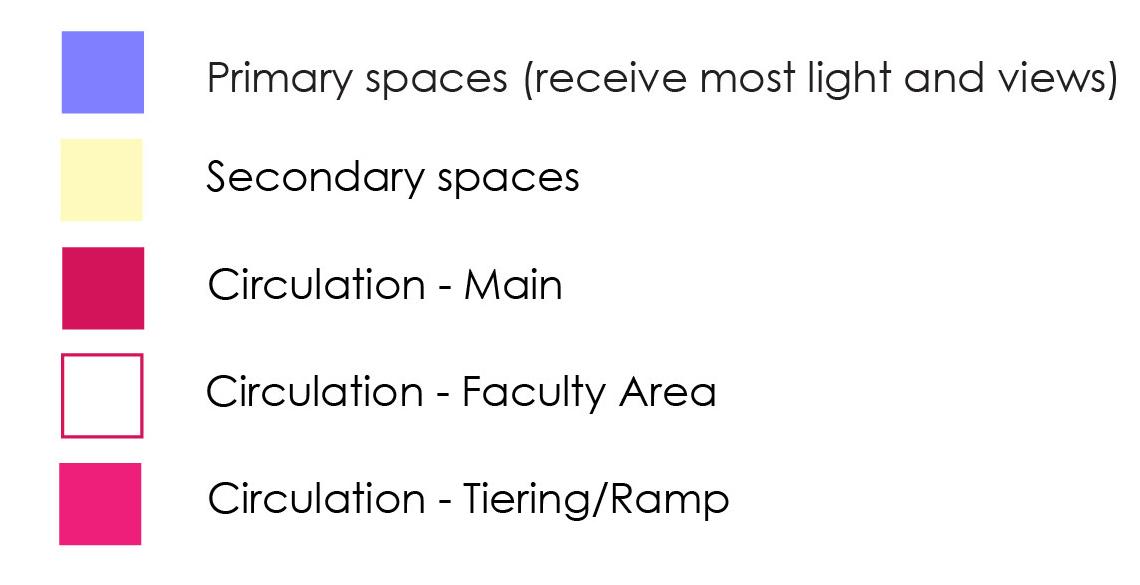

Parti Spatial Organization Fall 2022 Design 8

Arbain, Green, Himmelsbach

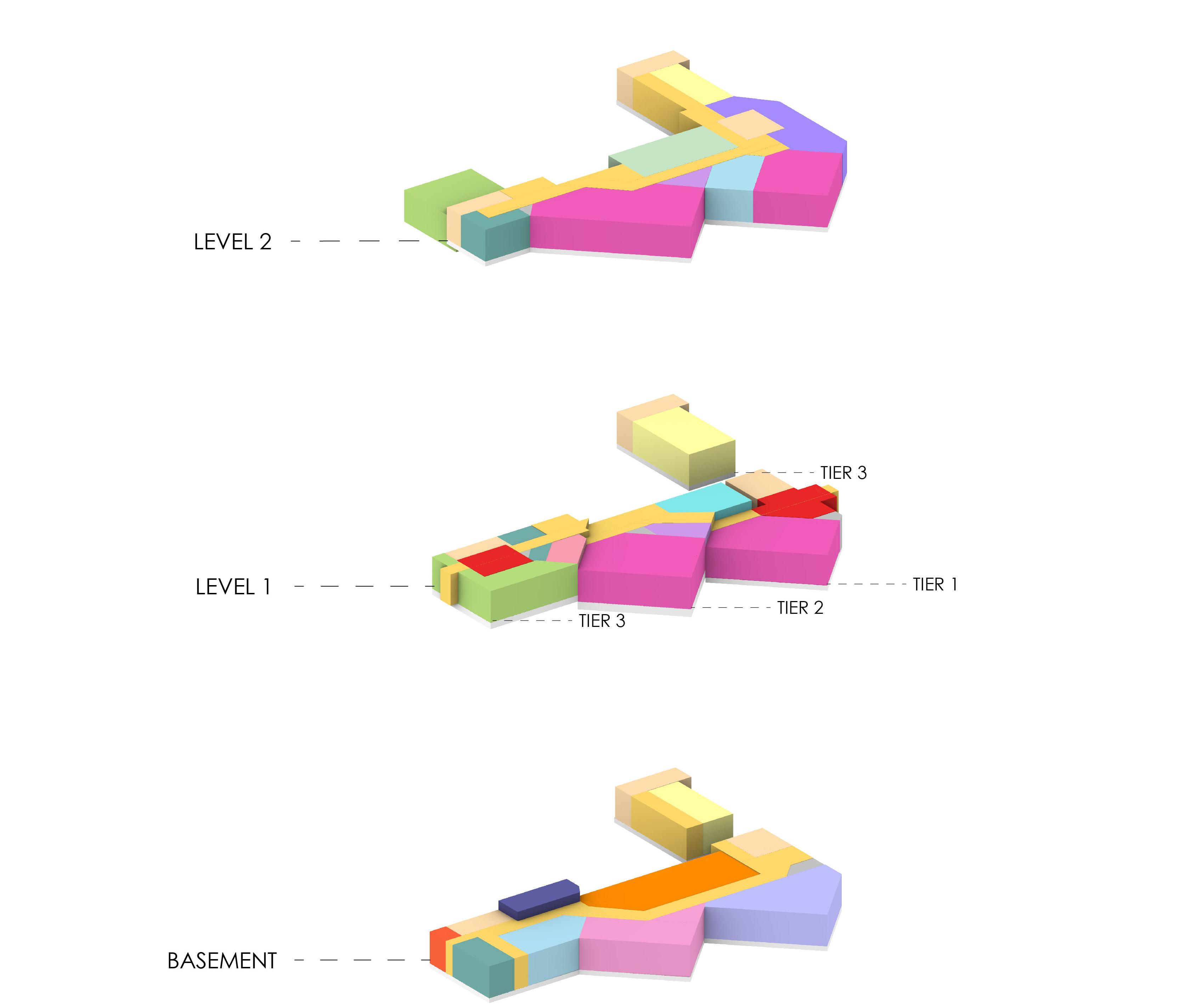

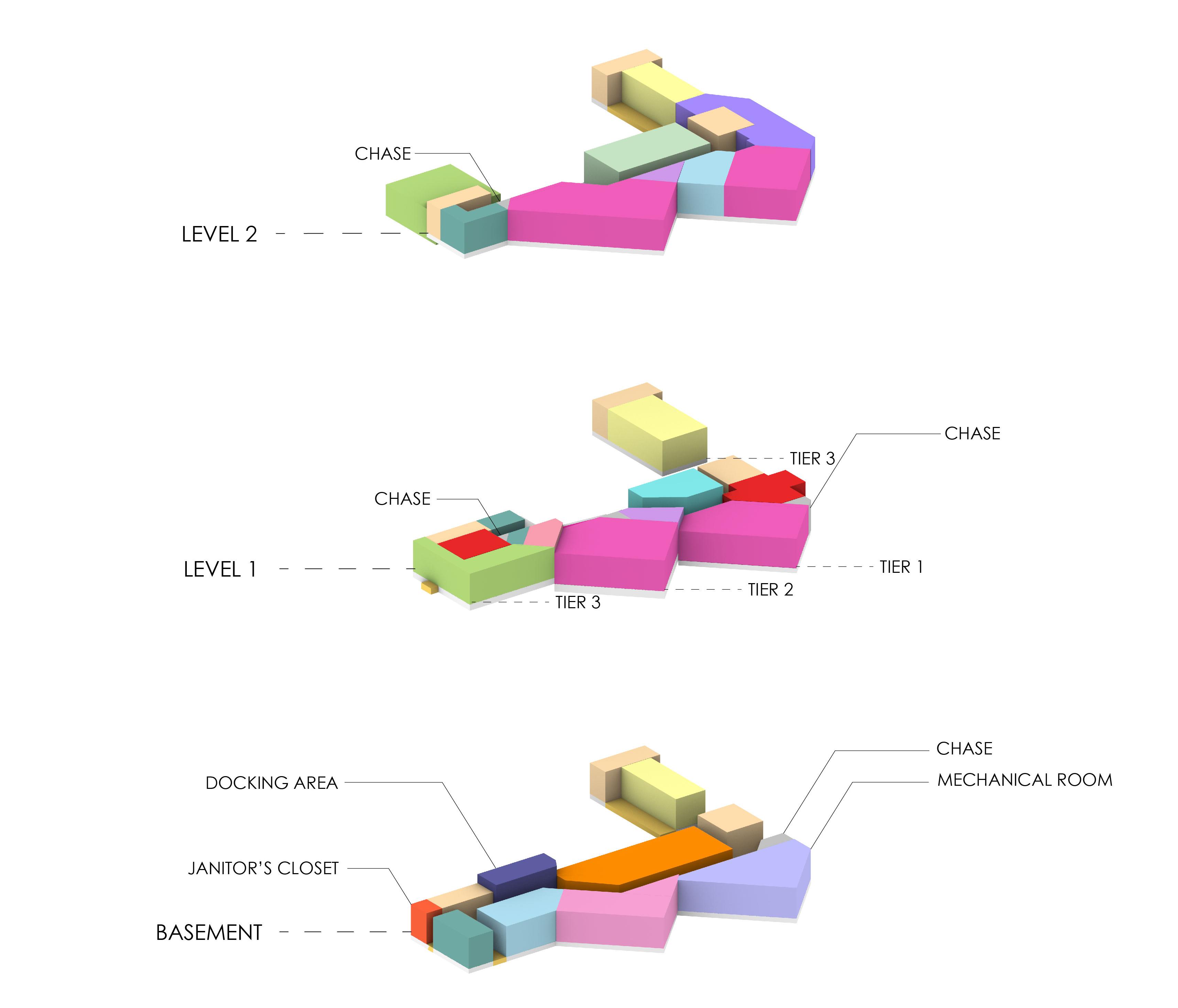

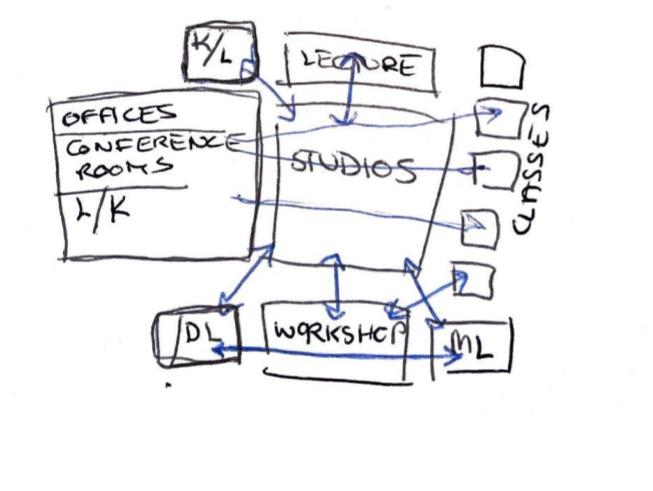

Program

Analysis + Adjacencies

Fall 2022 Design 8

Arbain, Green, Himmelsbach

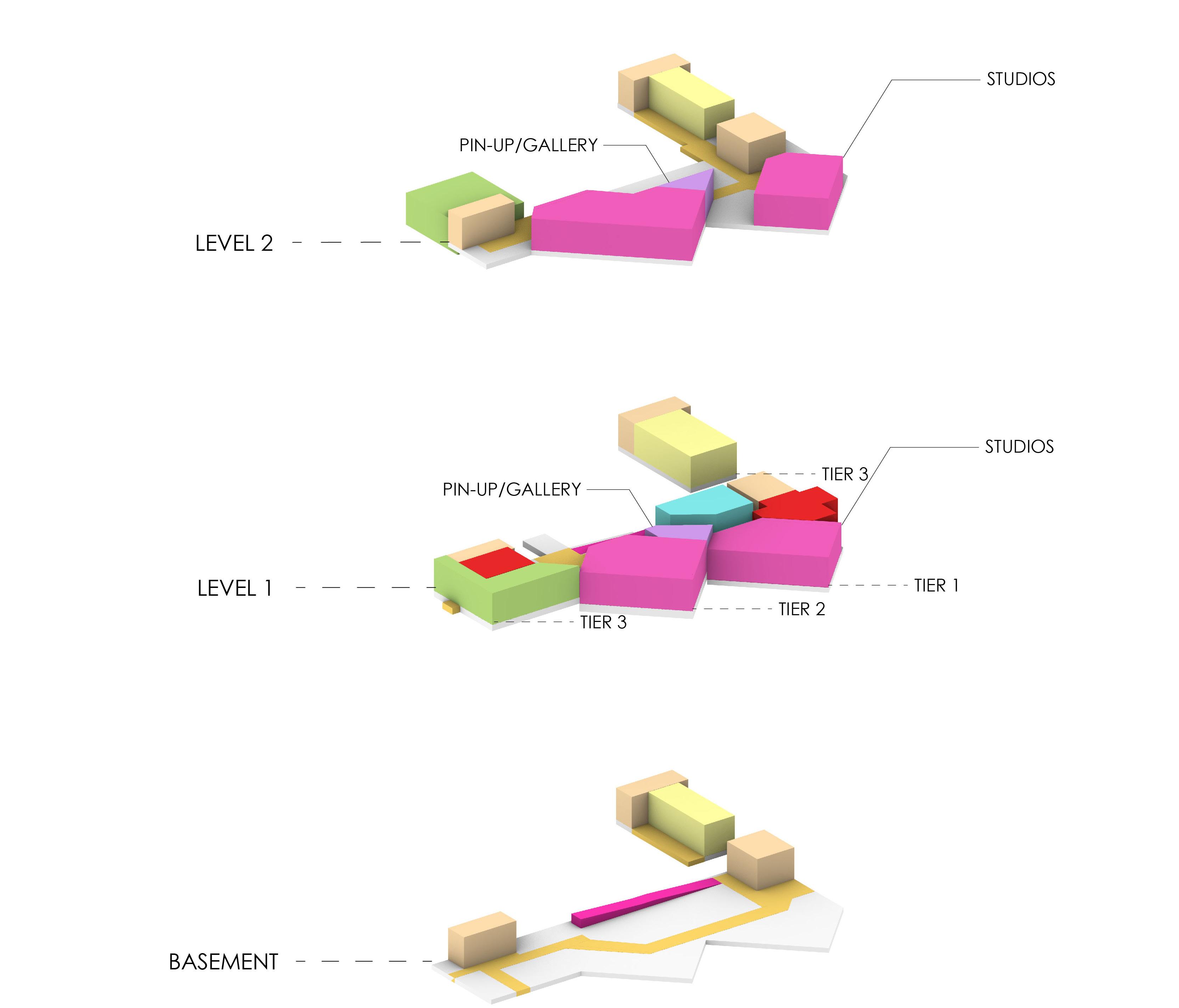

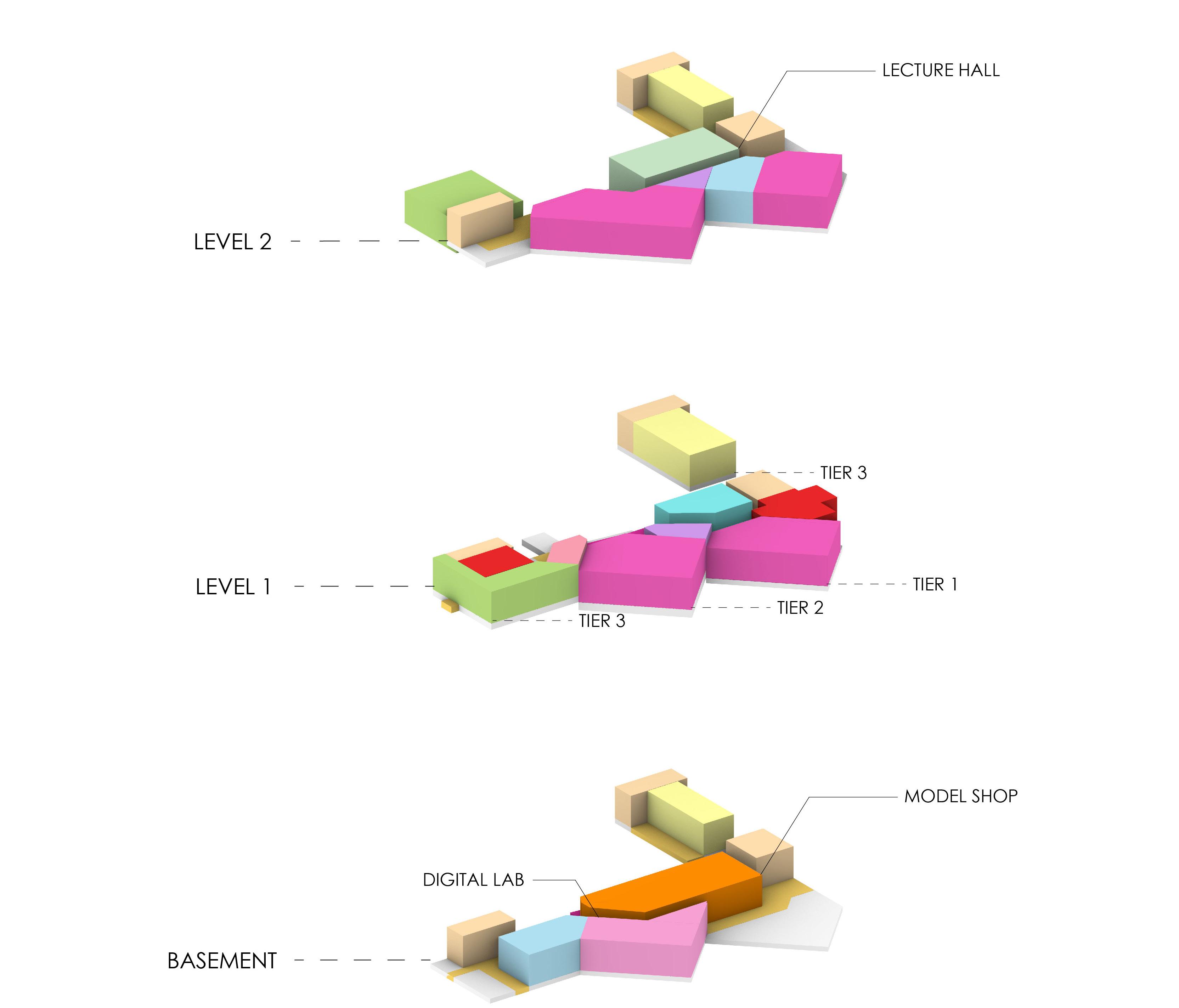

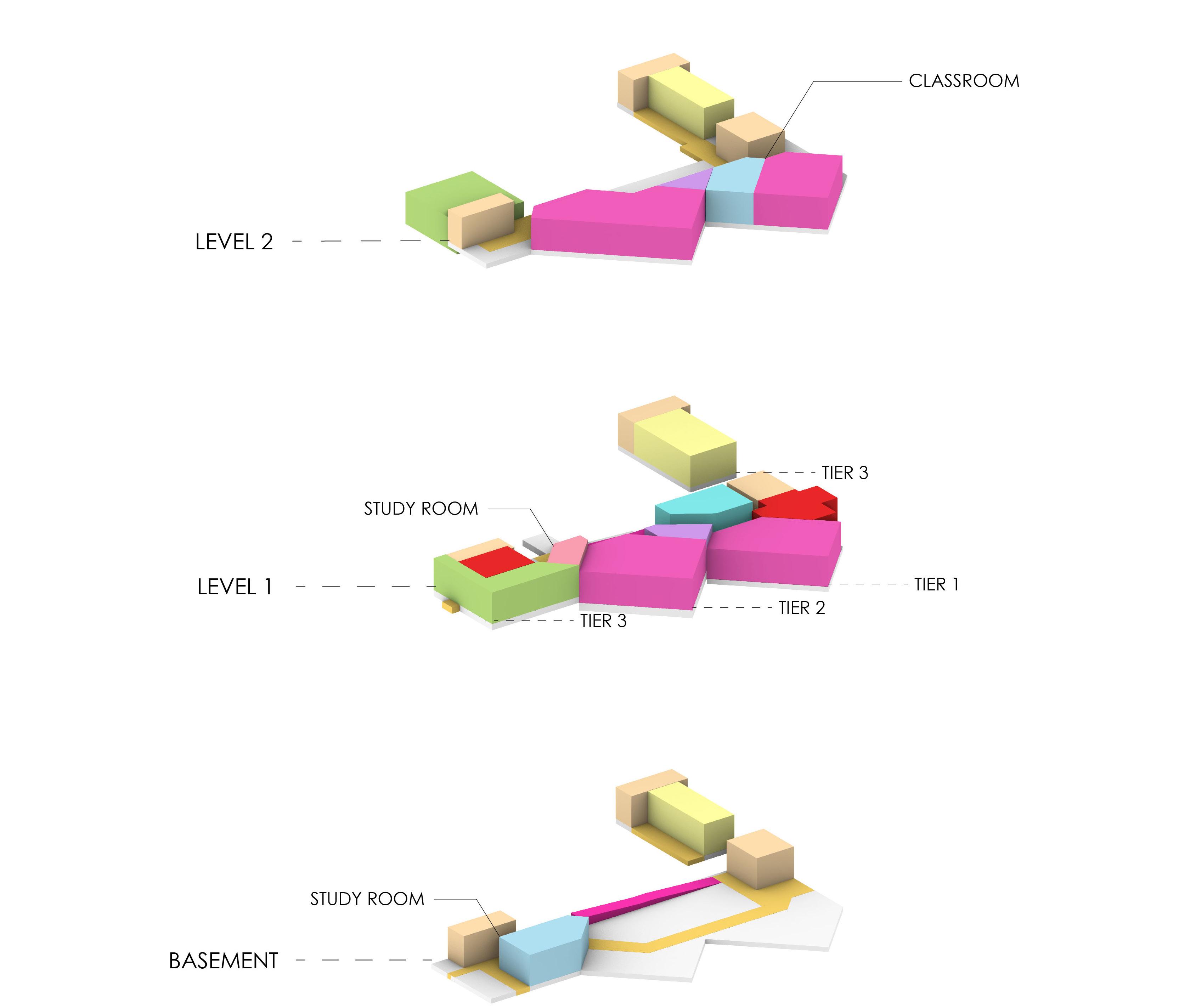

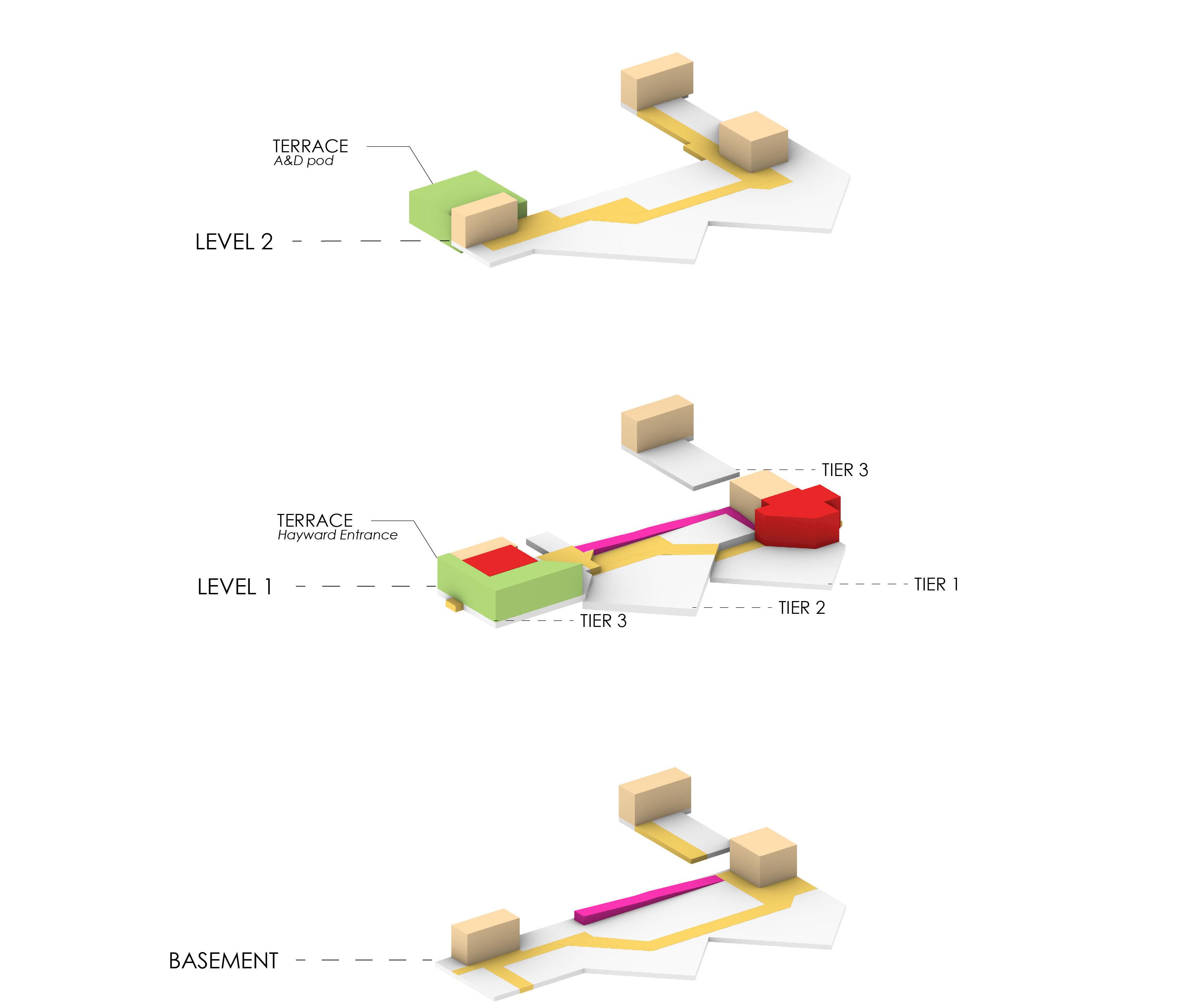

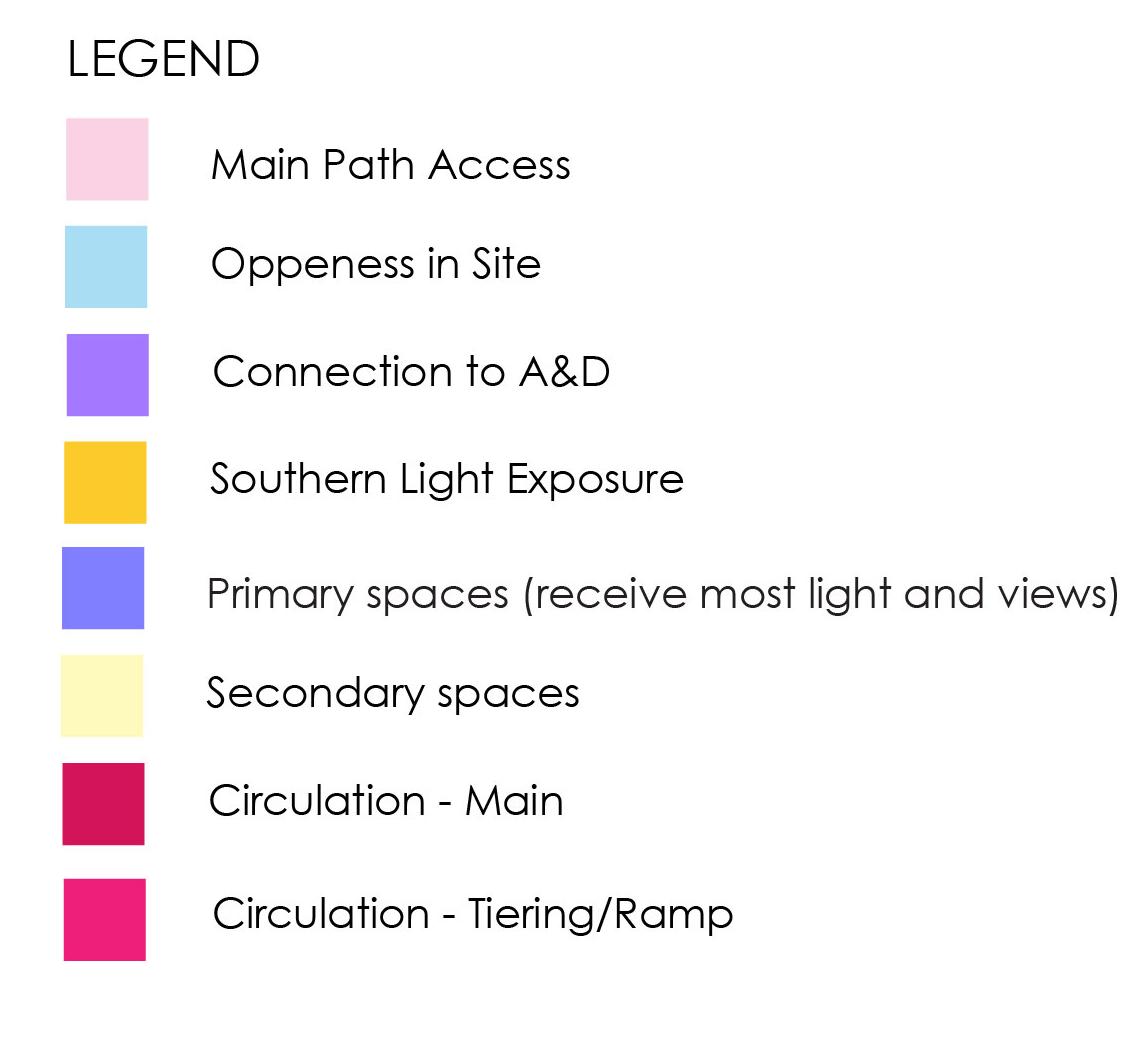

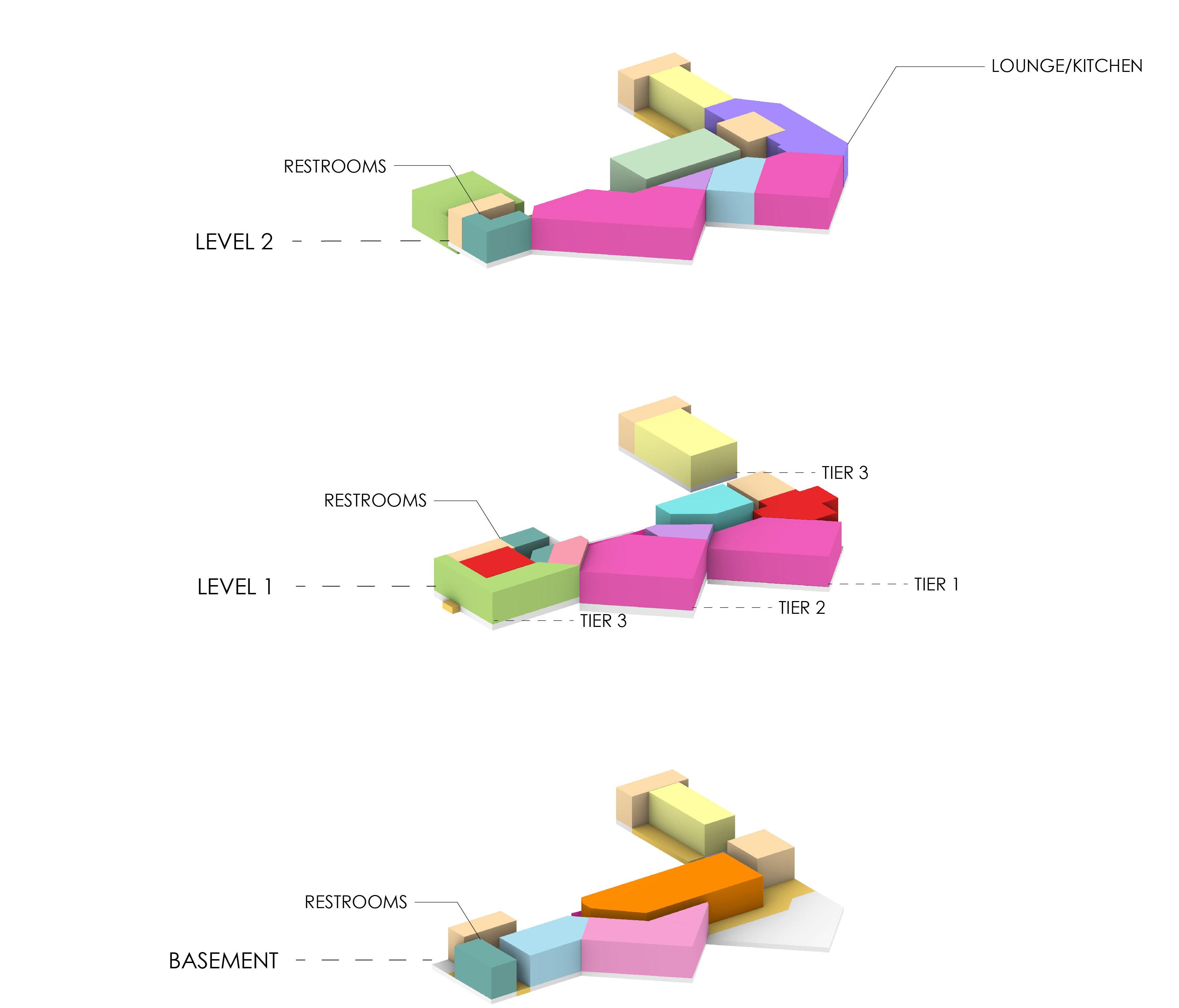

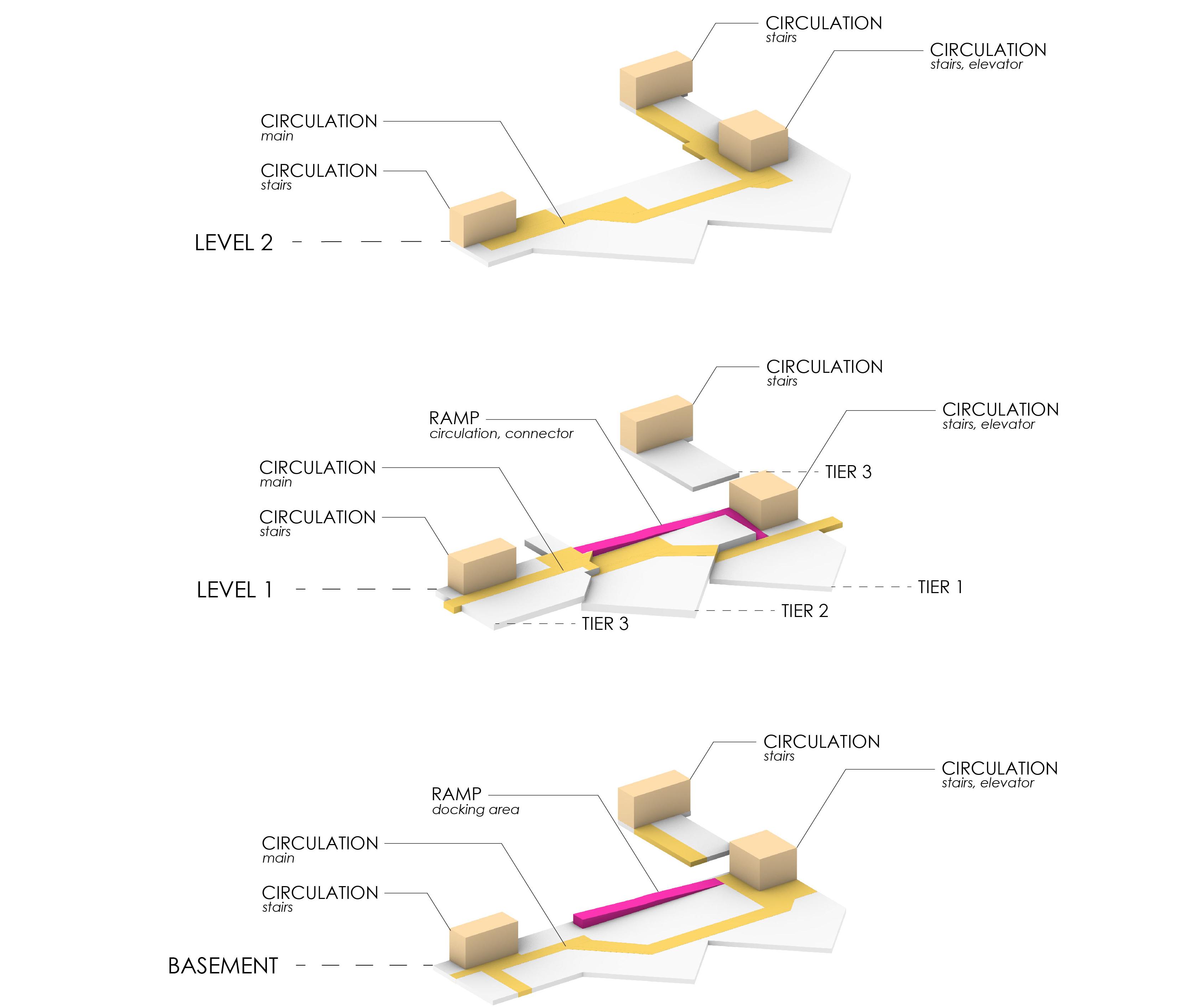

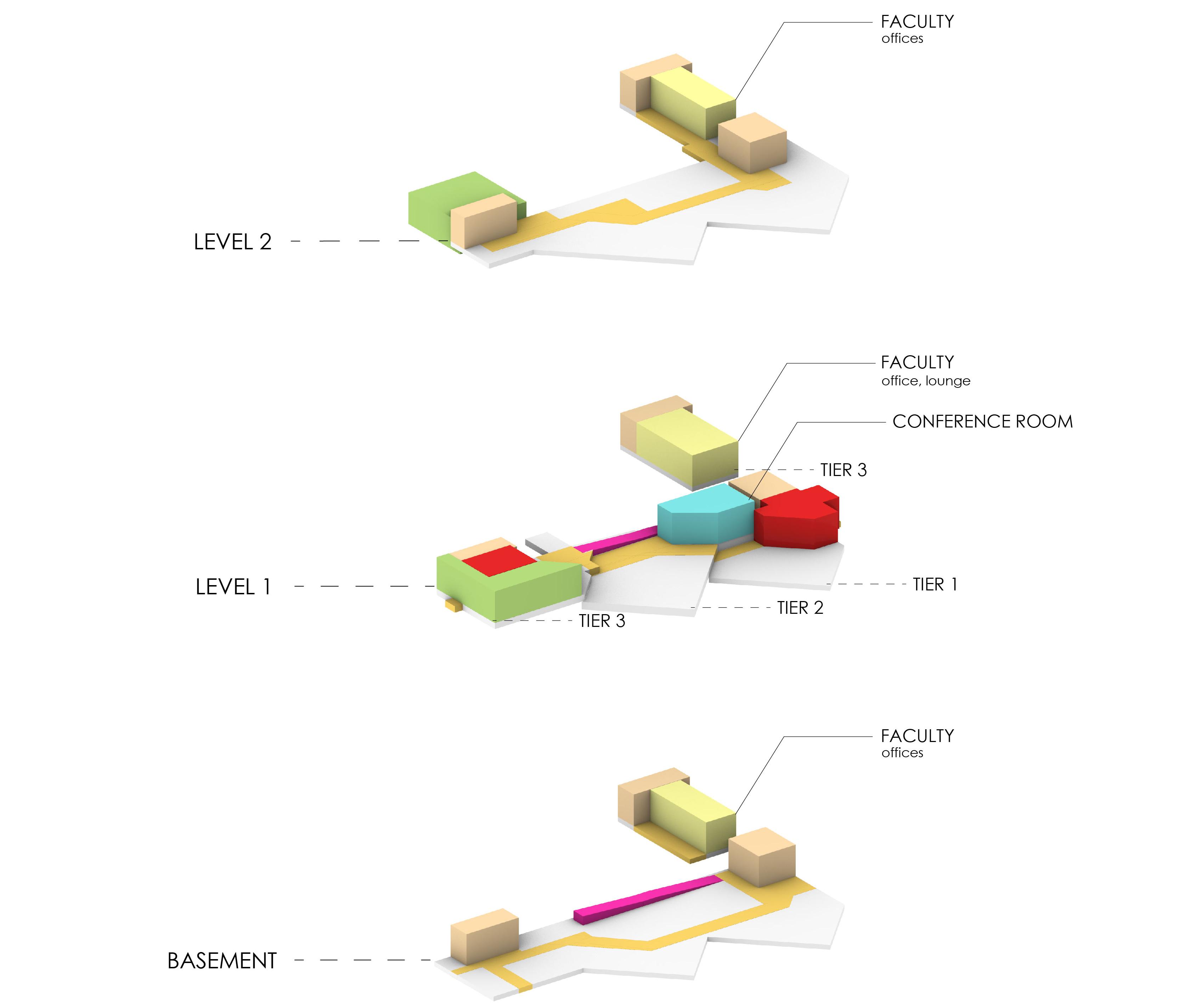

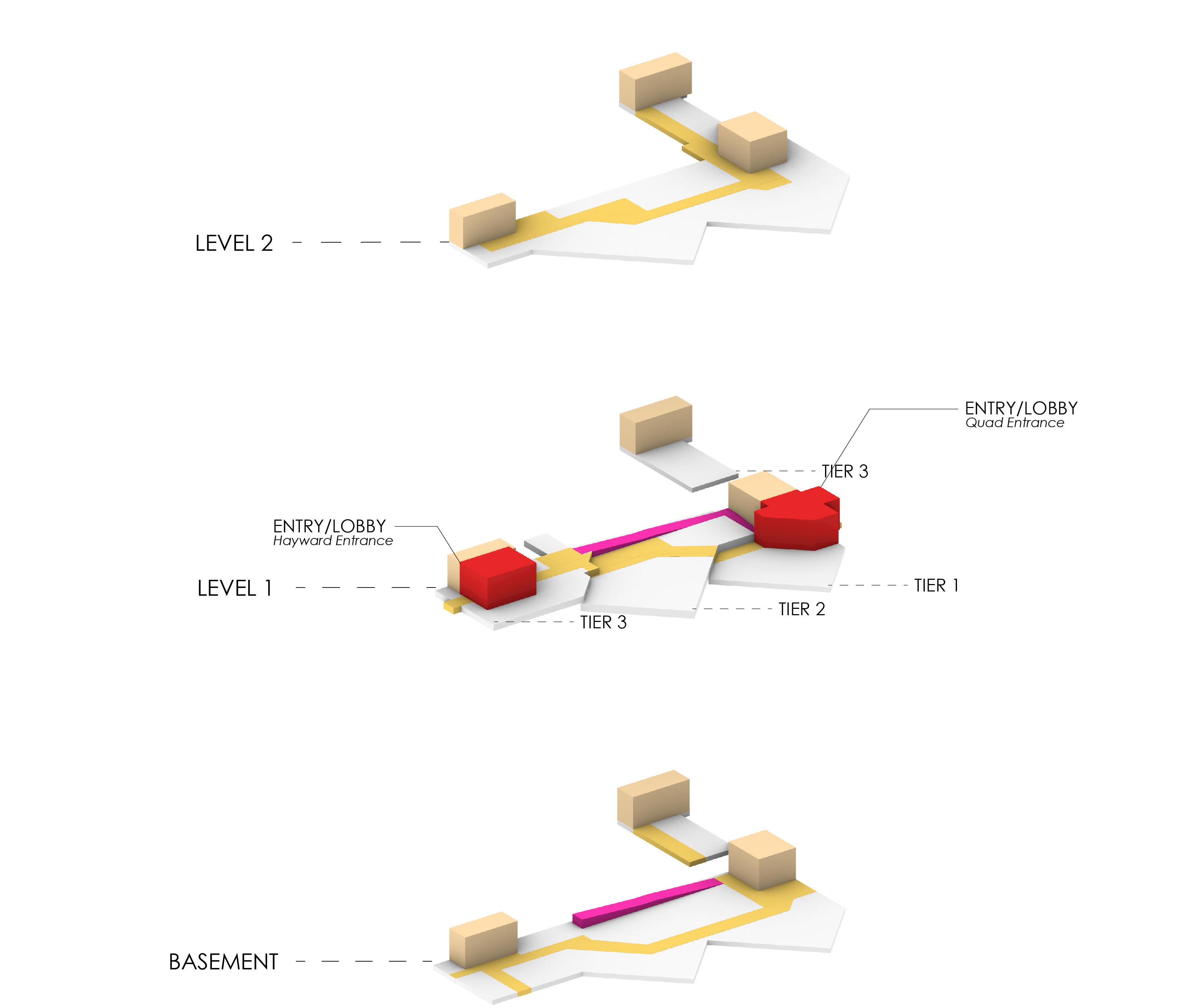

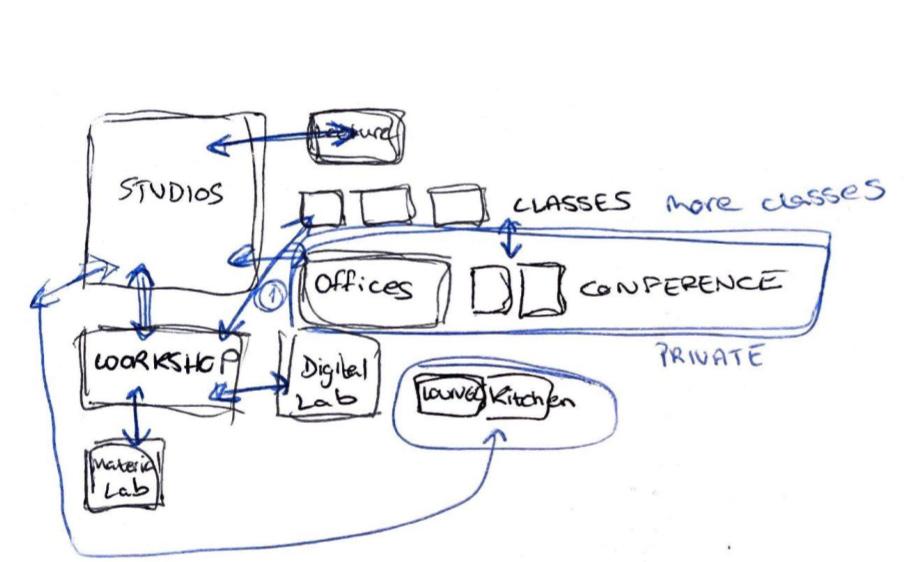

Program Adjacencies

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies Fall 2022 Design 8

Arbain, Green, Himmelsbach

Program Adjacencies

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Sun + Energy Studies Heliodon, Sustainability Goal The Heliodon experiments informed our form. Our sustainability goal is Net Zero through Solar Passive.

Fall 2022 Design 8

Arbain, Green, Himmelsbach

Not enough light in the spaces in the North due to lack of glazing

Roof tilted to allow more light into the deeper space

Part of the building casts a shadow on the other part

Classroom placed in that area instead of the studio, because not as much light is needed.

Skylights added

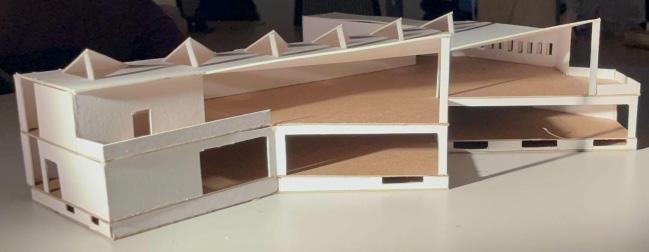

Heliodon Experiment 1 + Experiment 2 Fall 2022 Design 8

Arbain, Arbain, Green, Green, Himmelsbach Himmelsbach

9 AM Less glazing on East facade, just for views and minimal light

Add overhangs for more Summer sun entering from East facade

shading

12 PM

Building protected from summer sun

3 PM

Building protected from summer sun

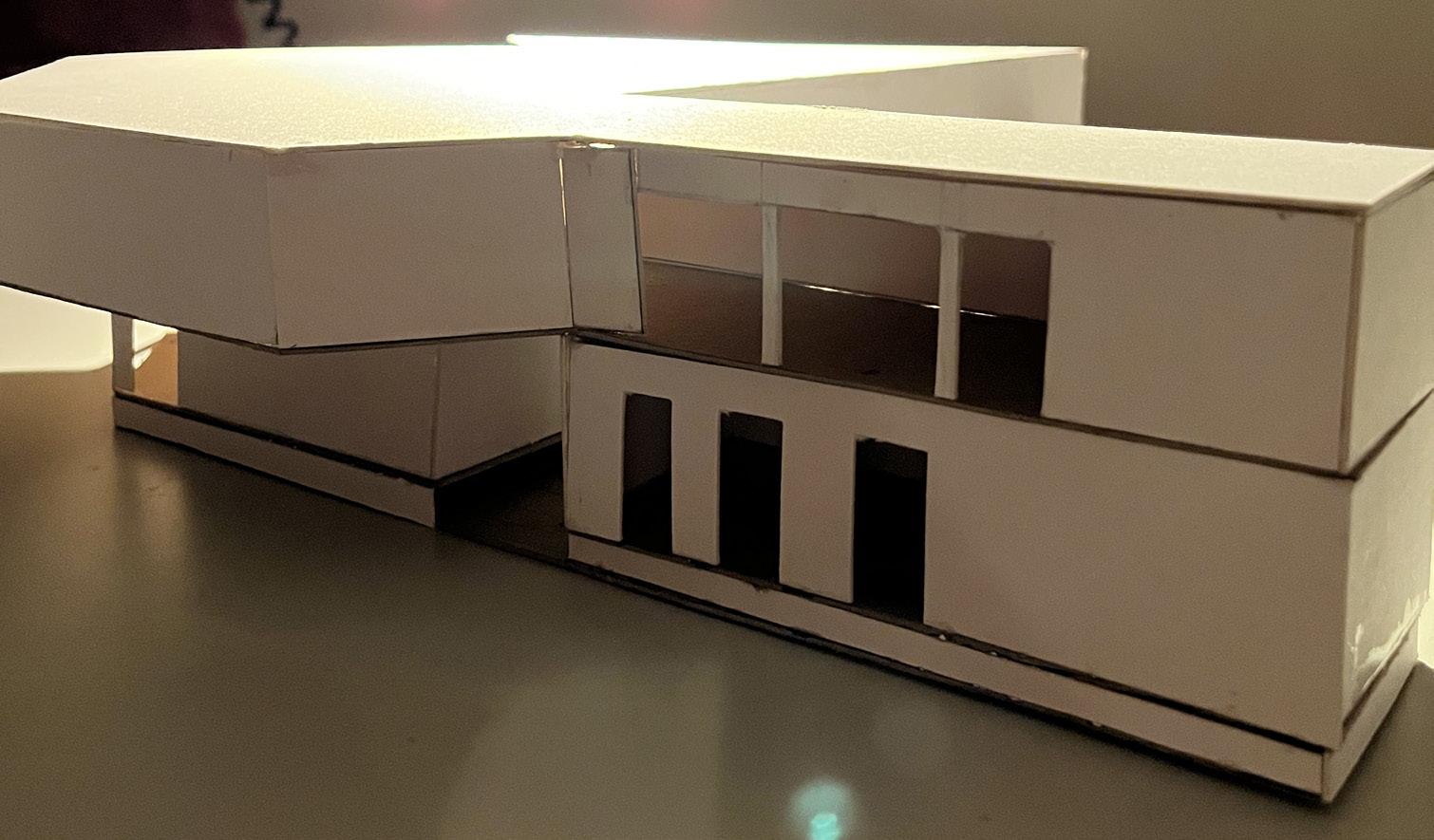

Heliodon Experiment 2

Summer Fall 2022 FallDesign 2022 Design 8 8

Arbain, Green, Himmelsbach

9 AM

12 PM

3 PM

Winter sun penetrates most of the space throughout the day

Heliodon Experiment 2

Winter Fall 2022 Design 8

Arbain, Arbain, Green, Green, Himmelsbach Himmelsbach

Sun Study Diagram Fall 2022 FallDesign 2022 Design 8 8

5

Angled Adjacencies

Arbain, Green, Himmelsbach

12PM Equinox

12PM Summer

12PM Winter Sun Study Digital Fall 2022 Design 8

Arbain, Green, Himmelsbach

Utilizing a Grasshopper plugin called Honeybee, digital analysis of spaces could be studied. The program is used for basic energy calculations in terms of heating and cooling loads. Our team focused on analyzing the largest studio space in our design. The program factors in openings, solid walls, and sun shades to give a baseline result. The graph shows large heating loads in winter and large cooling loads in summer. Our team used this in relation with our sun studies to achieve sustainability goals that can mitigate such energy requirements.

Rhino Studio Analysis

Energy Balance Graph

Energy Modeling Fall 2022 Design 8

Arbain, Arbain, Green, Green, Himmelsbach Himmelsbach

JA

overhangs added

overheating

roof tilted windows added to northeast facade

southern sunlight exposure

N

N

N skyights added

minimal glazing on east facade

N N

faculty space glazing

N

DESIGN DECISION The intent was to maximize sunlight exposure on the south facade. It faced the south at different instances in two separate planes. In the areas that received the most sunlight, curtain walls brought in light for warmth and maximized good views. In program, these spaces would be studios. Curtain walls on the east facade brought in more light, creating a pleasant experience. The other facades had no glazing because the curtain wall would bring in the necessary light and they lacked good views. The exception was the faculty space that extended northwest of the building.

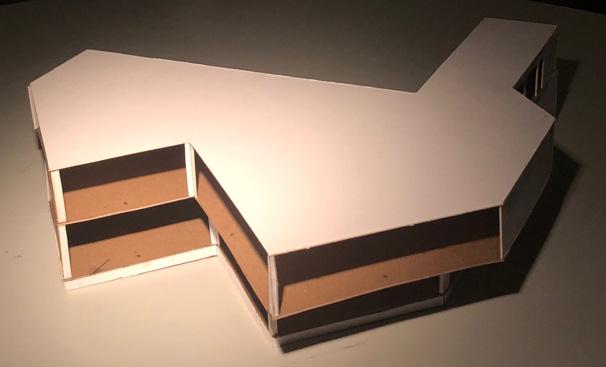

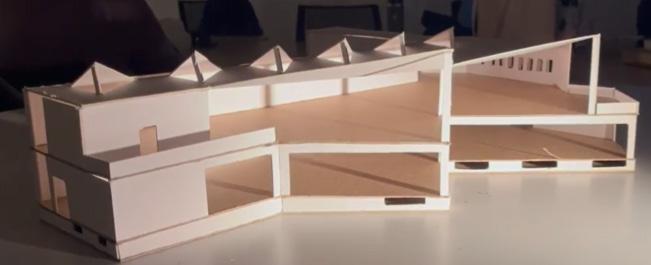

Heliodon Process

OBSERVED

OBSERVED

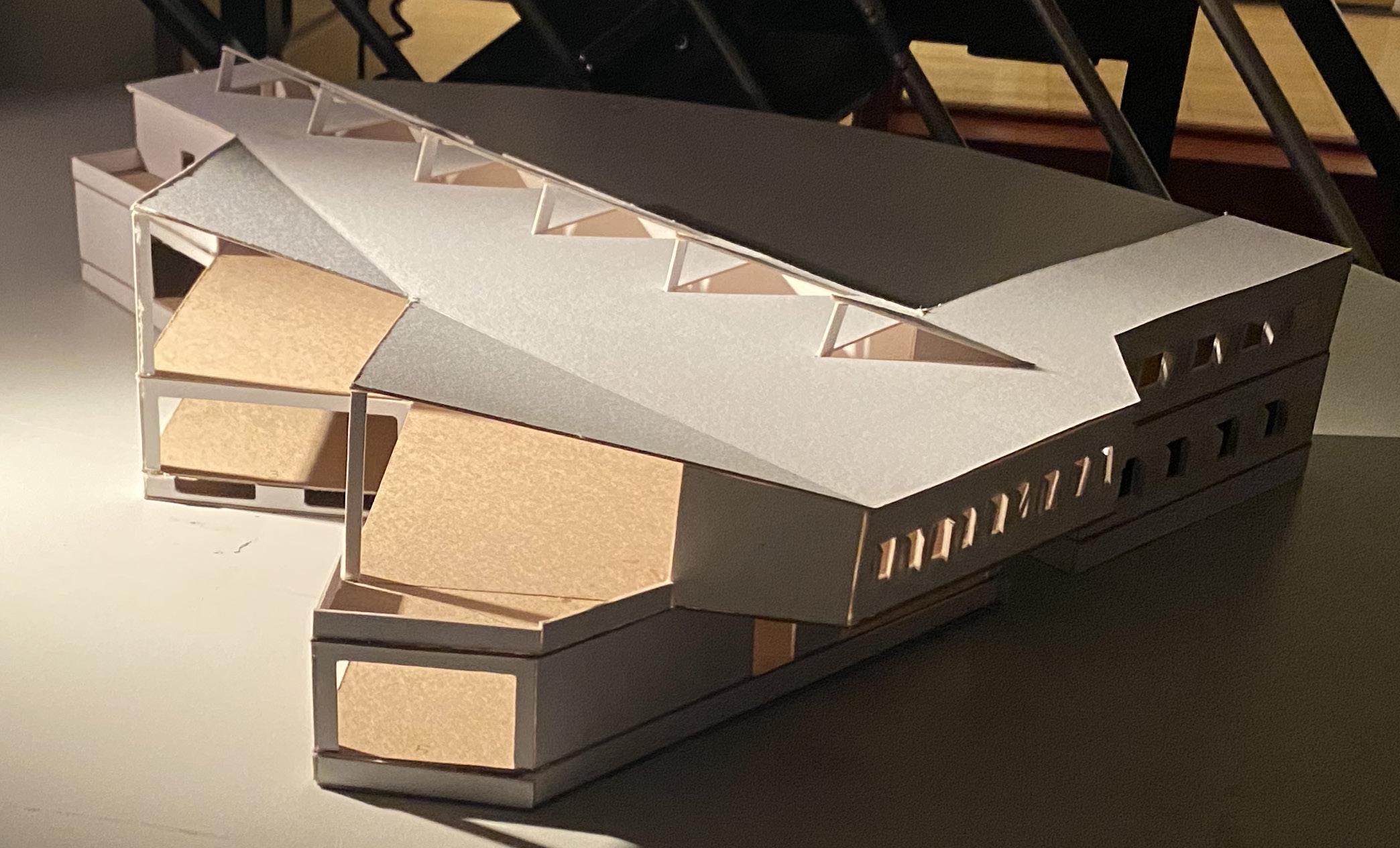

When tested in the heliodon, some design decisions worked and some needed adjusting. The design was blocking the summer sun and bringing in the winter sun. However, there wasn’t enough light in the northern areas of the building due to the lack of glazing on the other facades.

The second model was tested in the heliodon. It allowed a significant amount of light into the majority of the spaces.

However, there needed to be more control in the summer where less light was needed. In addition, the east facade curtain walls brought in unnecessary light that would overheat the space in the summer.

RESPONSE As a response, the roof was tilted to allow more light into the deeper space. Glazing wasn’t added in the northwest facade due to the closeness and adjacency to A&D. Glazing would promote a negative experience because of the minute amount of light it would provide and the disagreeable views. Skylights where added in the area of the building where light was needed and windows were added on the northeast facade where views were needed.

Fall 2022 FallDesign 2022 Design 8 8

RESPONSE As a response, overhangs were extended over the southern facade to protect against the summer sun exposure. The east facade curtain walls became solid with some glazing for minimal light and views. The overhangs allowed the winter sun inside the building and protected the space from the summer sun.
