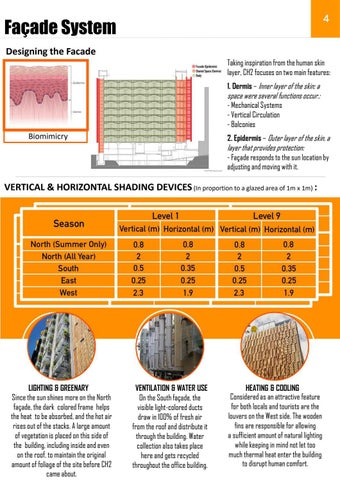

Façade System Designing the Facade
Taking inspiration from the human skin layer, CH2 focuses on two main features: 1. Dermis – Inner layer of the skin; a
space were several functions occur.: - Mechanical Systems - Vertical Circulation - Balconies
Biomimicry
2. Epidermis – Outer layer of the skin, a
layer that provides protection: - Façade responds to the sun location by adjusting and moving with it.
VERTICAL & HORIZONTAL SHADING DEVICES (In proportion to a glazed area of 1m x 1m) :
LIGHTING & GREENARY Since the sun shines more on the North façade, the dark colored frame helps the heat to be absorbed, and the hot air rises out of the stacks. A large amount of vegetation is placed on this side of the building, including inside and even on the roof, to maintain the original amount of foliage of the site before CH2 came about.
VENTILATION & WATER USE On the South façade, the visible light-colored ducts draw in 100% of fresh air from the roof and distribute it through the building. Water collection also takes place here and gets recycled throughout the office building.
HEATING & COOLING Considered as an attractive feature for both locals and tourists are the louvers on the West side. The wooden fins are responsible for allowing a sufficient amount of natural lighting while keeping in mind not let too much thermal heat enter the building to disrupt human comfort.
