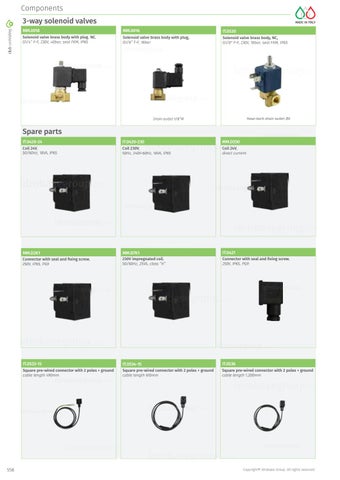

Components 3-way solenoid valves MM.0018 Solenoid valve brass body with plug, NC, G1/4” F-F, 230V, 40bar, seal FKM, IP65
MADE IN ITALY
MM.0016 Solenoid valve brass body with plug, G1/8” F-F, 18bar
IT.0530 Solenoid valve brass body, NC, G1/8" F-F, 230V, 18bar, seal FKM, IP65
Hose-barb drain outlet Ø6
Drain outlet 1/8”M
Spare parts IT.0420-24
Coil 24V, 50/60Hz, 18VA, IP65
MM.D2K1
Connector with seal and fixing screw, 250V, IP65, PG9
IT.0533-15
Square pre-wired connector with 2 poles + ground cable length 490mm
558
IT.0420-230
Coil 230V, 50Hz, 240V-60Hz, 18VA, IP65
MM.D7K1
230V impregnated coil, 50/60Hz, 25VA, class “H”
IT.0534-15
Square pre-wired connector with 2 poles + ground cable length 610mm
MM.D250 Coil 24V, direct current
IT.0421
Connector with seal and fixing screw, 250V, IP65, PG9
IT.0536
Square pre-wired connector with 2 poles + ground cable length 1.200mm
