IDRO9 pump for misting modules

Idrobase Group Case History - 1995: Idrotech birth

IDROTECH

Nebulizes sterilized water

0 .

2 a r t x E

Fog module 60-70bar from 10 to 96 nozzles 230V-50Hz

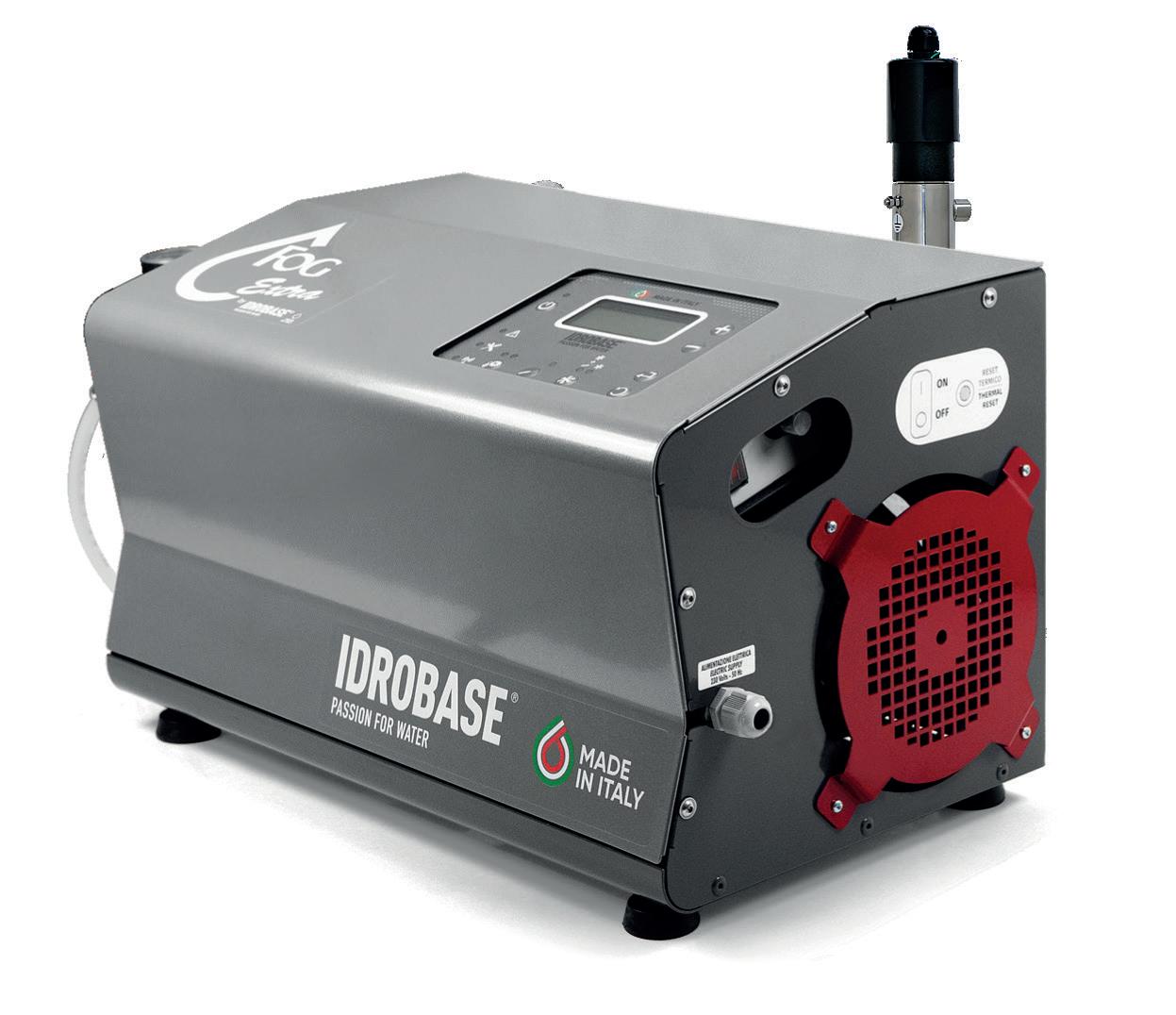

Fog Extra 2.0 Technical focus

-50% Rpm

Use via smartphone

Double pump life

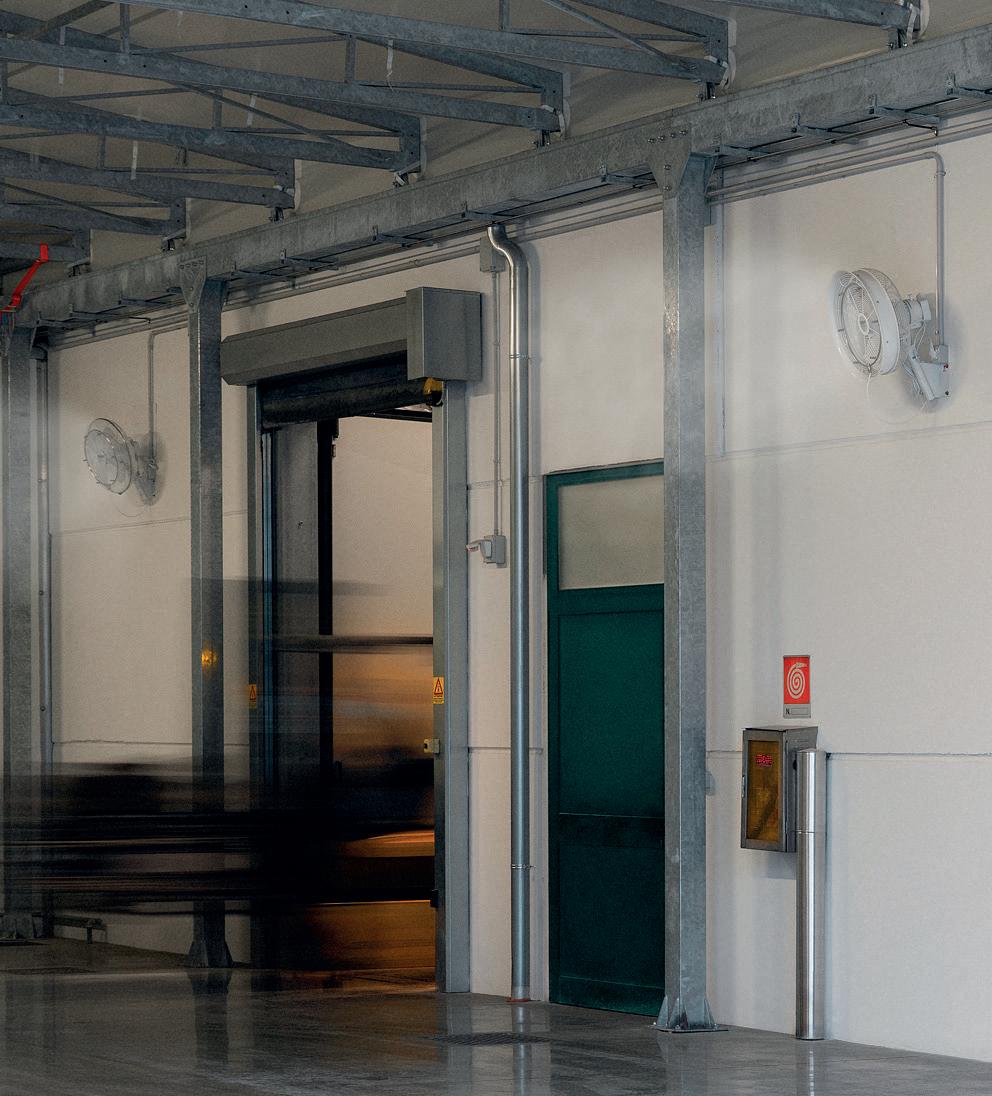

Fog Extra to cool, humidify, suppress dust and odours and many more

OPTIONAL ZX.1260-38

Compared to the previous model

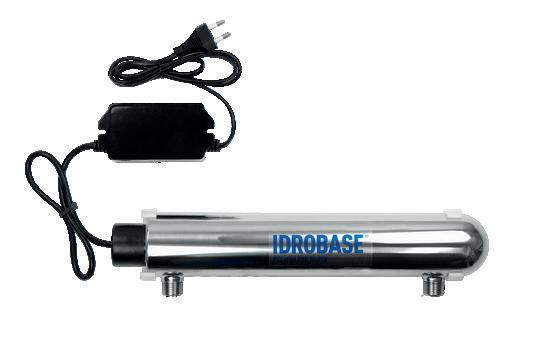

UV water sterilizer lamp (included)

Water inlet kit complete with pressure stabilizer (included)

• Simple and compact • Electronic control panel with built-in thermostat and humidstat • Pre-setting for humidity and temperature probes • System can be activated remotely Old pump VS new IDRO9 pump Old pump Rpm

1450Rpm 720W

Power

IDRO9 pump

Old pump

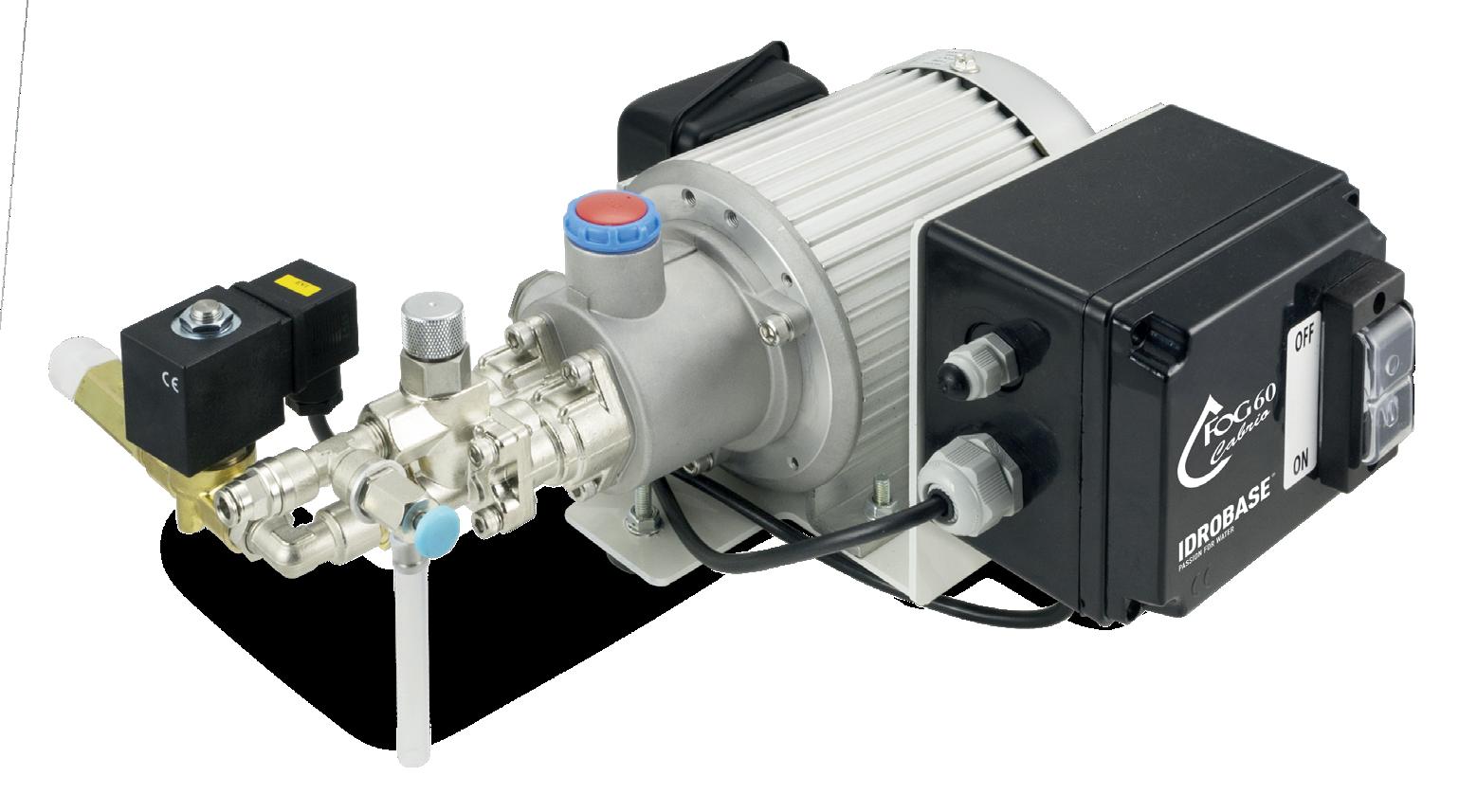

Three-piston axial pump with ceramic pistons, nickel-plated brass head, and integrated by-pass valve. (for 2,2, 3,6 and 4,8l/min flow rate versions) 2

950W

New pump

Delta

710Rpm

-51%

950Rpm

-34%

370W

-49% -61%

1180W

745W

-37%

Noise

85LwA

70LwA

-15%

Maintenance

500h

750h

-30%

Price

Same price Copyright© Idrobase Group. All rights reserved.

Misting system pumps Axial pump with 2 pistons Code

Model

Pressure

Flow rate

Rpm

No. of Nozzles*

Power 230V-50Hz**

Weight

ZX.FX-05

FOG EXTRA 2.0-05

60bar

0,5l/min

1415

10

125W

15Kg

ZX.FX-1

FOG EXTRA 2.0-1

60bar

1l/min

1420

20

200W

15Kg

Axial pump with 2 ceramic pistons, head in nickel-plated brass, integrated bypass valve * The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar ** 230V/60Hz and 110V/60Hz versions available upon request

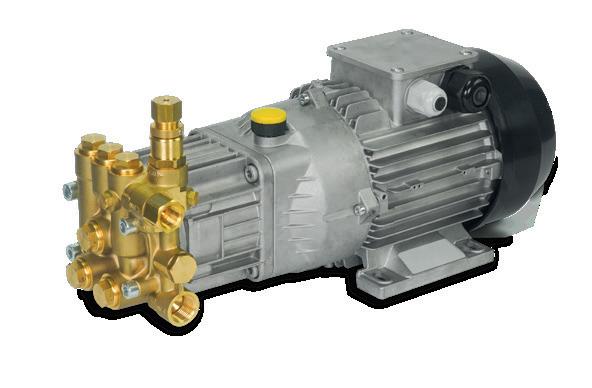

Axial pump with 3 pistons

IDRO9 pump

Code

Model

Pressure

Flow rate

Rpm

No. of Nozzles*

Power 230V-50Hz

Weight

ZX.FX-2.2

FOG EXTRA 2.0-2.2

70bar

2,2l/min

710

44

370W

36Kg

ZX.FX-3.6

FOG EXTRA 2.0-3.6

70bar

3,6l/min

710

72

370W

36Kg

ZX.FX-4.8

FOG EXTRA 2.0-4.8

70bar

4,8l/min

950

96

745W

60Kg

Axial motor pump with three ceramic pistons, nickel-plated brass head, integrated by-pass valve * The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar

INCLUDED Pump maintenance set 750hours

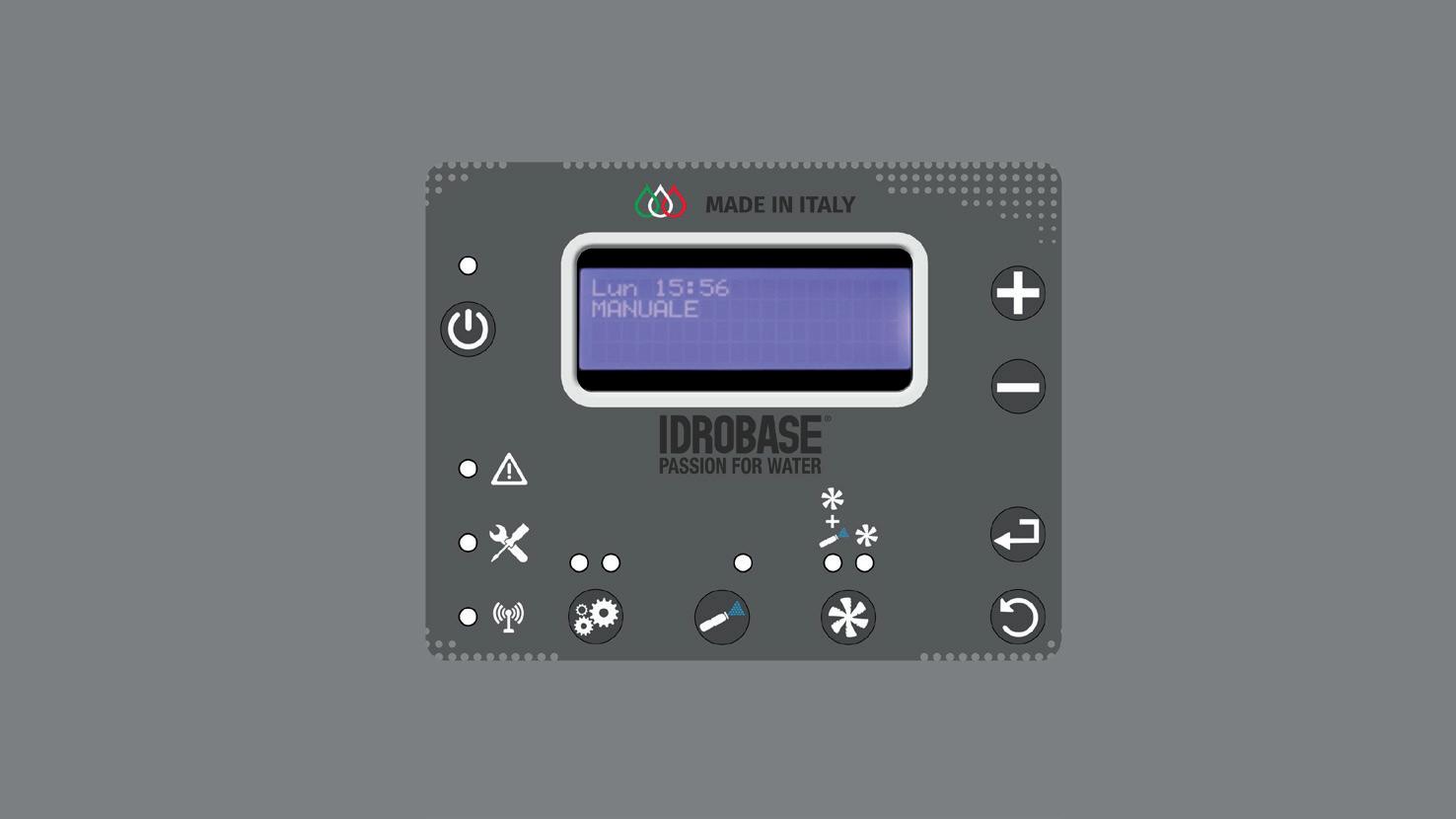

Control panel Fog Extra 2.0

• Graphic display

• Maintenance check

• 5 operating modes

• Integrated Wi-Fi antenna

• Temperature setting

SELECT

• Humidity setting

• Battery-powered clocks

• On/Off timer • Hourly/weekly calendars

• Aux input

• App access via QR Code

• Programmable drain time

• Third language setting

• Programmable water shortage time +

• Possible expansion via ModBUS

Technical features • Frame made of painted steel

• H.p. switch for no water supply and pipe breaks

• Built-in unloader valve

• Dimensions WxLxH: 600x300x300mm

• L.p. solenoid valve 230V-50Hz, inlet water • H.p. solenoid valve 230V-50Hz, to discharge line pressure • Electrical panel complete with:ON/OFF thermal cutout, electronic board for management of anti-drip and timer system • Slip-lock inlet ø9,6mm • Outlet Slip-Lock ø6,35mm (for versions 0,5, 1 and 2,2l/min), ø9,6mm (for versions 3,6 and 4,8l/min) Copyright© Idrobase Group. All rights reserved.

3

Nebulizes sterilized water

IDROTECH

Fog module 60-70bar from 10 to 96 nozzles 230V-50Hz

-50% Rpm

Double pump life

UV water sterilizer lamp (included)

Water inlet kit complete with pressure stabilizer (included)

• Simple and compact • Pre-set for remote control connection • Discharge solenoid and pressure switch lack of water

Old pump VS new IDRO9 pump Old pump Rpm

1450Rpm 720W

Power

IDRO9 pump

Old pump

Three-piston axial pump with ceramic pistons, nickel-plated brass head, and integrated by-pass valve. (for 2,2, 3,6 and 4,8l/min flow rate versions) 4

950W

New pump

Delta

710Rpm

-51%

950Rpm

-34%

370W

-49% -61%

1180W

745W

-37%

Noise

85LwA

70LwA

-15%

Maintenance

500h

750h

-30%

Price

Same price Copyright© Idrobase Group. All rights reserved.

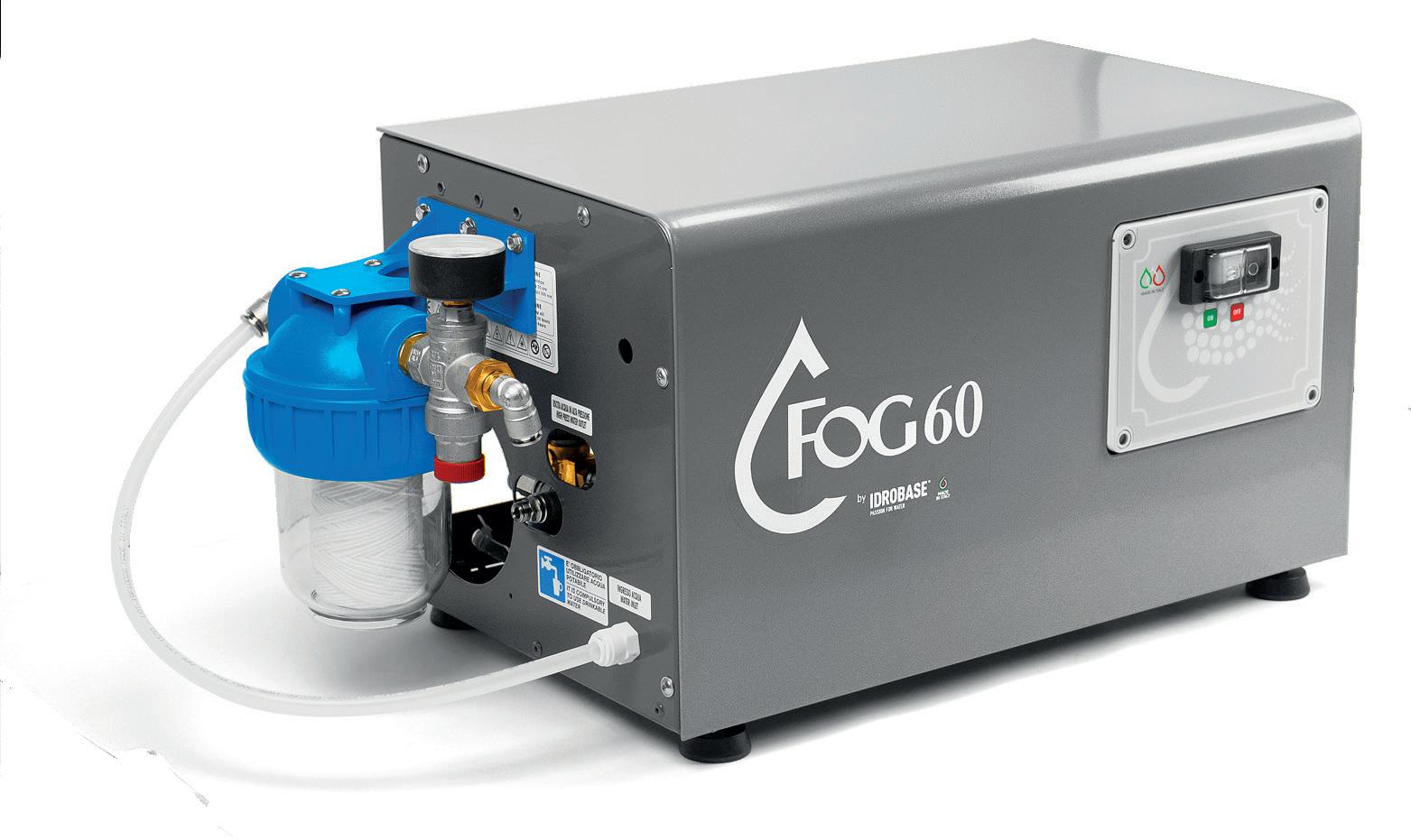

Misting system pumps Axial pump with 2 pistons Code

Model

Pressure

Flow rate

Rpm

No. of Nozzles*

Power 230V-50Hz**

Weight

ZX.F60-05

FOG 60-05

60bar

0,5l/min

1415

10

125W

15Kg

ZX.F60-1

FOG 60-1

60bar

1l/min

1420

21

200W

15Kg

Axial pump with 2 ceramic pistons, head in nickel-plated brass, integrated bypass valve * The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar ** 230V/60Hz and 110V/60Hz versions available upon request

Axial pump with 3 pistons

IDRO9 pump

Code

Model

Pressure

Flow rate

Rpm

No. of Nozzles*

Power 230V-50Hz

Weight

ZX.F60-2.2

FOG 60-2.2

70bar

2,2l/min

710

44

370W

32Kg

ZX.F60-3.6

FOG 60-3.6

70bar

3,6l/min

710

72

370W

32Kg

ZX.F60-4.8

FOG 60-4.8

70bar

4,8l/min

950

96

745W

34Kg

Axial motor pump with three ceramic pistons, nickel-plated brass head, integrated by-pass valve * The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar

INCLUDED Pump maintenance set 750hours

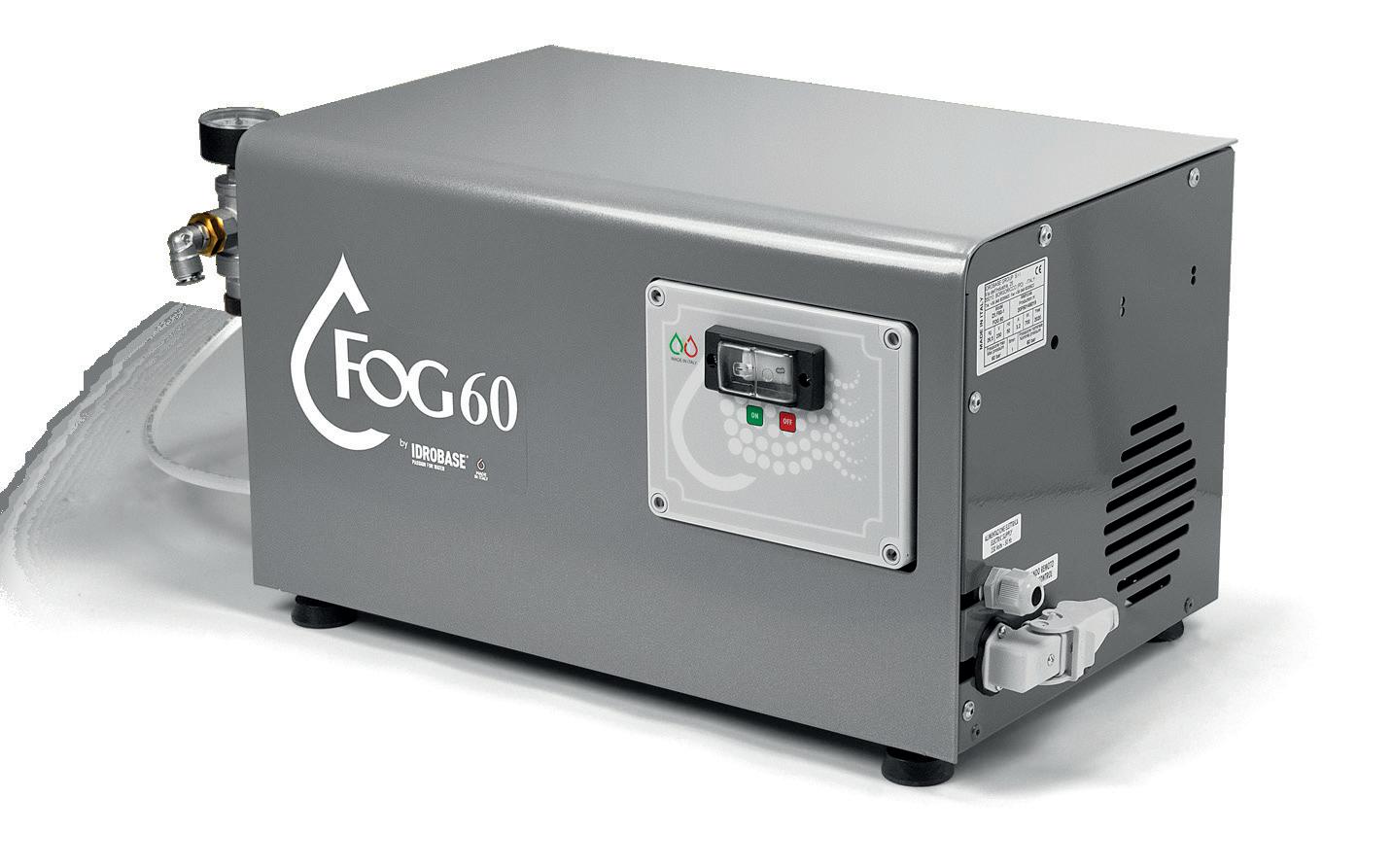

Technical features • Frame made of painted steel

• Dimensions WxLxH: 600x300x300mm

• L.p. solenoid valve 230V-50Hz, inlet water • H.p. solenoid valve 230V-50Hz, to discharge the HP line (activates only if connected to a remote control) • L.p. pressure switch due to lack of water • Electrical panel complete with: ON/OFF thermal cutout, electronic board for management of anti-drip system • Slip-lock inlet ø9,6mm • Outlet Slip-Lock ø6,35mm (for versions 0,5, 1 and 2,2l/min) • Outlet Slip-Lock ø9,6mm (for versions 3,6 and 4,8l/min) Copyright© Idrobase Group. All rights reserved.

5

Nebulizes sterilized water

IDROTECH

Fog module 60-70bar from 10 to 96 nozzles 230V-50Hz

-50% Rpm

Double pump life

UV water sterilizer lamp (included)

Water inlet kit complete with pressure stabilizer (included)

A

• Visible pump for an easy Maintenance • Pre-set for electronic board • Essential design

Old pump VS new IDRO9 pump Old pump Rpm

1450Rpm 720W

Power

IDRO9 pump

Old pump

Three-piston axial pump with ceramic pistons, nickel-plated brass head, and integrated by-pass valve. (for 2,2, 3,6 and 4,8l/min flow rate versions) 6

950W

New pump

Delta

710Rpm

-51%

950Rpm

-34%

370W

-49% -61%

1180W

745W

-37%

Noise

85LwA

70LwA

-15%

Maintenance

500h

750h

-30%

Price

Same price Copyright© Idrobase Group. All rights reserved.

Axial pump with 2 pistons A

Code

Model

Pressure

Flow rate

Rpm

No. of Nozzles*

Power 230V-50Hz**

Weight

ZX.F60C05

FOG 60 CABRIO-05

60bar

0,5l/min

1415

10

125W

8Kg

ZX.F60C1

FOG 60 CABRIO-1

60bar

1l/min

1420

21

200W

8Kg

Axial pump with 2 ceramic pistons, head in nickel-plated brass, integrated bypass valve * The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 60bar ** 230V/60Hz and 110V/60Hz versions available upon request

Axial pump with 3 pistons B

IDRO9 pump

Code

Model

Pressure

Flow rate

Rpm

No. of Nozzles*

Power 230V-50Hz

Weight

ZX.F60C2.2

FOG 60 CABRIO-2.2

70bar

2,2l/min

710

44

370W

18Kg

ZX.F60C3.6

FOG 60 CABRIO-3.6

70bar

3,6l/min

710

72

370W

18Kg

ZX.F60C4.8

FOG 60 CABRIO-4.8

70bar

4,8l/min

950

96

745W

18Kg

Axial motor pump with three ceramic pistons, nickel-plated brass head, integrated by-pass valve * The max number of nozzles has been calculated by using a nozzle IT.154C with flow rate 015 (0,047l/min) at 70bar

INCLUDED Pump maintenance set 750hours

Technical features • Frame made up of 4 support feet • L.p. solenoid valve 230V-50Hz, inlet water • Electric box complete with lighted ON/OFF thermal switch and 3m electric power cable with Schuko plug, pre-set for housing a ZX.0576-60 electronic board (optional) • L.p. Slip-Lock inlet ø9,6mm • Outlet Slip-Lock ø6,35mm (for versions 0,5, 1 and 2,2l/min) • Outlet Slip-Lock ø9,6mm (for versions 3,6 and 4,8l/min) • Dimensions WxLxH: 500x200x300mm

Copyright© Idrobase Group. All rights reserved.

7
