Architectural Thesis/Cricket Stadium/Himanshi Nigam

Page 43

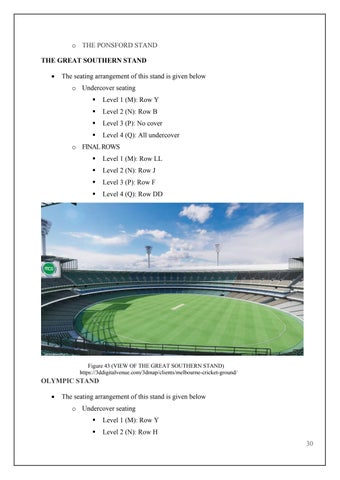

o THE PONSFORD STAND THE GREAT SOUTHERN STAND •

The seating arrangement of this stand is given below o Undercover seating ▪

Level 1 (M): Row Y

Level 2 (N): Row B

Level 3 (P): No cover

Level 4 (Q): All undercover

o FINAL ROWS ▪

Level 1 (M): Row LL

Level 2 (N): Row J

Level 3 (P): Row F

Level 4 (Q): Row DD

Figure 43 (VIEW OF THE GREAT SOUTHERN STAND) https://3ddigitalvenue.com/3dmap/clients/melbourne-cricket-ground/

OLYMPIC STAND •

The seating arrangement of this stand is given below o Undercover seating ▪

Level 1 (M): Row Y

Level 2 (N): Row H 30
