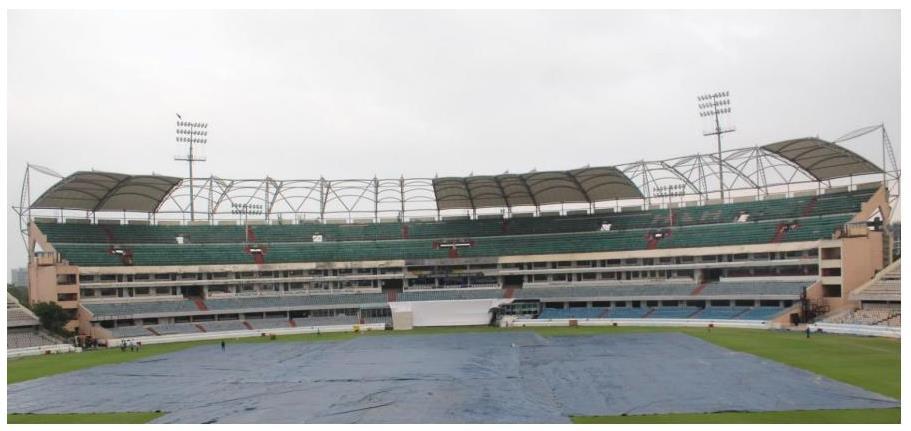

Figure 21 (VIEW OF NORTH STAND

THE N.SHIVIAL YADAV PAVILION CONSISTS OF :-

o Players dressing room o Admin block

o Secretary cabin, CEO cabin o HCA conference hall

o VIP lounge with party hall o VVIP individual boxes capacity of (20 people). o President VIP box

• This stand consists of 4 level with one terrace, 6 lifts have been provided in this stand, which are accessible till 2 level.

• Chief Security Officer cabin and admin parking has been provided in cellar floor. • Players dressing room, VIP lounge with party hall and gallery seating area are planned on ground floor. • Admin floor which manages the stadium is on first floor, this floor also has 18 individual boxes for VIP’s.

• 24 individual boxes for VIP’s are on second floor.

• The first-tier seating is provided on third floor, with 5 entrance points of 2.5 m width, it also has snacks counter.

• The second-tier seating is also provided on third floor, with 4 entrance points of 2.5 m width, to access the seats 6 stairways are provided by the spectator.

Figure 21 (VIEW OF NORTH STAND) https://issuu.com/akhilmanikyam/docs/international_cricket_stadium_-_akhil_manikyam
