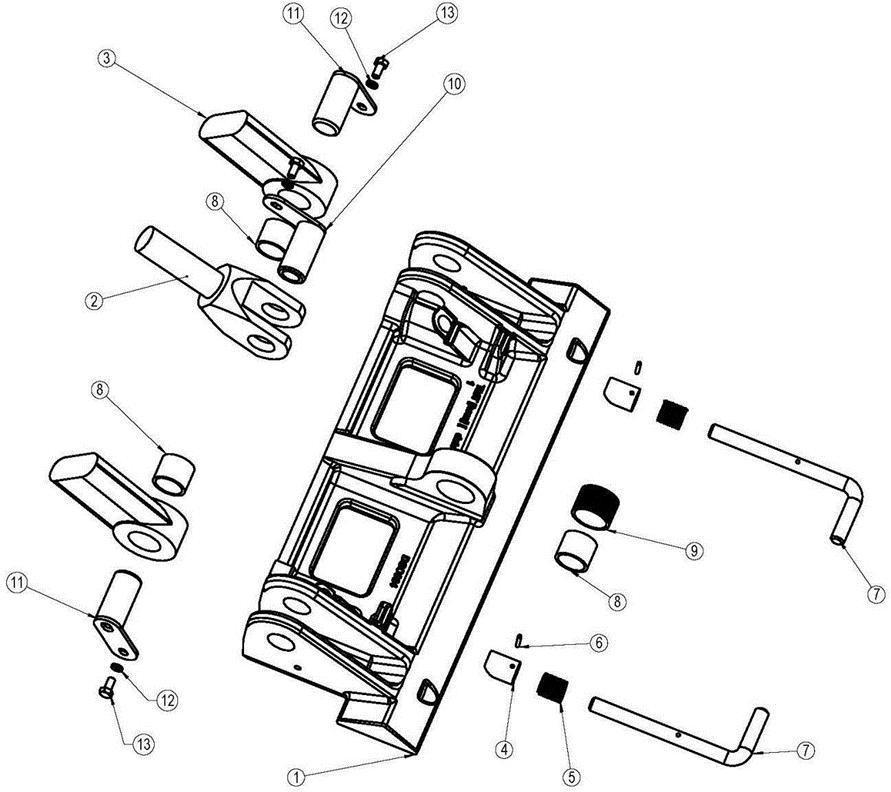

Mount Plate Assembly

Page : 34

Item Qty Part Number Description Notes

1 1 9001194214 MOUNT PLATE MALE ASSY BUSH TYPE INC INCLUDES PARTS 4,5,6,7, Q/R PINS 8 (x1) & 9 2 1 9021845028 CYL HYD K9 PHASING 3 1 9011942076 ARM W/ASSY LIFT 9001194207 SUPERCEDED BY 9011942076

4 2 9043000020 BUSH BEVEL Q/R LOCK MOUNT PLATE 5 2 9043000031 SPRING COMPRESSION MALE MOUNT PLATE 6 2 9100000025 PIN ROLL 5/32” X 1” Q/RELEASE PIN RETAINER 7 2 9000495211 LOCKING PIN MOUNT PLATE Q/RELEASE 5/8 8 3 9043000081 BUSH DURALON 1 ¼” ID X 1 ½” OD X 32MM LONG 9 1 9001194213 BUSH BEARING MOUNT PLATE 10 1 9001193008 PIN 1 ¼” CHROME MOUNT PLATE 63MM 11 2 9001193008 PIN 1 ¼” CHROME MOUNT PLATE 63MM 12 3 9132221000 WASHER SPRING 5/16” X 1/8T X 3/32W (M8) ZP 13 3 9111311012 BOLT HEX M8 X 12 GR8.8 ZP
