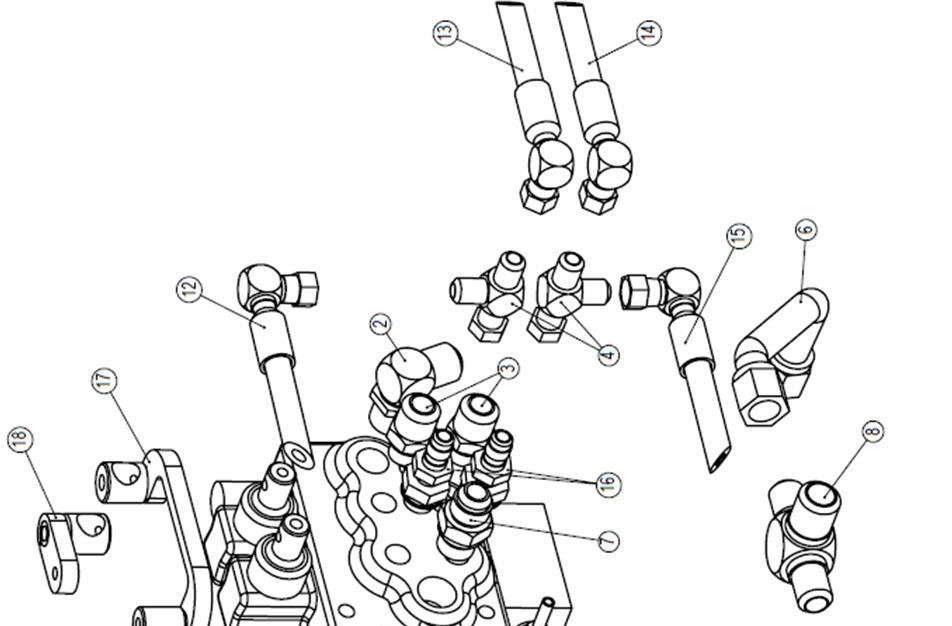

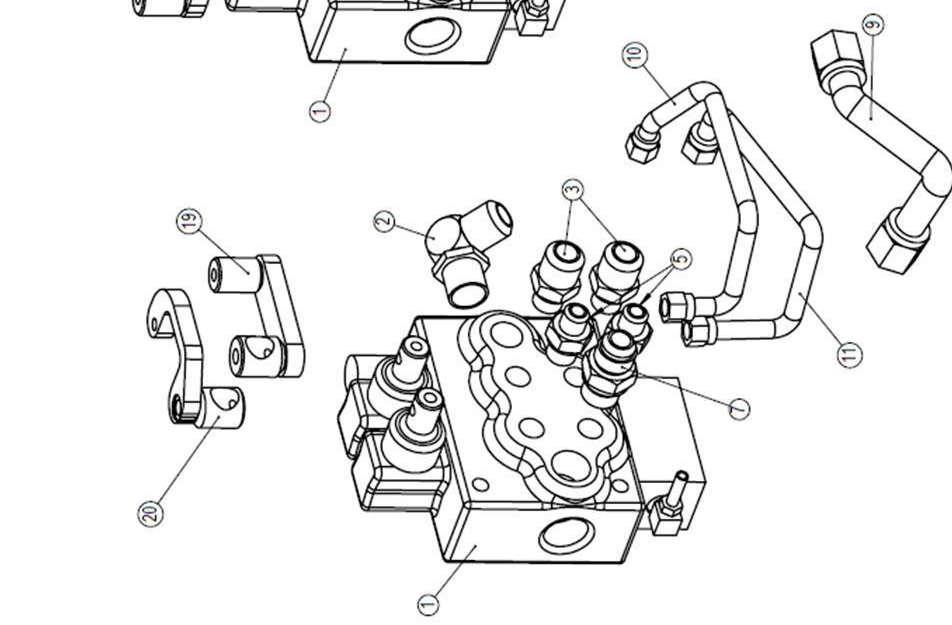

Control Bank

Page : 26

Item Qty Part Number Description Notes

1 2 9330003104 VALVE BANK MAIN CONTROL 4 9330003026 SPOOL CONTROL CAP CONTAINS 9330006025

4 9330006025 BOOT RUBBER CONTROL CAP 4 9330006001 BRASS INSERT SUITS SD5 CONTAINS 9330006010/011

4 9330006010 ORING BRASS INSERT INNER 4 9330006011 ORING BRASS INSERT OUTER 4 9330006018 ORING SUIT SD4/5/6 2 9330003027 SPOOL DRIVE SUIT SD5 2 9330003028 SPOOL LIFT/CROWD SUIT SD5 4 9330003029 SPRING RETURN KIT 2 9330003090 RELIEF VALVE 2 2 9315377501 ELBOW M/M 3/8” BSPP x 7/8” JIC 90 deg. REPLACEMENTORING = 9330006016 3 4 9316377502 NIPPLE M/M 3/8” BSPP x 7/8” JIC ENC/SEAL REPLACEMENTSEAL = 9330006042 4 2 9317565555 TEE F/M/M 9/16” JIC x 9/16” JIC x 9/16” JIC 5 2 9316375503 NIPPLE M/M 3/8” ENC/O-RINGx 9/16” ADAP REPLACEMENTSEAL = 9330006042 6 1 9001195425 PIPE HYD 5/8” LH CONTROL BANK DUMP TO MAIN BANK “T” 7 2 9316477502 NIPPLE M/M 1/2” BSPP x 7/8” JIC ENC/SEAL REPLACEMENTSEAL = 9330006043 8 1 9317757595 TEE M/M/M 7/8” JIC x 7/8” JIC x 1 1/16” JIC 9 1 9001195424 PIPEHYD 5/8” RH CONTROL BANK DUMP TO MAIN BANK “T” 10 1 9001195430 PIPEHYD 3/8” CONTROL BANK TO CROWD 11 1 9001195429 PIPEHYD 3/8” CONTROL BANK TO CROWD 12 1 9001194442 HYD HOSE ASSY L/H RAM LOWER 395 mm 13 1 9001194440 HYD HOSE ASSY R/H RAM LOWER 520 mm 14 1 9001194441 HYD HOSE ASSY R/H RAM TOP HOSE 430 mm 15 1 9001194443 HYD HOSE ASSY L/H RAM TOP HOSE 355 mm 16 2 9316753701 NIPPLE M/M 3/8" BSPP x 9/16"JIC BULKHEAD REPLACEMENTSEAL = 9330006042 17 1 9001195036 DRIVE LH LEVER CROSS ARM W/ASSY 18 1 9001195034 LIFT RH LEVER CROSS ARM W/ASSY 19 1 9001195033 DRIVE RH LEVER CROSS ARM W/ASSY 20 1 9001195031 CROWD CROSS LEVER W/ASSY

Page : 27
