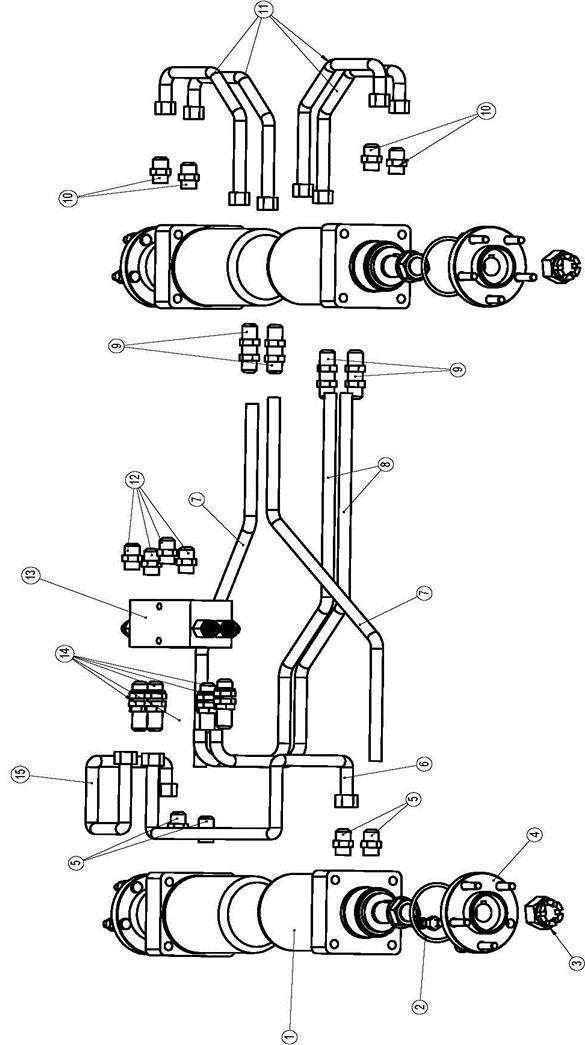

Wheel Motor & Pipes
Page : 14
Item Qty Part Number Description Notes
Advertisement
1 4 9330001015 WHEELMOTOR 1 3/8" SHAFT 4 9330001005 KEY WOODRUFF MB-ME TAPER SHAFT 4 9330006030 SEAL OUTPUT SHAFT WHEELMOTOR 4 9330006019 SEAL KIT WHEELMOTOR 2 4 9330006066 WHEEL MOTOR "O" RING 3 4 9330001007 NUT NYLOC (PATCH) 3/8" SHAFT WHEEL MOTOR 4 4 9610000031 SINGLE FLANGE HUB WITH STUDS UPGRADABLE TO 9610000033 4 9610000032 TWIN FLANGE HUB WITH STUDS 9610000032 SUPERCEDEDBY 9610000033 5 4 9316797500 NIPPLE M/M 7/8" UNO JIC REPLACEMENTORING = 9330006037
6 1 9001194418 PIPE HYD 5/8" C4 FRONT WHEEL MOTOR LH NO VALVE TYPE 7 2 9001195407 PIPE HYD 5/8" REAR OF TANK TO FRONT WHEELMOTORS 8 2 9001195405 PIPE HYD 5/8" OC VALVE TO BOTTOM REAR OF TANK 9 4 9316757501 NIPPLE M/M 7/8" x 7/8" JIC BULKHEAD REPLACEMENTORING = 9330006037
REPLACEMENTDOWTY SEAL = 9330000023 10 4 9316797500 NIPPLE M/M 7/8" UNO JIC REPLACEMENTORING = 9330006037
11 4 9001195402 PIPEHYD 5/8" EXTERNAL WHEEL MOTOR 12 4 9316797500 NIPPLE M/M 7/8" UNO JIC REPLACEMENTORING = 9330006037
13 1 9330003108 VALVE O/CENTRE DOC TWIN CIRCUIT WITH RELIEF 4 9330003011 CARTRIDGE O/CENTRE VALVE 14 4 9316757500 NIPPLE M/M 7/8"UNO 7/8" JIX EXT BULK REPLACEMENTORING = 9330006037 HEAD
REPLACEMENTDOWTY SEAL = 9330000023
15 1 9001194416 PIPE HYD 5/8" C2 FRONT RH WHEEL MOTOR
Page : 15
