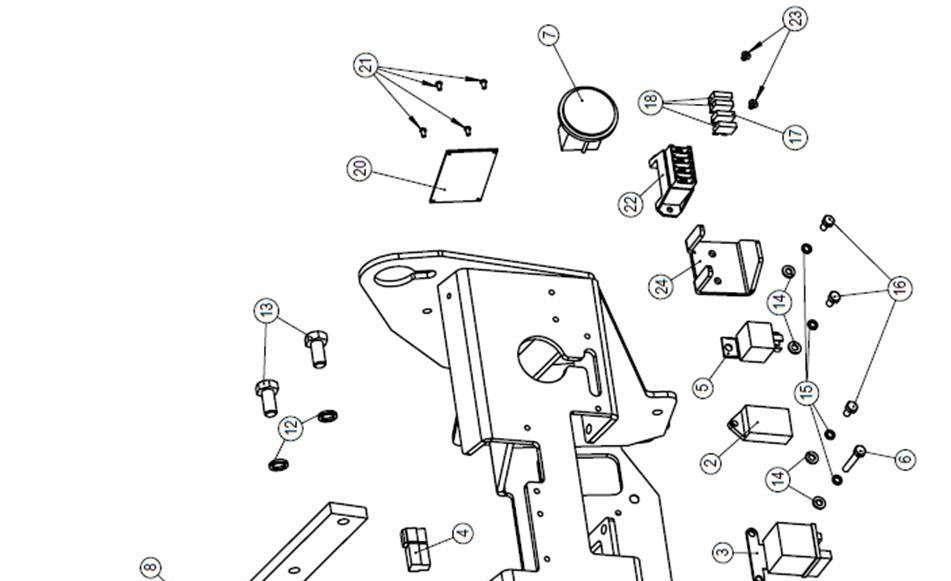

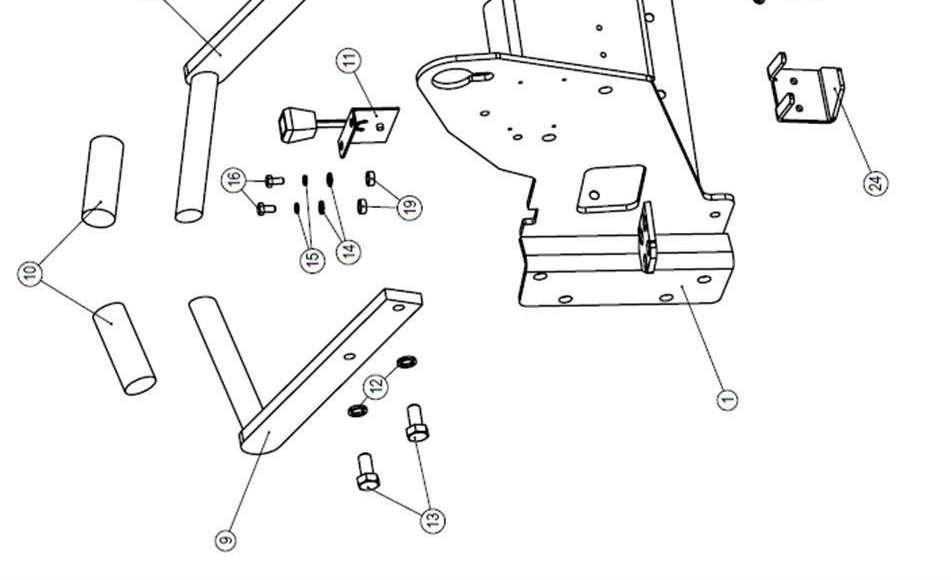

Dash
Page : 10
Advertisement
Item Qty Part Number Description Notes
1 1 9001195021 DASH ASSY 2 1 9518000031 TIMER START/STOP SOLENOID YANMAR 3 1 9518000025 RELAY FUEL SOLENOID 4 1 9518000024 DIODE FUEL STOP CIRCUIT YANMAR 5 1 9410000059 RELAY SEALED 12V 40AMP 6 1 9111211035 SET SCREW HEX M6 x 35 GR8.8 ZP 7 1 9410000048 HOURMETER ROUND QUARTZ 12V 8 1 9001194043 HANDLE L/H W/ASSY 9 1 9001194044 HANDLE R/H W/ASSY 10 2 9043000043 HANDGRIP ERGO GRIP SOFT TEXTURE BLACK HANDLE 11 1 9511000012 CABLE LEVER ASSY THROTTLE/CHOKE 1 PIECE ASSEMBLY 1 9043100001 THROTTLE/CHOKE LEVER ONLY 1 9043100002 THROTTLE/CHOKE CABLE ONLY 12 4 9132151000 WASHER SPRING M12 ZP 3 mm. THICK 4 mm. WIDE 13 4 9111511025 BOLT HEX M12 x 25 GR8.8 ZP 1.75P 14 6 9131121001 WASHER FLAT 1/4” x 1/2” OD 18G ZP BRIGHT 15 6 9132211000 WASHER SPRING M6 x 1.6T x 2.5W ZP SILVER 16 5 9111211012 SET SCREW HEX M6 x 12 GR8.8 ZP 17 1 9410000162 FUSE BLADE 10 AMP RED 18 3 9410000141 FUSE BLADE 20 AMP YELLOW 19 2 9001195723 SPACER 20 1 9021000074 K9C COMPLIANCEPLATE 21 4 9100000027 SCREW KNOCK IN 6G x 1/4” ZP TYPE U DRIVE 22 1 9410000154 FUSEBOX WITH BUSBAR NO COVER 23 2 9111211016 BOLT HEX SET SCREW HEX M6 x 16 GR8.8ZP 24 2 9001195024 BONNETREST
1 9001194651 WIRE HARNESS DASH TNV 1 9518000081 SWITCH IGNITION TNV 1 9518000083 KEY – SWITCH IGNITION TNV
