Section 3. Systems Overview

Vehicle Specification

Vehicle Specification

a. The Model 7BPUE15 is designed for level floor operation only. It is capable of being driven in a fully lowered, unloaded condition on a maximum 100 ft. long ramp with a maximum incline of 6%.

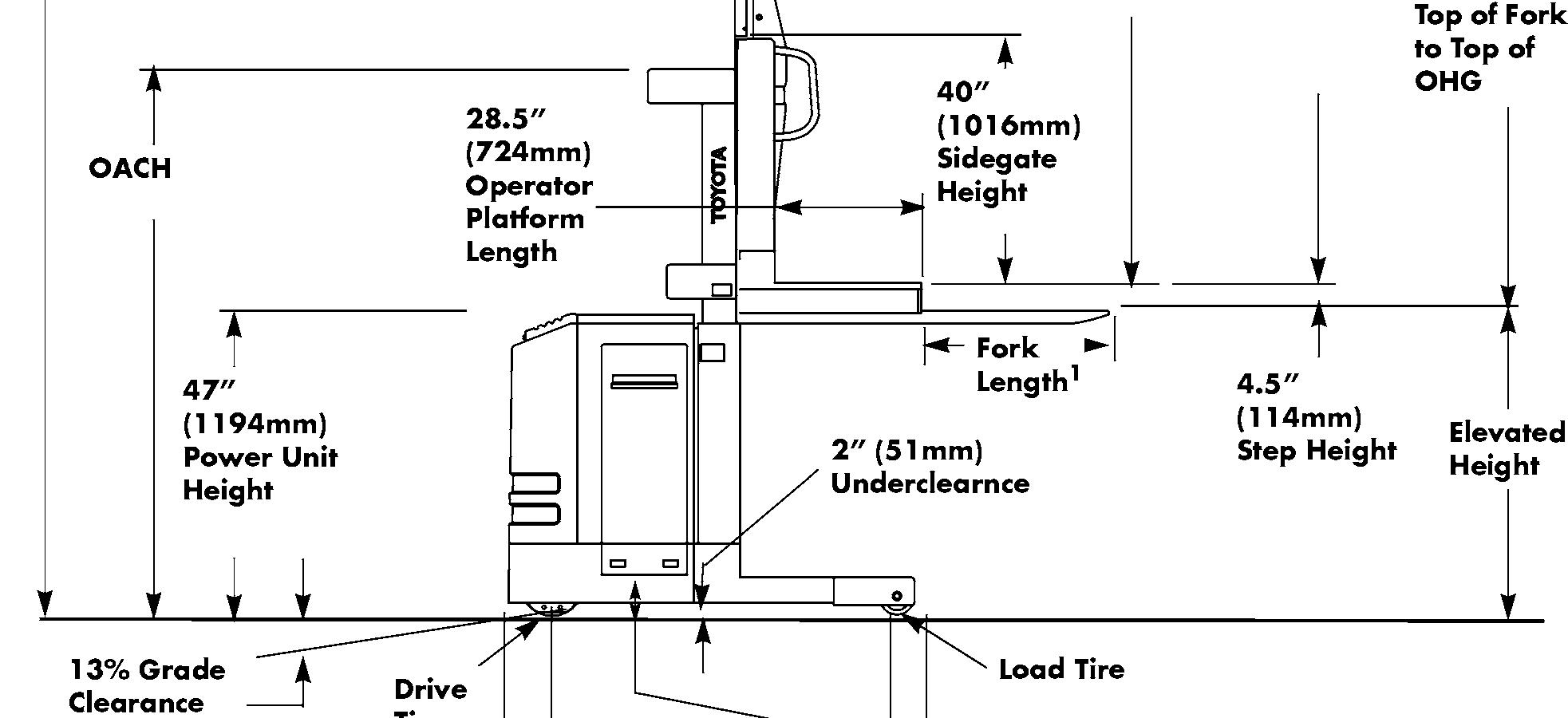

Section 3. Systems Overview Toyota Orderpicker Model 7BPUE15 Service Manual Vehicle Specification

24"-28" (610 - 71 1mm) Fork Adjustment

40" (1016mm) min. OAW Power Unit & Baselegs

Safety Belt & Tether \

39" (99 1mm) Platform Width \ 2" (51mm) Opening

2" (5 1mm) OHG Thickness

Extended 78.5" (1994mm) Operator Compartment 85" (2 159mm)

Bumper to CL of Drive Tire 72.5" (1 842mm) Head Length

1. Standard fork length = 42" (1067 mm) Optional fork lengths = 30" (762 mm), 36" (914 mm) or 48" (1219 mm)

7" (178mm) Battery

General System Data Chassis

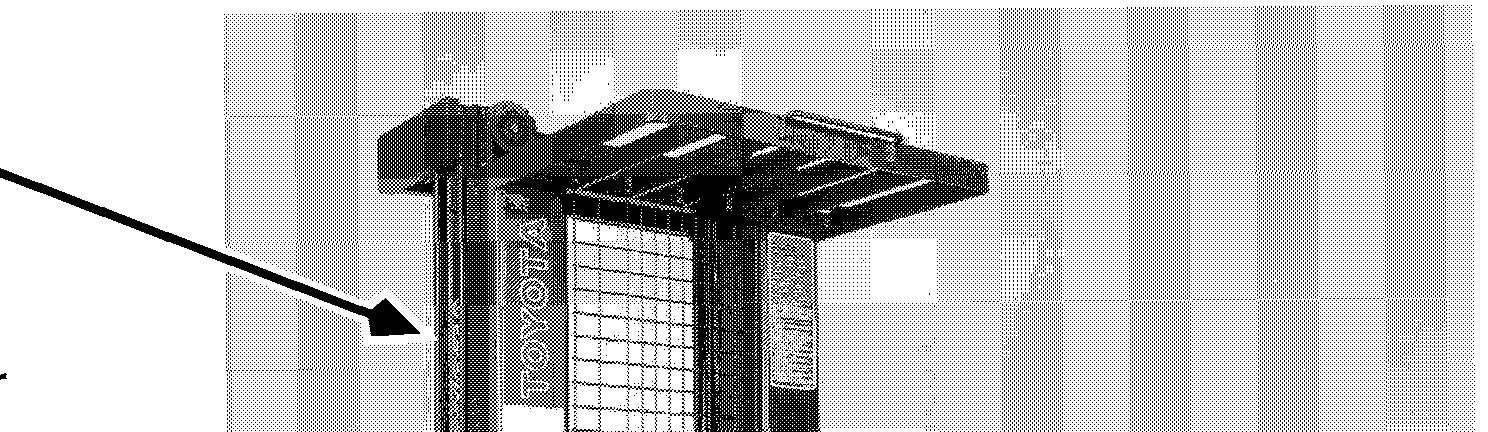

Carriage

DEFINITION: Part of the truck that moves by hydraulic force; includes operator platform.

DEFINITION: Basic frame of the lift truck; includes baselegs, bumper and mast.
