Section 9. Theory of Operation Toyota Orderpicker Model 7BPUE 15 Service Manual

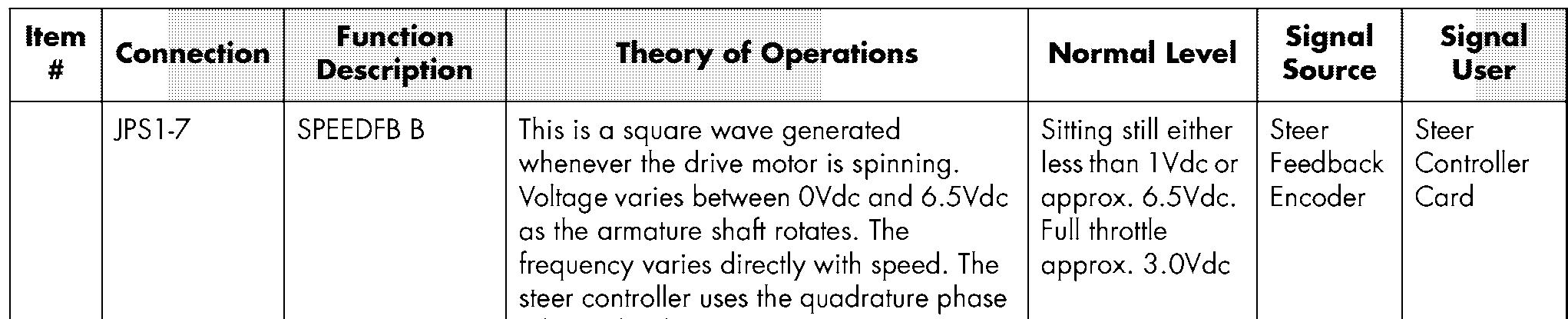

Pinout Matrix
relationship between CH A & B to determine direction and speed.
Positive supply for the steer motor encoder from the wire guidance manager power supply.
B- for the steer feedback encoder.
Not connected to any circuitry.
Not connected to any circuitry.
Not connected to any circuitry.
Not connected to any circuitry.
Terminating resistor for the communication system.
Terminating resistor for the communication system.
B- supplied to the steer controller from the STM.
The wire that carries the positive component of the digital communications between the STM and the Wire Guidance manager. No usable information can be gained by measuring the voltage on this wire.
The wire that carries the negative component of the digital communications between the STM and the Wire Guidance manager. No usable information can be gained by measuring the voltage on this wire.
B- supplied to the steer controller from the STM.
B+ supply for the power supply on the steer controller card.
