Hydraulic Pump
Name: oil seal press-fit jig •Part for press fitting the oil seal [132] in the oil seal installation hole of the spindle [2].
Name: primary bearing press-fit jig •Part for press fitting the ball bearing [24] in the hub [1].

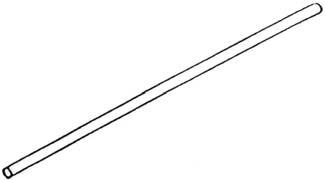

Name: steel rod (I) •Part for removing the ring [45] from the hub [1].
Name: primary bearing precompression adjustment jig •Part for installing the ring nut [22] on the spindle [2].
Name: long eyebolt •Part for lifting the travel motor, spindle [2], and hub [1].
Name: scoop •Used when removing the timing plate [109] from the rear flange [301].
Application "A" Hub M14 Spindle M16 Travel motor M16
