Lower Roller

[8] Install the 2 parallel pins on the front frame.

[9] Install the front frame.

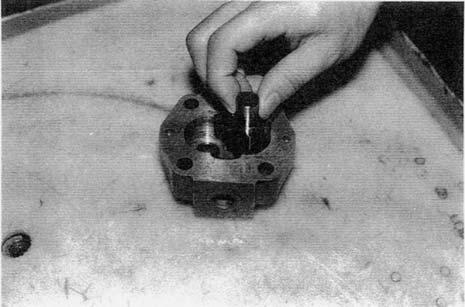

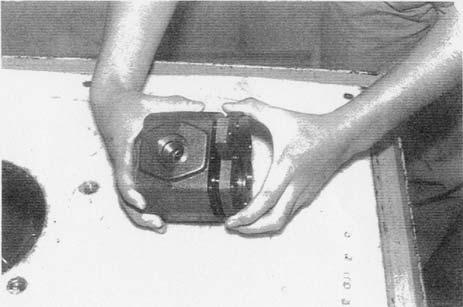

(2) Assembly of gear pump (G1) [1] Install the drive gear on the housing. [2] Install the idle gear.

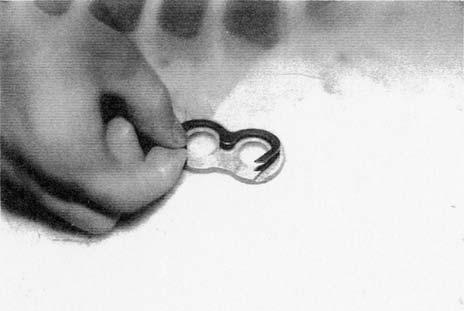

[3] To prevent falling, coat the angle rings and backup rings with grease and install them on the side plate in that order.
