3. Disassembly Procedure

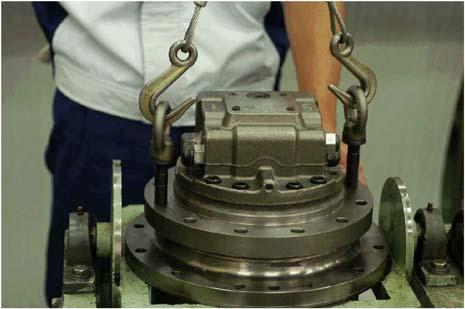

3.Disassembly Procedure [1] Cleaning of travel motor 1) Tighten the eyebolts into the threaded installation holes on the spindle [2]. Note •Tighten the 2 eyebolts into the threaded spindle installation holes so that they are in opposing positions.

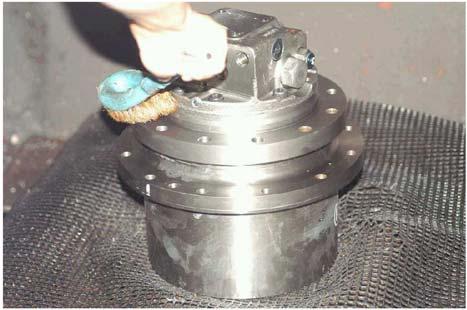

2) Hang the wire on the eyebolts, lift the travel motor with a liftcrane, and move it to the cleaning tank. 3) Clean each travel motor part with a vehicle washing brush.

Note •Dirt enters the gap (floating seal installation section) between the hub [1] and spindle [2], so clean this area especially thoroughly.

[2] Installation of travel motor 1) Install the travel motor on the work platform. Note •While aligning the travel motor with the threaded holes on the hub [1] and on the work platform, gently insert the travel motor into the installation holes on the work platform.

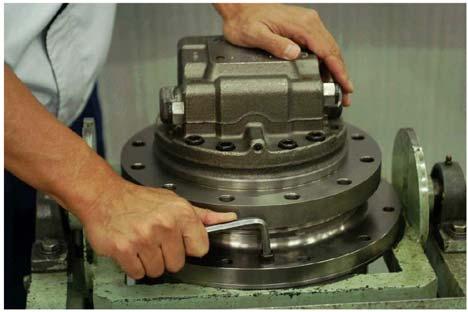

2) Install the travel motor on the work platform so that the 2 hexagon socket head bolts are in opposing positions.

Caution Note •Thoroughly tighten the hexagon socket head bolts. If they are not thoroughly tightened, the travel motor can fall and cause injury when it is inverted.
