COOLING SYSTEM

WARNING

Check and service the cooling system according to the instructions given in this manual. Do not remove the cap when the engine is hot. The cir-cuit is still under pressure and you could be scalded.

• If the level in the radiator is low, but full in the coolant reservoir, check for an air leak in the hose connecting the radiator to the coolant reservoir. If the problem persists, consult your local dealer.

Service Specifications

Coolant reservoir level check

Radiator level check

Cooling system hose and clamp tightness check

Every 10 hours or every day

Every 50 hours

Every 250 hours

Draining Every 2000 hours or every year

Cooling system capacity Kirloskar/Perkins 16.0 L

Thermostat range 77°C to 82°C (170°F to 180°F)

Radiator cap pressure 0.7 bar (10 lbf/in2)

11.1 Enginecoolant

Boiling engine coolant can spray out if the radiator cap is removed while the system is still hot. To remove the cap, allow the system to cool down, turn the cap to the first notch and wait until there is no more pressure. Then remove the cap.

Only fill ethylene-glycol engine coolant in the cooling system. Use good quality ethylene-glycol that has a high boiling point, with no additives to prevent leakage. Do not use non approved anti-rust additives. Anti-rust additives and ethylene-glycol can mix and work against each other, thereby reducing anti-corrosion protection, forming deposits in the cooling system and causing damage to the cooling system and radiator. Consult your local dealer for suitable engine coolant.

11.2 Engine Coolant Level in Coolant Reservoir

•The machine must be parked on flat level ground.

• Do not remove the radiator cap.

• On no account must the coolant reservoir level be higher than it was the day previously. If it is, check the level in the radiator. See “Radiator level”.

•The level of engine coolant should be checked when the engine is cold.

Procedure

1. To access the engine see “Engine Access”.

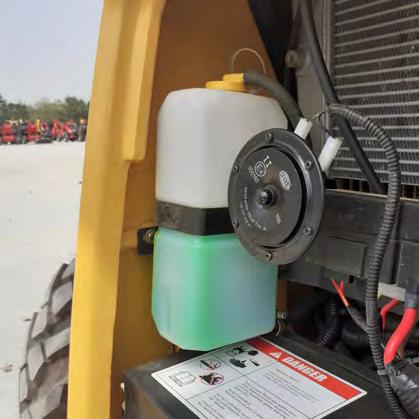

2.The level in the coolant reservoir should be between the “FULL” and “ADD” marks. If necessary, remove the reservoir cap and add coolant to the reservoir until the level reaches the “FULL” mark on the coolant reservoir.

3.Close and lock the engine bonnet.

4.Remove the support strut and lower the loader attachmen

11.3 RadiatorLevel

!

WARNING

Do not remove the cap when the engine is hot. The circuit is still under pressure and you could be scalded.

•The machine must be parked on flat level ground. If the level in the radiator is low, but full in the coolant reservoir, check for an air leak in the hose connecting the radiator to the coolant reservoir. If the problem persists, consult your local dealer.

•The level of engine coolant should be checked when the engine is cold.

Procedure

1. To access the engine see “Engine Access”.

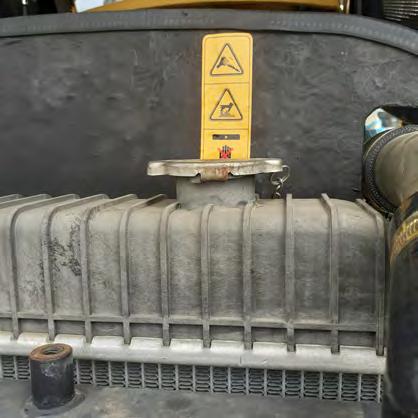

2.Remove the radiator cap. The engine coolant should be level with the filler orifice. If not, See “Filling”.

3.Close and lock the engine bonnet.

4.Remove the support strut and lower the loader attachment.

11.4 Draining the Cooling System

WARNING

Do not remove the cap when the engine is hot. The cir-cuit is still under pressure and you could be scalded.

•The machine must be parked on flat level ground.

•Prepare a receptacle with a suitable capacity.

•If you use a detergent solution for rinsing, follow the instructions for preparing the solution. After draining the detergent solution, rinse again with fresh water.

Procedure

1. To access the engine see “Engine Access”

2. Remove the radiator cap.

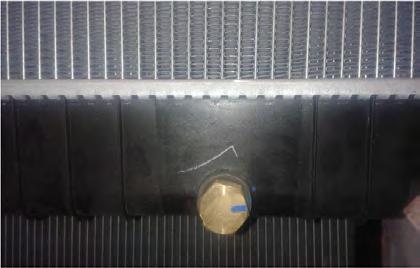

3. Open the drain plug with any suitable tool and allow the engine coolant to flow out.

4. After the system is completely drained, install the bottom hose.

5. Rinse the system through with fresh water, drain again and fill the system as shown below.

6. Check the condition of the hoses, connections and the water pump. Make sure that the external surfaces of the engine and the radiator are clean.

11.5 Filling

•Use the correct engine coolant.

Procedure

1. Fill the radiator with engine coolant until it is level with the filler orifice. Then install the cap (1).

2. Completely fill the coolant reservoir with engine coolant.

3.Run the engine for a few minutes then check the level in the coolant reservoir (2) again. Top up if necessary until the “FULL” markisreached. Then install the cap.

4.Close and lock the engine bonnet.

5.Remove the support strut and lower the loader attachment.
