Model 9600/9700 Swing-Reach ® Lift Truck

Section 7.Component Procedures

Steering and Controls EPO Switch

EPO Switch Removal

1.Turn the key switch OFF and disconnect the battery connector.

2.Remove both top and bottom covers from the right control arm.

3.Remove the wires to EPO switch, labeling as necessary for later installation.

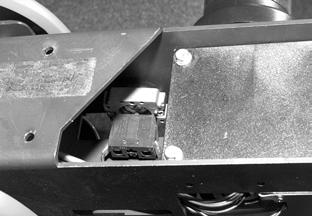

4.Loosen the retaining screws on the back of the switch body. (Insert screwdriver through access slot in control arm.)

5.Hold switch body firmly while twisting knob counterclockwise to disengage the knob from the body.

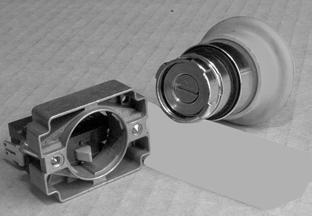

6.Remove both halves of the switch.

Installation

1.Insert the knob through the mounting hole.

2.Mate the switch back to the knob shaft.

3.While holding the switch body firmly, press and twist the knob clockwise to engage the switch halves.

4.Tighten the retaining screws on the switch body.

5.Attach wires to the switch.

6.Reinstall the upper and lower control arm covers.

7.Reconnect the battery connector and turn the key switch ON.

Publication: 1089040, Issued: 08 Apr 2016

8.Test operation of EPO switch. Switch should operate freely without binding. When switch is pushed IN, travel, lift, and auxiliary functions should be disabled.

7-29
