Route Management Manual

Training Routes

To Add a Ramp Feature

1.Drive the truck straight at a ramp un til the drive wheel is at the edge of the ramp, then stop. Do not angle or turn on a ramp.

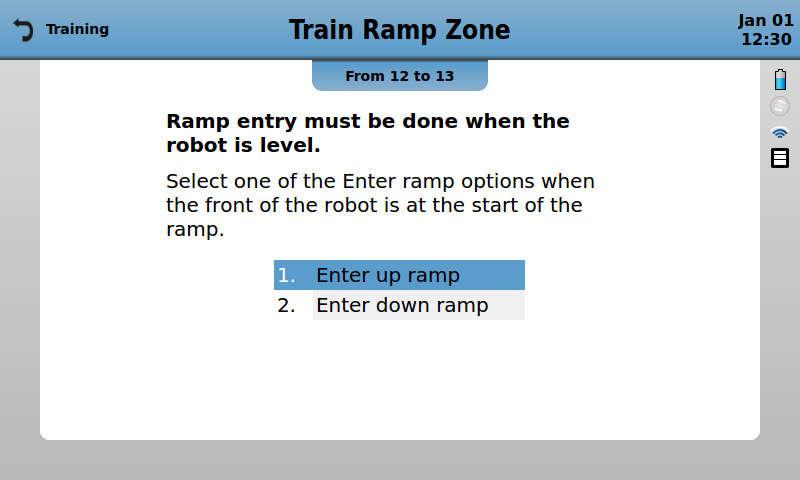

2.Select “3. Zone (add in route)” from the “Training” screen. Then select “3. Ramp Zone” from the “Add Zone” screen. The “Train Ramp Zone” screen is displayed, as shown in Figure45.

3.Select “1. Enter up ramp” if the truck will ascend the ramp. Select “2. Enter down ramp” if the truck will descend the ramp.

4.Enter the ramp grade (%) in the appropriate field (if greater than 2%); press the Enter Key.
