Hydraulic Equipment

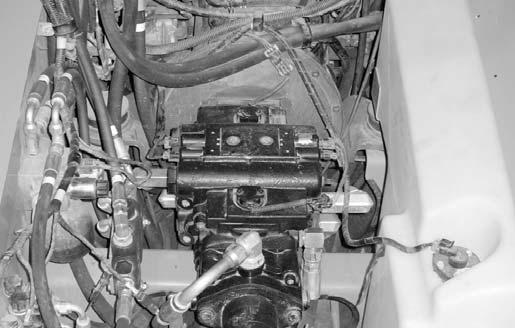

NOTE: If the foot well was tilted foward to provide access during pump removal/installation, tilt it back into place and secure using screws (F, Fig. 506).

11.Lower the ROPS/FOPS according to “Lower ROPS/FOPS” on page142.

12.Fill the hydraulic system reservoir according to “Changing Hydraulic Oil and Filter” on page132. Refer to “Fluids/Lubricants Types and Capacities” on page37 for proper hydraulic oil specifications.

13.Reconnect the negative cable to the battery.

Warning

NEVER use your hands to search for hydraulic fluid and coolant leaks. Use a piece of cardboard or paper. Escaping fluid under pressure can be invisible and penetrate the skin, causing serious injury.

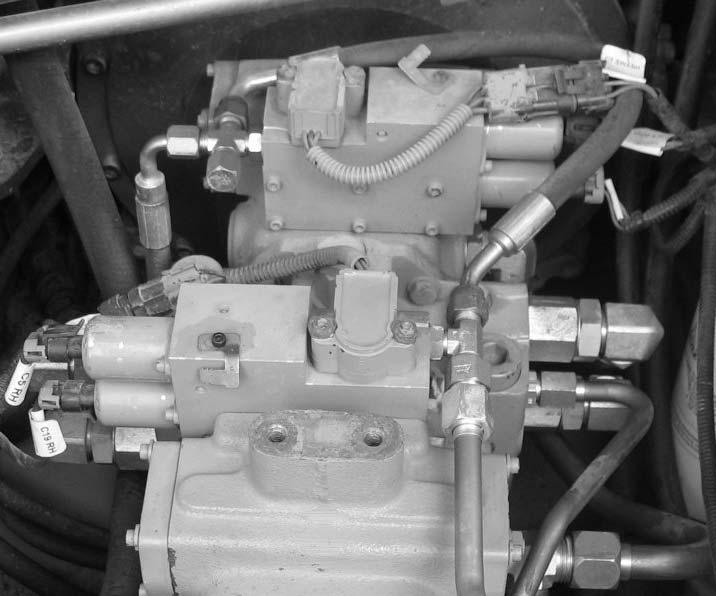

14.Start the machine. Check for proper pump operation, hydraulic leaks, etc. Stop the engine and repair as required.

15.Re-check the hydraulic system oil level. Add hydraulic oil as required.
