Electrical/Control Systems

Tail Light Bulb Replacement WARNING

BEFORE beginning this service procedure, shut down the machine according to “Mandatory Safety Shutdown Procedure” on page22.

1.Twist tail light bulb socket (W, Fig. 554) counter-clockwise and remove it from the tail light housing.

IMPORTANT: Do not touch new halogen bulbs with bare fingers. Oils from skin can etch the bulb glass and cause the bulb to fail prematurely. Wear clean gloves or use a clean rag to handle new bulbs.

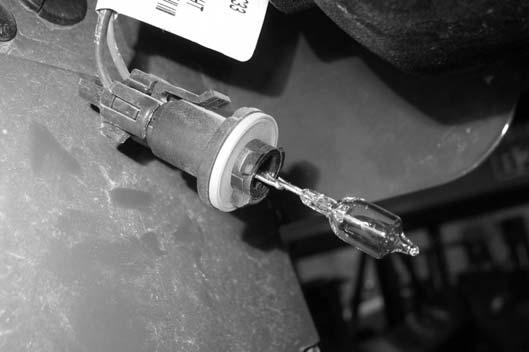

3.Plug connector (T) onto new bulb (U).

•Front work light replacement bulb is GE 885 or equivalent.

•Rear work light replacement bulb is GE 862 or equivalent [Manitou part # 122488].

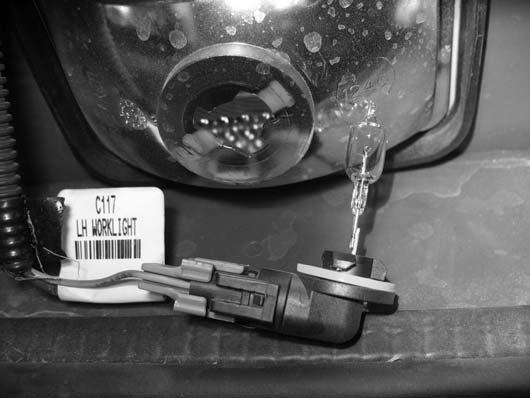

4.Install the new bulb into the work light and twist to lock it in place.

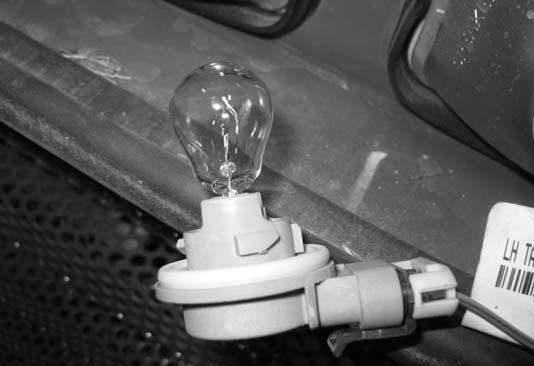

3.Push replacement bulb (F) into socket (L) until it snaps into place. Replacement bulb is GE3157 or equivalent [Manitou part # 50221053].

Dome Light Bulb Replacement WARNING

BEFORE beginning this service procedure, shut down the machine according to “Mandatory Safety Shutdown Procedure” on page22.

1.Using a flat-tipped screwdriver, carefully pry the dome light down out of the cab/canopy headliner.

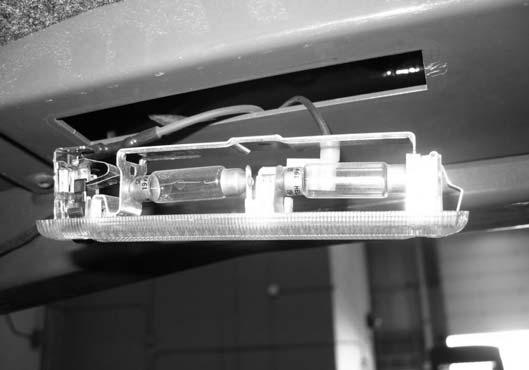

2.Replace the used bulbs (B, Fig. 556) with new 12V 10W festoon base bulbs (42 mm x 11 mm).

3.Reinstall the dome light up into the headliner. Ensure it snaps securely into place.
