Hydraulic Equipment

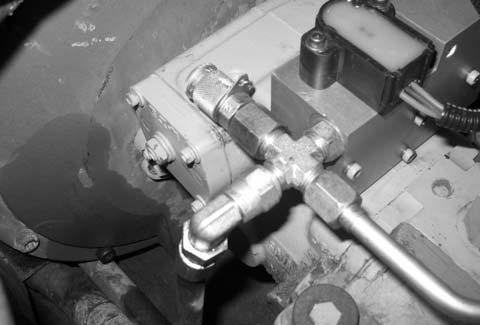

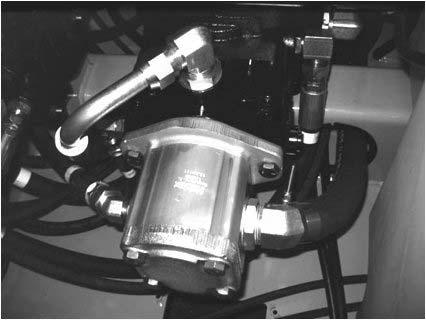

NOTE: The gear pump for machines with the high-flow auxiliary option is shown in Fig. 498. Gear pump for standard flow auxiliary hydraulics is shown in Fig. 499.

Later Machines

IMPORTANT: Use a new O-ring [Manitou part # 132248] and new mounting screws [Manitou part # 50280004] when re-installing the gear pump.

Early Machines

Warning

Do NOT use any lifting attachments (slings, chains) that are damaged or of inadequate rated capacity.

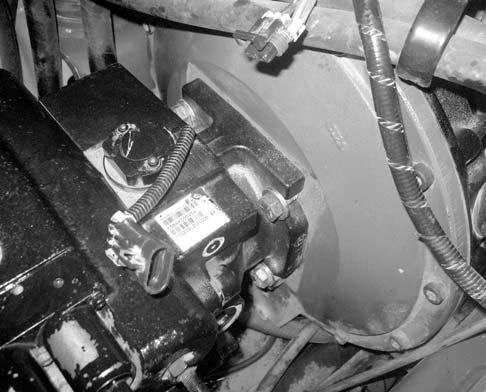

12.Support hydrostatic pump (R, Fig. 500) with an appropriate lifting device.

NOTE: The hydrostatic pump weighs approximately 90-113 kg (200-250 lbs.).

13.Remove fasteners (S) securing the hydrostatic pump to the engine flywheel housing.

IMPORTANT: Use new mounting screws [Manitou part # 273400] when re-installing the hydrostatic pump.

14.With the aid of an assistant, slowly and carefully lift the hydrostatic pump out of the machine.

NOTE: Use caution when removing the pump to prevent damage. Some hoses and harnesses may need to be moved/adjusted as the pump is removed.
