Models 1750RT/2100RT Tier 4 Engine Removal/Installation

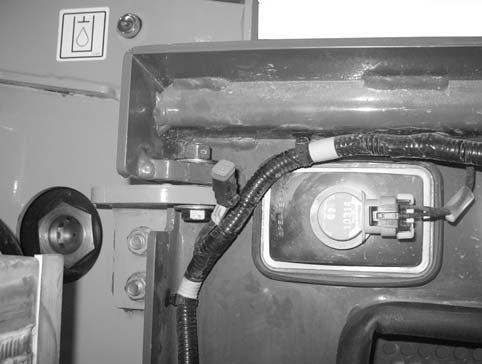

52.Place fiber washer (U, Fig. 388) on the top of upper engine compartment door hinge (V).

53. Carefully lift engine compartment access door (W, Fig. 389) into position using an appropriate lifting device. Align pins (X) with the holes in mounting bracket (Y) and lower the door until the pins seat in the holes.

55.Install screw (B, Fig. 391), 2 flat washers (C), and nut (D) through the hole in the pin. Tighten securely.

54.Install screw (Y, Fig. 390), 2 flat washers (Z), and nut (A) through the hole in the pin. Tighten securely.
