Models 1750RT/2100RT Tier 4 Engine Removal/Installation

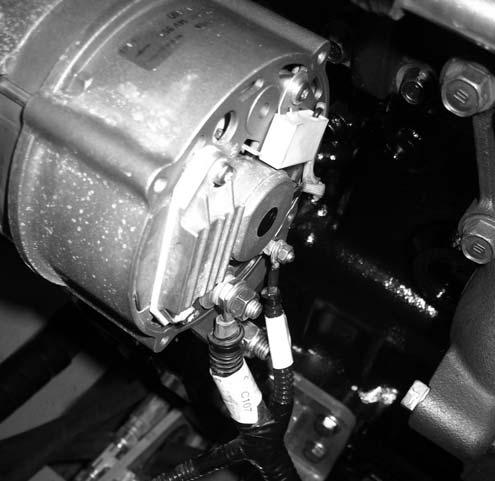

4.Connect and secure wire (R, Fig. 356) to terminal on alternator (N) using nut (O).

7.Carefully lift radiator/hydraulic oil cooler assembly (N, Fig. 358) into place using an appropriate lifting device.

NOTE: Radiator (N) is heavy. A hoist or other similar lifting device is recommended for lifting the radiator into place.

5.Connect and secure wire (T) to terminal on alternator (N) using nut (P).

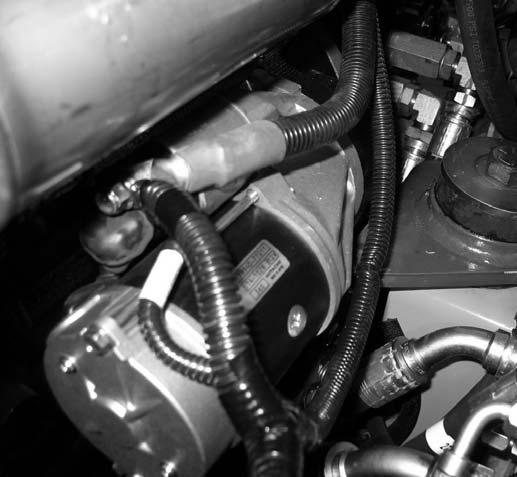

6.Connect and secure wires (A, Fig. 357) and (D) to terminal on starter motor (S) using nut (Z).

8.Remove cap and plug and connect lower hydraulic hose (P) to fitting (Q).Tighten securely.
