Models 1750RT/2100RT Tier 4 Engine Removal/Installation

65.Remove nut (O) and disconnect wire (R) from alternator (N).

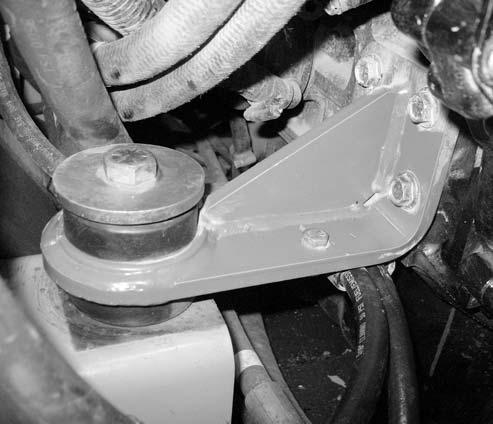

66.Remove nut (E, Fig. 352) and screw (F) from left rear motor mount (G), and remove hose bracket (H) securing fuel line (X). Retain all hardware for installation.

NOTE: Use caution when removing engine to prevent damaging hoses, components and wire harnesses.

68.Carefully remove engine (K, Fig. 353) using an engine hoist or other appropriate lifting device.

67.Remove screws (I) and washers (J) from both rear motor mounts. Discard screws (I), but retain washers for installation.

NOTE: Screws (I) should be replaced for installation. Refer to the parts manual for ordering information.
