Models 1750RT/2100RT Tier 4 Engine Removal/Installation

41.Lift the engine compartment access door just high enough for pins (P, Fig. 334) to clear the brackets (Q), and remove the door.

IMPORTANT: There is a fiber washer (R, Fig. 335) located between the door and frame brackets.

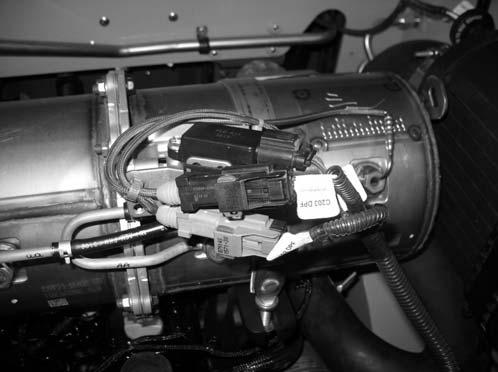

NOTE: Label electrical connections (Z, Fig. 336) and note their locations to ensure correct installation.

43.Unplug electrical connections (Z) from DPF.

NOTE: The door is heavy. A hoist or other similar lifting device is recommended when removing the door.

42.Remove fiber washer (R, Fig. 335) from the upper and lower door mounting brackets (Q).

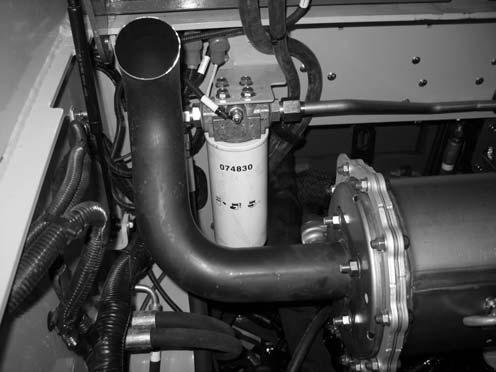

44.To prevent damage to exhaust pipe (A, Fig. 337) and DPF, remove nuts (B) securing exhaust pipe (A) to DPF and remove exhaust pipe. Retain nuts (B) and exhaust pipe (A) for installation.
