Models 1750RT/2100RT Tier 4 Engine Removal/Installation

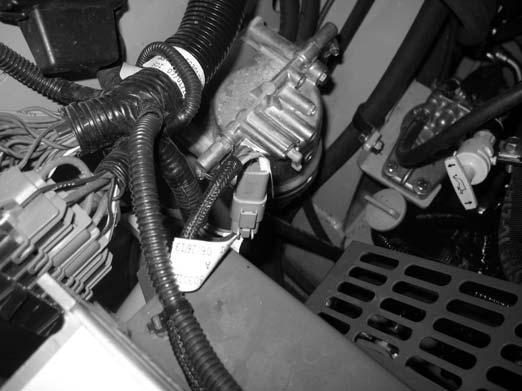

35.Disconnect engine compartment access door harness connector (F, Fig. 330) from main harness. Remove harness retainers (X) securing the door and engine harnesses to the radiator shroud.

38.Remove locknut (J, Fig. 332), screw (K), and 2 washers (L) from the upper door mount.

36.Support engine compartment access door (I, Fig. 331) using an appropriate lifting device.

39.Remove locknut (M, Fig. 333), screw (N), and 2 washers (O) from the lower door mount.

37.Remove engine compartment access door harness (H) from the engine compartment, and secure the harness to the door.

40.Lift latch pin (Z) and close, but do not latch, the engine compartment access door (I).
