Model 2500RT Engine Removal/Installation

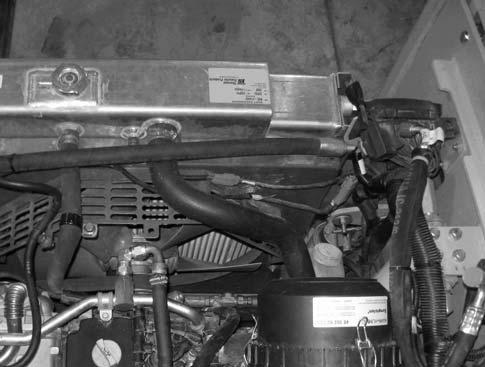

46.Connect the engine compartment access door harness (K, Fig. 308) to the left side engine compartment main harness.

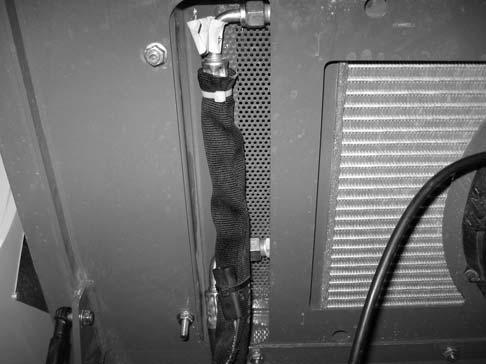

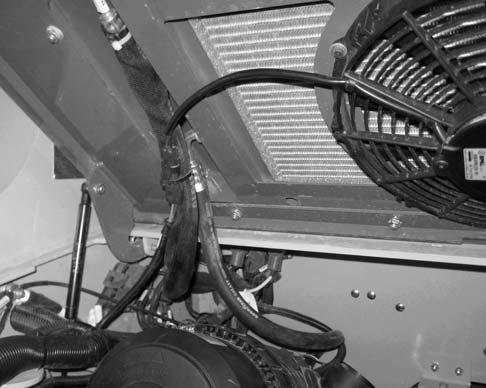

50.On machines equipped with air conditioning: a.Connect supply (Q, Fig. 310) and return (R) air conditioning lines to the air conditioning condenser. b.Connect the condenser cooling fan connector (S, Fig. 311) to the main harness connector. c.Recharge the air conditioning system with refrigerant. Refer to “Fluids/Lubricants Types and Capacities” on page37 for proper refrigerant specifications.

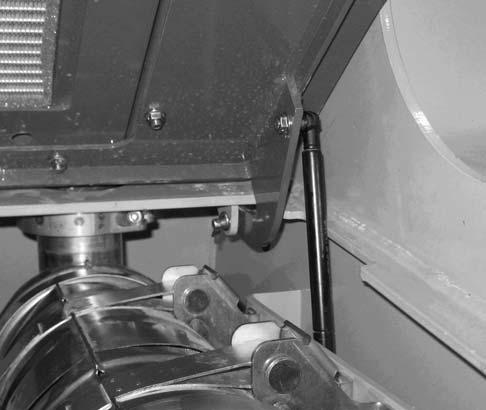

47.Lift engine compartment cover (A, Fig. 309) into place using an appropriate lifting device.

48.Install a pin (E) and spring clip (D).

49.Connect support strut (C) to the bracket and secure using nut (B).
