Model 2500RT Engine Removal/Installation

42. Carefully lift engine compartment access door (W, Fig. 304) into position using an appropriate lifting device. Align pins (X) with the holes in mounting bracket (Y) and lower the door until the pins seat in the holes.

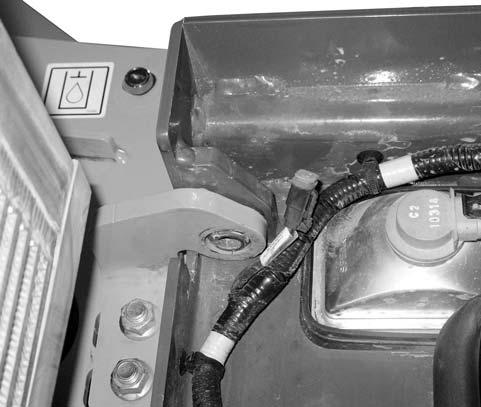

44.Install screw (B, Fig. 306), 2 flat washers (C), and nut (D) through the hole in the pin. Tighten securely.

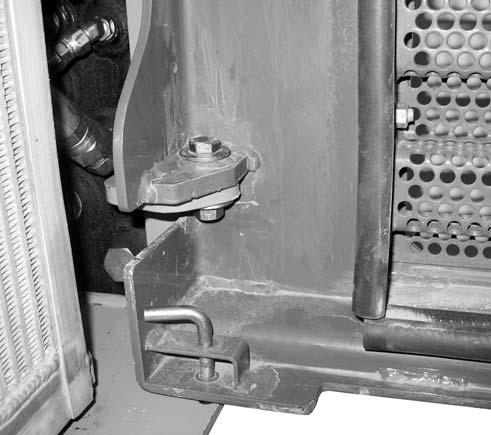

43.Install screw (Y, Fig. 305), 2 flat washers (Z), and nut (A) through the hole in the pin. Tighten securely.

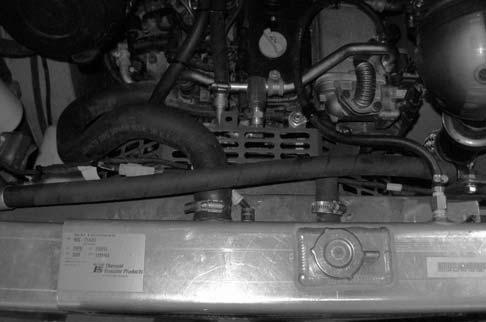

45.Route engine compartment access door harness (L, Fig. 307) into the engine compartment and along the top of the radiator shroud. Secure harness with cable ties.
