Model 2500RT Engine Removal/Installation

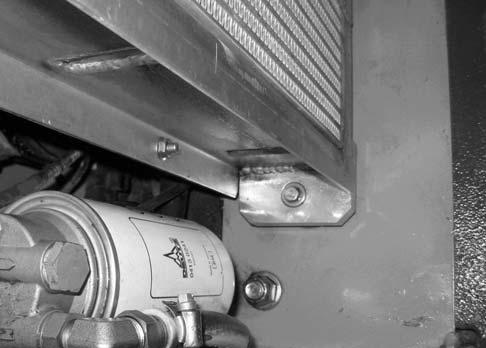

19.Install screw (F, Fig. 285) and washer (G) into the mounting bracket on each side of the radiator/hydraulic oil cooler assembly.
22.Connect rear engine ground cable (J, Fig. 287).
20.Raise the ROPS/FOPS according to “Raising ROPS/FOPS” on page140.
Warning
Secure the ROPS/FOPS in the tilted position. Do not allow anyone under the ROPS/FOPS if the tilt securing mechanism is not in place.

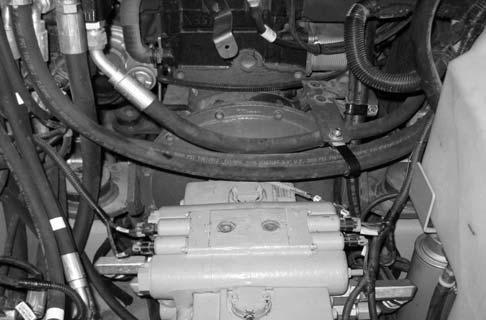

21.Install new screws (H, Fig. 286) and large flat washers (I) into the rear motor mounts. Torque screws (H) to 813 Nm (600 lb.-ft.).
NOTE: Use new screws (H) for installation. Refer to the parts manual for ordering information.
