Model 2500RT Engine Removal/Installation

63.Remove nut (U, Fig. 266) and screw (V) from the left front motor mount, and remove the hose retainer.

65.Remove the screw (Y, Fig. 268) and washer (Z) from the right front motor mount. Discard screw (Y), but retain washer (Z) for installation.

NOTE: Screw (Y) should be replaced for installation. Refer to the parts manual for ordering information.

64.Remove screw (W, Fig. 267) and washer (X) from the left front motor mount. Discard screw (W), but retain washer (X) for installation.

NOTE: Screw (W) should be replaced for installation. Refer to the parts manual for ordering information.

NOTE: Use caution when removing the engine, as some hoses may need to be moved aside.

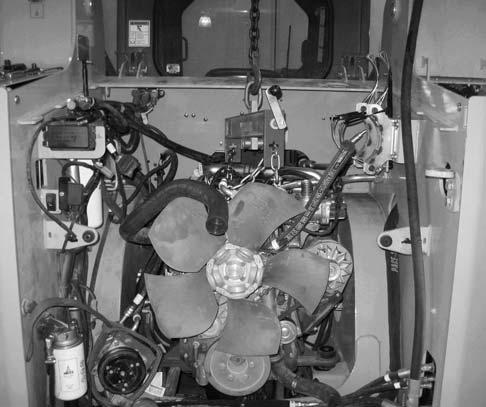

66.Remove the engine (A, Fig. 269) using an appropriate lifting device.
