Model 2500RT Engine Removal/Installation

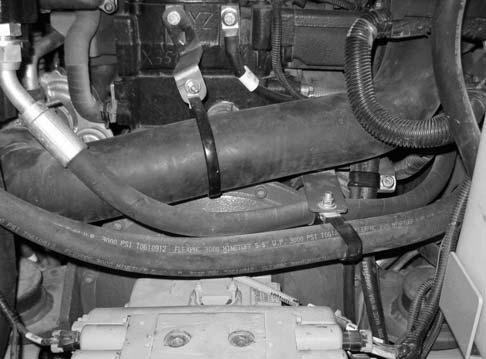

43.On early machines, remove air intake tube bracket mounting screw (B, Fig. 251).
NOTE: Later machines have a diffrent intake hose without bracket and clamp shown in Fig. 251.
46.Remove battery ground cable screw (D, Fig. 253).
44.Disconnect the air intake tube. Cover the opening on the turbocharger to prevent debris from entering the turbocharger.

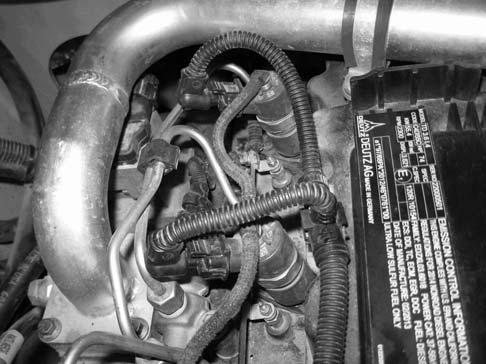

45.Disconnect the glow plug ground cable (C, Fig. 252).

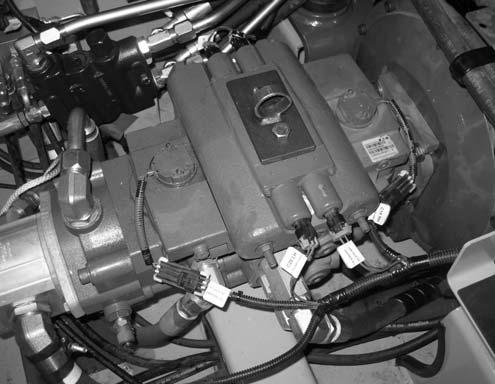

IMPORTANT: Label all electrical connectors (R, Fig. 254) and note their locations to ensure correct installation.
47.Unplug electrical connections (R) and set wire harness/connectors to the side to prevent them from getting damaged.
48.Remove fasteners (S) securing the hydraulic pump to the engine. Discard 1/2” capscrews, but retain washers for installation.
