Lift Arm and ROPS/FOPS

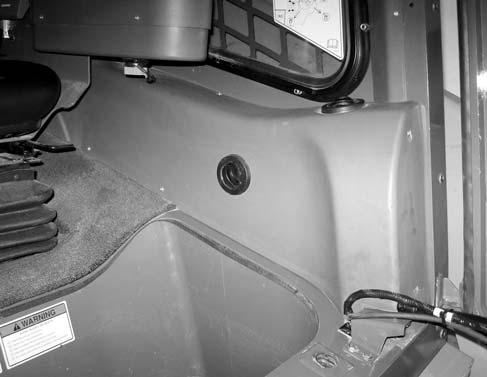

18.Install right side panel (A, Fig. 217) and secure using 6 screws (B).

21.Install 2 screws (D, Fig. 219) and flat washers (E). Tighten securely.

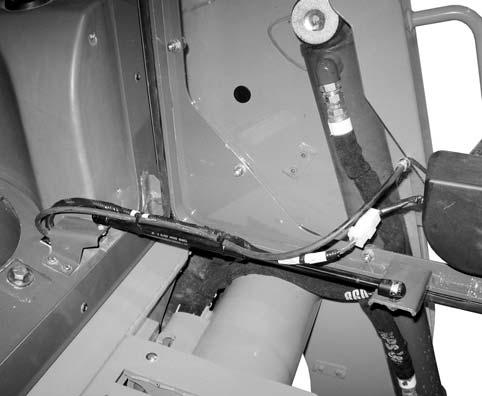

19.Connect windshield washer hose (Y, Fig. 218) to fitting (C).

22.Access the engine compartment according to “Engine Access” on page119.

23.Connect the heater return hose (U, Fig. 220) to the coolant pump. Tighten clamp securely.

20.Secure the hose as shown using cable ties (X).

24.Secure the heater hoses using cable ties (X) as shown.

25.Fill the cooling system according to “Draining/ Refilling Cooling System” on page125. Refer to “Fluids/Lubricants Types and Capacities” on page37 for proper coolant specifications

26.Close the engine compartment covers.

27.Reconnect the negative cable to the battery.
