Drive Control System—

Service Communication Kit and PLUS+1 GUIDE Service Tool Software

The 203907 service communication kit provides a physical connection between the drive controller and a computer. The kit also provides diagnostic and calibration software and instructions for it’s use.

NOTE: For additional information about the PLUS+1 service tool, its features and functionality, visit the Sauer-Danfoss website at: http://www.sauerdanfoss.com.

PLUS+1 Service Tool/Module Communication Connection

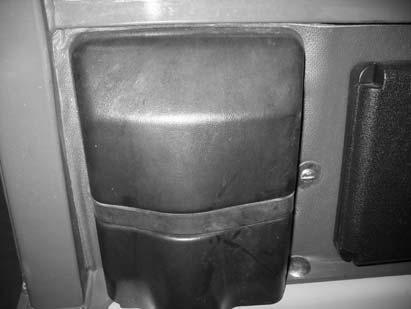

STEP 1

STEP 2

Connect the two harnesses in the kit together.

STEP 3

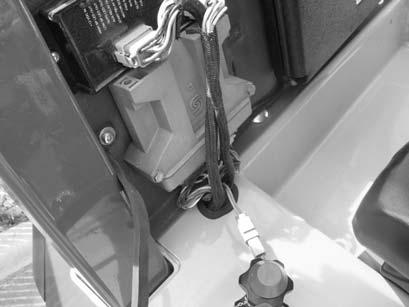

Remove the cover from the two-pin service connector on the PLUS+1 module. Plug the harness into the service connector.

STEP 4

Turn the ignition key on the loader to the “1” (Run) position to activate the PLUS+1 module.

STEP 5

Double click the “PLUS+1 GUIDE Service Tool 4.1” icon on the desktop to launch the PLUS+1 service tool software.

NOTE: Service Tool software installation is required before the service tool can be used.
