Engine — Drive Coupling Removal

Drive Coupling Installation

STEP 1

Remove the six upper bolts (1). Remove engine mounting bolts (7). Remove the engine mounting bracket (2). Remove the two lower bolts (3) and remove the drive coupler cover (4).

STEP 3

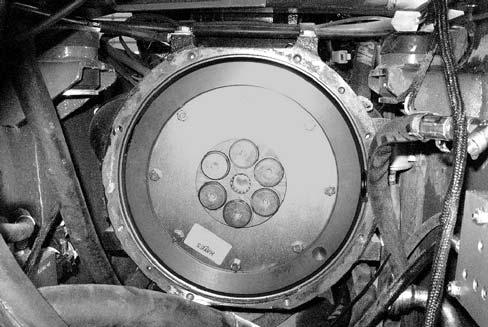

Remove the eight bolts (5) and remove the drive coupler assembly (6).

NOTE: New bolts purchased from Mustang have locking compound already applied.

Apply Loctite® 262 or equivalent to bolts.

Install coupler and bolts (1).Tighten bolts to 33 lb-ft (45 N•m).

STEP 2

NOTE: New bolts purchased from Mustang have locking compound already applied.

Apply Loctite® 262 or equivalent to bolts (2). Use the two lower bolts (2) to install the drive coupler cover (3). Install the six upper bolts (4). Tighten all the bolts to 33 lb-ft (45 N•m).

Install engine mounting bolts (7), rubber isolators, and lock nuts. Tighten bolts to 155 lb-ft (210 N•m).

STEP 3

NOTE: New bolts purchased from Mustang have locking compound already applied.
