Brake Pedal & Parking Brake

Check and Adjust Brake Pedal Free Play

Measure free play of pedal stroke (A). Ensure free play is within specified limits. If free play is not within specified limits, adjust brake linkage by rotating telescopic link.

NOTE: Free play of brake pedal should be between 1.2 in (30mm) to 1.38 in (35mm).

Parking Brake Adjustment / Settings

If parking brake is not effective, adjust linkages to get desired adjustment for effective braking.

i)Remove RH side wheel assembly and support the tractor with suitable jack.

ii)Loosen the mounting hardwares to remove RH side extension plate to access the linkages.

iii)Loosen nuts (B) & (C).

iv)Push the outer cable left or right side to adjust the braking.

v)Tighten nuts (B) & (C) after adjustment.

vi)Recommended free play is 4 to 5 teeth.

Fuse Box

Fuse Box i)4-Way Fuse Box: ii)2-Way Fuse Box: iii)Fuse Box: iv)B-Post Fuse Box:

This tractor is equipped with 4 fuse boxes at different locations as mentioned below.

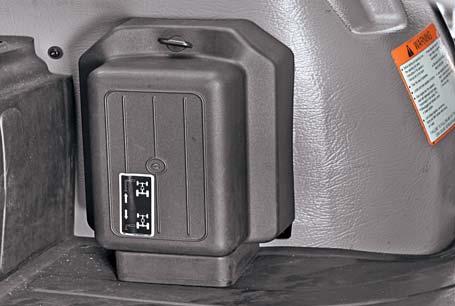

A 4-way fuse box is provided on the LH side of operator's seat, which can be accessed by opening the extension cover (A).

A 2-way fuse box is provided on the LH side of front console, which can be accessed by removing the cover (B).

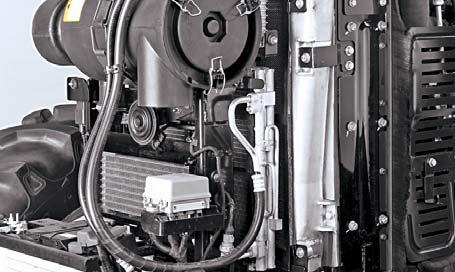

The fuse box is provided near the battery and transmission cooler, which can be accessed by opening the cover (C).

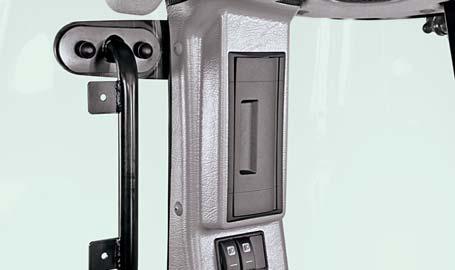

A B-post fuse box is provided on the RH side of cabin above the work light switches, which can be accessed by opening the cover (D).

Always replace fuse with correct rating. Failing to do will damage the wiring harness.

General

Mahindra recommendation of oil is based on the trials done under specific test conditions. Actual performance of oil may vary in extremely severe environment or operating condition. Hence, ensure oil change as recommended in normal condition and in extremely arduous conditions, it is necessary to reduce the change periods. It is detrimental to use a lubricant for more than the specified period.

Lubricant Storage

Oils used for the tractor should be protected from exposure to dust, water contamination and ensure used oil disposal as per environmental / regulatory requirements.

Alternate Lubricants

Conditions in certain locations may warrant usage of other lubricants then recommended in the manual. In such cases, the alternates may be used provided they meet the minimum performance levels specified.

Mixing of Lubricants

It is generally advised not to mix different brands or types of oil considering the compatibility issues.
