Air Conditioning System (Cabin)

Clean the Cab Air Filters

For servicing the cabin air filters, remove cabin air filters from left and right side. Clean it with compressed air directed from clean side.

Cabin air filters should be cleaned after every 250 hrs. or even earlier if required.

During every service the cabin air filters should be cleaned. Even after this if the filter is found choked or damaged, replace it with a new one. Do not use dirty or damaged filter as the impure air may severely reduce the cooling effect.

Adding Hydraulic and Transmission Oil

Change transmission case oil at every 1000 hrs. of operation. While changing the complete oil of transmission, make sure that the Oil level is filled upto upper mark on dipstick.

Check the level of oil in the Transmission & hydraulic reservoir as follows,

1.Keep the tractor on level ground.

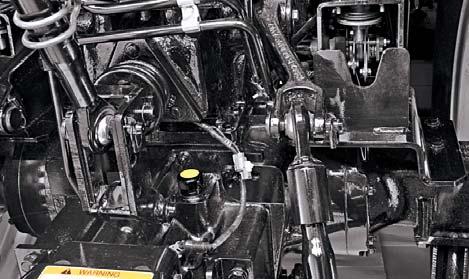

2.Clean the area around dipstick cum filler cap (A) before removing.

3.Unscrew and remove the dipstick cum filler cap (A).

4.Clean the dipstick cum filler cap (A) and refit it in the housing till it reaches its bottom be slight hand pressure.

5.Again unscrew the Dipstick cum filler cap and observe the level of oil on Dipstick of filler-level plug (A).

6.The oil level should be maintained between upper and lower mark on the Dipstick cum filler cap.

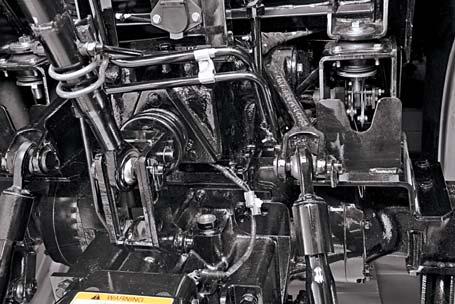

7.Add oil from port (B) of specified grade only whenever required.
