Hydraulics & Transmission
from Mahindra Tractor‘8000’ Series 8090 8100 4WD CABIN TIER-4 FINAL Operator's Manual - PDF DOWNLOAD

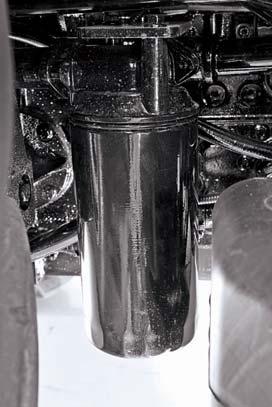

Hydraulic Suction Filter (A)
Change Hydraulic suction filter initially at 50 hrs. and subsequently at every 400 hrs. of operation. This Spin-on type filters is located behind the DEF Tank on RH side of tractor.
Remove old spin-on filters.
Prime the new spin-on filter with clean oil and fit them.
NOTE: The hydraulic suction filter though resembles with engine oil filter, it differs in construction and usage. Hence these are not interchangeable.

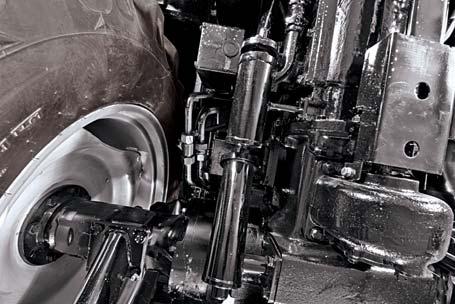

Hydraulic Strainer (B)
Clean the suction strainer during every oil change. The Suction strainer is located on RH Side of rear housing. For Service / Replacement of strainer, contact your Mahindra Dealer.
Transmission Strainer (C)
Clean the suction strainer during every oil change. The Suction strainer is located on RH Side of speed housing. For Service / Replacement of strainer, contact your Mahindra Dealer.

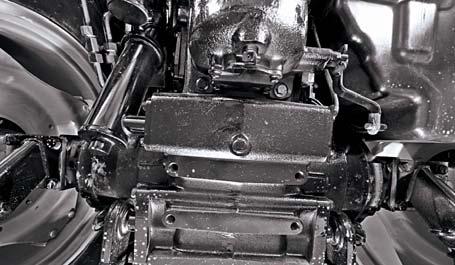

Transmission Oil Drain
Three drain plugs (D to F) are provided on the transmission for draining transmission oil. The drain plug (E) located on the dropbox is at the lowest position.
