20.AUXILIARY VALVE - SINGLE SPOOL
Auxiliary valve is standard fitment on 5035 and optional fitment on 4535, 4035 & 3535 Tractors. Removal of Single Spool Auxiliary Valve and Pipings
1.Remove right hand side rear wheel assembly.
2.Position rail and jack beneath RH side of the rear axle and jack up the tractor.

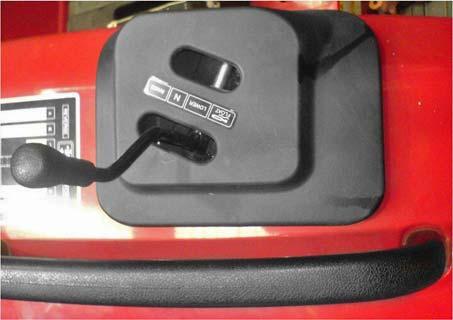

3.Remove auxiliary valve knob (A) and then remove auxiliary valve cover (B).

4.Disconnect aux valve inner cable (C) from lever assembly by removing pin (D), cotter pin (E) and washer (F).

5.Loosen the small nut (G) behind the clevis (H) and take out clevis from inner cable. Preserve the clevis safely.

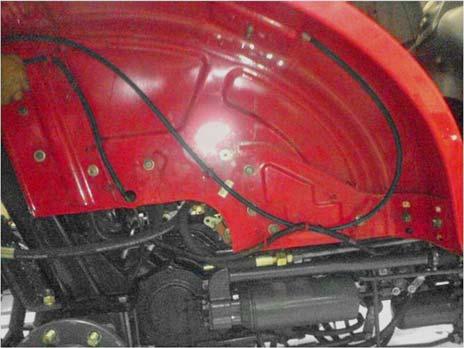

6.Loosen nuts (I) on cable outer and remove cable assembly from bracket auxiliary valve lever mounting (J) and remove cable out of fender assembly.
7.Free the cable assembly (K) from fender guide clip.
