Removal & Refitment of Hydraulic & Transmission Suction Oil Filter

Hydraulic and Transmission Suction Oil Filter

Change Hydraulics and Transmission oil filter (A) initially at 50 hrs. and subsequently at every 400 hrs. of operation.

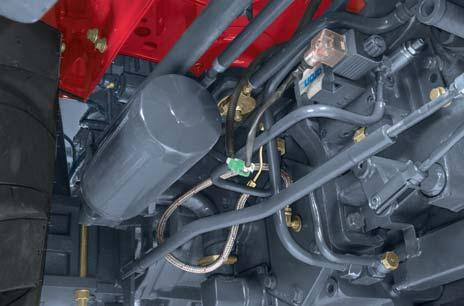

These Spin-on type filters are located behind on RH side of the tractor. Remove old spin-on filters. Prime the new spin-on filter with clean oil, and fit them.

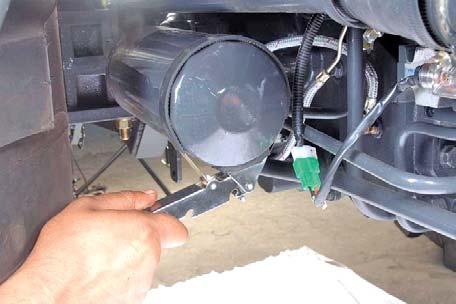

Place a tray under filter to collect the oil. Remove this filter by using adjustable belts strap.

Hydraulic and Transmission Strainer

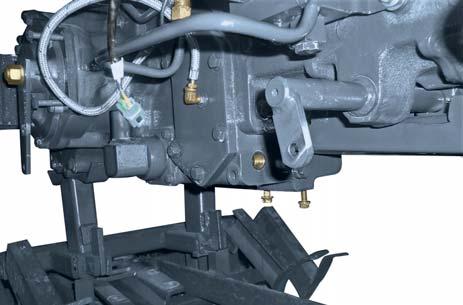

Clean suction strainer during every oil change. The suction strainer (B) is located on RH side of rear housing and can be removed as follows:

1.Remove suction filter of Hydraulic & Transmission.

2.Remove the Cover Plate (B) by unscrewing four bolts.

3.Pull the suction strainer out from housing.

4.Clean the strainer in clean diesel fuel, using a soft brush, then blow dry with compressed air.

5.Refit the strainer.

6.Refit the cover plate and suction filter.

For Service/Replacement of strainer contact your Mahindra Dealer.
