Removal & Refitment of Flooring and Linkages

Removal Of Flooring And Linkages

1.First remove the battery cable from its negative terminal & then remove battery cable from positive terminal.

2.Support the tractor by using tractor splitting rail – jack.

3.Remove the rear LH and RH wheels.

4.Disconnect the LH, RH fender wiring harness to P & T Lamp, Plow Lamp and remove the wiring harness from fender clamps.

5.Dismantle the ROPS fender connecting bracket.

6.Remove LH and RH fenders.

7.Remove seat from mounting channels.

8.Remove LH & RH mounting channels.

9.Remove the PC, DC, Range, Speed Lever & Slow Fast Valve Knobs.

10.Remove the differential lock foot pedal.

11.Dismantle the instrument cluster, Steering wheel, scuttle & steering column covers.

12.Disconnect the front / rear wiring harness from the central wiring harness and remove the wiring harness from the firewall clamps.

13.Disconnect the power steering hoses of HSU to steering cylinder, HSU to PTO Control Valve and Pump to HSU.

14.Disconnect the clutch and brake linkages & remove it.

15.Disconnect the Forward / Reverse, Hand & Foot Accelerator cables.

16.Remove foot accelerator pedal.

17.Dismantle the fire-wall assembly.

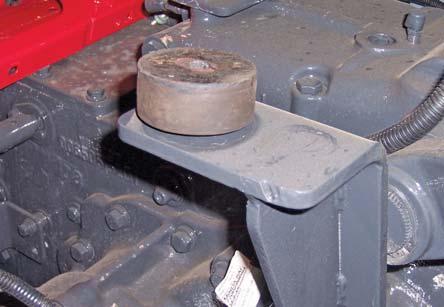

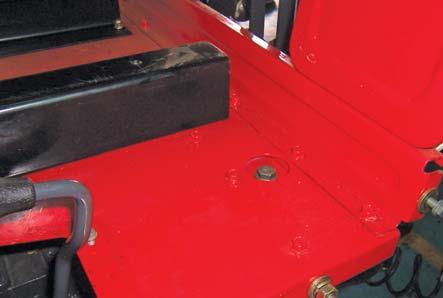

18.Remove the front and rear platform isolator mounting bolts (A) and take out isolator (B).

19.Remove the front and rear platform.

1.Reassemble the removed components in the reverse sequence of removal.

Ensure that the connectors are connected properly and in correct positions. Finally connect the battery positive cable.
