Removal & Refitment of Instrument Cluster, Scuttle & Steering Column Cover

REMOVAL OF INSTRUMENT CLUSTER & SCUTTLE COVER

1.First remove the battery cable from its negative terminal & then remove battery cable from positive terminal.

2.Remove screws (A) of Instrument cluster & separate the cluster (B) by disconnecting the wiring harness.

3.Open the steering wheel cap (C). Remove the Steering Wheel Nut (D) and take out the Steering wheel (E) with the help of puller.

4.Loosen the steering column cover bolts (F).

5.Disconnect the wiring harness to PTO engaging switch.

6.Take out the top & bottom steering column covers.

7.Disconnect wiring harness to switches in the scuttle.

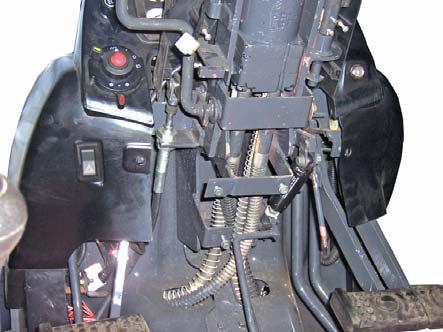

8.Loosen the scuttle bolts and take out the scuttle.

1.Refit the removed components in the reverse sequence of removal.

2.Ensure that the connectors are connected properly and in correct positions. Finally connect the battery positive cable.
