Co-Pilot Operator ’ s Manual

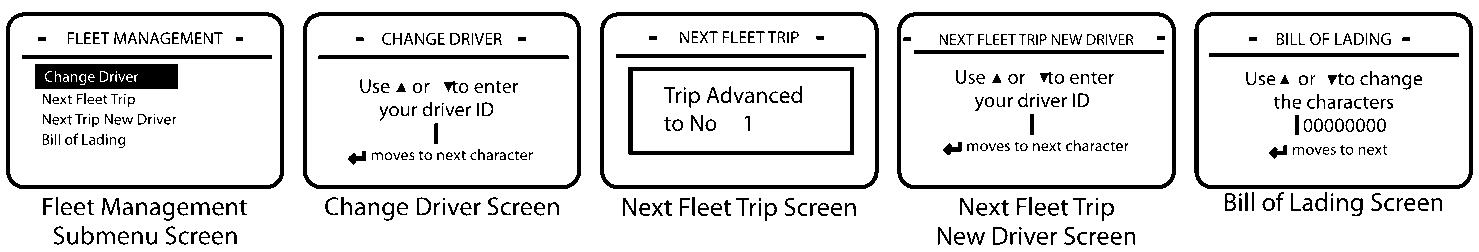

The FLEET MANAGEMENT submenu screen contains the following main screens:

• Change Driver Allows the user change There are three ways change driver entries:

1 Enter driver using the stalk switch & Down button type the driver identification number .

2 Pick from the list using the stalk switch & Down

3 Enter the theft using the stalk switch & Down button.

• Next Fleet T rip Allows the user advance the next fleet

• Next Fleet T rip New Driver Allows the user advance the next trip and new driver .

• Bill Lading Allows the driver enter the Bill Lading number . C0035398

Diagnostics

The Diagnostics submenu screen accessed from the s t a t i o n a r y MAIN MENU 2 (see). T o view the screens the DIAGNOSTICS highlight with the stalk switch & Down button and then press the Enter ( ↵ ↵ ↵ ) button select the screen.

The DIAGNOSTICS submenu screen contains the following main screens:

• Electr onic Faults Allows the user view active and inactive diagnostic trouble codes (DTCs) well clear inactive DTCs according the controlling ECU and other DTC

• Cluster Diagnostics Allows the user test bulbs, pointers gauges, graphics and alarms associated with the cluster .

• Hardwar e/Softwar e Part

Numbers Allows the user view the hardware and software part numbers the engine control module anti - lock braking system (ABS) electronic control unit instrument cluster and vehicle
