V -MAC Co-Pilot Operator ’ s Manual

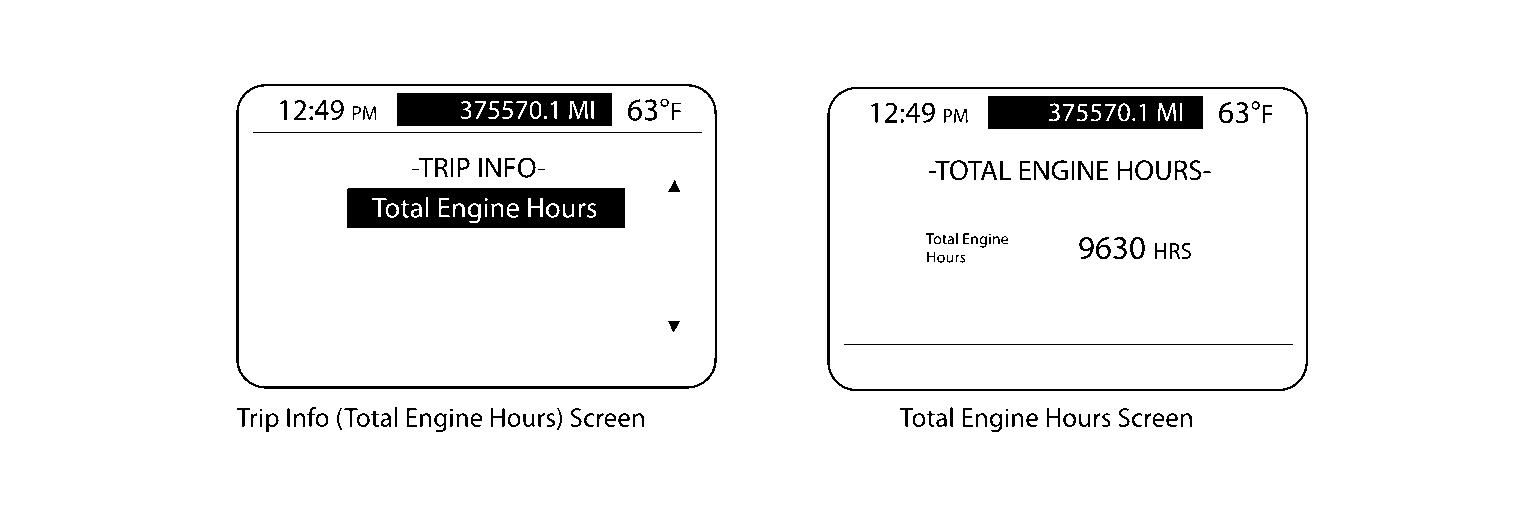

The following table displays the available LOV trip information.

Gauges

The GAUGES submenu selected from the m o v i n g MAIN MENU screen (see) from the s t a t i o n a r y MAIN MENU 1 screen (see) provides the speedometer value and sensor T o view the screens the Gauges highlight with the stalk switch & Down button and then press the Enter ( ↵ ↵ ↵ ) button select the

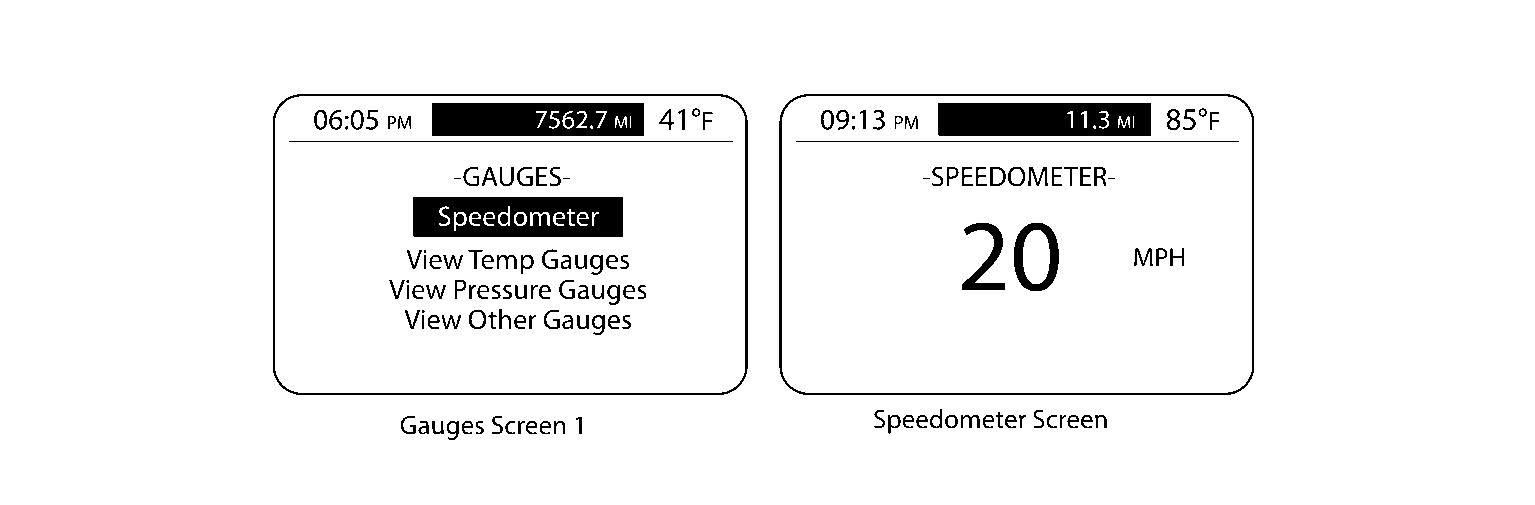

The GAUGES submenu screen contains the following screens: W3036622 e V iew Gauges Scr eens

• Speedometer Allows the user view the current speedometer

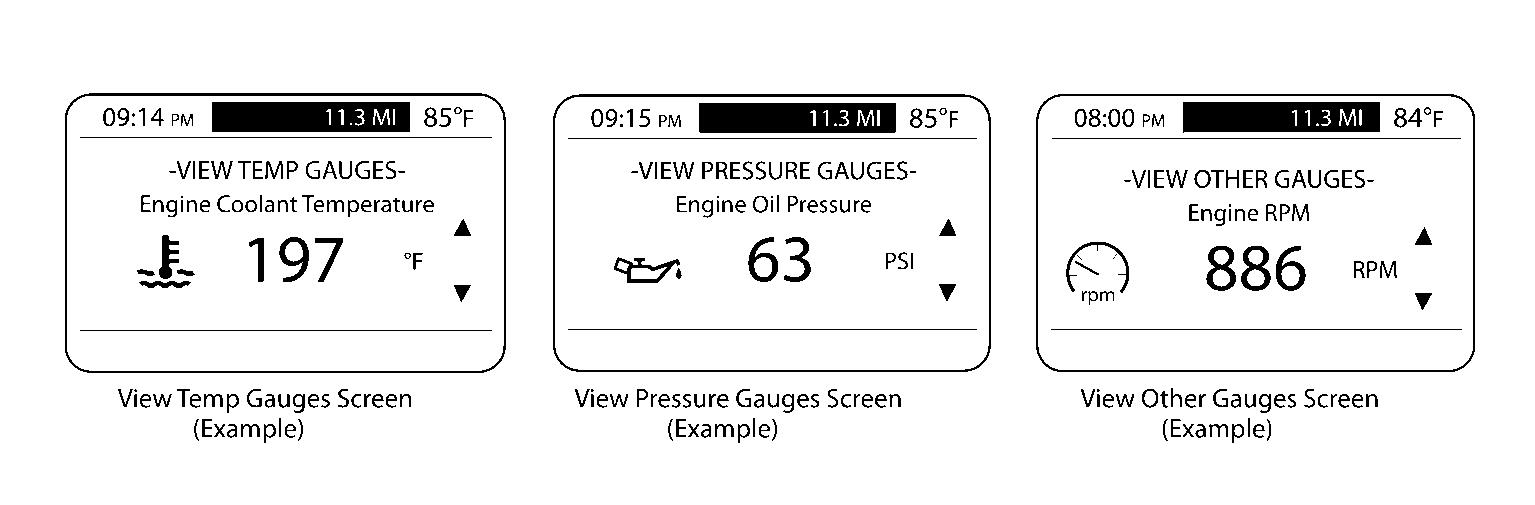

• V iew T emp Gauges Displays engine coolant temperature (ECT), engine oil temperature (EOT), engine exhaust gas temperature (EGT), transmission oil temperature, rear front axle temperature, and rear axle temperature sensor information.

• V iew essur e Gauges Displays engine oil pressure intake manifold pressure and air suspension pressure sensor

• V iew Other Gauges Displays engine RPM, engine load percent and throttle position percent sensor information.

Note: Sensors that are not standard and have not been ordered will not appear the screens.

Black Panel

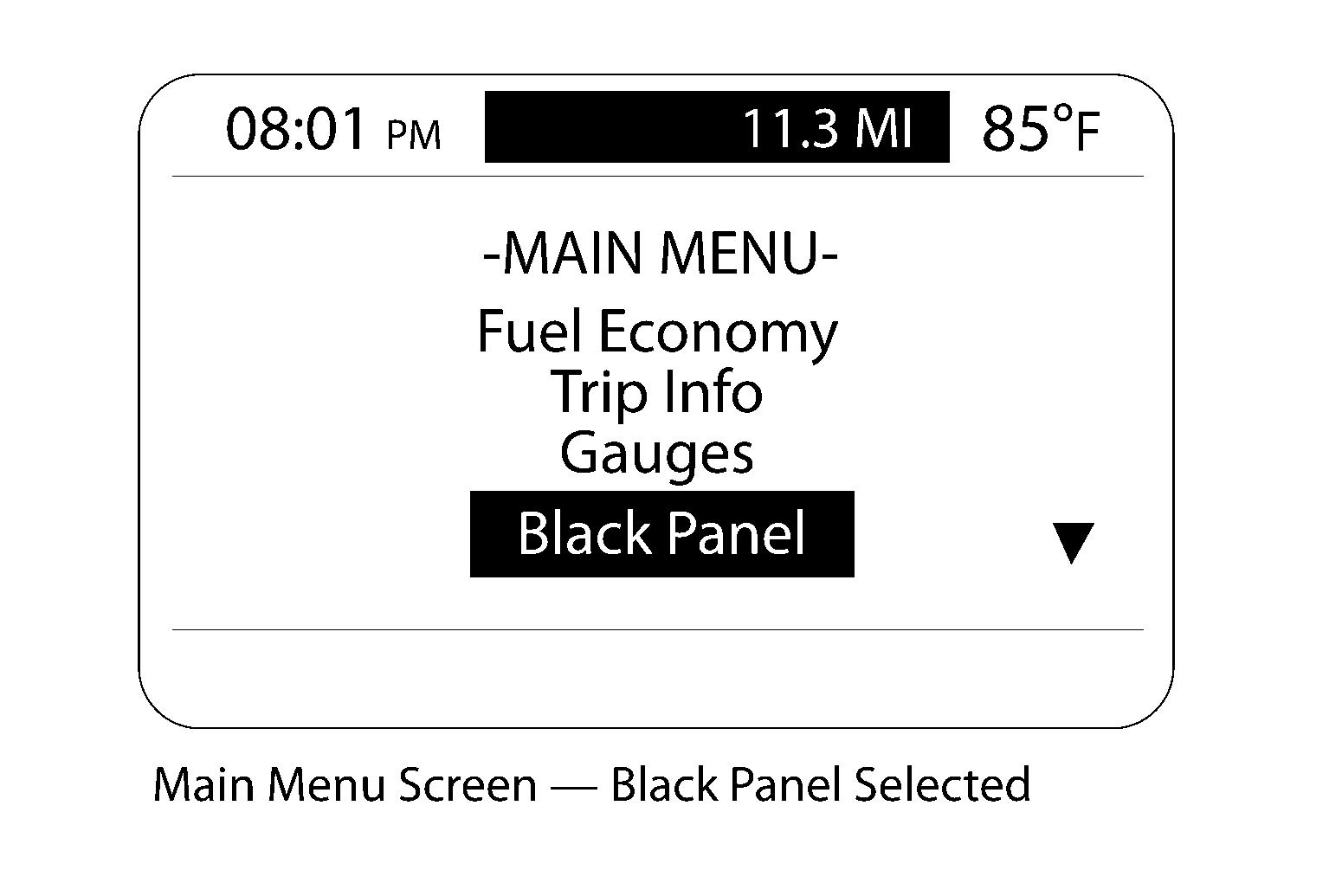

• The BLACK P ANEL screen used black out the - Pilot® display . Highlight from the m o v i n g MAIN MENU screen s t a t i o n a r y MAIN MENU 1 and then press the stalk switch Enter ( ↵ ↵ ↵ ) button select

• T o restore the - Pilot® display , press the Enter ( ↵ ↵ ↵ ) button
