Instrument Cluster Components
from Mack Truck Electronic V-MAC IV Vehicle Management & Control with Co-Pilot Display Operator’s Manual
The dash cluster consists the following eight major components: function light electronic malfunction indicator , engine shutdown indicator , driver information display , low fuel indicator , gauges, speedometer and tachometer , board diagnostic (OBD) fault and warning Although not a part the dash cluster but nevertheless part the dash cluster the stalk switch (for - Pilot® only) located the right side the steering

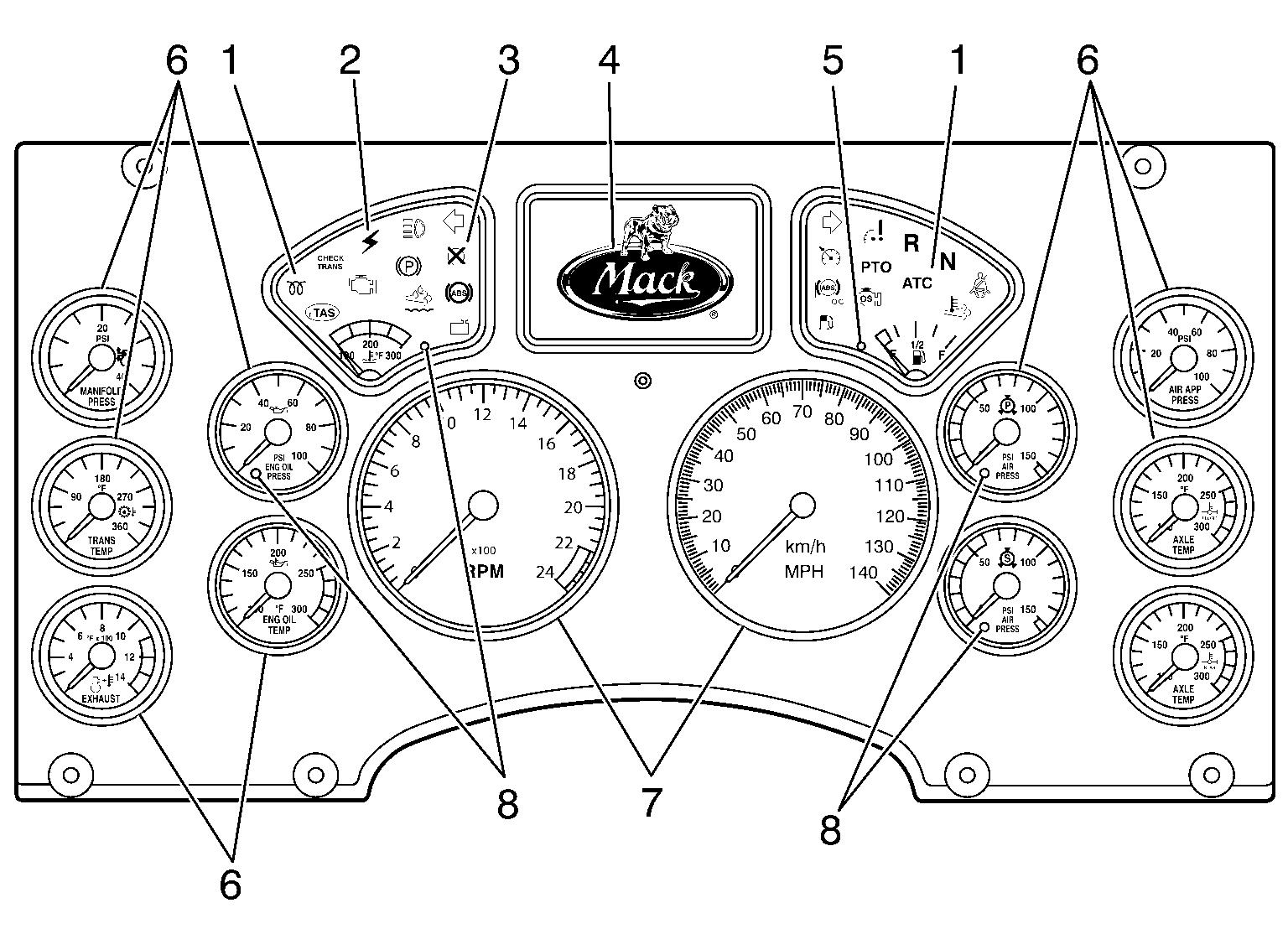

The following illustration shows the instrument cluster display (Co - Pilot®
Function Light Indicators
Electronic Malfunction Indicator
Engine Shutdown Indicator
Driver Information Display
W3036320
Instrument Cluster Components
Low Fuel Indicator
Gauges
Speedometer and T achometer
W arning Indicators

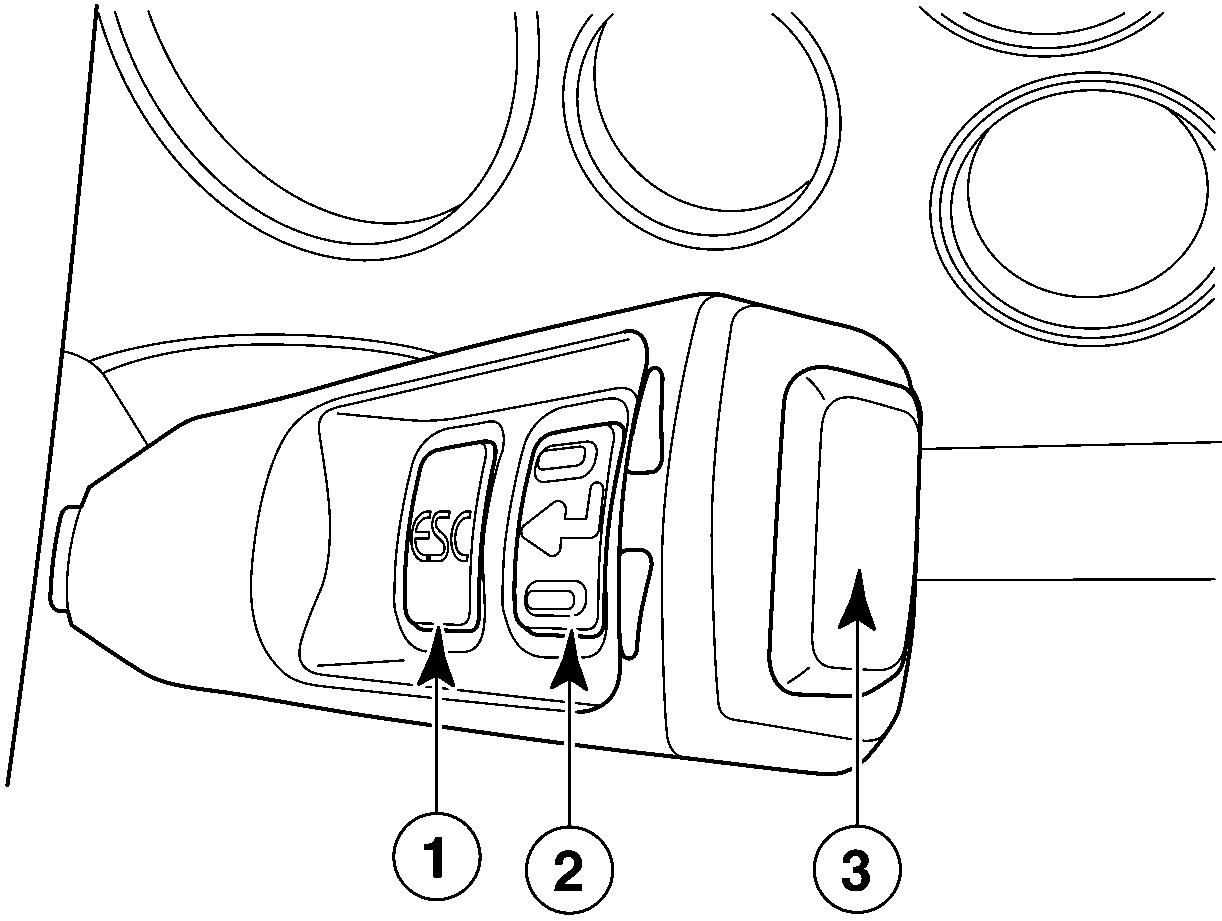

The following illustration shows the stalk
C0035377
Instrument Cluster Components
The stalk switch (for - Pilot® display only) located the right side the steering column and contains three depressible buttons: ESC , Enter ( ↵ ↵ ↵ ) and & Down . The stalk switch used access, navigate, view and change information available the driver information display (Co - Pilot® display).
